Square D

QO250VH - Mini circuit breaker, QO, 50A, 2 pole, 120/240VAC, 22kA, plug in

Category Miscellaneous

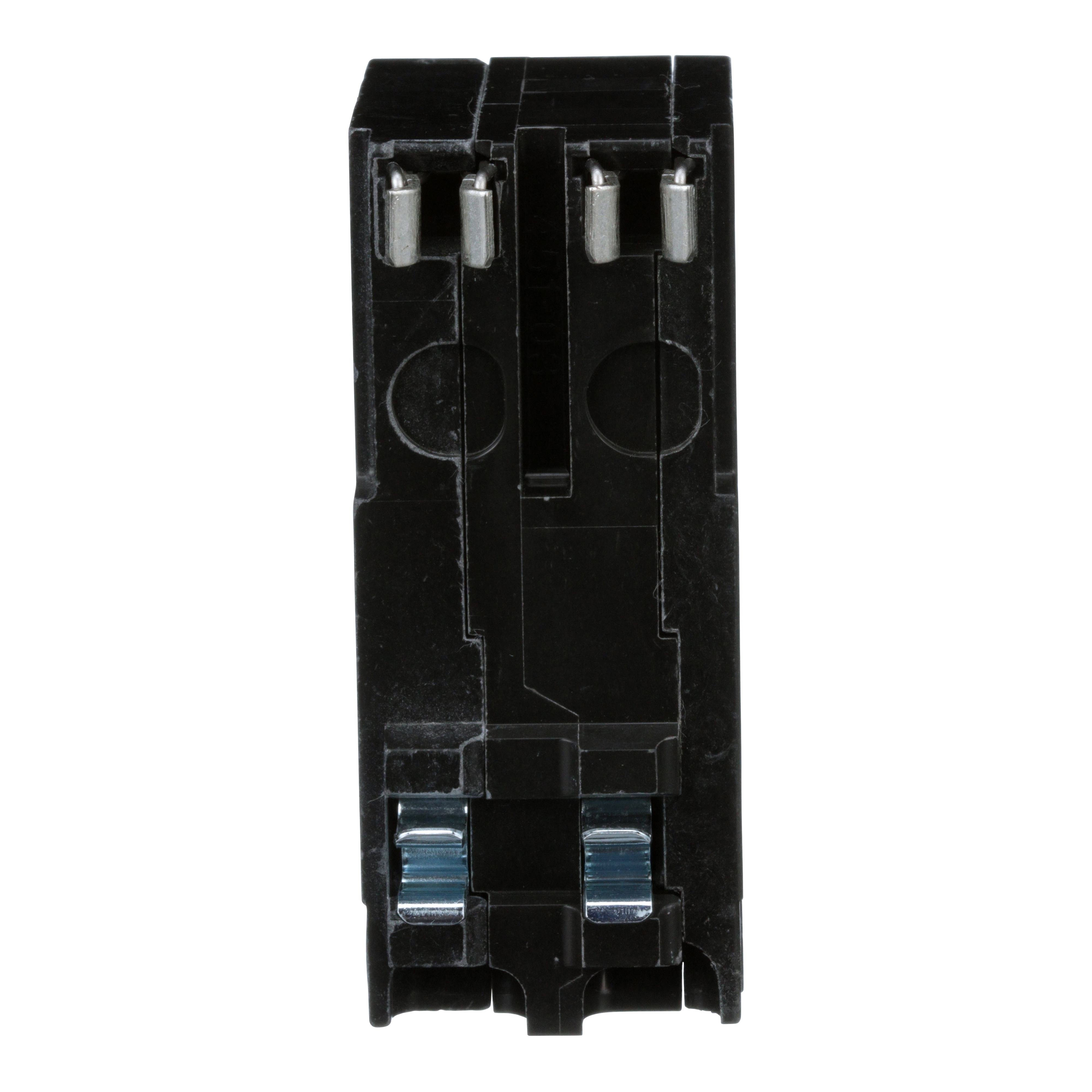

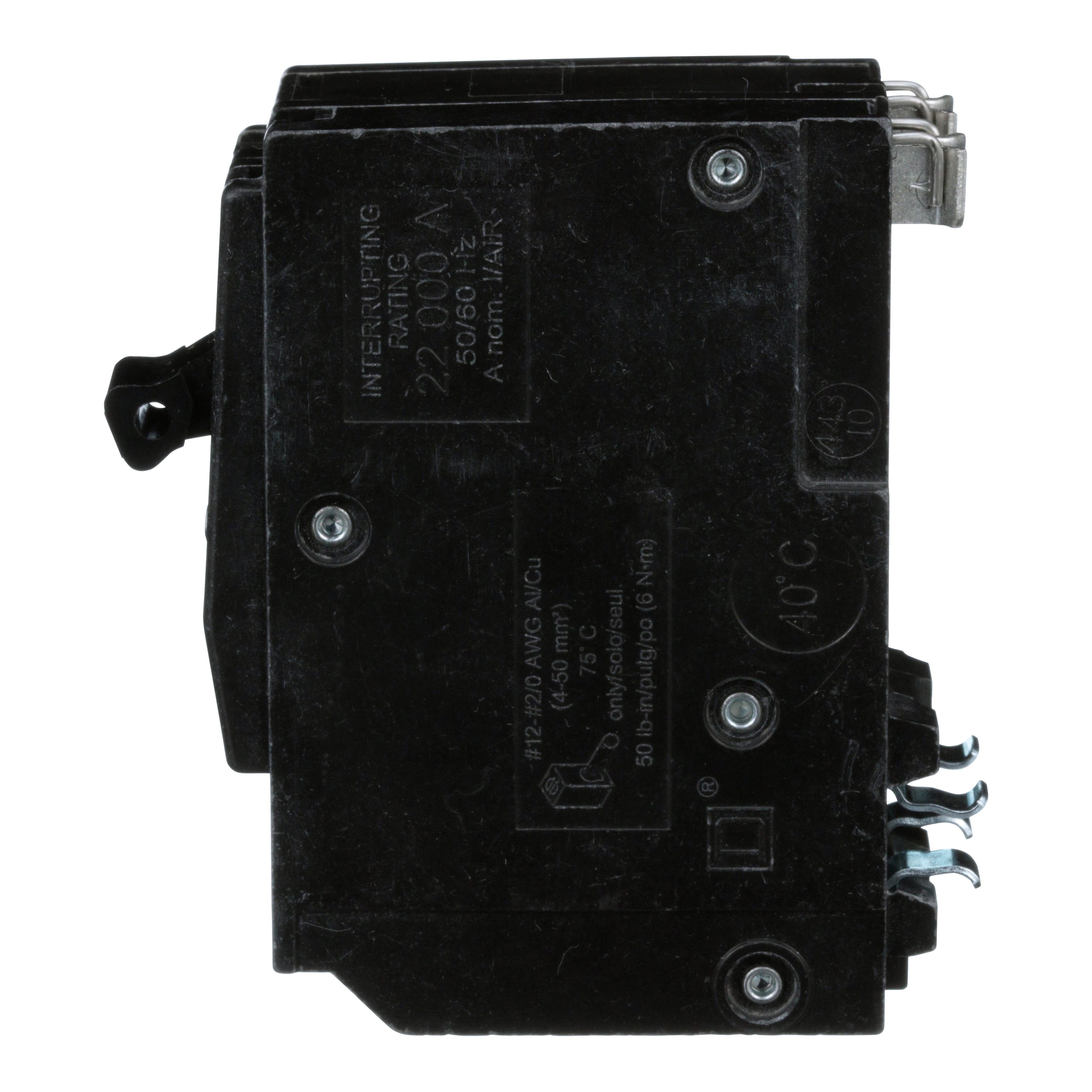

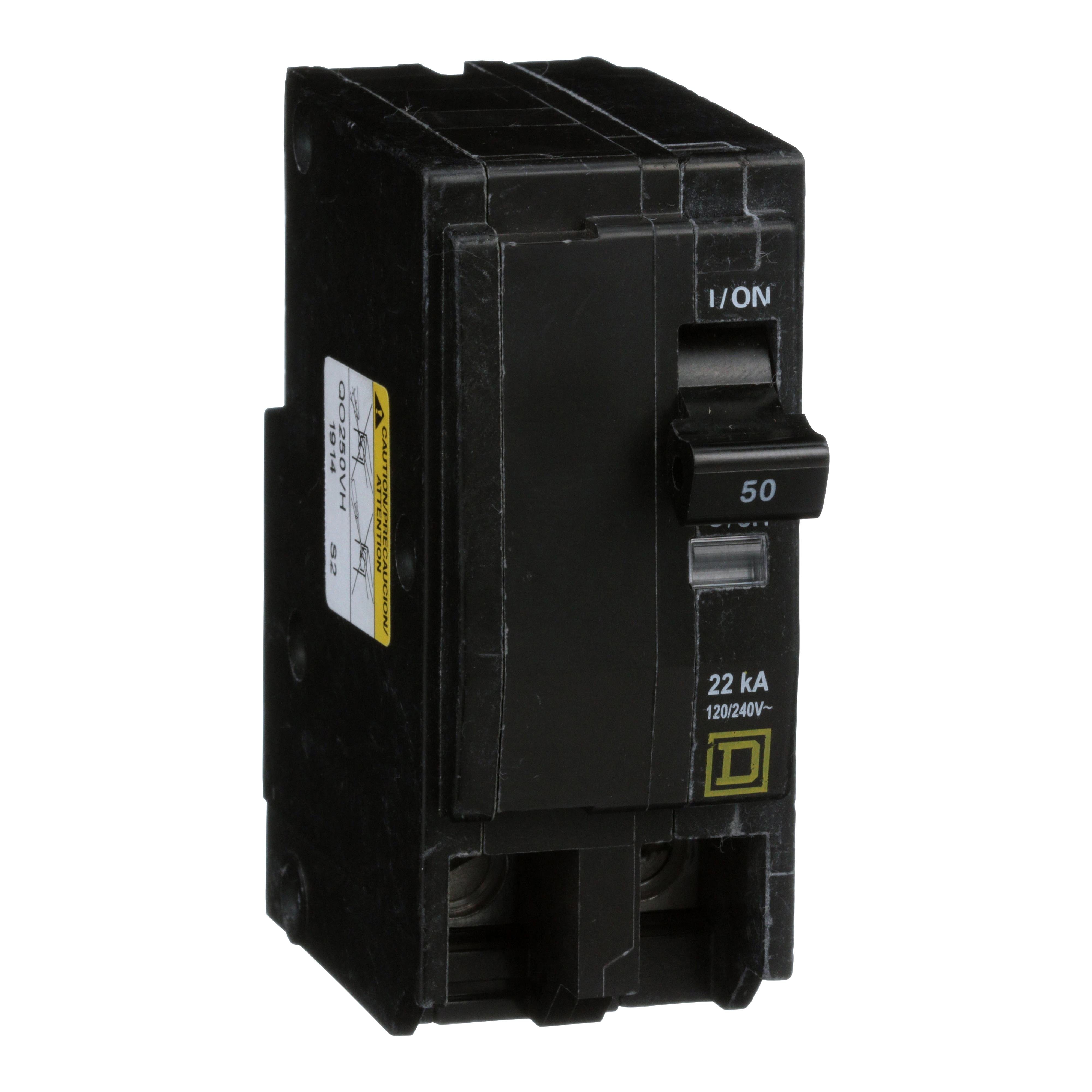

Picture of QO250VH - Mini circuit breaker, QO, 50A, 2 pole, 120/240VAC, 22kA, plug in Picture of QO250VH - Mini circuit breaker, QO, 50A, 2 pole, 120/240VAC, 22kA, plug in
Picture of QO250VH - Mini circuit breaker, QO, 50A, 2 pole, 120/240VAC, 22kA, plug in Picture of QO250VH - Mini circuit breaker, QO, 50A, 2 pole, 120/240VAC, 22kA, plug in
Picture of QO250VH - Mini circuit breaker, QO, 50A, 2 pole, 120/240VAC, 22kA, plug in Picture of QO250VH - Mini circuit breaker, QO, 50A, 2 pole, 120/240VAC, 22kA, plug in
Picture of QO250VH - Mini circuit breaker, QO, 50A, 2 pole, 120/240VAC, 22kA, plug in Picture of QO250VH - Mini circuit breaker, QO, 50A, 2 pole, 120/240VAC, 22kA, plug in
Picture of QO250VH - Mini circuit breaker, QO, 50A, 2 pole, 120/240VAC, 22kA, plug in Picture of QO250VH - Mini circuit breaker, QO, 50A, 2 pole, 120/240VAC, 22kA, plug in
Square D

QO250VH - Mini circuit breaker, QO, 50A, 2 pole, 120/240VAC, 22kA, plug in

Item Code: 33303
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QO250VH

Document
Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 50A at 120/240VAC. This unit provides 22kA breaking capacity and plug in mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.

Specifications

Weight

0.7

Width

3.37

Length

1.58

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/QO250VH/QO250VH.spin

AD All Features

Reliable and durable

AD Alternative Part Number

7996132

AD Application

Residential, Light Commercial, Industrial Circuit Protection, High Interruption Rating Capabilities, Overcurrent Protection, Short Circuit Protection, Parallel and Series Arc Fault/Ground Fault Protection Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD Document Caption 5

Technical Bulletin

AD EAN

0785901054962

AD Gtin

00785901054962

AD IDEA Index ID

7996132

AD Invoice Description

BREAKER CKT MINTR 120/240VAC 50A 50/60HZ

AD Item Features 01

Reliable and durable

AD Item Features 02

Plug-on neutral design and shorter footprint for faster installs

AD Item Features 03

Simple design and clear instructions for quick setup

AD Item Features 04

Time-saving diagnostics with touch of a button

AD Keywords

QO QO250VH Type QO-VH Standard Miniature Circuit Breaker, 120/240 V AC, 50 A, 22 kA Interrupt, 2 Poles, Thermal Magnetic Trip ; Schneider Electric ; Square D ; QO250VH ; QO250VH ; 785901054962 ; Miniature Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

1.5800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.7000

AD Package Weight UOM

LB

AD Package Width

3.3700

AD Package Width UOM

IN

AD Part Number Keywords

QO250VH ; 7996132 ; 785901054962 ; 78590105496 ; 00785901054962 ; 0785901054962

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

50

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg C

Spec 10 Attribute Value

40

Spec 11 Attribute

Trip Type

Spec 11 Attribute Value

Thermal Magnetic

Spec 12 Attribute

Type

Spec 12 Attribute Value

Type QO-VH Standard

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

120/240

Spec 14 Attribute

Wire Size

Spec 14 Attribute UOM

AWG

Spec 14 Attribute Value

8 to 2

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Box Lug

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

2.91 in L x 1.5 in W x 3.12 in H

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

50/60

Spec 5 Attribute

Interrupt Rating

Spec 5 Attribute UOM

KA

Spec 5 Attribute Value

22

Spec 6 Attribute

Material

Spec 6 Attribute Value

Fiberglass Filled Thermoset

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Plug-In

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

2

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

1
