Square D

QO2L70S - Load center, QO, 1 phase, 2 spaces, 2 circuits, 70A fixed main lugs, NEMA1, surface cover

Category Miscellaneous

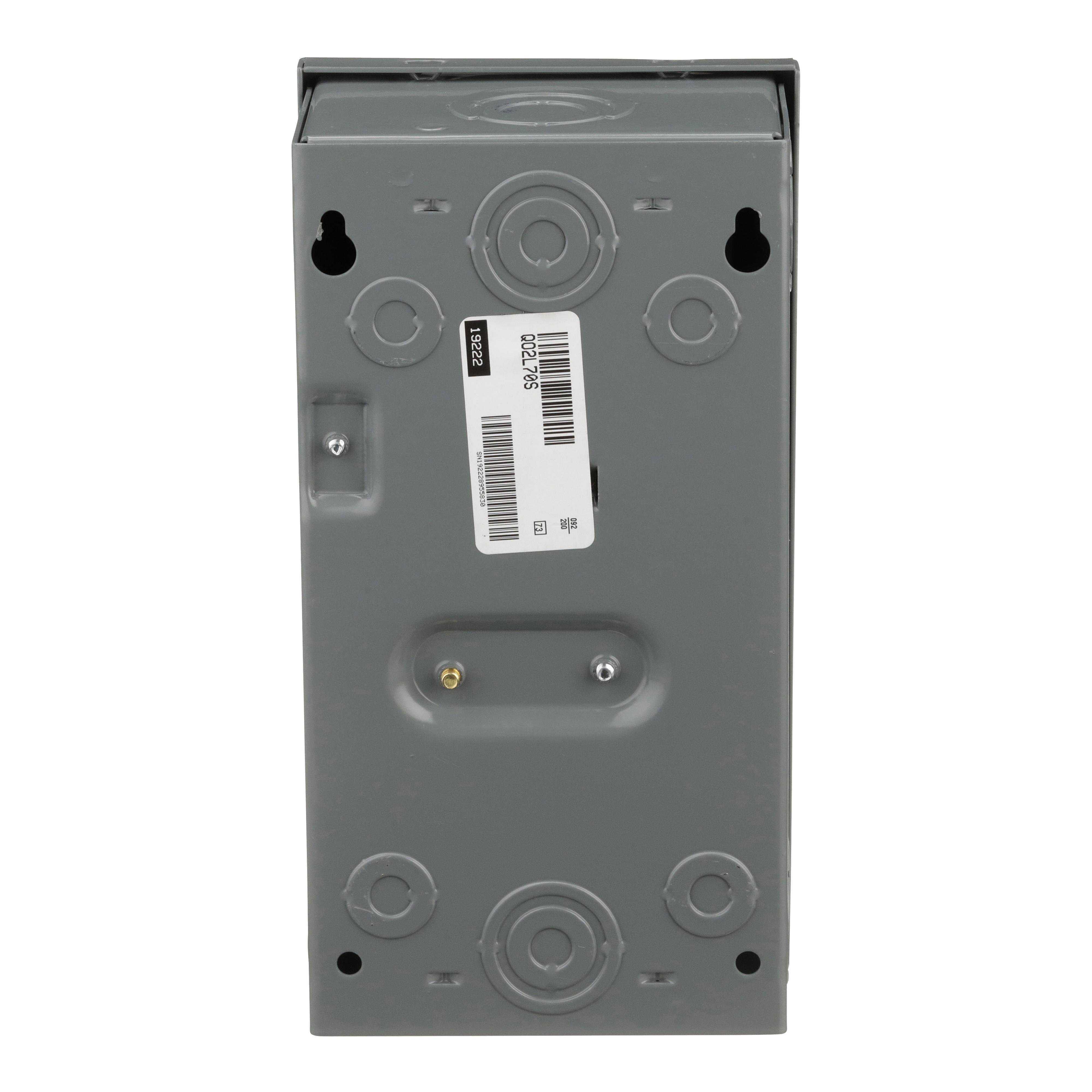

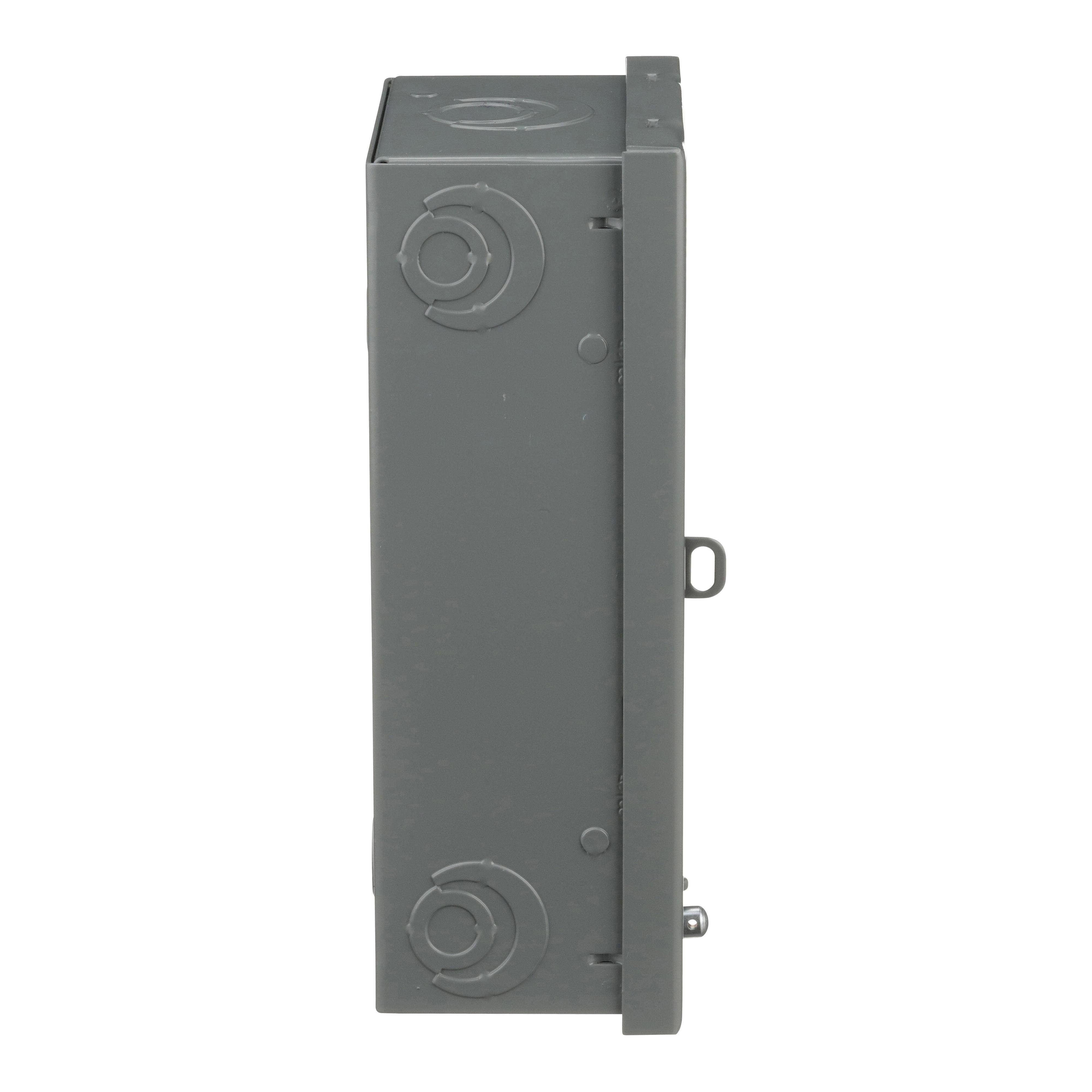

Picture of QO2L70S - Load center, QO, 1 phase, 2 spaces, 2 circuits, 70A fixed main lugs, NEMA1, surface cover Picture of QO2L70S - Load center, QO, 1 phase, 2 spaces, 2 circuits, 70A fixed main lugs, NEMA1, surface cover
Picture of QO2L70S - Load center, QO, 1 phase, 2 spaces, 2 circuits, 70A fixed main lugs, NEMA1, surface cover Picture of QO2L70S - Load center, QO, 1 phase, 2 spaces, 2 circuits, 70A fixed main lugs, NEMA1, surface cover
Picture of QO2L70S - Load center, QO, 1 phase, 2 spaces, 2 circuits, 70A fixed main lugs, NEMA1, surface cover Picture of QO2L70S - Load center, QO, 1 phase, 2 spaces, 2 circuits, 70A fixed main lugs, NEMA1, surface cover
Square D

QO2L70S - Load center, QO, 1 phase, 2 spaces, 2 circuits, 70A fixed main lugs, NEMA1, surface cover

Item Code: 55470
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QO2L70S

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 2 spaces and 2 circuits. This system provides 70A fixed main lugs in a NEMA 1 enclosure. It also includes a surface cover, and is UL rated. The load center is CSA certified.

Specifications

Weight

3.7

Width

5.35

Length

10.1

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/QO2L70S/QO2L70S.spin

AD All Features

Provides superior performance and durability

AD Alternative Part Number

8134382

AD Application

For residential, commercial and industrial requirements to protect electrical systems, equipment and people

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Warranty Information

AD Document Caption 3

Specification Sheet

AD Document Caption 4

Owners/User Manual

AD EAN

0785901707738

AD Gtin

00785901707738

AD IDEA Index ID

8134382

AD Includes

Surface Cover

AD Invoice Description

CENTER LOAD LUG MAIN 120/240VAC 70A

AD Item Features 01

Provides superior performance and durability

AD Item Features 02

Straight in wiring saves wire, labor, and time

AD Item Features 03

Faster installation using PoN breakers that connect directly

AD Item Features 04

50% more terminations for clutter-free wiring

AD Keywords

QO2L70S 1-Phase Fixed Main Lug Load Center, 120/240 V AC, 70 A, 1 Poles, 10 kA Interrupt ; Square D ; QO2L70S ; 8134382 ; 785901707738 ; Single Phase Main Lug Load Centers

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

10.1000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

3.7000

AD Package Weight UOM

LB

AD Package Width

5.3500

AD Package Width UOM

IN

AD Part Number Keywords

QO2L70S ; 8134382 ; 785901707738 ; 78590170773 ; 00785901707738 ; 0785901707738

AD Video Links

https://youtu.be/7miLIVFYBgA

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

70

Spec 10 Attribute

Number of Circuits

Spec 10 Attribute Value

2

Spec 11 Attribute

Number Of Poles

Spec 11 Attribute Value

1

Spec 12 Attribute

Number of Spaces

Spec 12 Attribute Value

2

Spec 13 Attribute

Type

Spec 13 Attribute Value

1-Phase Fixed

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

120/240

Spec 15 Attribute

Wire Size

Spec 15 Attribute UOM

AWG

Spec 15 Attribute Value

14 to 3

Spec 16 Attribute

Wiring Configuration

Spec 16 Attribute Value

3-Wire

Spec 2 Attribute

BREAKER MOUNTING

Spec 2 Attribute Value

Panel

Spec 3 Attribute

Breaker Type

Spec 3 Attribute Value

QO

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

9.3 in H x 4.81 in W x 3.19 in D

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 1

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Housing Material

Spec 7 Attribute Value

Steel

Spec 8 Attribute

Interrupt Rating

Spec 8 Attribute UOM

KA

Spec 8 Attribute Value

10

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Surface
