Square D™

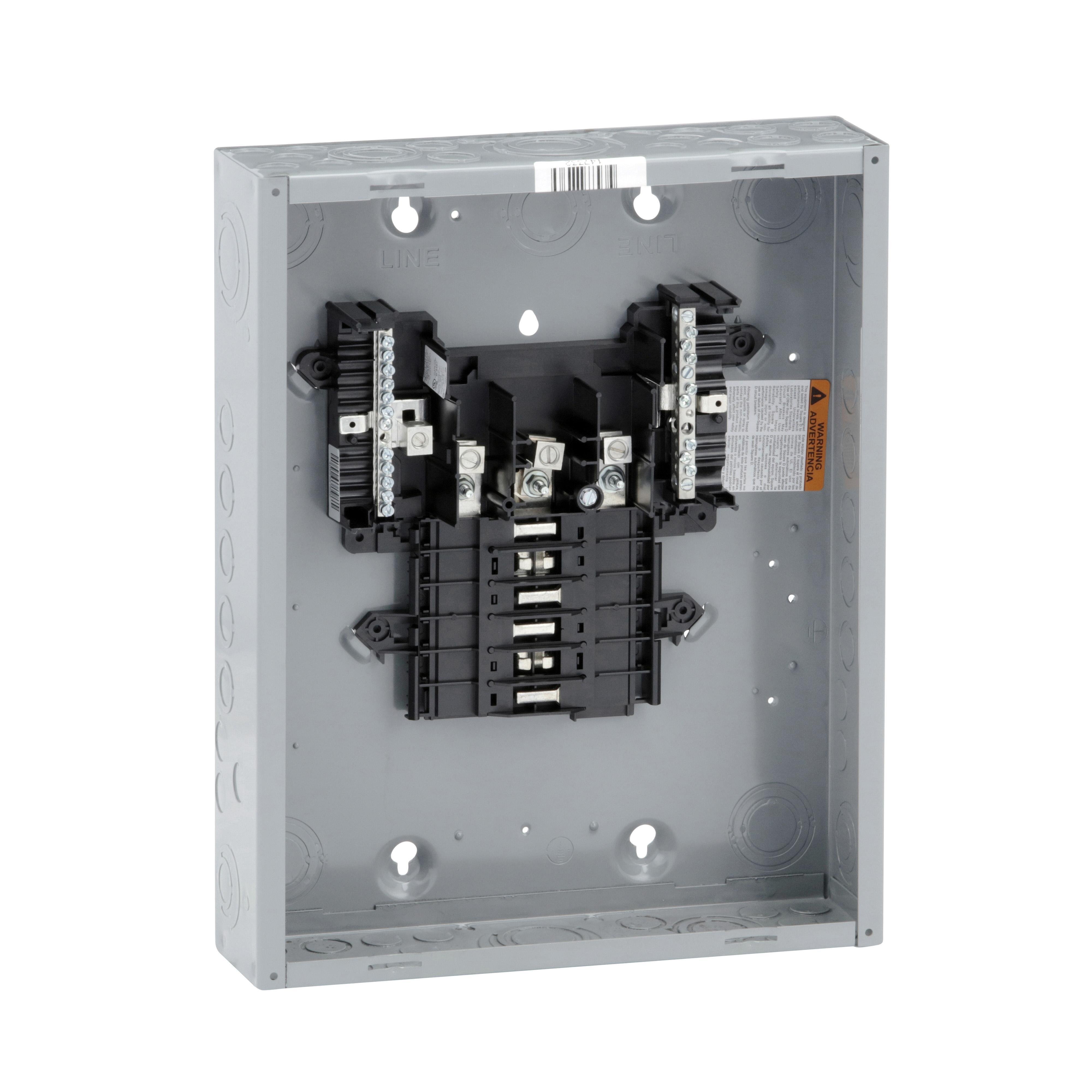

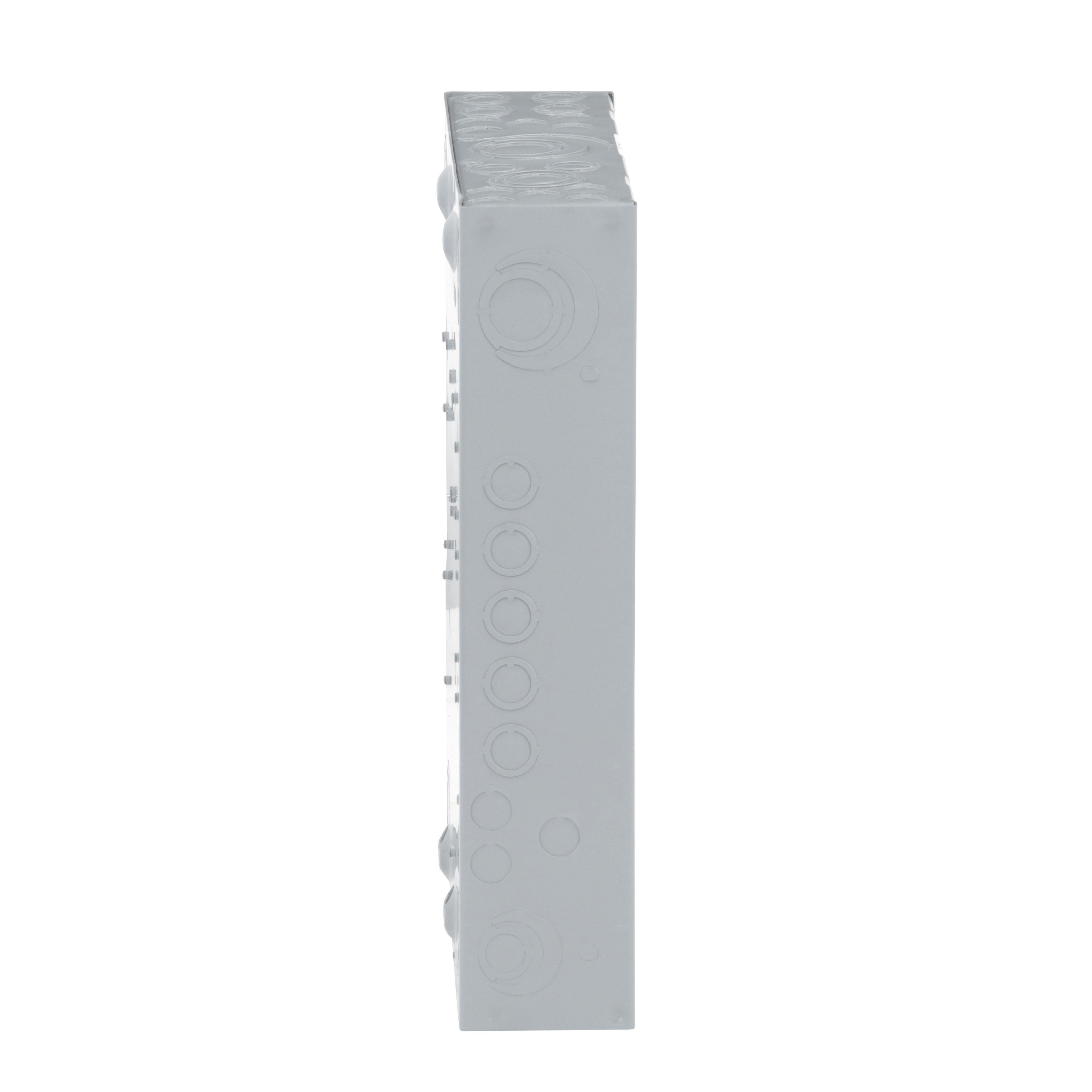

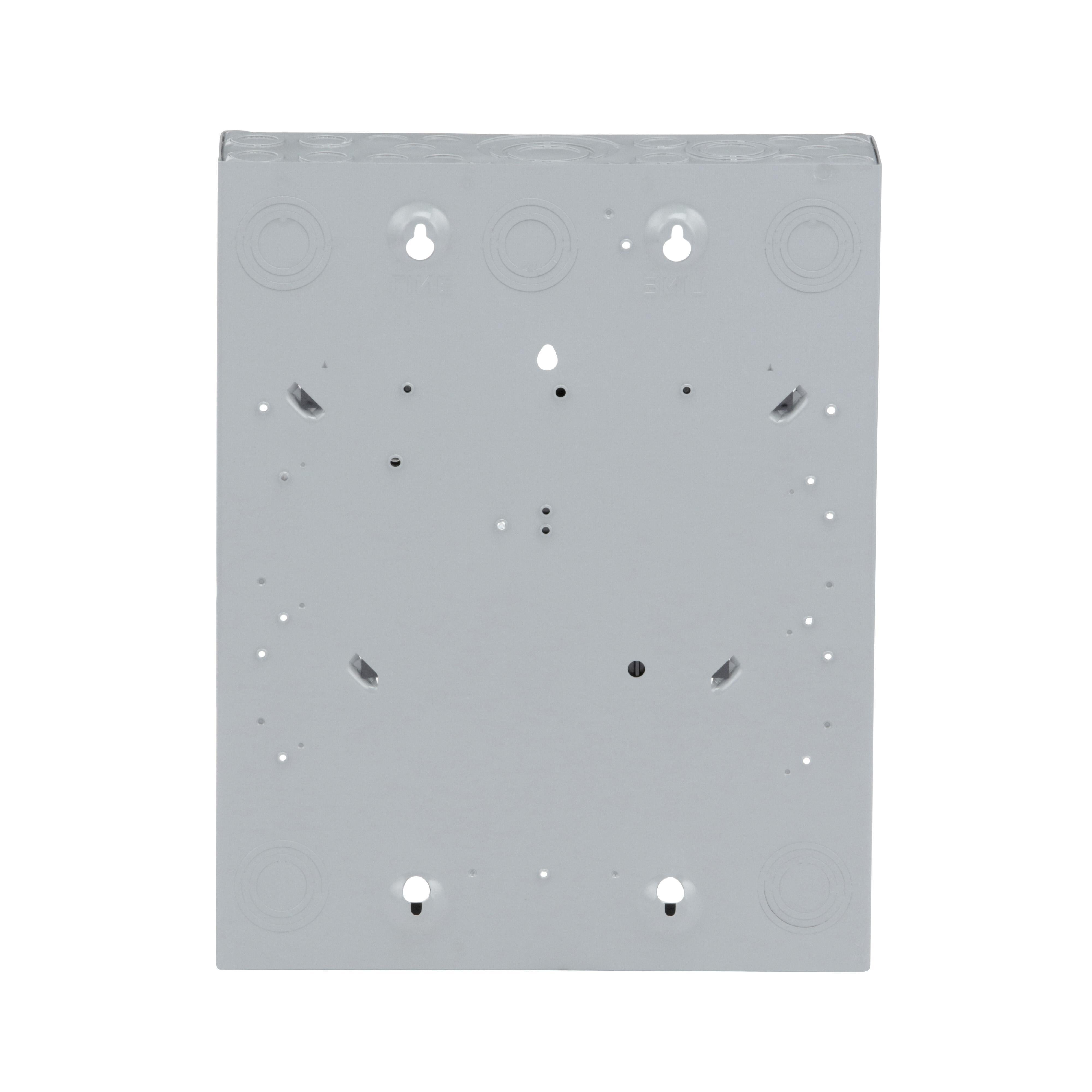

QO312L125G - Load center, QO, 3 phase, 12 spaces, 12 circuits, 125A fixed main lugs, NEMA1, gnd bar, UL

Category Load Centers & Accessories
Picture of QO312L125G - Load center, QO, 3 phase, 12 spaces, 12 circuits, 125A fixed main lugs, NEMA1, gnd bar, UL Picture of QO312L125G - Load center, QO, 3 phase, 12 spaces, 12 circuits, 125A fixed main lugs, NEMA1, gnd bar, UL
Picture of QO312L125G - Load center, QO, 3 phase, 12 spaces, 12 circuits, 125A fixed main lugs, NEMA1, gnd bar, UL Picture of QO312L125G - Load center, QO, 3 phase, 12 spaces, 12 circuits, 125A fixed main lugs, NEMA1, gnd bar, UL
Picture of QO312L125G - Load center, QO, 3 phase, 12 spaces, 12 circuits, 125A fixed main lugs, NEMA1, gnd bar, UL Picture of QO312L125G - Load center, QO, 3 phase, 12 spaces, 12 circuits, 125A fixed main lugs, NEMA1, gnd bar, UL
Square D™

QO312L125G - Load center, QO, 3 phase, 12 spaces, 12 circuits, 125A fixed main lugs, NEMA1, gnd bar, UL

Item Code: 18597
Category Load Centers & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QO312L125G

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 12 spaces and 12 circuits. This system provides 125A fixed main lugs in a NEMA 1 enclosure. It also includes a ground bar, and is UL rated.

Specifications

Weight

10.98lb

Height

6.3mm

Width

16.34mm

Length

19.02mm

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/QO312L125G/QO312L125G.spin

AD All Features

Provides superior performance and durability

AD Alternative Part Number

8125301

AD Application

For residential, commercial and industrial requirements to protect electrical systems, equipment and people applications

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Warranty Information

AD Document Caption 3

Specification Sheet

AD Document Caption 4

Technical Bulletin

AD EAN

0785901295037

AD Gtin

00785901295037

AD IDEA Index ID

8125301

AD Includes

Field Installed Grounding Bar

AD Invoice Description

CENTER LOAD LUG MAIN 208Y/120/240VAC

AD Item Features 01

Provides superior performance and durability

AD Item Features 02

Straight in wiring saves wire, labor, and time

AD Item Features 03

Faster installation using PoN breakers that connect directly

AD Item Features 04

50% more terminations for clutter-free wiring

AD Keywords

QO312L125G 3-ph Fixed Main Lug Load Center, 208Y/120/240 V AC, 125 A, 1 Poles, 65 kA Interrupt ; Square D ; QO312L125G ; 8125301 ; 785901295037 ; Three Phase Main Lug Load Centers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

6.3000

AD Package Height UOM

IN

AD Package Length

19.0200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

10.9800

AD Package Weight UOM

LB

AD Package Width

16.3400

AD Package Width UOM

IN

AD Part Number Keywords

QO312L125G ; 8125301 ; 785901295037 ; 78590129503 ; 00785901295037 ; 0785901295037

AD Video Links

https://www.youtube.com/watch?v=BUG4UOLSYCs

Brand

Square D

Category

Load Centers & Accessories

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

125

Spec 10 Attribute

Number of Circuits

Spec 10 Attribute Value

12

Spec 11 Attribute

Number Of Poles

Spec 11 Attribute Value

1

Spec 12 Attribute

Number of Spaces

Spec 12 Attribute Value

12

Spec 13 Attribute

Type

Spec 13 Attribute Value

3-ph Fixed

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

208Y/120/240

Spec 15 Attribute

Wire Size

Spec 15 Attribute UOM

AWG

Spec 15 Attribute Value

6 To 2/0

Spec 16 Attribute

Wiring Configuration

Spec 16 Attribute Value

3/4-Wire

Spec 2 Attribute

BREAKER MOUNTING

Spec 2 Attribute Value

Panel

Spec 3 Attribute

Breaker Type

Spec 3 Attribute Value

QO/MLO

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

14.25 in W x 3.75 in D x 17.92 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 1

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Housing Material

Spec 7 Attribute Value

Sheet Steel

Spec 8 Attribute

Interrupt Rating

Spec 8 Attribute UOM

KA

Spec 8 Attribute Value

65

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Bolt-on
