Square D

QO318L200GRB - Load center, QO, 3 phase, 18 spaces, 18 circuits, 200A fixed main lugs, NEMA3R, gnd bar

Category Miscellaneous

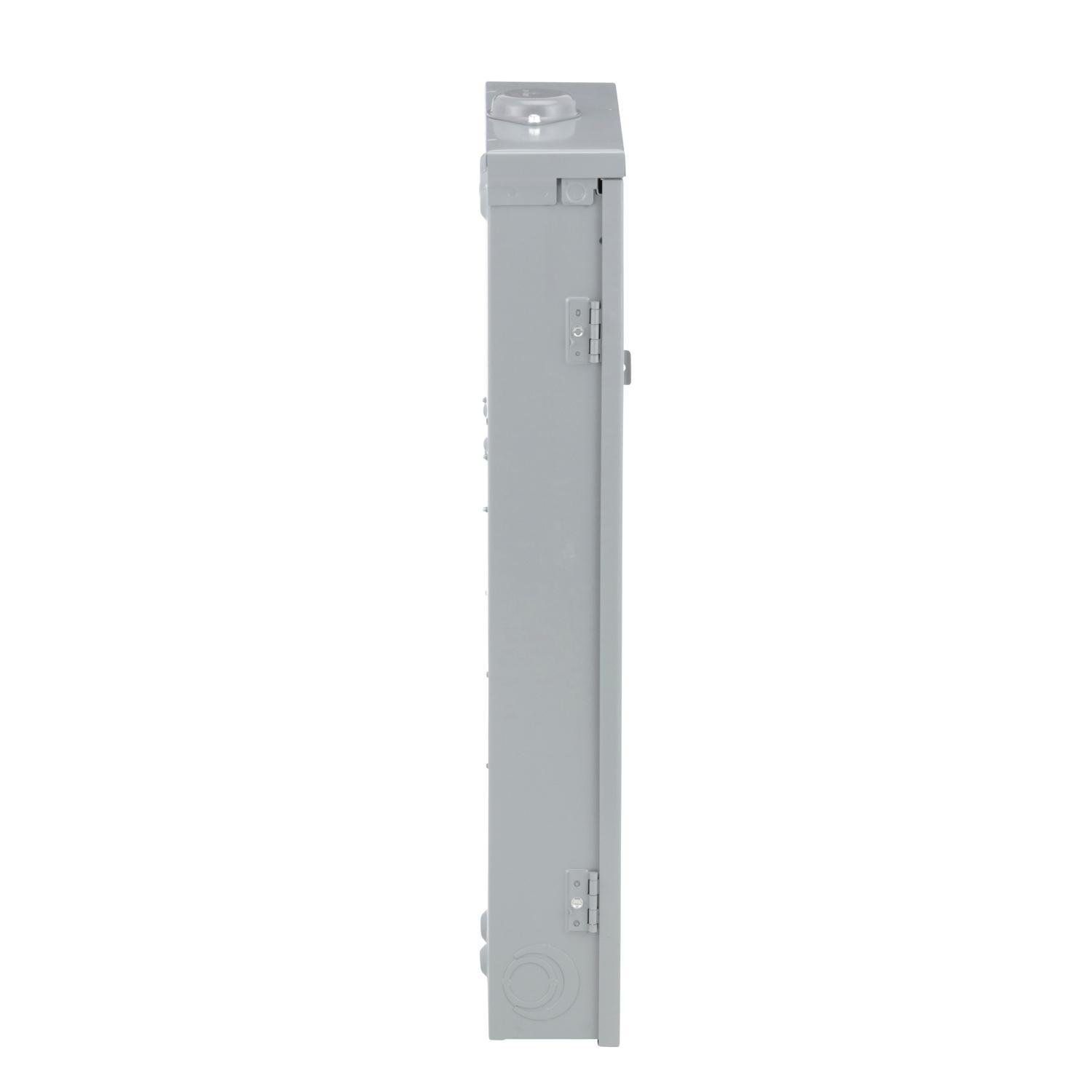

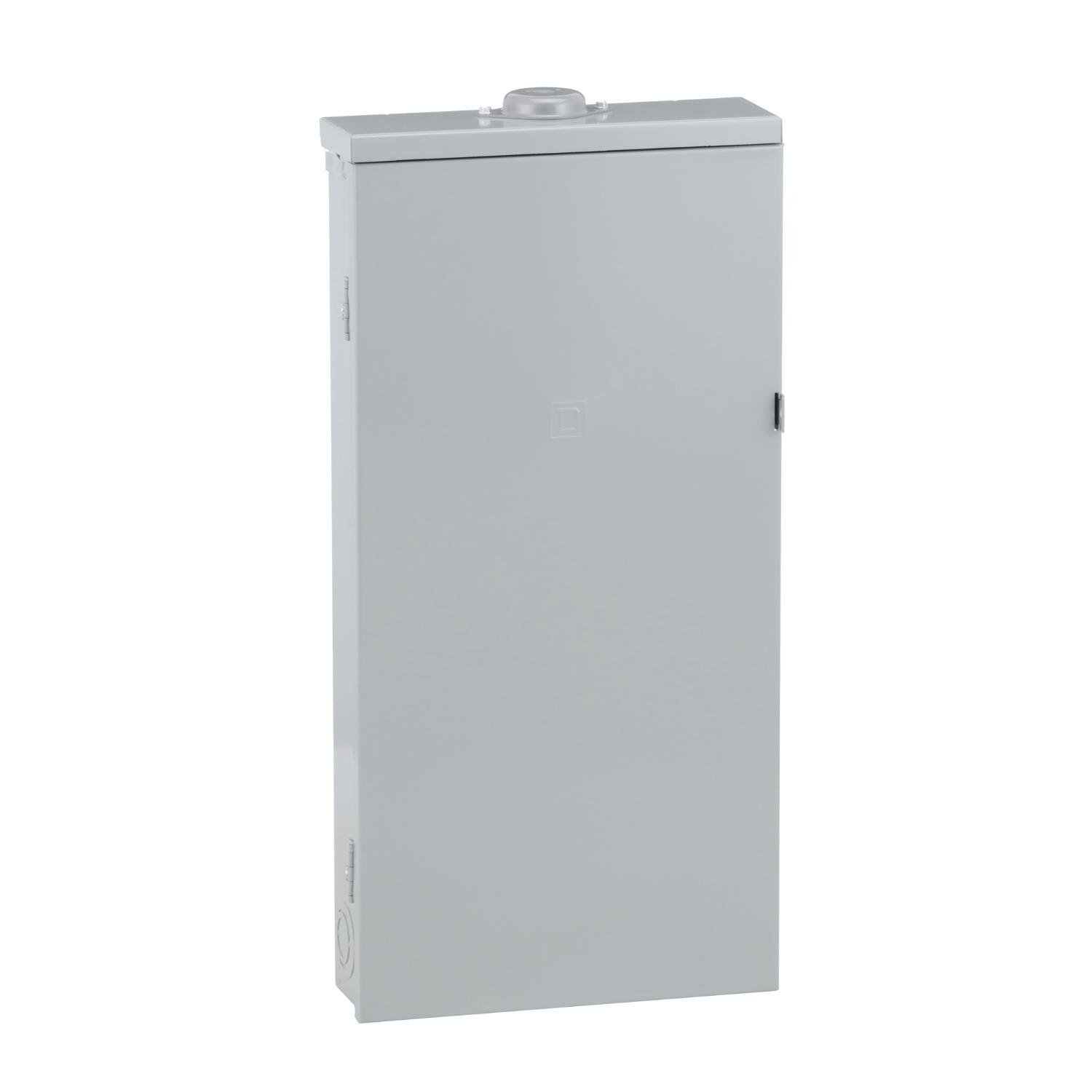

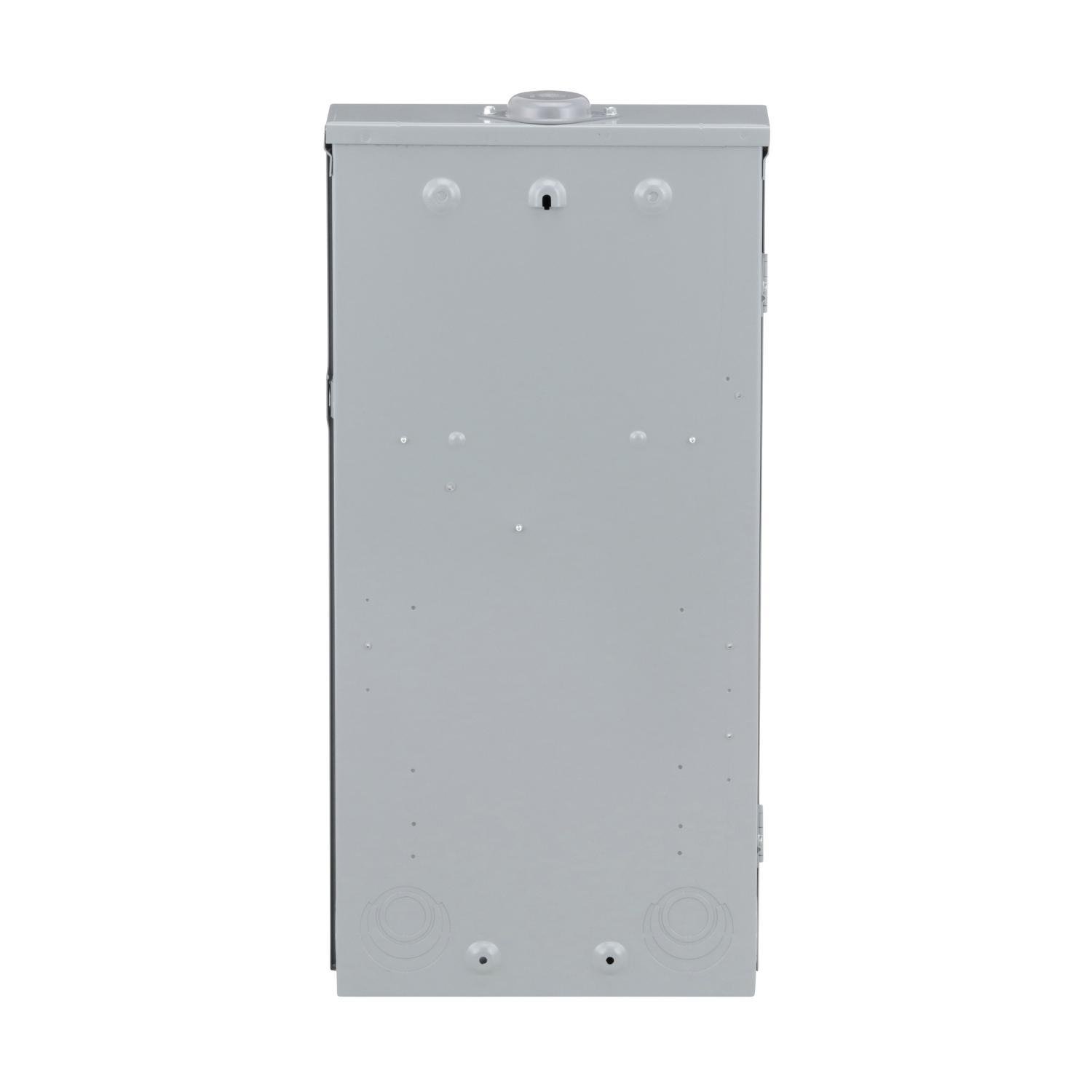

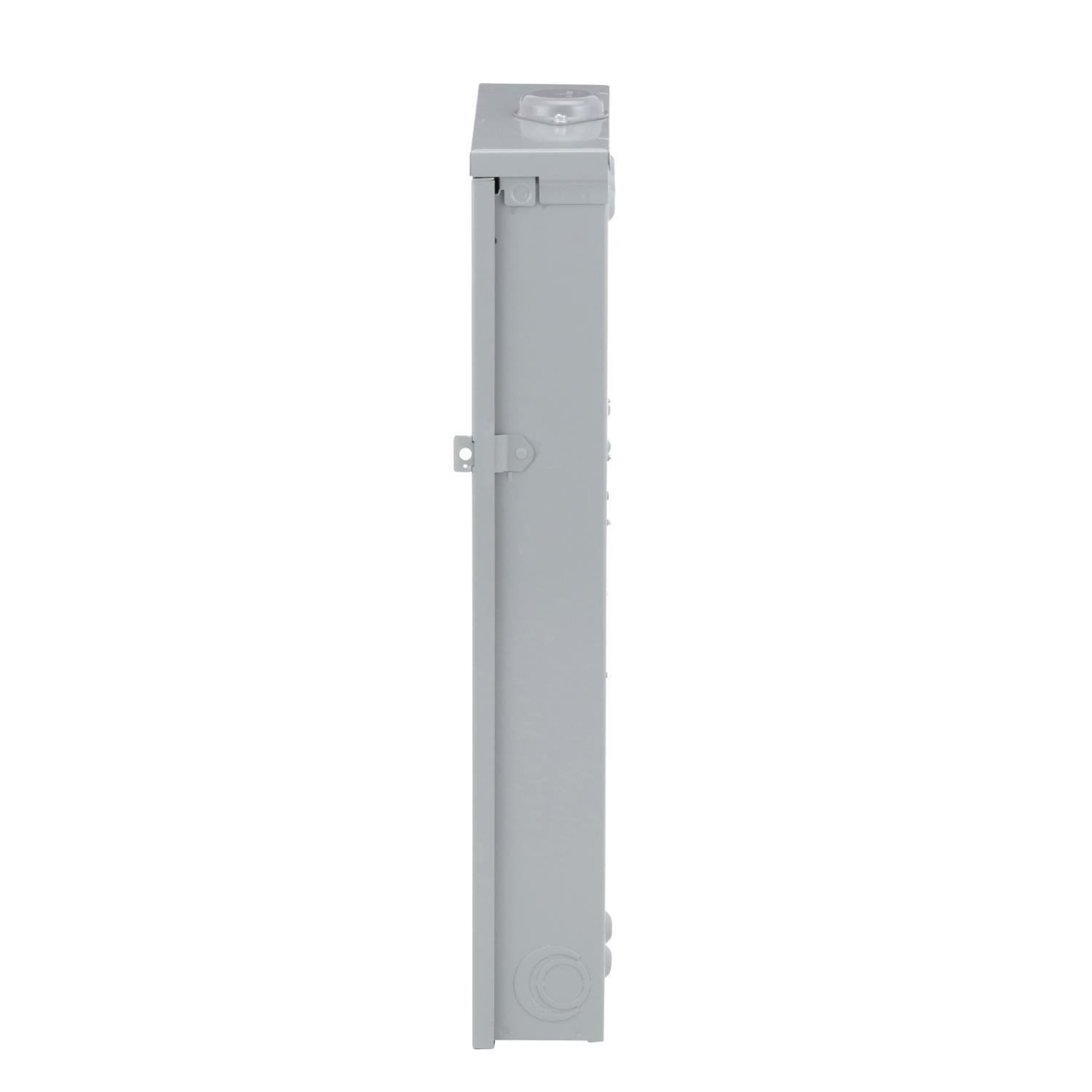

Picture of QO318L200GRB - Load center, QO, 3 phase, 18 spaces, 18 circuits, 200A fixed main lugs, NEMA3R, gnd bar Picture of QO318L200GRB - Load center, QO, 3 phase, 18 spaces, 18 circuits, 200A fixed main lugs, NEMA3R, gnd bar
Picture of QO318L200GRB - Load center, QO, 3 phase, 18 spaces, 18 circuits, 200A fixed main lugs, NEMA3R, gnd bar Picture of QO318L200GRB - Load center, QO, 3 phase, 18 spaces, 18 circuits, 200A fixed main lugs, NEMA3R, gnd bar
Picture of QO318L200GRB - Load center, QO, 3 phase, 18 spaces, 18 circuits, 200A fixed main lugs, NEMA3R, gnd bar Picture of QO318L200GRB - Load center, QO, 3 phase, 18 spaces, 18 circuits, 200A fixed main lugs, NEMA3R, gnd bar
Picture of QO318L200GRB - Load center, QO, 3 phase, 18 spaces, 18 circuits, 200A fixed main lugs, NEMA3R, gnd bar Picture of QO318L200GRB - Load center, QO, 3 phase, 18 spaces, 18 circuits, 200A fixed main lugs, NEMA3R, gnd bar
Square D

QO318L200GRB - Load center, QO, 3 phase, 18 spaces, 18 circuits, 200A fixed main lugs, NEMA3R, gnd bar

Item Code: 33311
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QO318L200GRB

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 18 spaces and 18 circuits. This system provides 200A fixed main lugs in a NEMA 3R enclosure. It also includes a ground bar, and is UL rated.

Specifications

Weight

32.23

Width

4.85

Length

15.35

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/QO318L200GRB/QO318L200GRB.spin

AD All Features

Provides superior performance and durability

AD Alternative Part Number

8125501

AD Application

For outdoor, residential, commercial, industrial requirements to protect electrical systems, equipment and people applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Warranty Information

AD Document Caption 3

Specification Sheet

AD Document Caption 4

Technical Bulletin

AD EAN

0785901295457

AD Gtin

00785901295457

AD IDEA Index ID

8125501

AD Includes

Field Installed Grounding Bar

AD Invoice Description

CENTER LOAD LUG MAIN 200A 1 65KA 50/60HZ

AD Item Features 01

Provides superior performance and durability

AD Item Features 02

Straight in wiring saves wire, labor, and time

AD Item Features 03

Faster installation using PoN breakers that connect directly

AD Item Features 04

50% more terminations for clutter-free wiring

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

15.3500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

32.2300

AD Package Weight UOM

LB

AD Package Width

4.8500

AD Package Width UOM

IN

AD Part Number Keywords

QO318L200GRB ; 8125501 ; 785901295457 ; 78590129545 ; 00785901295457 ; 0785901295457

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

200

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Bolt-on

Spec 11 Attribute

Number of Circuits

Spec 11 Attribute Value

18

Spec 12 Attribute

Number Of Poles

Spec 12 Attribute Value

1

Spec 13 Attribute

Number of Spaces

Spec 13 Attribute Value

18

Spec 14 Attribute

Type

Spec 14 Attribute Value

3-Phase Fixed Rainproof

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V AC

Spec 15 Attribute Value

208Y to 120/240 to 120 Delta/240 Delta

Spec 16 Attribute

Wire Size

Spec 16 Attribute Value

6 AWG to 300 kcmil

Spec 17 Attribute

Wiring Configuration

Spec 17 Attribute Value

4-Wire

Spec 2 Attribute

BREAKER MOUNTING

Spec 2 Attribute Value

Panel

Spec 3 Attribute

Breaker Type

Spec 3 Attribute Value

QO/MLO

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

14.75 in W x 4.52 in D x 29.86 in H

Spec 5 Attribute

Enclosure Box Size

Spec 5 Attribute Value

6r

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

NEMA 3R

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

HZ

Spec 7 Attribute Value

50/60

Spec 8 Attribute

Housing Material

Spec 8 Attribute Value

Steel

Spec 9 Attribute

Interrupt Rating

Spec 9 Attribute UOM

KA

Spec 9 Attribute Value

65
