Square D

QO327M100 - Load center, QO, 3 phase, 27 spaces, 27 circuits, 100A convertible main breaker, NEMA1, UL

Category Load Centers & Accessories

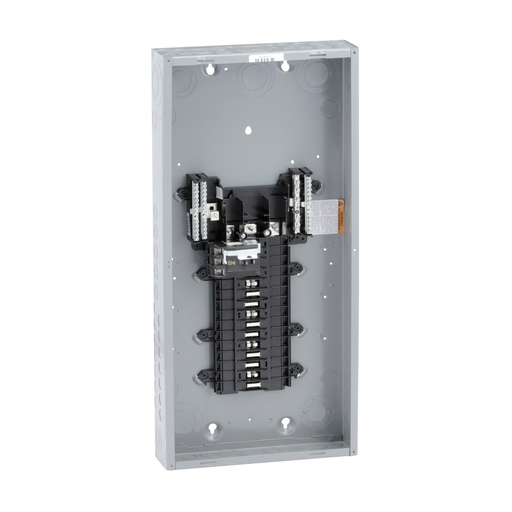

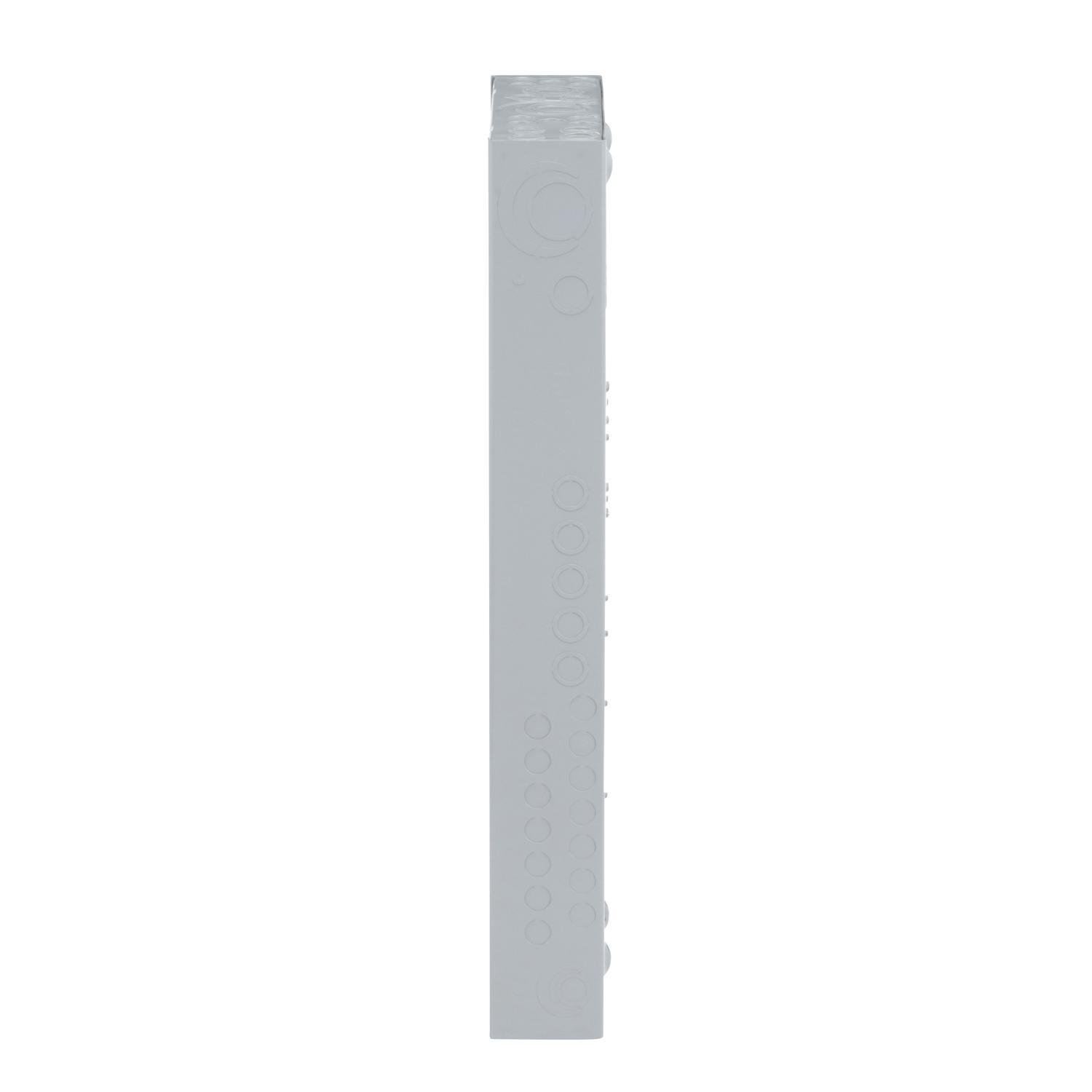

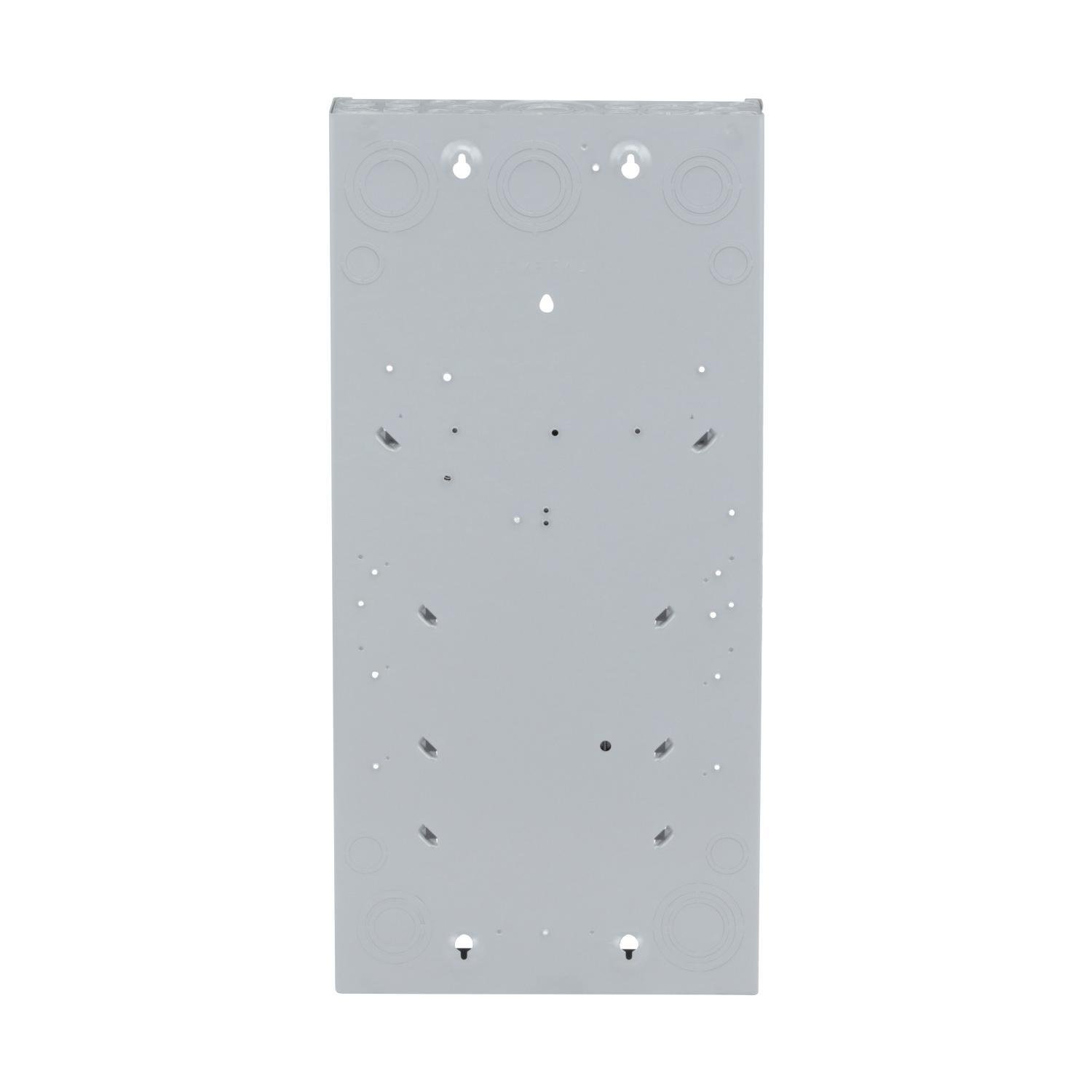

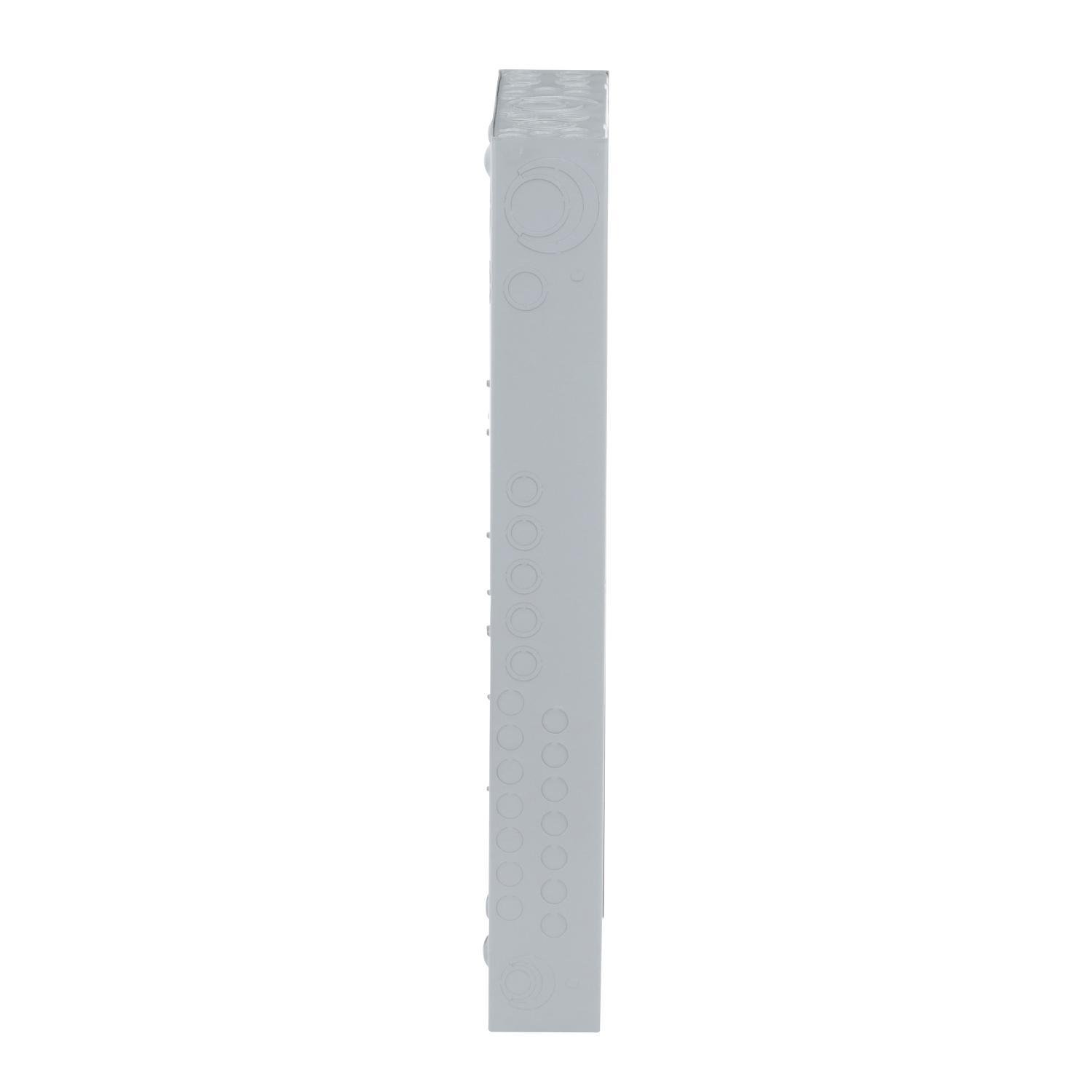

Picture of QO327M100 - Load center, QO, 3 phase, 27 spaces, 27 circuits, 100A convertible main breaker, NEMA1, UL Picture of QO327M100 - Load center, QO, 3 phase, 27 spaces, 27 circuits, 100A convertible main breaker, NEMA1, UL
Picture of QO327M100 - Load center, QO, 3 phase, 27 spaces, 27 circuits, 100A convertible main breaker, NEMA1, UL Picture of QO327M100 - Load center, QO, 3 phase, 27 spaces, 27 circuits, 100A convertible main breaker, NEMA1, UL
Picture of QO327M100 - Load center, QO, 3 phase, 27 spaces, 27 circuits, 100A convertible main breaker, NEMA1, UL Picture of QO327M100 - Load center, QO, 3 phase, 27 spaces, 27 circuits, 100A convertible main breaker, NEMA1, UL
Picture of QO327M100 - Load center, QO, 3 phase, 27 spaces, 27 circuits, 100A convertible main breaker, NEMA1, UL Picture of QO327M100 - Load center, QO, 3 phase, 27 spaces, 27 circuits, 100A convertible main breaker, NEMA1, UL
Square D

QO327M100 - Load center, QO, 3 phase, 27 spaces, 27 circuits, 100A convertible main breaker, NEMA1, UL

Item Code: 18606
Category Load Centers & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QO327M100

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 27 spaces and 27 circuits. This system provides a 100A convertible main breaker in a NEMA 1 enclosure. This product is UL rated.

Specifications

Weight

18.06lb

Height

31mm

Width

4.16mm

Length

14.36mm

AD All Features

QO load centers provide superior circuit protection

AD Application

For residential, commercial and industrial requirements to protect electrical systems, equipment and people applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

CENTER LOAD BRKR MAIN 100A 1 25KA 27 PNL

AD Item Features 01

QO load centers provide superior circuit protection

AD Item Features 02

Straight in wiring saves wire, labor, and time

AD Item Features 03

Faster installation using PoN breakers that connect directly

AD Item Features 04

50% more terminations for clutter-free wiring

AD Manufacturer (Description)

Schneider Electric

AD Package Height

31.0000

AD Package Height UOM

IN

AD Package Length

14.3600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

18.0600

AD Package Weight UOM

LB

AD Package Width

4.1600

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/watch?v=BUG4UOLSYCs

Brand

Square D

Category

Load Centers & Accessories

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

100

Spec 10 Attribute

Number of Circuits

Spec 10 Attribute Value

27

Spec 11 Attribute

Number Of Poles

Spec 11 Attribute Value

1

Spec 12 Attribute

Number of Spaces

Spec 12 Attribute Value

27

Spec 13 Attribute

Type

Spec 13 Attribute Value

3-ph Convertible

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

208Y to 120/240 to 120 Delta/240 Delta

Spec 15 Attribute

Wire Size

Spec 15 Attribute UOM

AWG

Spec 15 Attribute Value

4 to 2/0

Spec 16 Attribute

Wiring Configuration

Spec 16 Attribute Value

4-Wire

Spec 2 Attribute

BREAKER MOUNTING

Spec 2 Attribute Value

Panel

Spec 3 Attribute

Breaker Type

Spec 3 Attribute Value

MB/QO

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

14.25 in W x 3.75 in D x 29.86 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 1

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Housing Material

Spec 7 Attribute Value

Sheet Steel

Spec 8 Attribute

Interrupt Rating

Spec 8 Attribute UOM

KA

Spec 8 Attribute Value

25

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Bolt-on
