Square D

QO330MQ125 - Load center, QO, 3 phase, 30 spaces, 30 circuits, 125A convertible main breaker, NEMA1, QDL

Category Miscellaneous

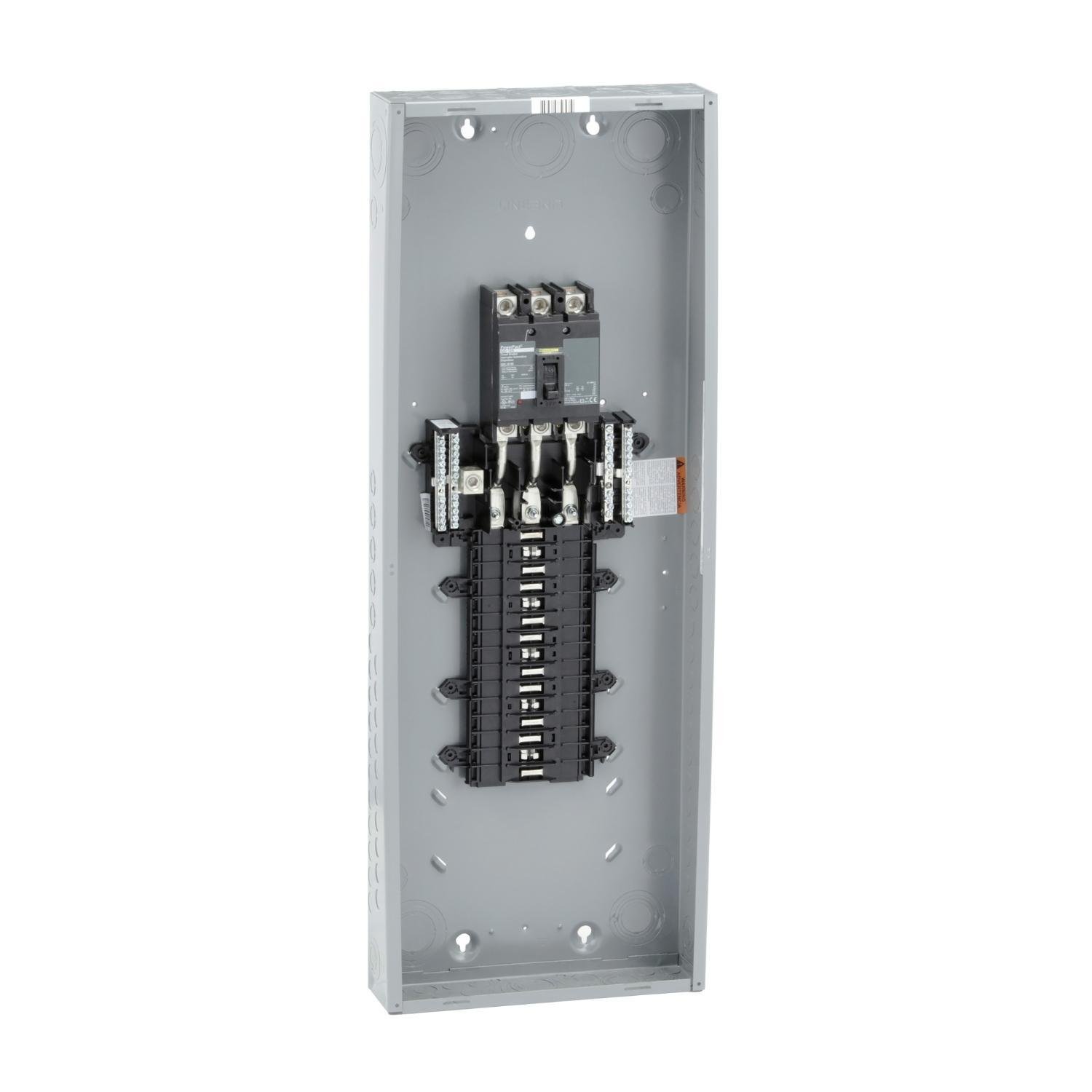

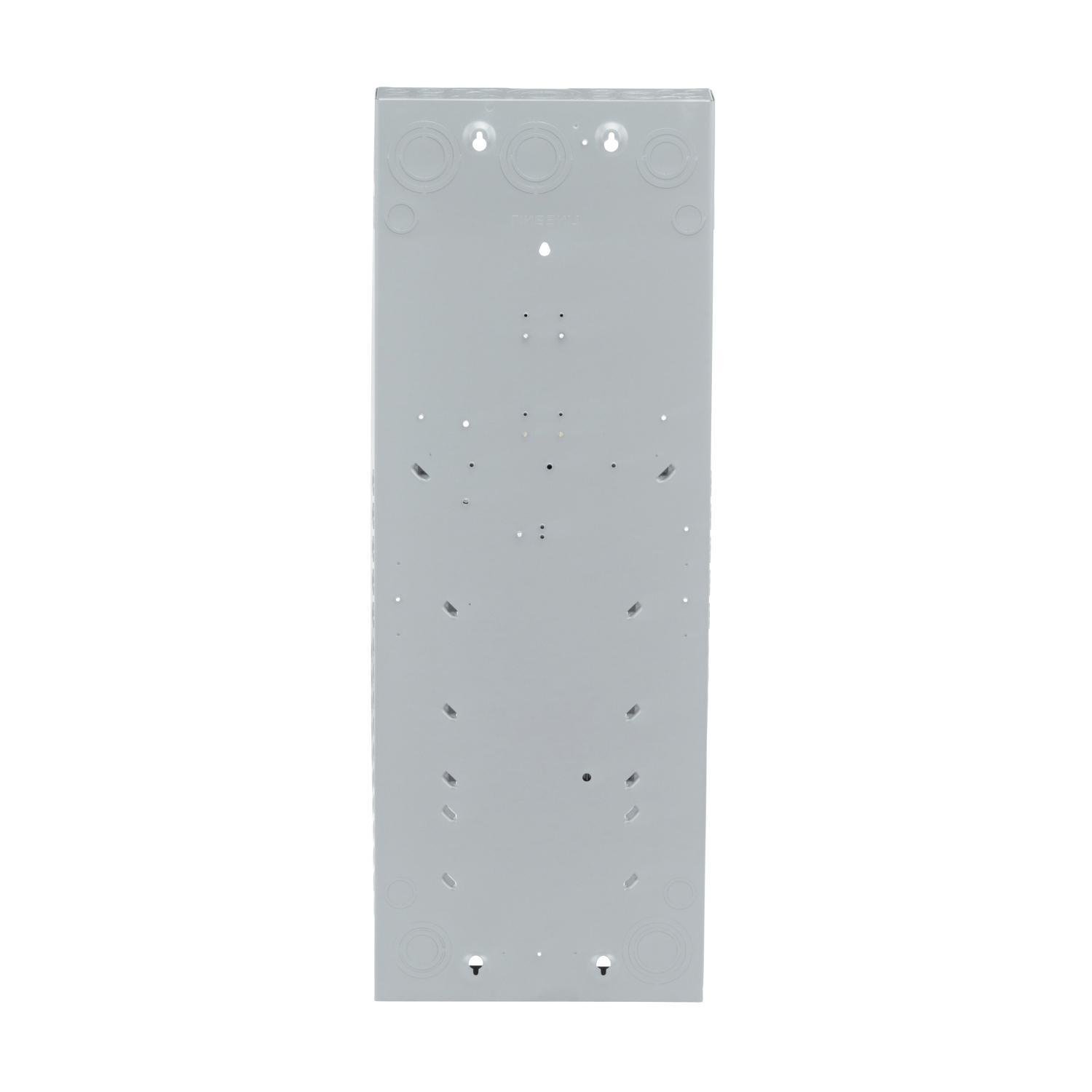

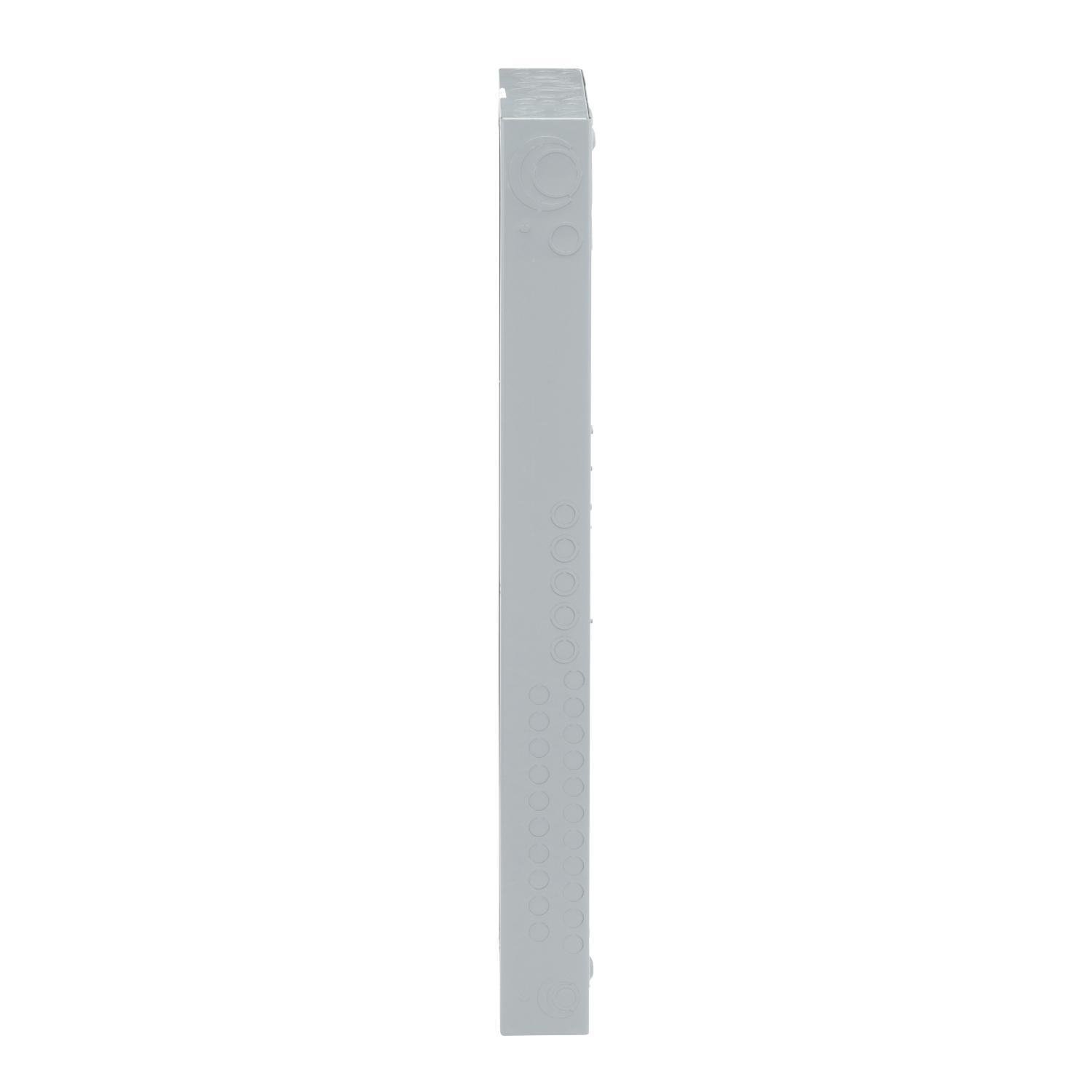

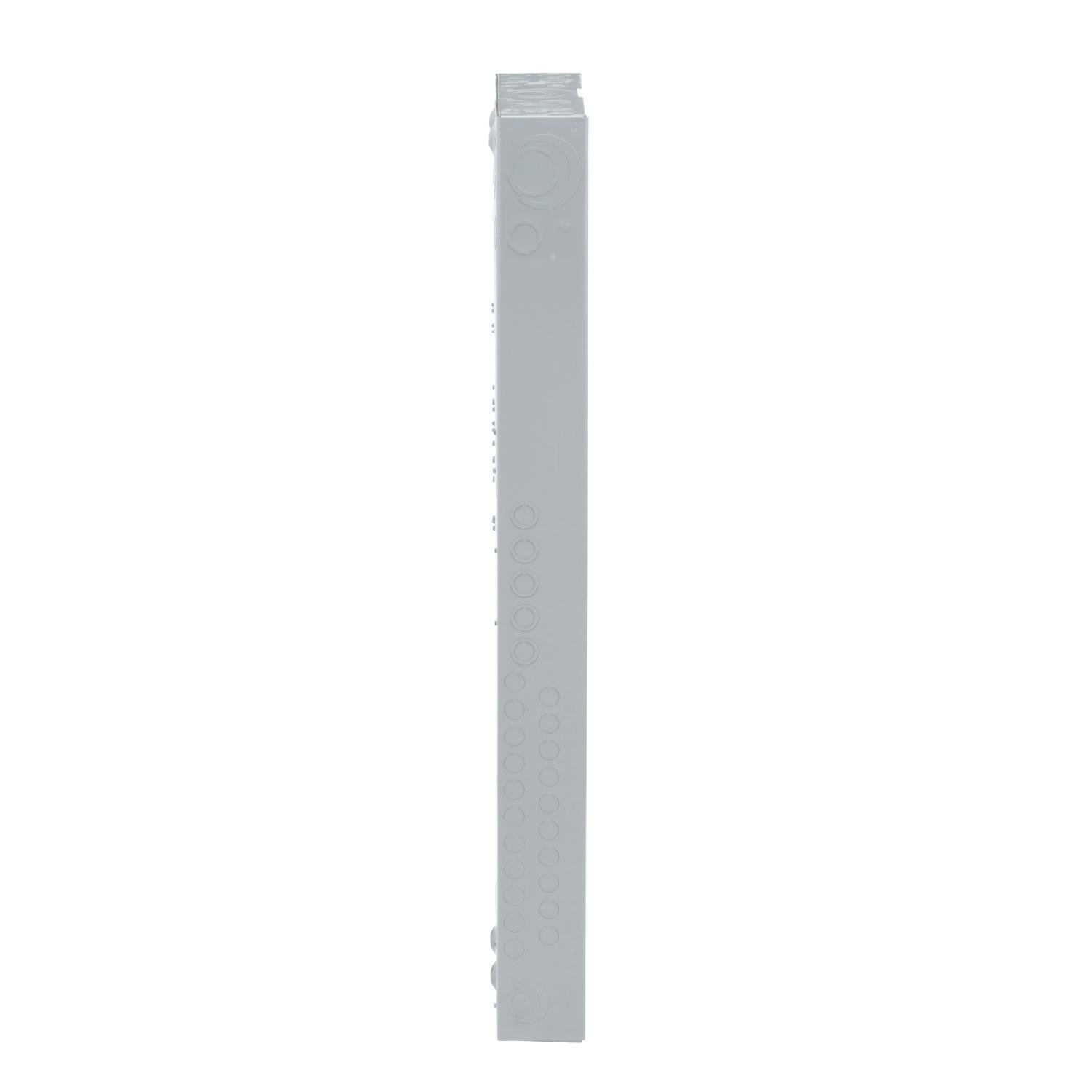

Picture of QO330MQ125 - Load center, QO, 3 phase, 30 spaces, 30 circuits, 125A convertible main breaker, NEMA1, QDL Picture of QO330MQ125 - Load center, QO, 3 phase, 30 spaces, 30 circuits, 125A convertible main breaker, NEMA1, QDL
Picture of QO330MQ125 - Load center, QO, 3 phase, 30 spaces, 30 circuits, 125A convertible main breaker, NEMA1, QDL Picture of QO330MQ125 - Load center, QO, 3 phase, 30 spaces, 30 circuits, 125A convertible main breaker, NEMA1, QDL
Picture of QO330MQ125 - Load center, QO, 3 phase, 30 spaces, 30 circuits, 125A convertible main breaker, NEMA1, QDL Picture of QO330MQ125 - Load center, QO, 3 phase, 30 spaces, 30 circuits, 125A convertible main breaker, NEMA1, QDL
Picture of QO330MQ125 - Load center, QO, 3 phase, 30 spaces, 30 circuits, 125A convertible main breaker, NEMA1, QDL Picture of QO330MQ125 - Load center, QO, 3 phase, 30 spaces, 30 circuits, 125A convertible main breaker, NEMA1, QDL
Square D

QO330MQ125 - Load center, QO, 3 phase, 30 spaces, 30 circuits, 125A convertible main breaker, NEMA1, QDL

Item Code: 562377
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QO330MQ125

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 30 spaces and 30 circuits. This system provides a 125A convertible main breaker in a NEMA 1 enclosure. It also includes a QDL circuit breaker and is UL rated.

Specifications

Weight

25.38

Width

14.55

Length

40.01

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/QO330MQ125/QO330MQ125.spin

AD All Features

Provides superior performance and durability

AD Alternative Part Number

8123198

AD Application

For indoor, residential, commercial and industrial requirements to protect electrical systems, equipment and people applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Warranty Information

AD Document Caption 3

Specification Sheet

AD Document Caption 4

Technical Bulletin

AD EAN

0785901290520

AD Gtin

00785901290520

AD IDEA Index ID

8123198

AD Invoice Description

CENTER LOAD BRKR MAIN 125A 1 25KA 30 PNL

AD Item Features 01

Provides superior performance and durability

AD Item Features 02

Straight in wiring saves wire, labor, and time

AD Item Features 03

Faster installation using PoN breakers that connect directly

AD Item Features 04

50% more terminations for clutter-free wiring

AD Keywords

QO QO330MQ125 3-Phase Convertible Main Breaker Load Center, 208Y/120/120/240 Delta/240 Delta V AC, 125 A, 1 Poles, 25 kA Interrupt ; Schneider Electric ; Square D ; QO330MQ125 ; QO330MQ125 ; 785901290520 ; Three Phase Main Breaker Load Centers

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

40.0100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

25.3800

AD Package Weight UOM

LB

AD Package Width

14.5500

AD Package Width UOM

IN

AD Part Number Keywords

QO330MQ125 ; 8123198 ; 785901290520 ; 78590129052 ; 00785901290520 ; 0785901290520

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

125

Spec 10 Attribute

Number Of Poles

Spec 10 Attribute Value

1

Spec 11 Attribute

Number of Spaces

Spec 11 Attribute Value

30

Spec 12 Attribute

Type

Spec 12 Attribute Value

3-Phase Convertible

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

208Y/120/120/240 Delta/240 Delta

Spec 14 Attribute

Wire Size

Spec 14 Attribute Value

4 AWG to 300 kcmil Al/Cu

Spec 15 Attribute

Wiring Configuration

Spec 15 Attribute Value

3/4-Wire

Spec 2 Attribute

BREAKER MOUNTING

Spec 2 Attribute Value

Panel

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

14.25 in W x 3.75 in D x 39.37 in H

Spec 4 Attribute

Enclosure Box Size

Spec 4 Attribute Value

NEMA 12

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 1

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Housing Material

Spec 7 Attribute Value

Sheet Steel

Spec 8 Attribute

Interrupt Rating

Spec 8 Attribute UOM

KA

Spec 8 Attribute Value

25

Spec 9 Attribute

Number of Circuits

Spec 9 Attribute Value

30
