Square D

QO330MQ200RB - Load center, QO, 3 phase, 30 spaces, 30 circuits, 200A convertible main breaker, NEMA3R, QDL

Category Load Centers & Accessories

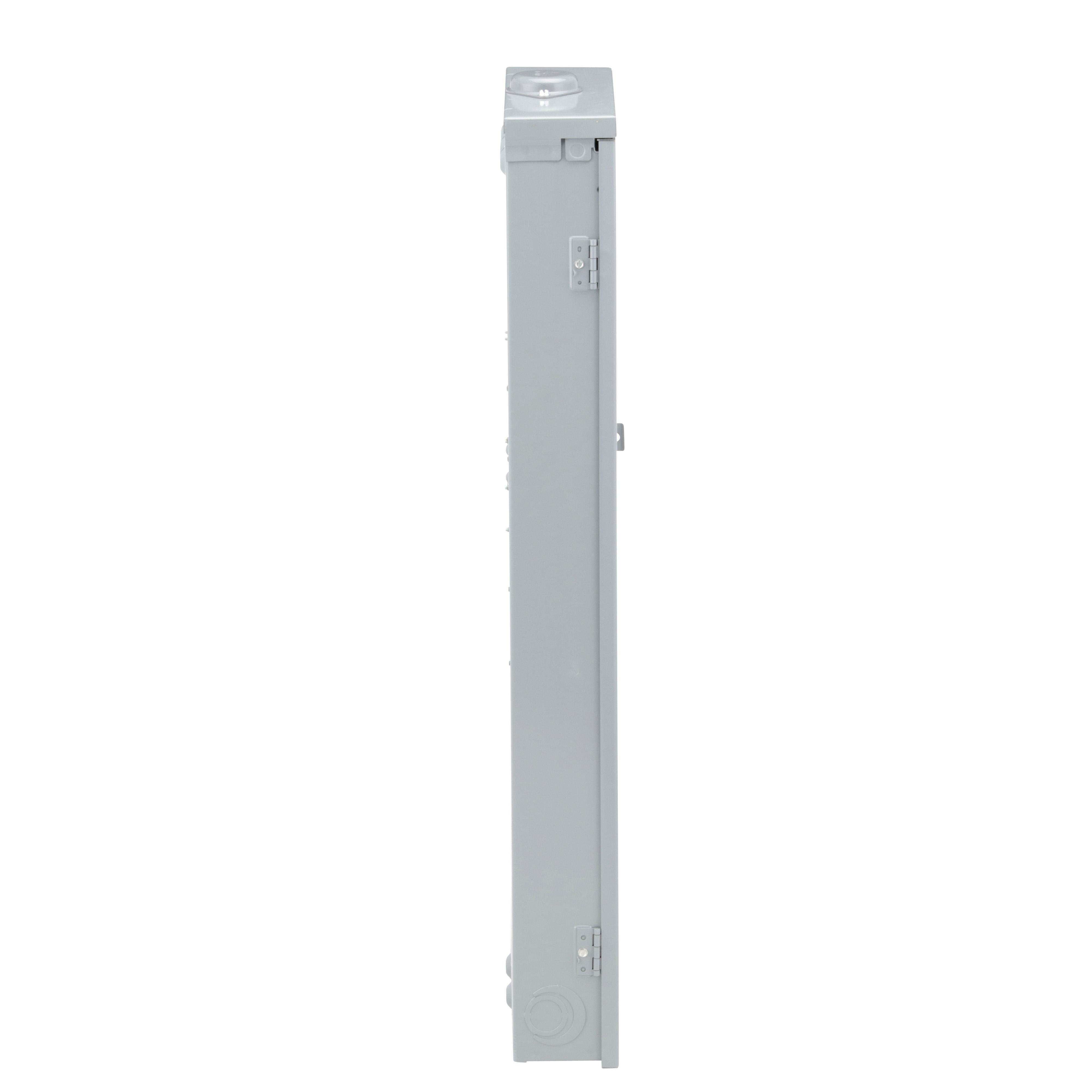

Picture of QO330MQ200RB - Load center, QO, 3 phase, 30 spaces, 30 circuits, 200A convertible main breaker, NEMA3R, QDL
Square D

QO330MQ200RB - Load center, QO, 3 phase, 30 spaces, 30 circuits, 200A convertible main breaker, NEMA3R, QDL

Item Code: 18612
Category Load Centers & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QO330MQ200RB

RoHS
Specification Sheet
Technical Bulletin
Warranty Information
Call for Availability
Add to Favorites
Compare

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 30 spaces and 30 circuits. This system provides a 200A convertible main breaker in a NEMA 3R enclosure. It also includes a QDL circuit breaker and is UL rated.

Specifications

Weight

46.9lb

Height

1000mm

Width

5.07mm

Length

15.25mm

Amperage Rating

200 A

Brand

Square D

Breaker Mounting

Panel

Breaker Type

MB/QO

Category

Load Centers & Accessories

Dimensions

14.75 in W x 4.52 in D x 39.37 in H

Enclosure Type

NEMA 3R

Frequency Rating

50/60 Hz

Housing Material

Galvanized Steel

Interrupt Rating

25 kA

Mounting Type

Bolt-on

Number of Circuits

30

Number Of Poles

1

Number of Spaces

30

Type

3-Phase Convertible

Voltage Rating

208Y to 120/240 to 120 Delta/240 Delta V AC

Wire Size

4 AWG to 300 kcmil

Wiring Configuration

4-Wire
