Square D

QO330VH - Mini circuit breaker, QO, 30A, 3 pole, 120/240VAC, 22kA, plug in

Category Miscellaneous

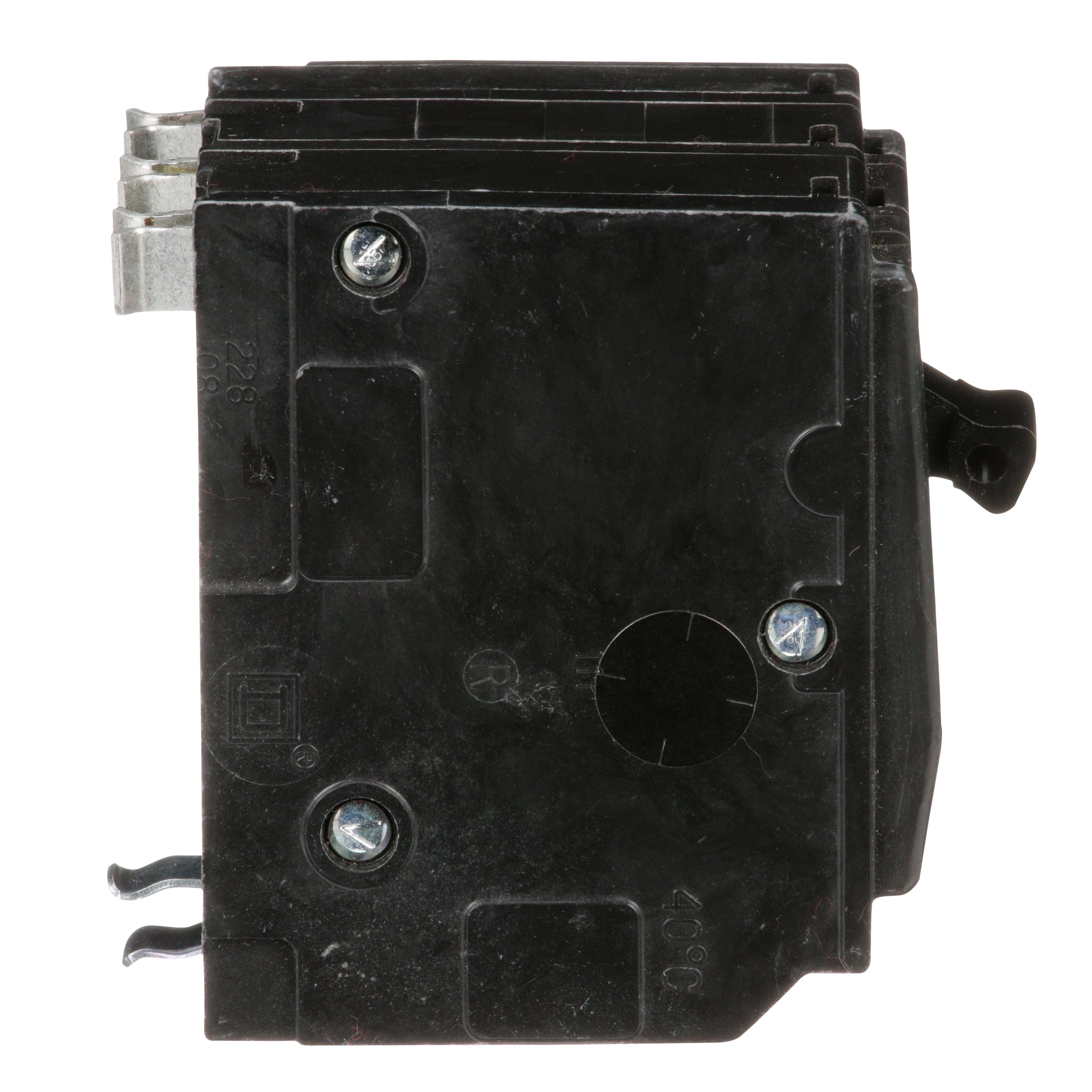

Picture of QO330VH - Mini circuit breaker, QO, 30A, 3 pole, 120/240VAC, 22kA, plug in Picture of QO330VH - Mini circuit breaker, QO, 30A, 3 pole, 120/240VAC, 22kA, plug in
Picture of QO330VH - Mini circuit breaker, QO, 30A, 3 pole, 120/240VAC, 22kA, plug in Picture of QO330VH - Mini circuit breaker, QO, 30A, 3 pole, 120/240VAC, 22kA, plug in
Square D

QO330VH - Mini circuit breaker, QO, 30A, 3 pole, 120/240VAC, 22kA, plug in

Item Code: 567299
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QO330VH

Document
Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 3 pole QO circuit breaker is rated at 30A at 120/240VAC. This unit provides 22kA breaking capacity and plug in mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.

Specifications

Weight

0.79

Width

3.27

Length

2.97

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/QO330VH/QO330VH.spin

AD All Features

Provides superior circuit protection

AD Alternative Part Number

8013342

AD Application

HACR Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD Document Caption 5

Technical Bulletin

AD EAN

0785901371885

AD Gtin

00785901371885

AD IDEA Index ID

8013342

AD Invoice Description

BREAKER CKT MINTR 240VAC 30A 22KA 3 3PH

AD Item Features 01

Provides superior circuit protection

AD Item Features 02

Reliable and durable

AD Item Features 03

Plug-on neutral design and shorter footprint for faster installs

AD Item Features 04

Simple design and clear instructions for quick setup

AD Item Features 05

Time-saving diagnostics with touch of a button

AD Keywords

QO330VH QO Series Standard Miniature Circuit Breaker, 240 V AC, 30 A, 22 kA Interrupt, 3 Poles, Thermal Magnetic Trip ; Square D ; QO330VH ; 8013342 ; 785901371885 ; Miniature Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

2.9700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.7900

AD Package Weight UOM

LB

AD Package Width

3.2700

AD Package Width UOM

IN

AD Part Number Keywords

QO330VH ; 8013342 ; 785901371885 ; 78590137188 ; 00785901371885 ; 0785901371885

AD Video Links

https://www.youtube.com/watch?v=8d24HtN6GZw

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

30

Spec 10 Attribute

Trip Type

Spec 10 Attribute Value

Thermal Magnetic

Spec 11 Attribute

Type

Spec 11 Attribute Value

Standard

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

240

Spec 13 Attribute

Wire Size

Spec 13 Attribute UOM

AWG

Spec 13 Attribute Value

14 to 8

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Pressure Plate

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

2.91 in L x 2.25 in W x 3 in H

Spec 4 Attribute

Interrupt Rating

Spec 4 Attribute UOM

KA

Spec 4 Attribute Value

22

Spec 5 Attribute

Mounting Type

Spec 5 Attribute Value

Plug-In

Spec 6 Attribute

Number Of Poles

Spec 6 Attribute Value

3

Spec 7 Attribute

PHASE

Spec 7 Attribute Value

3

Spec 8 Attribute

Series

Spec 8 Attribute Value

QO Series

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg C

Spec 9 Attribute Value

40
