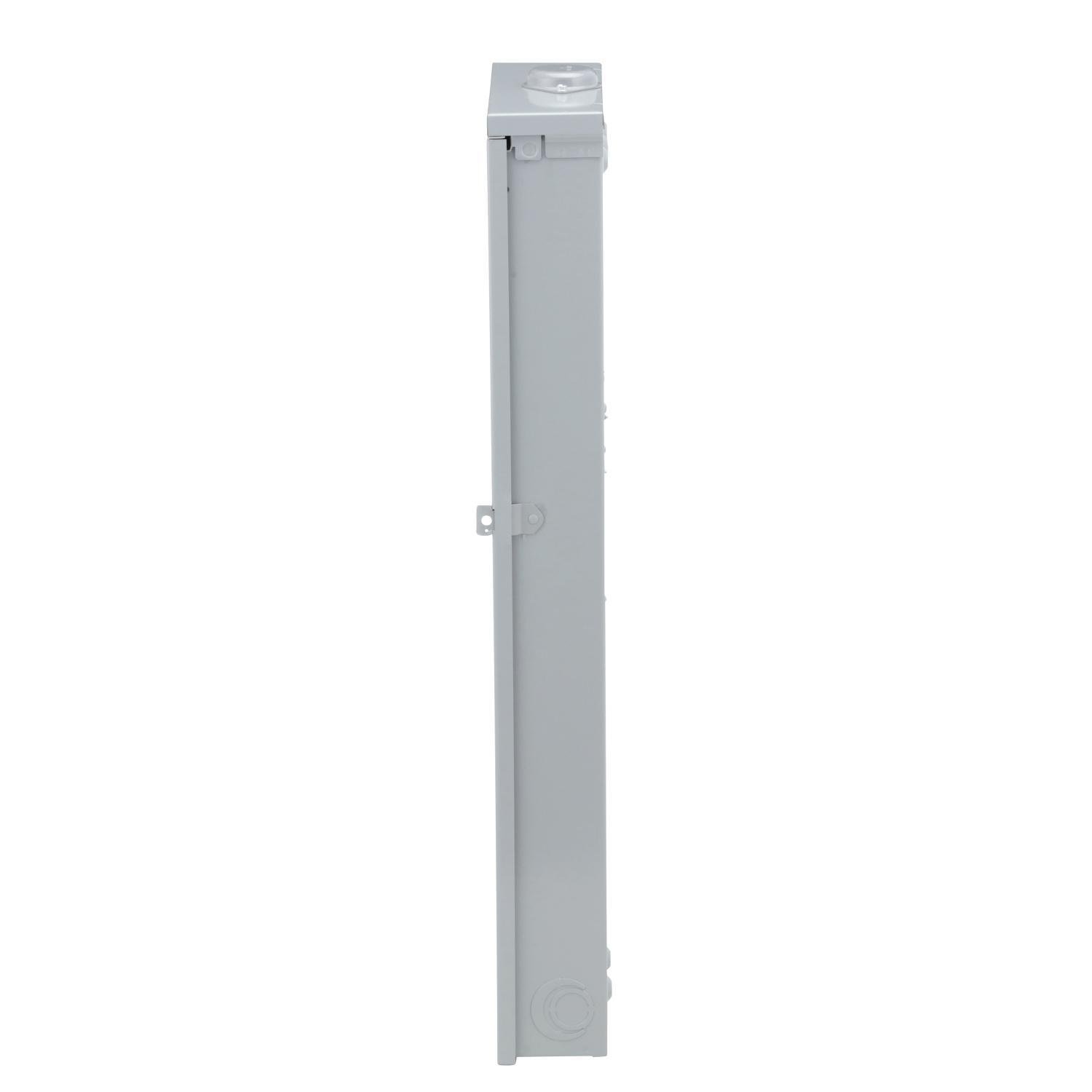

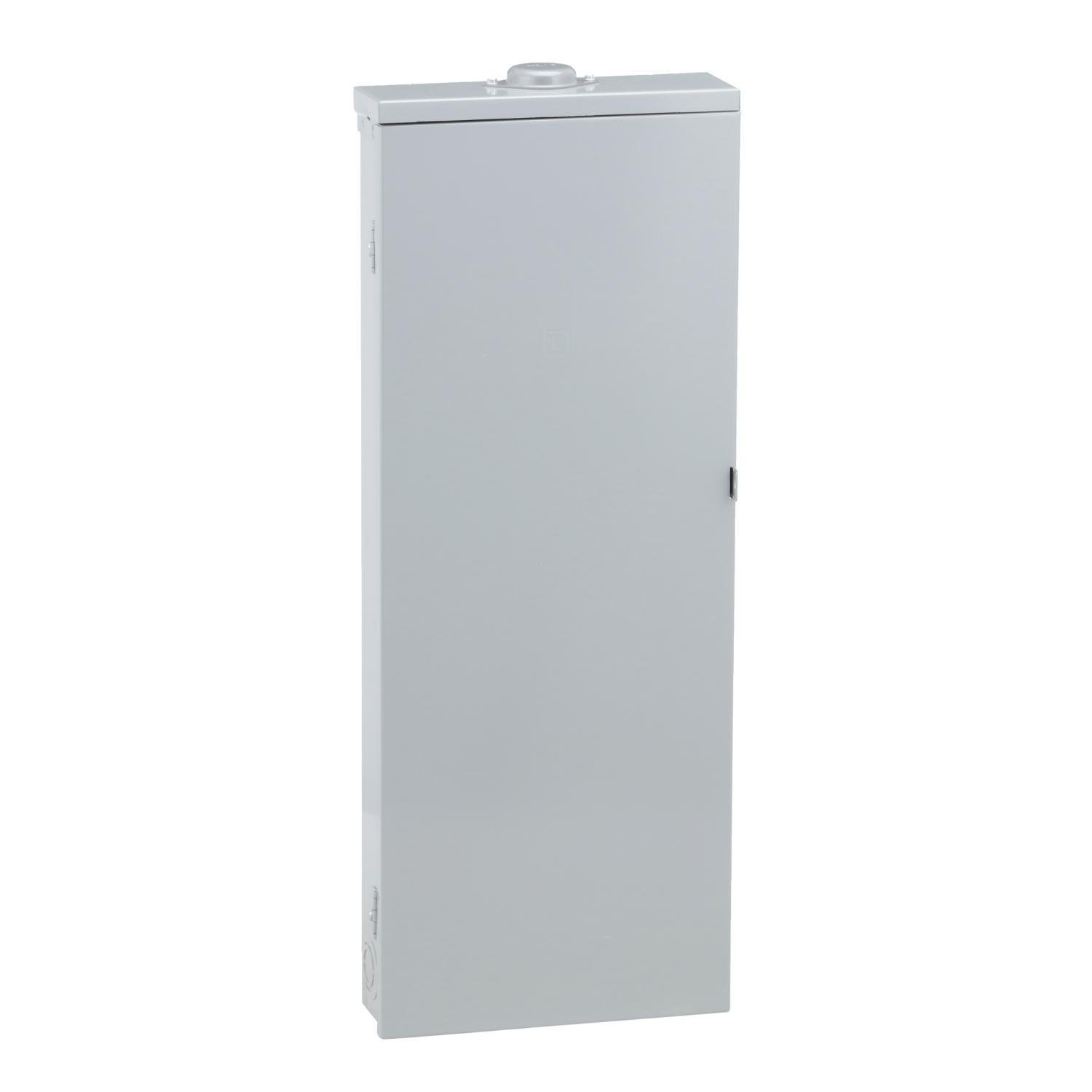

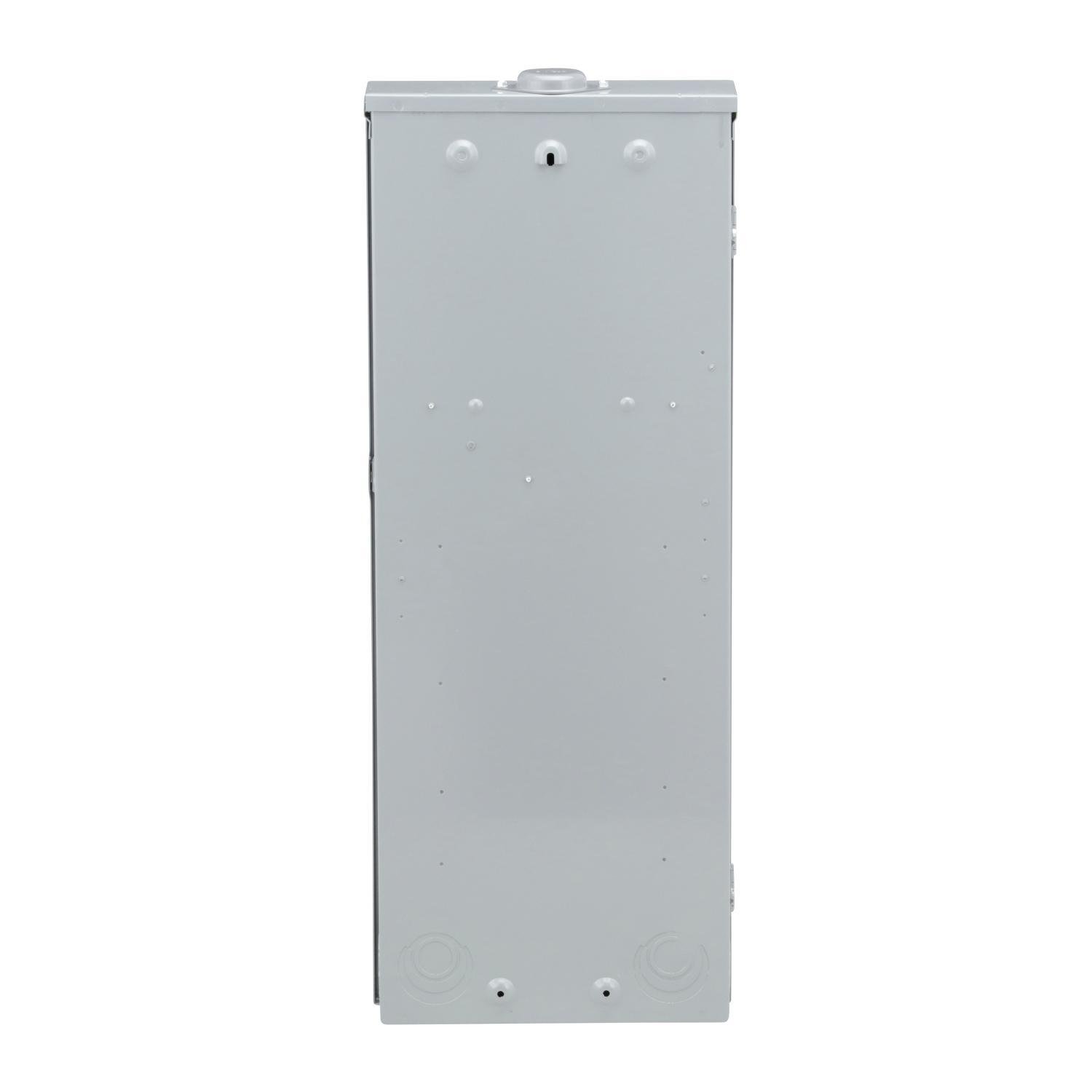

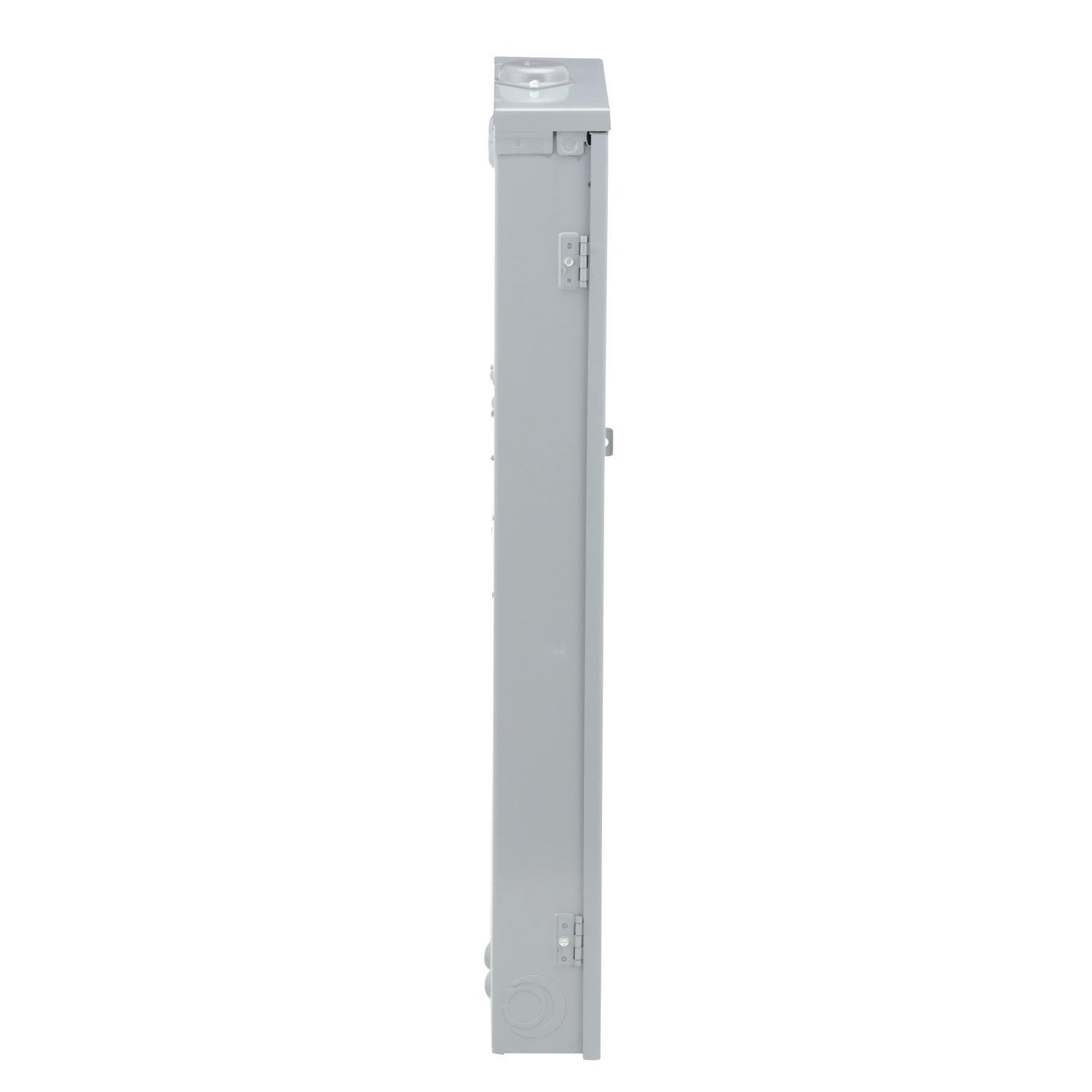

Picture of QO342L225GRB - Load center, QO, 3 phase, 42 spaces, 42 circuits, 225A fixed main lugs, NEMA3R, gnd bar

QO342L225GRB - Load center, QO, 3 phase, 42 spaces, 42 circuits, 225A fixed main lugs, NEMA3R, gnd bar

Item Code: 33318

Category Miscellaneous

Manufacturer SCHNEIDER ELECTRIC

Manufacturer Ref QO342L225GRB

Document
Document
Document
Document

selection not available, try a different combination

Call for Availability

Add to Favorites

Compare

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 42 spaces and 42 circuits. This system provides 225A fixed main lugs in a NEMA 3R enclosure. It also includes a ground bar, and is UL rated.

Specifications

Weight

42.53

Width

15.25

Length

39.12

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/QO342L225GRB/QO342L225GRB.spin

AD All Features

Provides superior performance and durability

AD Alternative Part Number

8125571

AD Application

For outdoor, residential, commercial, industrial requirements to protect electrical systems, equipment and people applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

AD Document Caption 1

RoHS

AD Document Caption 2

Warranty Information

AD Document Caption 3

Specification Sheet

AD Document Caption 4

Technical Bulletin

AD EAN

0785901295556

AD Gtin

00785901295556

AD IDEA Index ID

8125571

AD Includes

Field Installed Grounding Bar

AD Invoice Description

CENTER LOAD LUG MAIN 225A 65KA 50/60HZ

AD Item Features 01

Provides superior performance and durability

AD Item Features 02

Straight in wiring saves wire, labor, and time

AD Item Features 03

Faster installation using PoN breakers that connect directly

AD Item Features 04

50% more terminations for clutter-free wiring

AD Keywords

QO QO342L225GRB 3-Phase Fixed Main Lug Load Center With Surface Cover, 208Y/120/240/120 Delta/240 Delta V AC, 225 A, 65 kA Interrupt ; Schneider Electric ; Square D ; QO342L225GRB ; QO342L225GRB ; 785901295556 ; Three Phase Main Lug Load Centers

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

AD Package Length

39.1200

AD Package Length UOM

AD Package Quantity

AD Package Weight

42.5300

AD Package Weight UOM

AD Package Width

15.2500

AD Package Width UOM

AD Part Number Keywords

QO342L225GRB ; 8125571 ; 785901295556 ; 78590129555 ; 00785901295556 ; 0785901295556

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

Spec 1 Attribute Value

225

Spec 10 Attribute

Number of Circuits

Spec 10 Attribute Value

Spec 11 Attribute

Number of Spaces

Spec 11 Attribute Value

Spec 12 Attribute

Type

Spec 12 Attribute Value

3-Phase Fixed

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

208Y/120/240/120 Delta/240 Delta

Spec 14 Attribute

Wire Size

Spec 14 Attribute Value

4 AWG to 300 kcmil Al/Cu

Spec 15 Attribute

Wiring Configuration

Spec 15 Attribute Value

3/4-Wire

Spec 2 Attribute

BREAKER MOUNTING

Spec 2 Attribute Value

Panel

Spec 3 Attribute

Breaker Type

Spec 3 Attribute Value

QO/MLO

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

14.75 in W x 4.52 in D x 37.98 in H

Spec 5 Attribute

Enclosure Box Size

Spec 5 Attribute Value

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

NEMA 3R

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

Spec 7 Attribute Value

50/60

Spec 8 Attribute

Housing Material

Spec 8 Attribute Value

Galvanized Steel

Spec 9 Attribute

Interrupt Rating

Spec 9 Attribute UOM

Spec 9 Attribute Value
