Square D

QO403L60NF - Load center, QO, 3 phase, 3 spaces, 3 circuits, 60A main lugs, NEMA1, neutral gnd bar, flush cover

Category Load Centers & Accessories

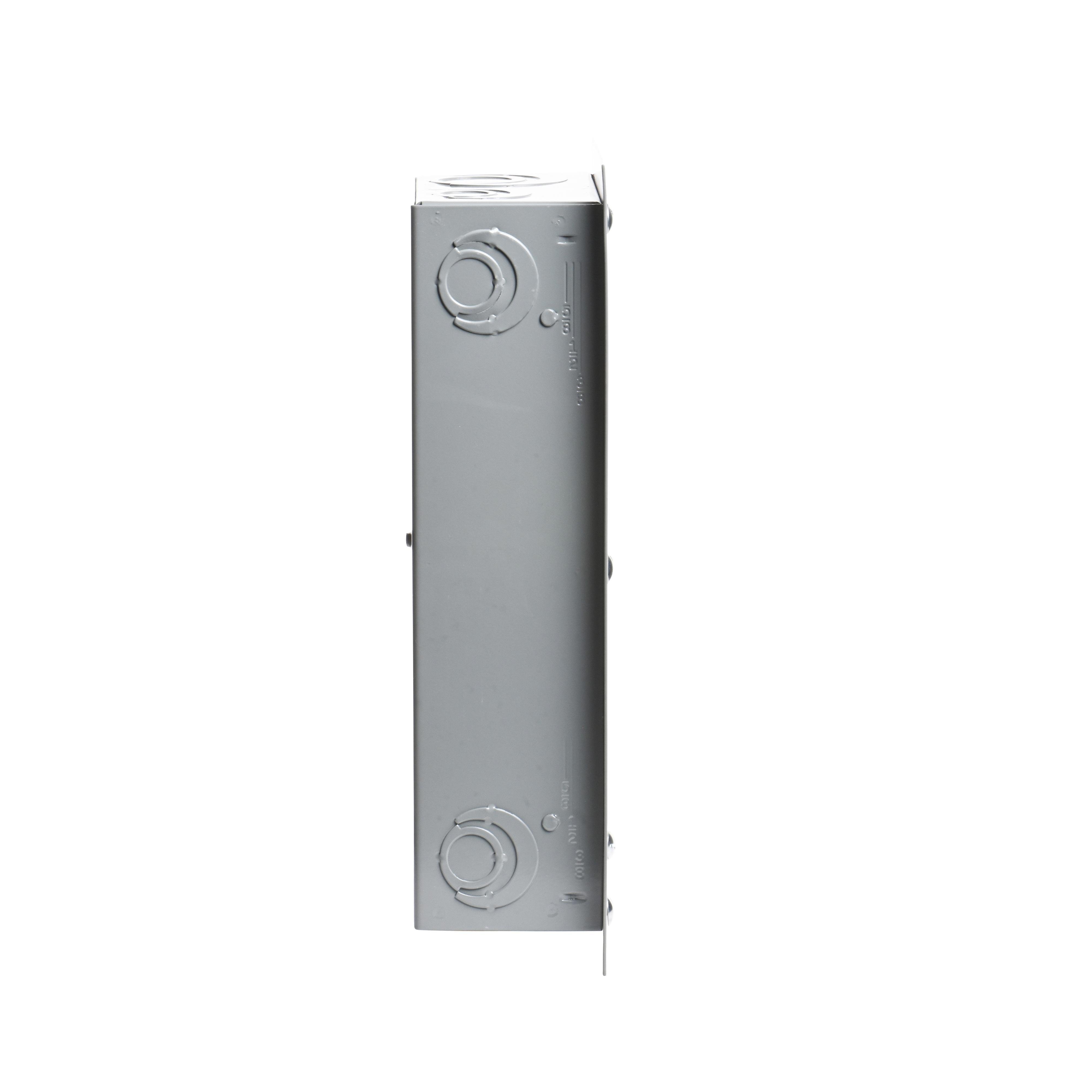

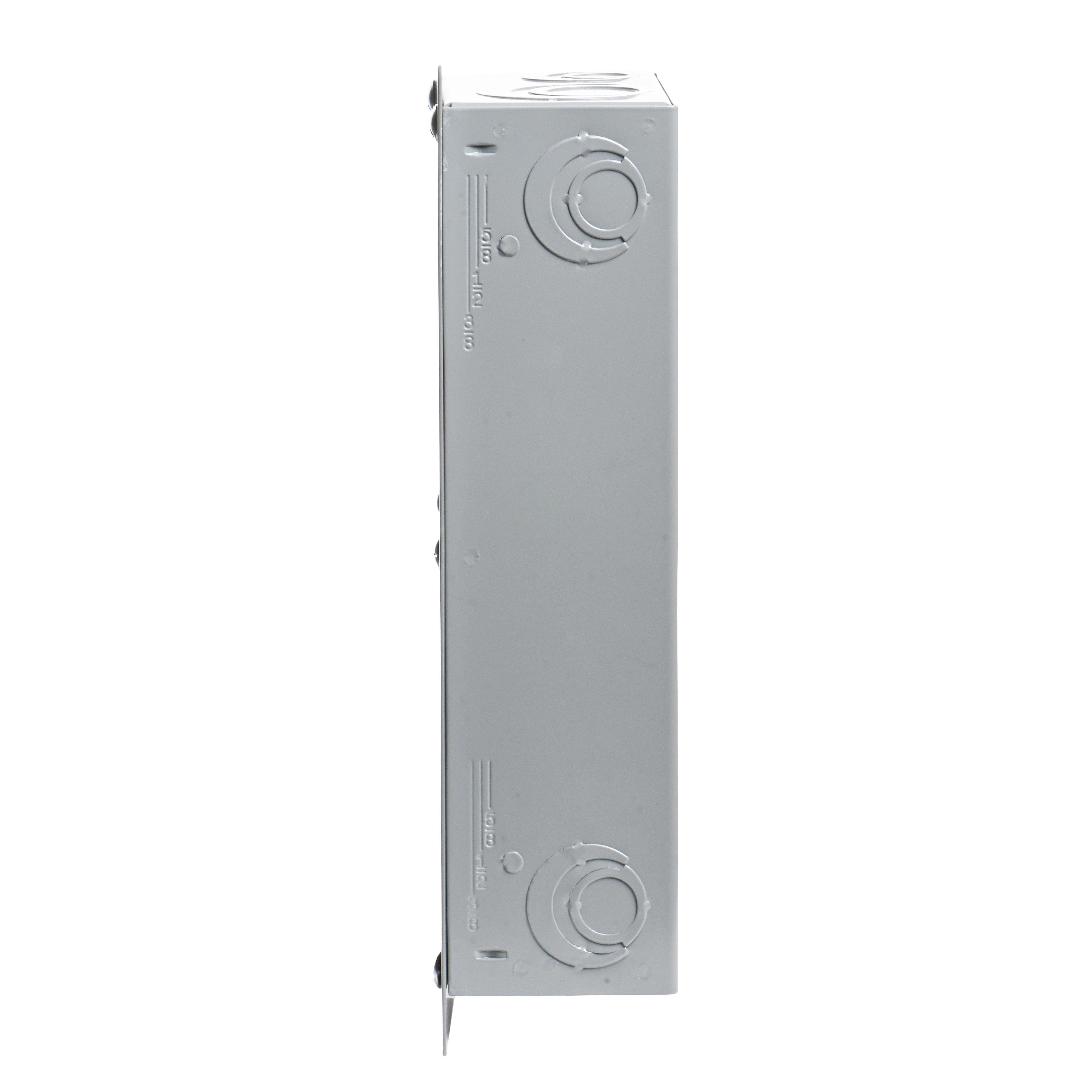

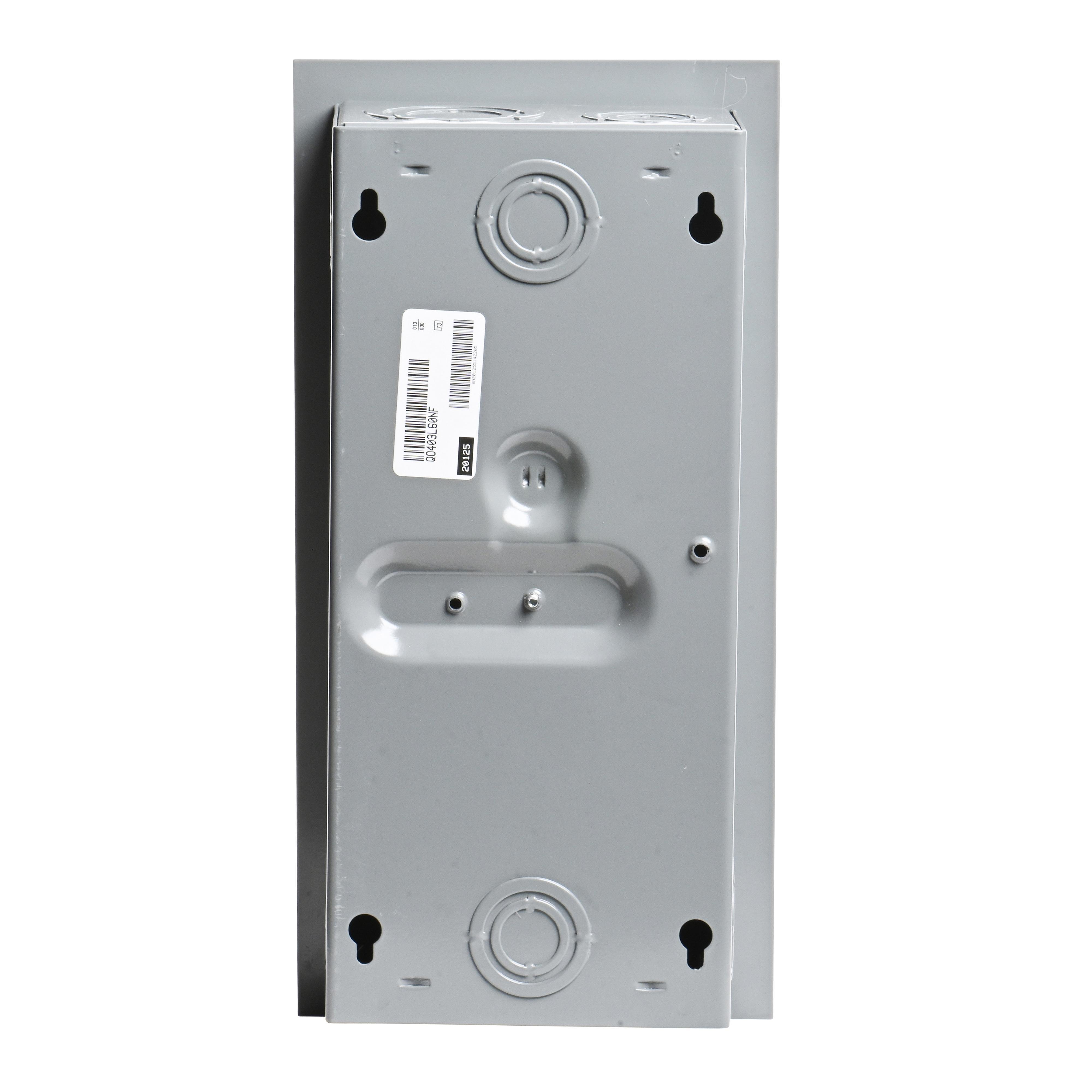

Picture of QO403L60NF - Load center, QO, 3 phase, 3 spaces, 3 circuits, 60A main lugs, NEMA1, neutral gnd bar, flush cover Picture of QO403L60NF - Load center, QO, 3 phase, 3 spaces, 3 circuits, 60A main lugs, NEMA1, neutral gnd bar, flush cover
Picture of QO403L60NF - Load center, QO, 3 phase, 3 spaces, 3 circuits, 60A main lugs, NEMA1, neutral gnd bar, flush cover Picture of QO403L60NF - Load center, QO, 3 phase, 3 spaces, 3 circuits, 60A main lugs, NEMA1, neutral gnd bar, flush cover
Picture of QO403L60NF - Load center, QO, 3 phase, 3 spaces, 3 circuits, 60A main lugs, NEMA1, neutral gnd bar, flush cover Picture of QO403L60NF - Load center, QO, 3 phase, 3 spaces, 3 circuits, 60A main lugs, NEMA1, neutral gnd bar, flush cover
Picture of QO403L60NF - Load center, QO, 3 phase, 3 spaces, 3 circuits, 60A main lugs, NEMA1, neutral gnd bar, flush cover Picture of QO403L60NF - Load center, QO, 3 phase, 3 spaces, 3 circuits, 60A main lugs, NEMA1, neutral gnd bar, flush cover
Square D

QO403L60NF - Load center, QO, 3 phase, 3 spaces, 3 circuits, 60A main lugs, NEMA1, neutral gnd bar, flush cover

Item Code: 593521
Category Load Centers & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QO403L60NF

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 3 spaces and 3 circuits. This system provides 60A main lugs in a NEMA 1 enclosure. It also includes a neutral ground bar, flush cover, and is UL rated.

Specifications

Weight

5.76

Height

3.8

Width

7.45

Length

14.86

AD All Features

Provides superior performance and durability

AD Application

For indoor, residential, commercial and industrial requirements to protect electrical systems, equipment and people applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Includes

Neutral Installed Grounding Bar

AD Invoice Description

LOADCENTER LUG MAIN 60A 65KA 50/60HZ

AD Item Features 01

Provides superior performance and durability

AD Item Features 02

Straight in wiring saves wire, labor, and time

AD Item Features 03

Faster installation using PoN breakers that connect directly

AD Item Features 04

50% more terminations for clutter-free wiring

AD Manufacturer (Description)

Schneider Electric

AD Package Height

3.8000

AD Package Height UOM

IN

AD Package Length

14.8600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

436.0900

AD Package Volume UOM

cu-in

AD Package Weight

5.7600

AD Package Weight UOM

LB

AD Package Width

7.4500

AD Package Width UOM

IN

Brand

Square D

Category

Load Centers & Accessories

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

60

Spec 10 Attribute

Number of Circuits

Spec 10 Attribute Value

3

Spec 11 Attribute

Number of Spaces

Spec 11 Attribute Value

3

Spec 12 Attribute

Type

Spec 12 Attribute Value

3-Phase Fixed

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

120 to 208Y/120 to 240 Delta/240 Delta

Spec 14 Attribute

Wire Size

Spec 14 Attribute UOM

AWG

Spec 14 Attribute Value

10 to 6

Spec 15 Attribute

Wiring Configuration

Spec 15 Attribute Value

3/4-Wire

Spec 2 Attribute

Breaker Type

Spec 2 Attribute Value

QO/MLO

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

5.88 in W x 3.38 in D x 13.12 in H

Spec 4 Attribute

Enclosure Box Size

Spec 4 Attribute Value

13

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 1

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Housing Material

Spec 7 Attribute Value

Sheet Steel

Spec 8 Attribute

Interrupt Rating

Spec 8 Attribute UOM

KA

Spec 8 Attribute Value

65

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Flush
