Square D

QO48M30DSGP - Generator panel, QO, 1 phase, 4 spaces, 8 circuits, 30A main breaker with interlock, NEMA1, surface cover door

Category Miscellaneous

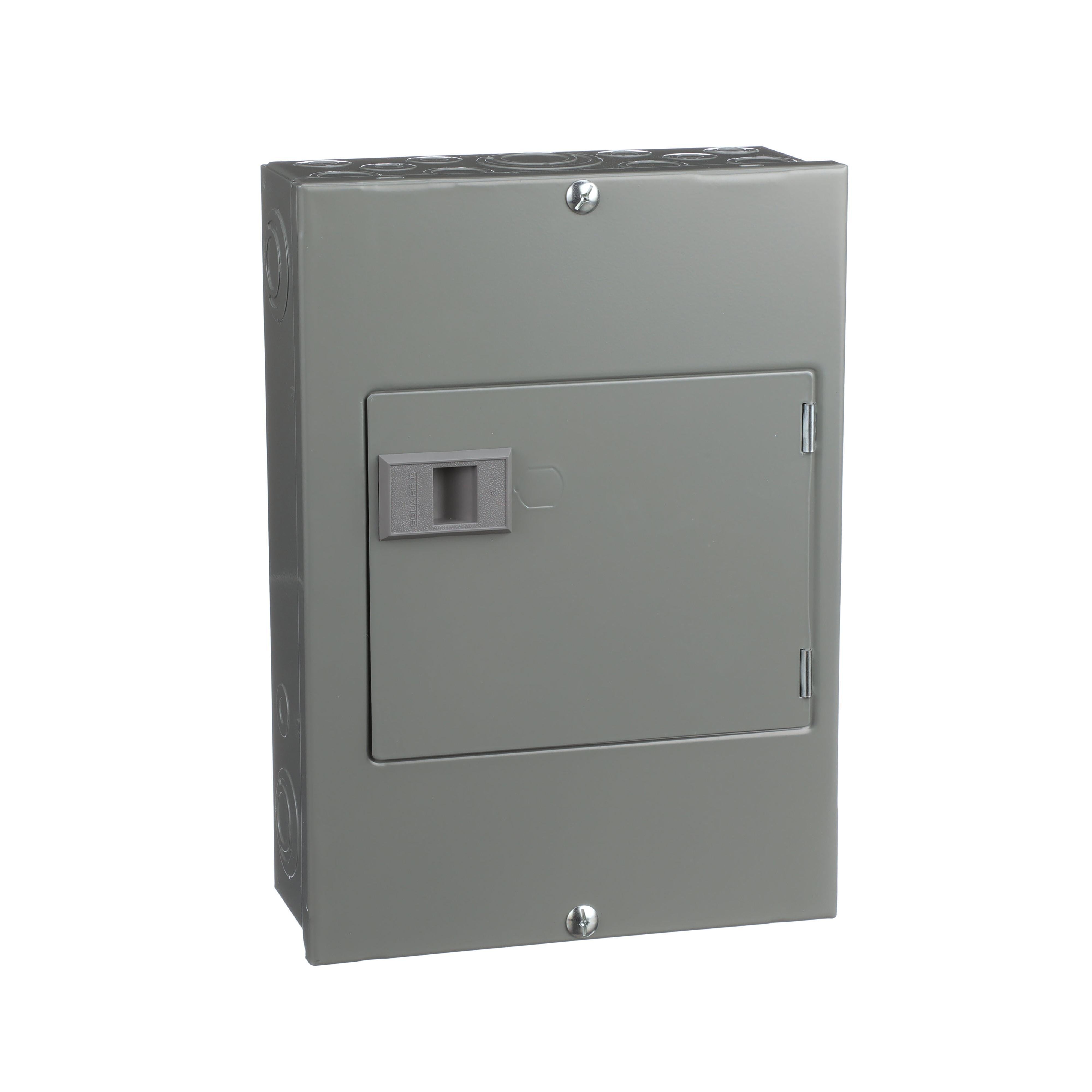

Picture of QO48M30DSGP - Generator panel, QO, 1 phase, 4 spaces, 8 circuits, 30A main breaker with interlock, NEMA1, surface cover door
Square D

QO48M30DSGP - Generator panel, QO, 1 phase, 4 spaces, 8 circuits, 30A main breaker with interlock, NEMA1, surface cover door

Item Code: 33322
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QO48M30DSGP

Document
Document
Call for Availability
Add to Favorites
Compare

Description

QO generator panels are for the manual transfer from utility to generator power. QO generator panels are for back-up power applications. This sub-panel connects directly to the main load center and provides four single pole spaces that will accommodate up to eight circuits dedicated for back-up power. This QO generator panel uses two factory installed, two pole QO circuit breakers. One is fed by the utility, while the second circuit breaker is back-fed to the back-up power source, such as a generator. Power source switching is easy. Simply turn the main power breaker to the "OFF" position and then turn the generator fed breaker to the "ON" position. A factory installed mechanical interlock prevents both main breakers being in the "ON" position at the same time. This NEMA 1 enclosure with a surface cover with a door is for indoor applications. This panel has a 30A rating and a 10 kA short circuit current rating. The lugs will accept 14 AWG to 8 AWG copper or aluminum wire. This QO generator panel has a height of 12.57 inches, a width of 8.88 inches and a depth of 3.80 inches. This generator panel is UL Listed.

Specifications

Weight

9.35

Height

4.4

Width

10.61

Length

14.35

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/QO48M30DSGP/QO48M30DSGP.spin

AD All Features

QO Load center provides superior performance and durability

AD Alternative Part Number

8069886

AD Application

For indoor, residential, commercial and industrial requirements to protect electrical systems, equipment and people applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD EAN

0785901868200

AD Gtin

00785901868200

AD IDEA Index ID

8069886

AD Includes

Field Installed Grounding Bar

AD Invoice Description

CENTER LOAD BRKR MAIN 120/240VAC 30A

AD Item Features 01

QO Load center provides superior performance and durability

AD Item Features 02

Straight in wiring saves wire, labor, and time

AD Item Features 03

Compatible with any Square D QO Circuit Breaker

AD Item Features 04

The fully distributed neutral bar allows for QO plug-on neutral circuit breakers in any space

AD Manufacturer (Description)

Schneider Electric

AD Package Height

4.4000

AD Package Height UOM

IN

AD Package Length

14.3500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

677.9500

AD Package Volume UOM

cu-in

AD Package Weight

9.3500

AD Package Weight UOM

LB

AD Package Width

10.6100

AD Package Width UOM

IN

AD Part Number Keywords

QO48M30DSGP ; 8069886 ; 785901868200 ; 78590186820 ; 00785901868200 ; 0785901868200

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

30

Spec 10 Attribute

Number of Circuits

Spec 10 Attribute Value

8

Spec 11 Attribute

Number Of Poles

Spec 11 Attribute Value

8

Spec 12 Attribute

Number of Spaces

Spec 12 Attribute Value

4

Spec 13 Attribute

Type

Spec 13 Attribute Value

1-Phase Fixed

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

120/240

Spec 15 Attribute

Wire Size

Spec 15 Attribute UOM

AWG

Spec 15 Attribute Value

14 to 8

Spec 16 Attribute

Wiring Configuration

Spec 16 Attribute Value

3-Wire

Spec 2 Attribute

BREAKER MOUNTING

Spec 2 Attribute Value

Panel

Spec 3 Attribute

Breaker Type

Spec 3 Attribute Value

QO

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

8.88 in W x 3.8 in D x 12.57 in H

Spec 5 Attribute

Enclosure Box Size

Spec 5 Attribute Value

4

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

NEMA 1

Spec 7 Attribute

Housing Material

Spec 7 Attribute Value

Steel

Spec 8 Attribute

Interrupt Rating

Spec 8 Attribute UOM

KA

Spec 8 Attribute Value

10

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Surface
