Square D

QO612L100DS - Load center, QO, 1 phase, 6 spaces, 12 circuits, 100A fixed main lugs, NEMA1, door surface cover

Category Load Centers & Accessories

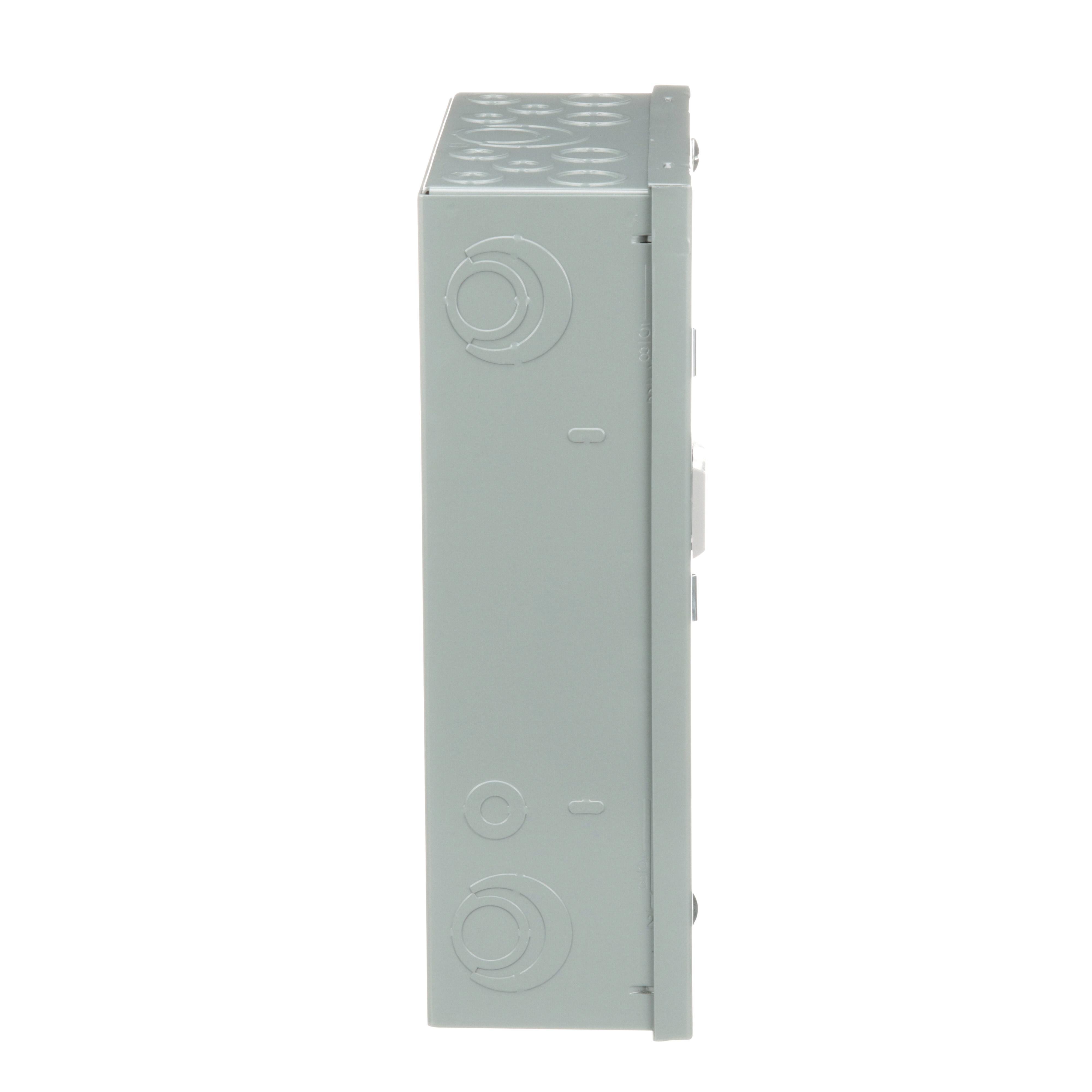

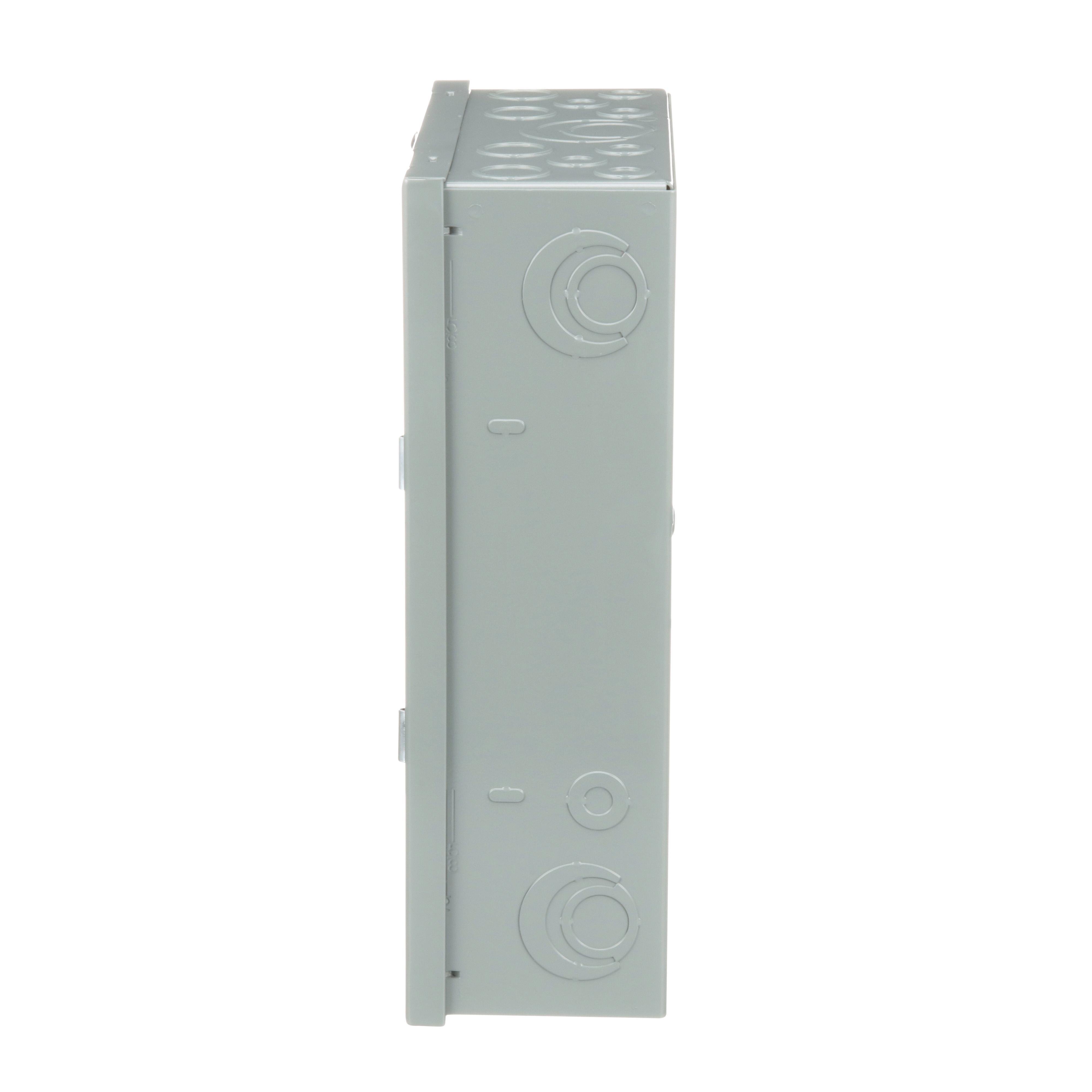

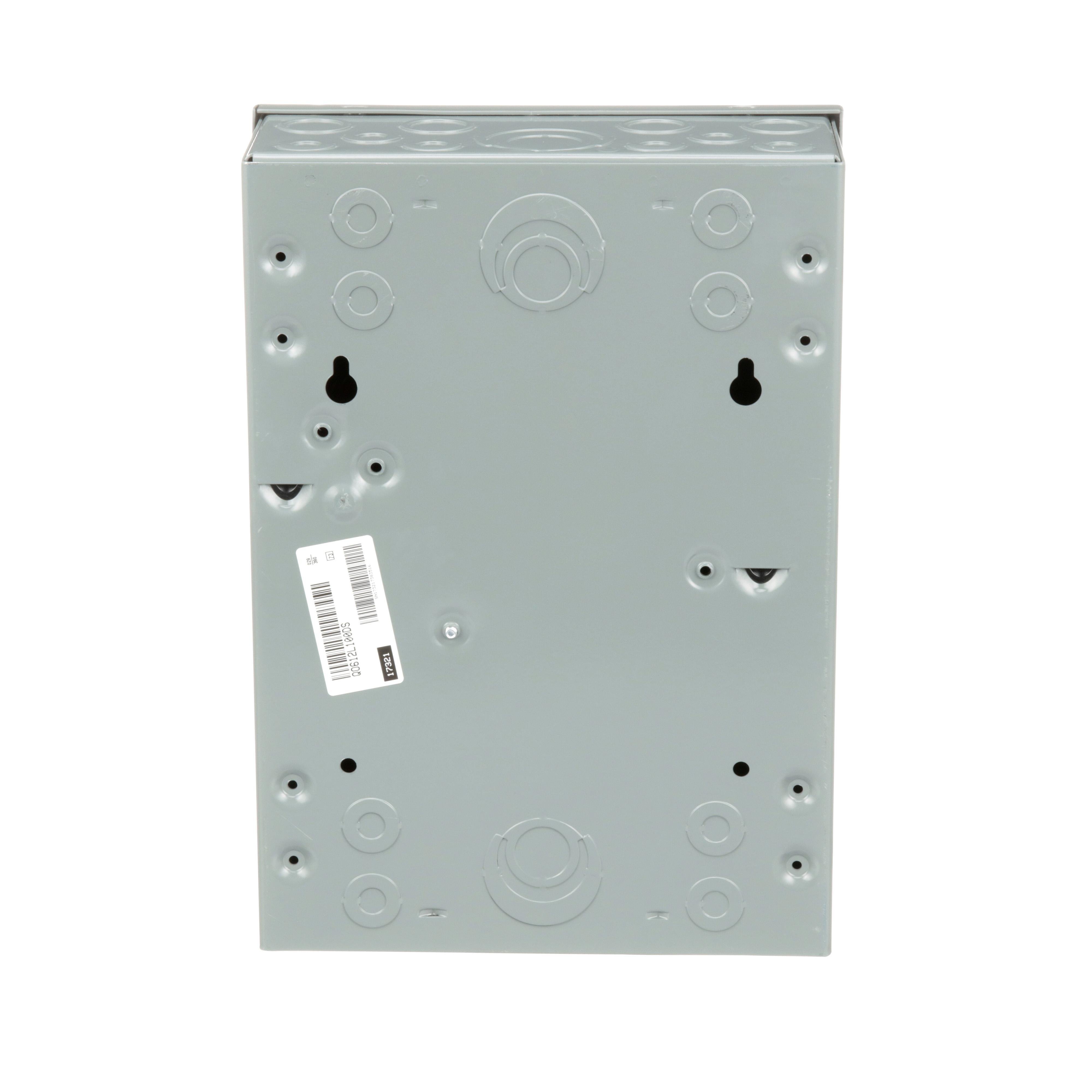

Picture of QO612L100DS - Load center, QO, 1 phase, 6 spaces, 12 circuits, 100A fixed main lugs, NEMA1, door surface cover
Square D

QO612L100DS - Load center, QO, 1 phase, 6 spaces, 12 circuits, 100A fixed main lugs, NEMA1, door surface cover

Item Code: 18626
Category Load Centers & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QO612L100DS

RoHS
Specification Sheet
Technical Bulletin
Warranty Information
Call for Availability
Add to Favorites
Compare

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 6 spaces and 12 circuits. This system provides 100A fixed main lugs in a NEMA 1 enclosure. UL, CSA and CE approvals.

Specifications

Weight

8.27lb

Height

4.3mm

Width

4.36mm

Length

10.6mm

Amperage Rating

100 A

Brand

Square D

Breaker Type

QO

Category

Load Centers & Accessories

Dimensions

8.89 in W x 3.8 in D x 12.57 in H

Enclosure Type

NEMA 1

Housing Material

Steel

Interrupt Rating

10 kA

Mounting Type

Surface

Number of Circuits

12

Number of Spaces

6

Type

1-ph Fixed

Voltage Rating

120/240 V AC

Wire Size

8 to 1 AWG

Wiring Configuration

3-Wire
