Square D

QO612L100RB - Load center, QO, 1 phase, 6 spaces, 12 circuits, 100A fixed main lugs, NEMA3R

Category Load Centers & Accessories

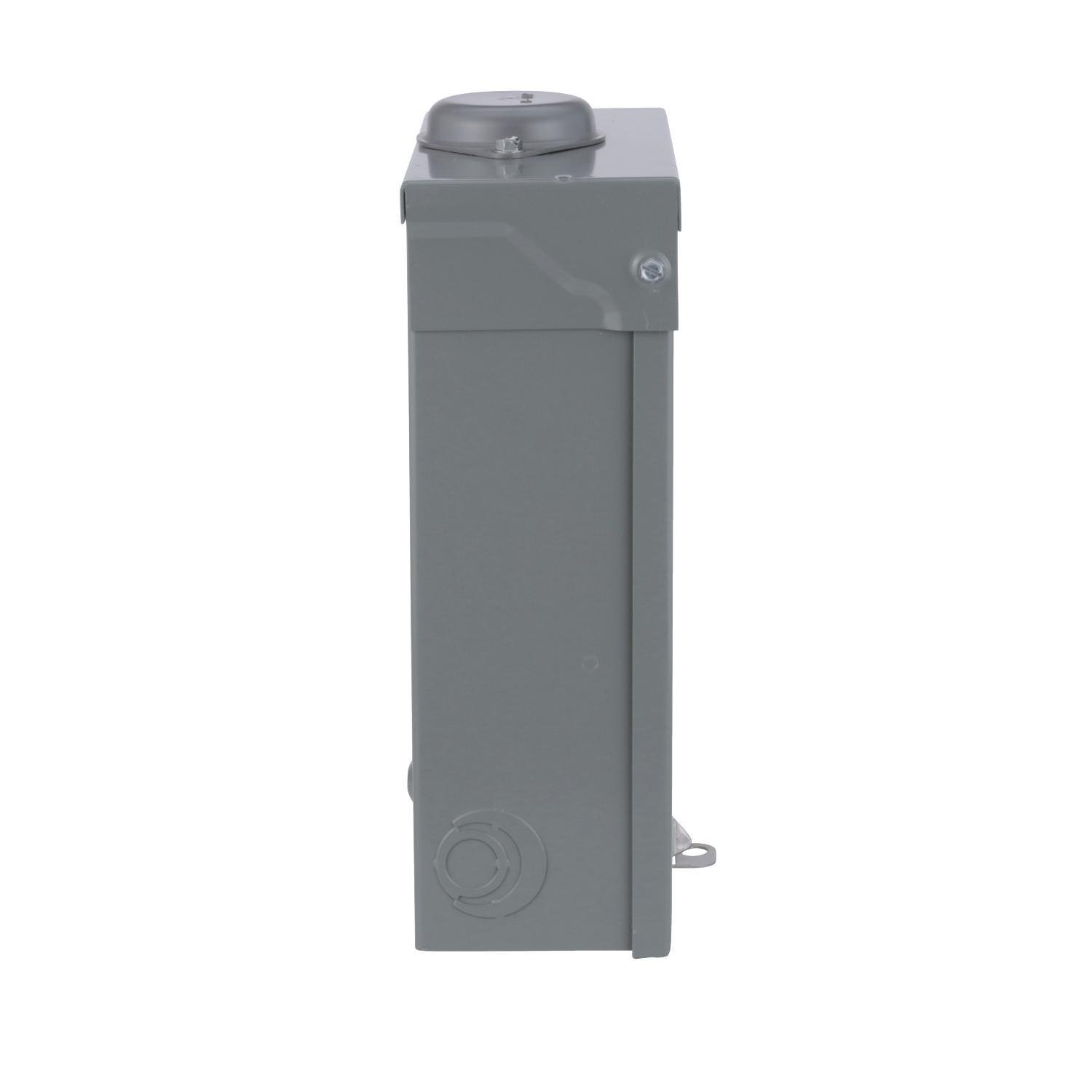

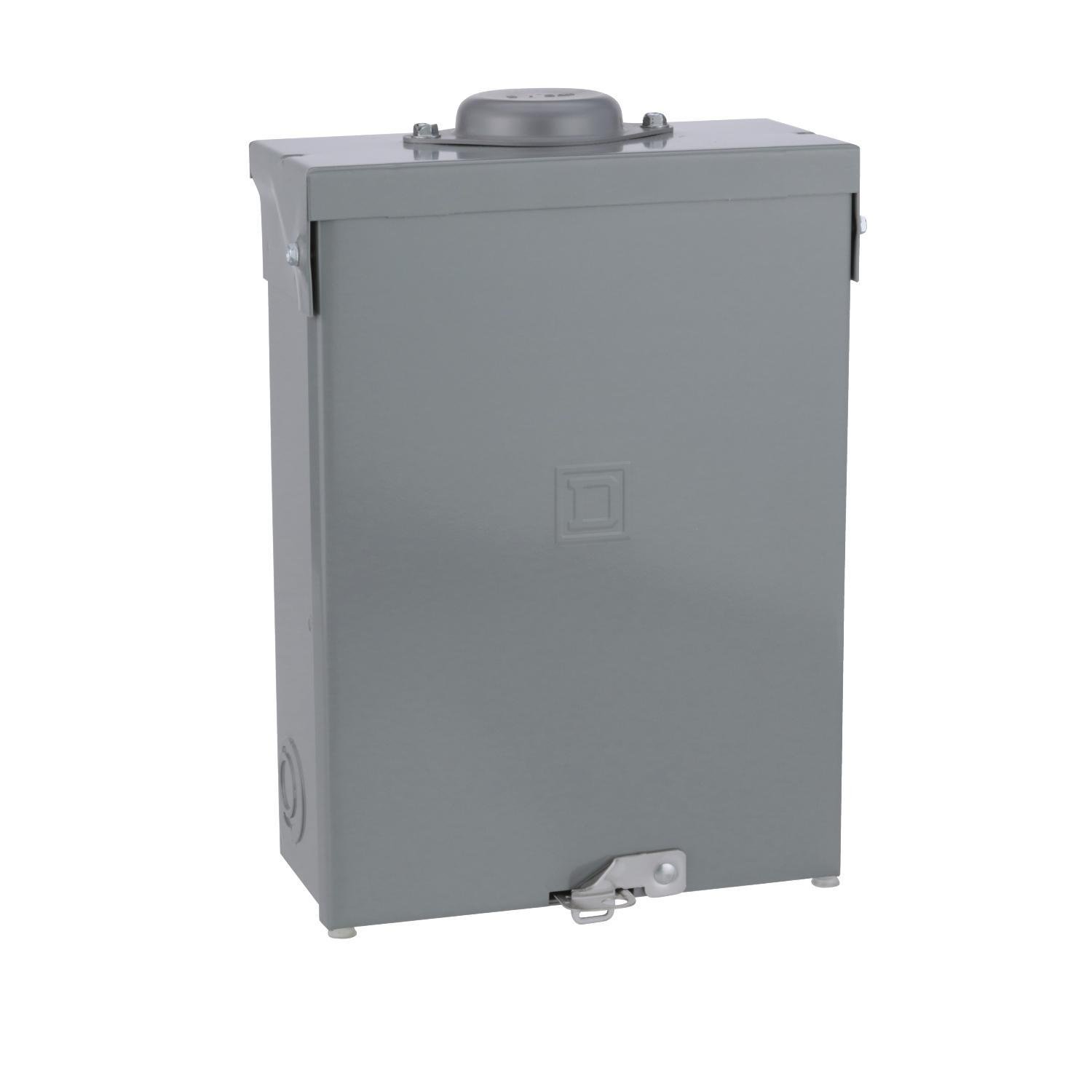

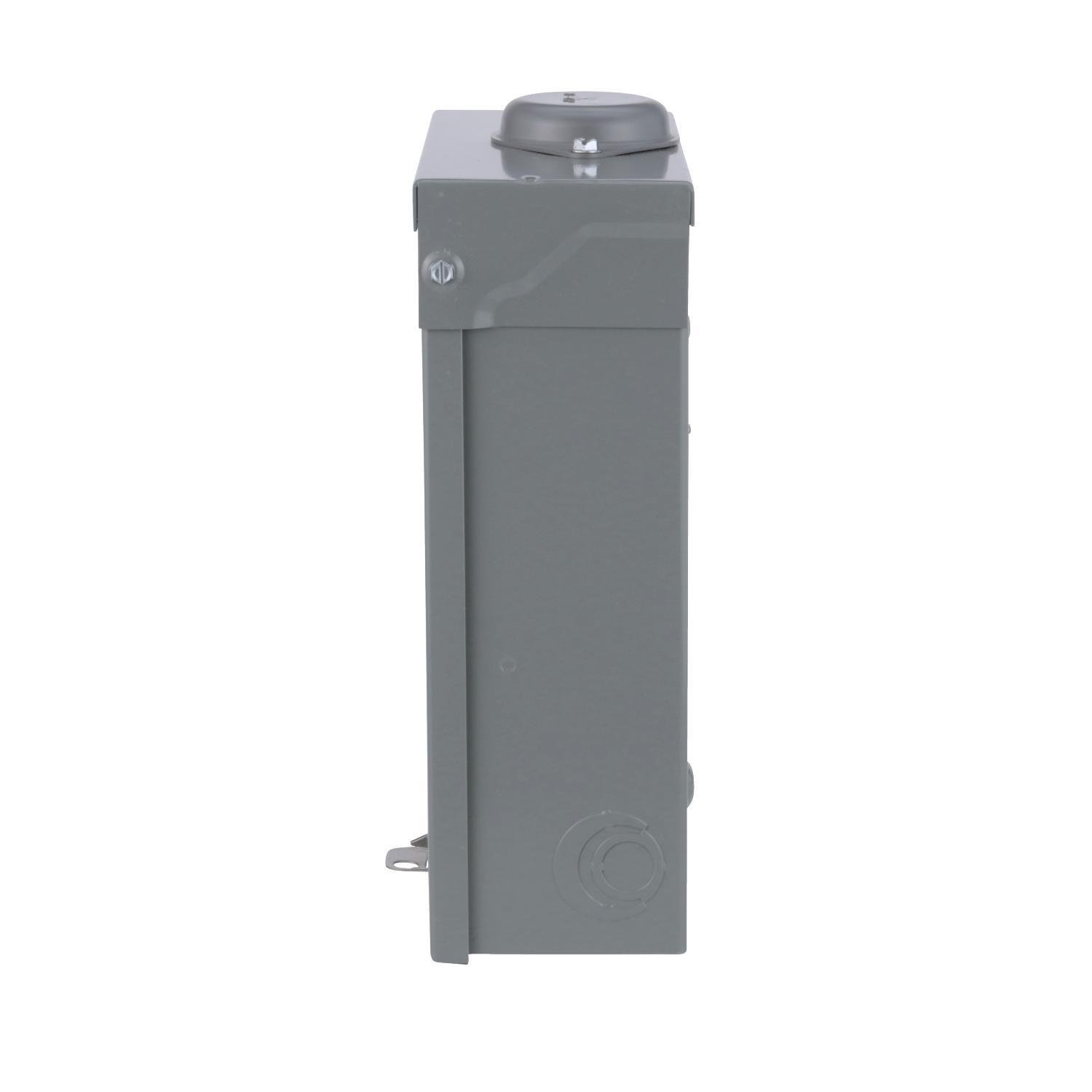

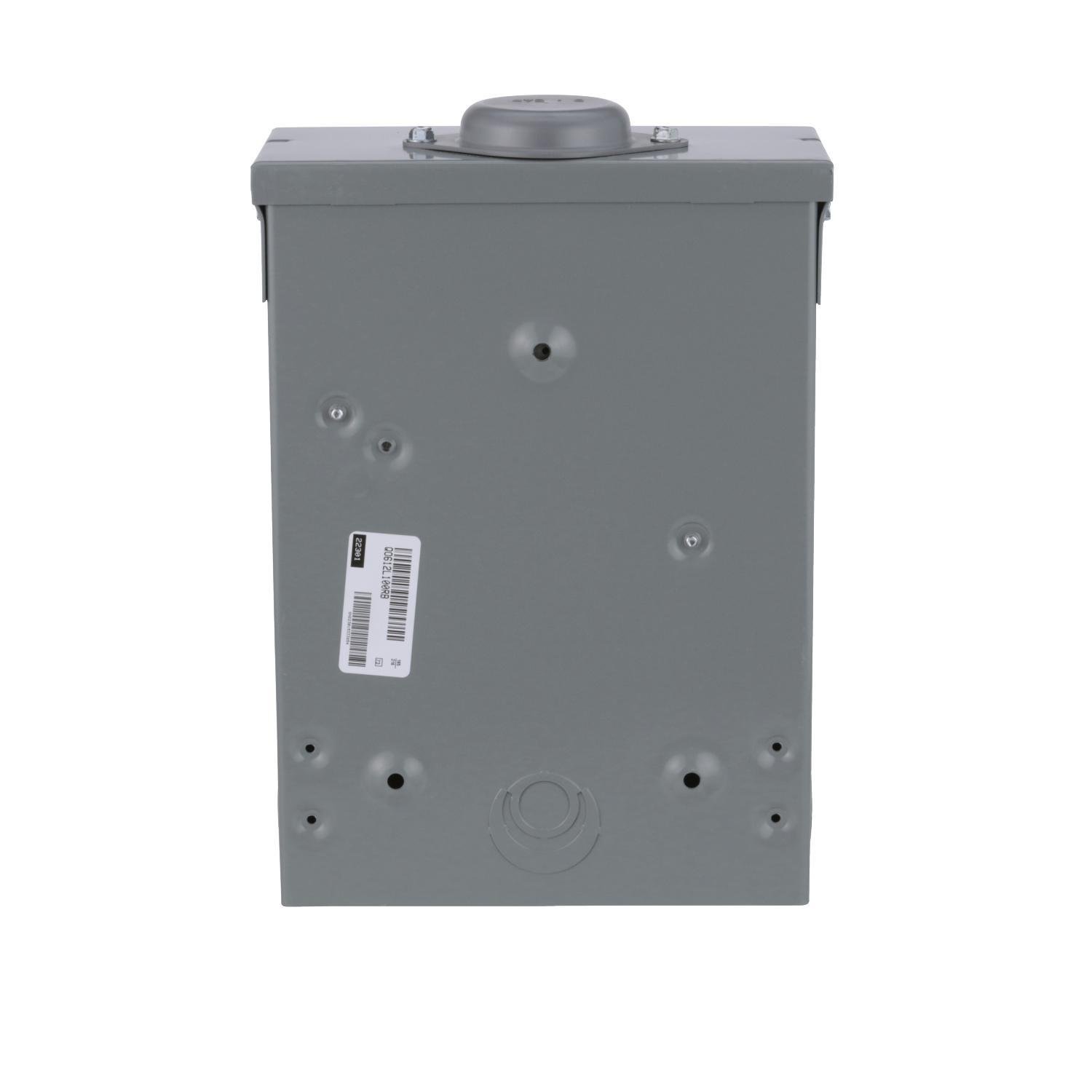

Picture of QO612L100RB - Load center, QO, 1 phase, 6 spaces, 12 circuits, 100A fixed main lugs, NEMA3R Picture of QO612L100RB - Load center, QO, 1 phase, 6 spaces, 12 circuits, 100A fixed main lugs, NEMA3R
Picture of QO612L100RB - Load center, QO, 1 phase, 6 spaces, 12 circuits, 100A fixed main lugs, NEMA3R Picture of QO612L100RB - Load center, QO, 1 phase, 6 spaces, 12 circuits, 100A fixed main lugs, NEMA3R
Picture of QO612L100RB - Load center, QO, 1 phase, 6 spaces, 12 circuits, 100A fixed main lugs, NEMA3R Picture of QO612L100RB - Load center, QO, 1 phase, 6 spaces, 12 circuits, 100A fixed main lugs, NEMA3R
Picture of QO612L100RB - Load center, QO, 1 phase, 6 spaces, 12 circuits, 100A fixed main lugs, NEMA3R Picture of QO612L100RB - Load center, QO, 1 phase, 6 spaces, 12 circuits, 100A fixed main lugs, NEMA3R
Picture of QO612L100RB - Load center, QO, 1 phase, 6 spaces, 12 circuits, 100A fixed main lugs, NEMA3R Picture of QO612L100RB - Load center, QO, 1 phase, 6 spaces, 12 circuits, 100A fixed main lugs, NEMA3R
Square D

QO612L100RB - Load center, QO, 1 phase, 6 spaces, 12 circuits, 100A fixed main lugs, NEMA3R

Item Code: 18628
Category Load Centers & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QO612L100RB

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 6 spaces and 12 circuits. This system provides 100A fixed main lugs in a NEMA 3R enclosure. This product is UL rated.

Specifications

Weight

9.63lb

Height

4.9mm

Width

10.2mm

Length

14.07mm

AD All Features

Provides superior performance and durability

AD Application

For residential, commercial and industrial requirements to protect electrical systems, equipment and people applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Includes

Rainproof Cover

AD Invoice Description

LOADCENTER MAIN LUG 120/240VAC 100A 1 12

AD Item Features 01

Provides superior performance and durability

AD Item Features 02

Straight in wiring saves wire, labor, and time

AD Item Features 03

Faster installation using PoN breakers that connect directly

AD Item Features 04

50% more terminations for clutter-free wiring

AD Manufacturer (Description)

Schneider Electric

AD Package Height

4.9000

AD Package Height UOM

IN

AD Package Length

14.0700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

716.6700

AD Package Volume UOM

cu-in

AD Package Weight

9.6300

AD Package Weight UOM

LB

AD Package Width

10.2000

AD Package Width UOM

IN

Brand

Square D

Category

Load Centers & Accessories

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

100

Spec 10 Attribute

Number of Circuits

Spec 10 Attribute Value

12

Spec 11 Attribute

Number Of Poles

Spec 11 Attribute Value

1

Spec 12 Attribute

Number of Spaces

Spec 12 Attribute Value

6

Spec 13 Attribute

Type

Spec 13 Attribute Value

1-ph Fixed

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

120/240

Spec 15 Attribute

Wire Size

Spec 15 Attribute UOM

AWG

Spec 15 Attribute Value

8 To 1

Spec 16 Attribute

Wiring Configuration

Spec 16 Attribute Value

3-Wire

Spec 2 Attribute

BREAKER MOUNTING

Spec 2 Attribute Value

Panel

Spec 3 Attribute

Breaker Type

Spec 3 Attribute Value

QO

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

8.89 in W x 4.27 in D x 12.64 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 3R

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Housing Material

Spec 7 Attribute Value

Galvanized Steel

Spec 8 Attribute

Interrupt Rating

Spec 8 Attribute UOM

KA

Spec 8 Attribute Value

10

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Bolt-on
