Square D

QO816L100F - Load center, QO, 1 phase, 8 spaces, 16 circuits, 100A fixed main lugs, NEMA1, flush cover

Category Miscellaneous

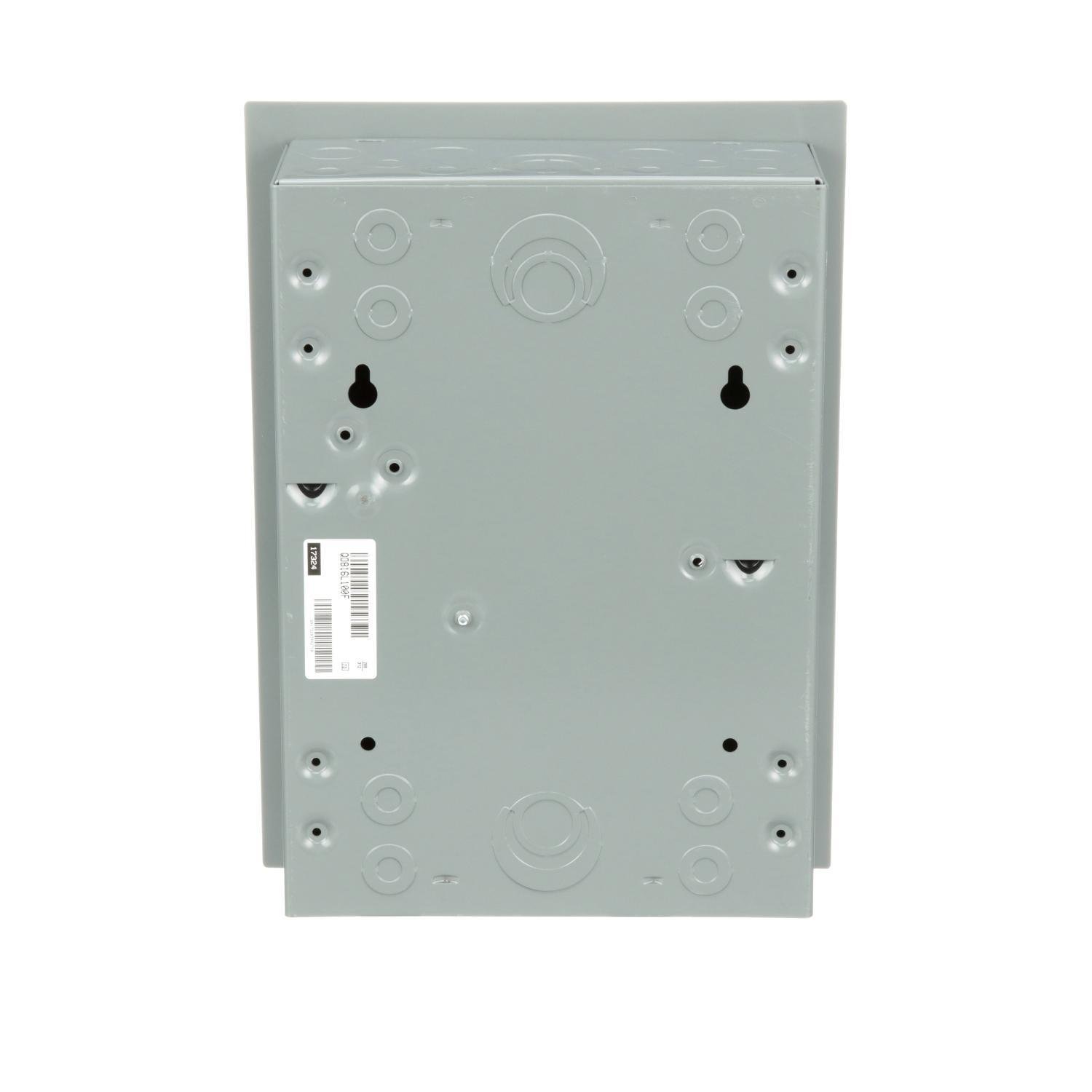

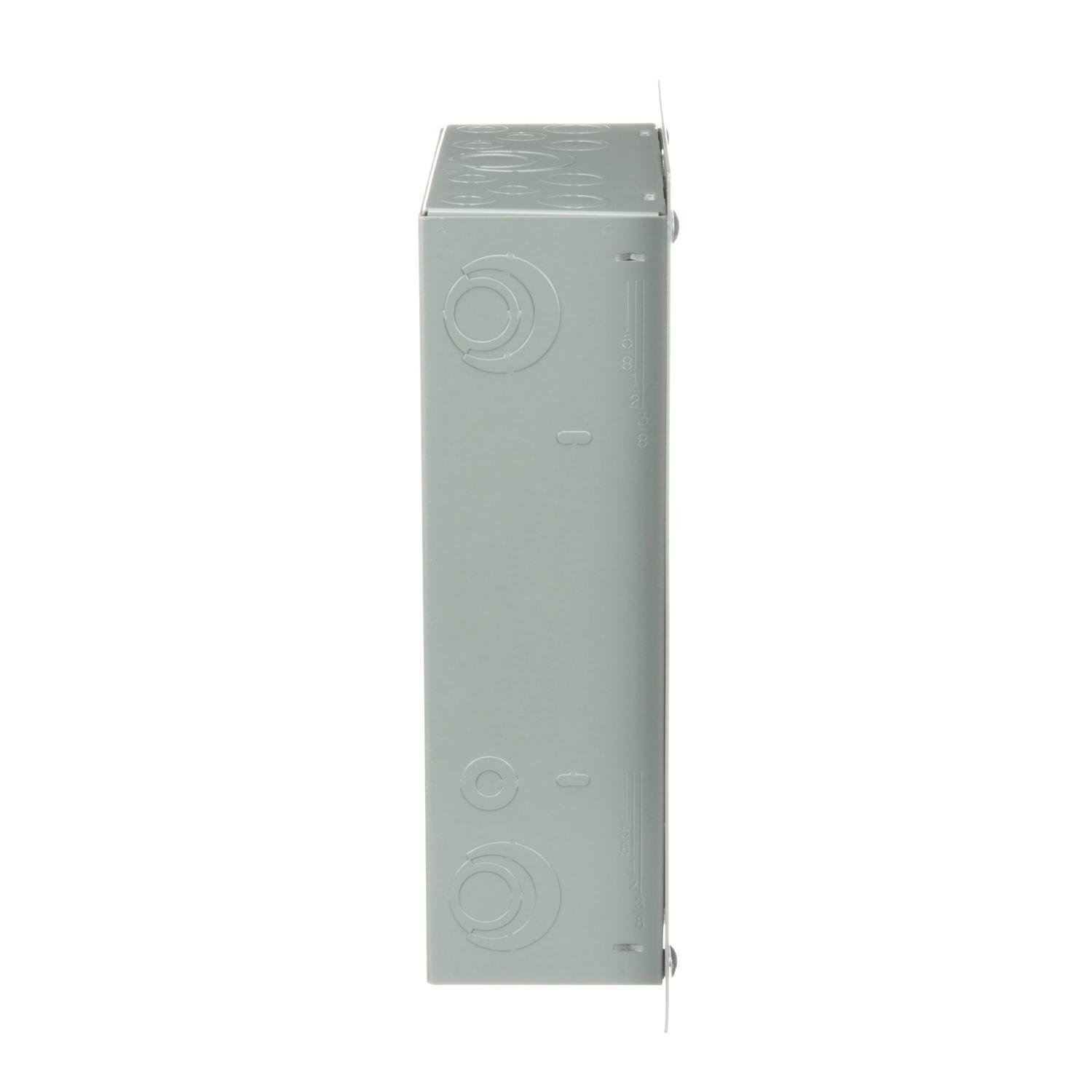

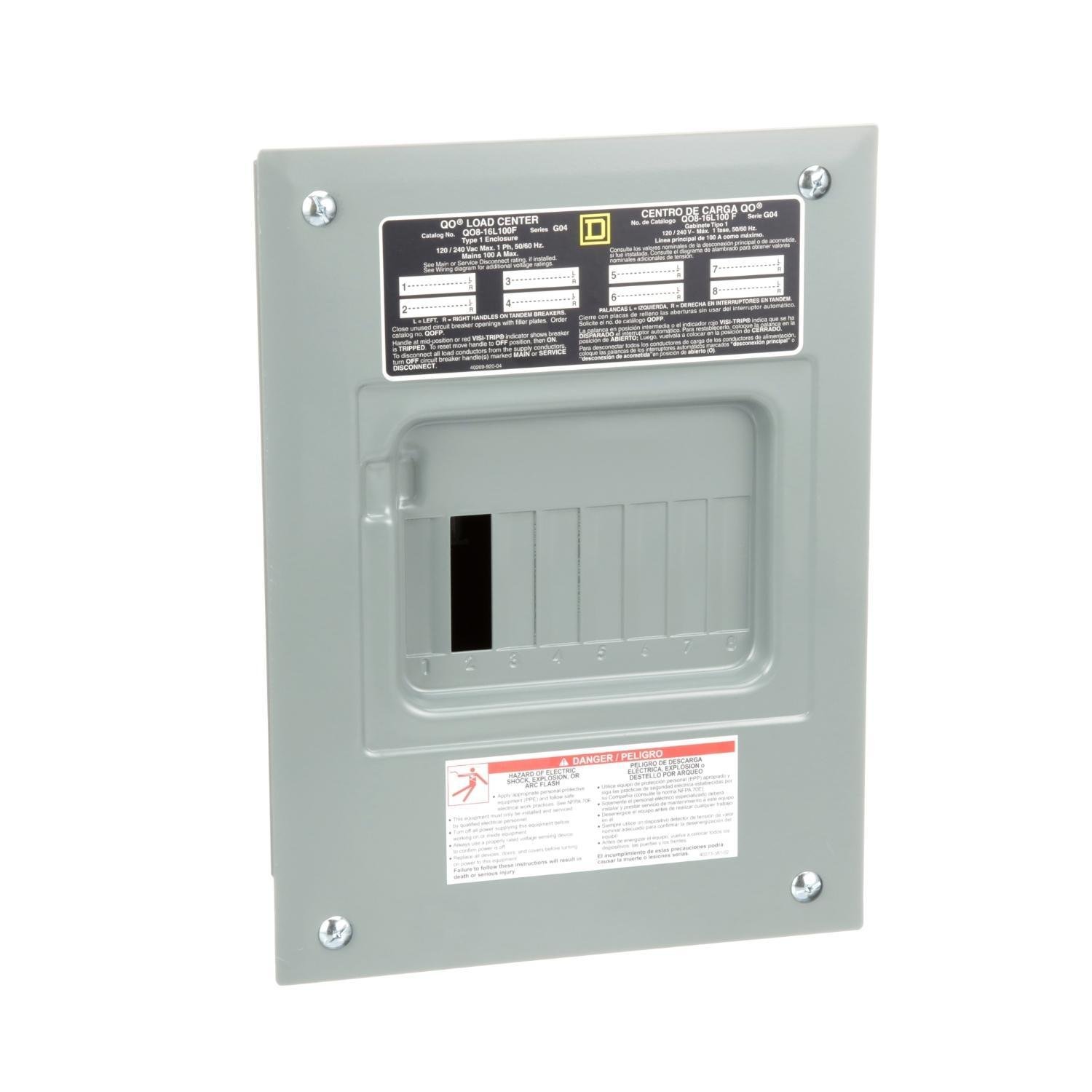

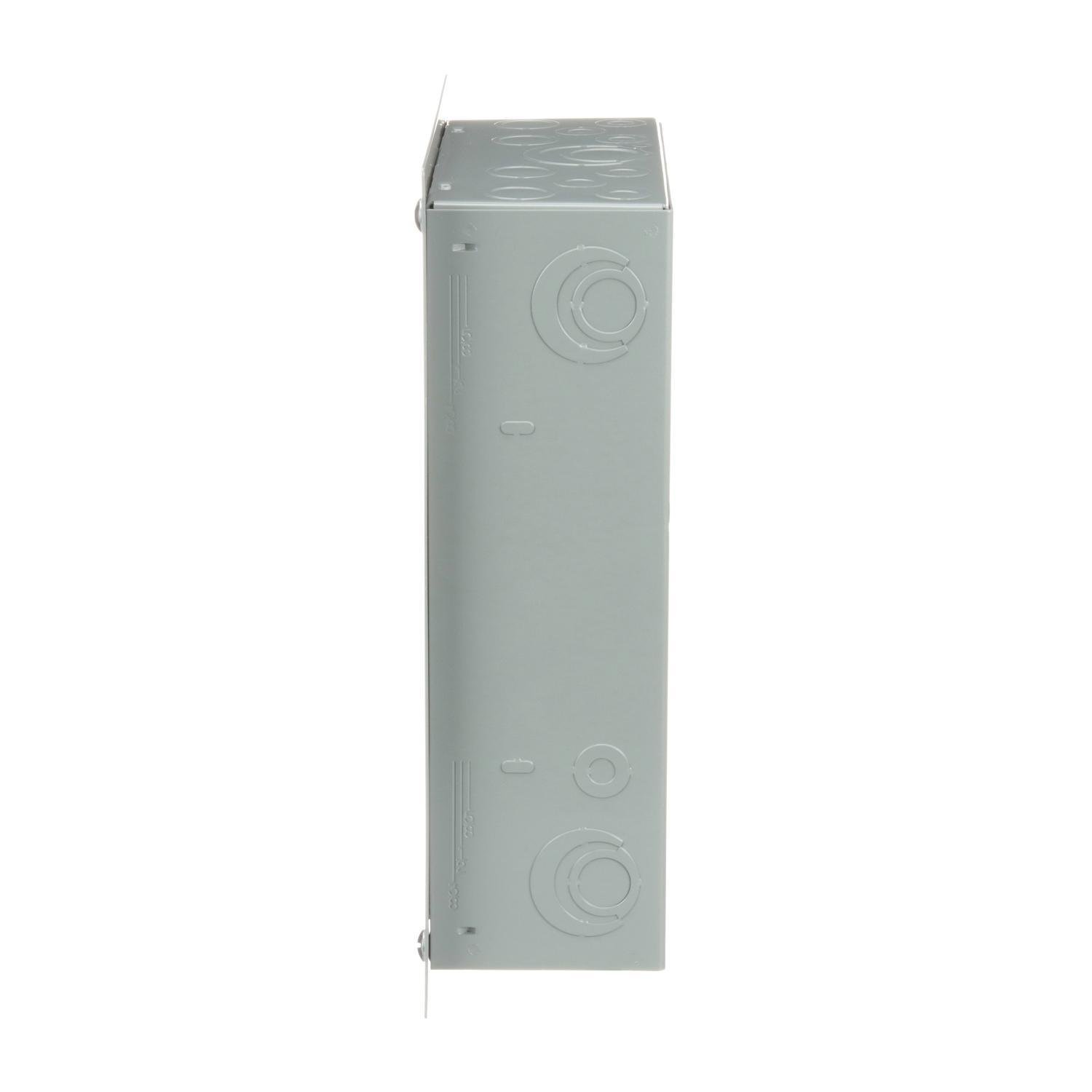

Picture of QO816L100F - Load center, QO, 1 phase, 8 spaces, 16 circuits, 100A fixed main lugs, NEMA1, flush cover Picture of QO816L100F - Load center, QO, 1 phase, 8 spaces, 16 circuits, 100A fixed main lugs, NEMA1, flush cover
Picture of QO816L100F - Load center, QO, 1 phase, 8 spaces, 16 circuits, 100A fixed main lugs, NEMA1, flush cover Picture of QO816L100F - Load center, QO, 1 phase, 8 spaces, 16 circuits, 100A fixed main lugs, NEMA1, flush cover
Picture of QO816L100F - Load center, QO, 1 phase, 8 spaces, 16 circuits, 100A fixed main lugs, NEMA1, flush cover Picture of QO816L100F - Load center, QO, 1 phase, 8 spaces, 16 circuits, 100A fixed main lugs, NEMA1, flush cover
Picture of QO816L100F - Load center, QO, 1 phase, 8 spaces, 16 circuits, 100A fixed main lugs, NEMA1, flush cover Picture of QO816L100F - Load center, QO, 1 phase, 8 spaces, 16 circuits, 100A fixed main lugs, NEMA1, flush cover
Square D

QO816L100F - Load center, QO, 1 phase, 8 spaces, 16 circuits, 100A fixed main lugs, NEMA1, flush cover

Item Code: 33324
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QO816L100F

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 8 spaces and 16 circuits. This system provides 100A fixed main lugs in a NEMA 1 enclosure. It also includes a flush cover, and is UL rated.

Specifications

Weight

7.81

Height

4.4

Width

10.69

Length

14.35

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/QO816L100F/QO816L100F.spin

AD All Features

Provides superior performance and durability

AD Alternative Part Number

8030914

AD Application

For residential, commercial and industrial requirements to protect electrical systems, equipment and people

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Warranty Information

AD Document Caption 3

Specification Sheet

AD Document Caption 4

Technical Bulletin

AD EAN

0785901785675

AD Gtin

00785901785675

AD IDEA Index ID

8030914

AD Includes

Flush Cover

AD Invoice Description

LOADCENTER MAIN LUG 120/240VAC 100A 16 8

AD Item Features 01

Provides superior performance and durability

AD Item Features 02

Straight in wiring saves wire, labor, and time

AD Item Features 03

Faster installation using PoN breakers that connect directly

AD Item Features 04

50% more terminations for clutter-free wiring

AD Keywords

QO QO816L100F 1-Phase Fixed Main Lug Loadcenter, 120/240 V AC, 100 A, 16 Poles, 10 kA Interrupt ; Schneider Electric ; Square D ; QO816L100F ; QO816L100F ; 785901785675 ; Single Phase Main Lug Load Centers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

4.4000

AD Package Height UOM

IN

AD Package Length

14.3500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

682.6600

AD Package Volume UOM

cu-in

AD Package Weight

7.8100

AD Package Weight UOM

LB

AD Package Width

10.6900

AD Package Width UOM

IN

AD Part Number Keywords

QO816L100F ; 8030914 ; 785901785675 ; 78590178567 ; 00785901785675 ; 0785901785675

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

100

Spec 10 Attribute

Number of Spaces

Spec 10 Attribute Value

8

Spec 11 Attribute

Type

Spec 11 Attribute Value

1-Phase Fixed

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

120/240

Spec 13 Attribute

Wire Size

Spec 13 Attribute UOM

AWG

Spec 13 Attribute Value

8 To 1

Spec 14 Attribute

Wiring Configuration

Spec 14 Attribute Value

3-Wire

Spec 2 Attribute

Breaker Type

Spec 2 Attribute Value

QO

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

8.9 in W x 4 in D x 12.6 in H

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 1

Spec 5 Attribute

Housing Material

Spec 5 Attribute Value

Steel

Spec 6 Attribute

Interrupt Rating

Spec 6 Attribute UOM

KA

Spec 6 Attribute Value

10

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Flush

Spec 8 Attribute

Number of Circuits

Spec 8 Attribute Value

16

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

16
