Square D

QO816L100RB - Load center, QO, 1 phase, 8 spaces, 16 circuits, 100A fixed main lugs, NEMA3R

Category Load Centers & Accessories

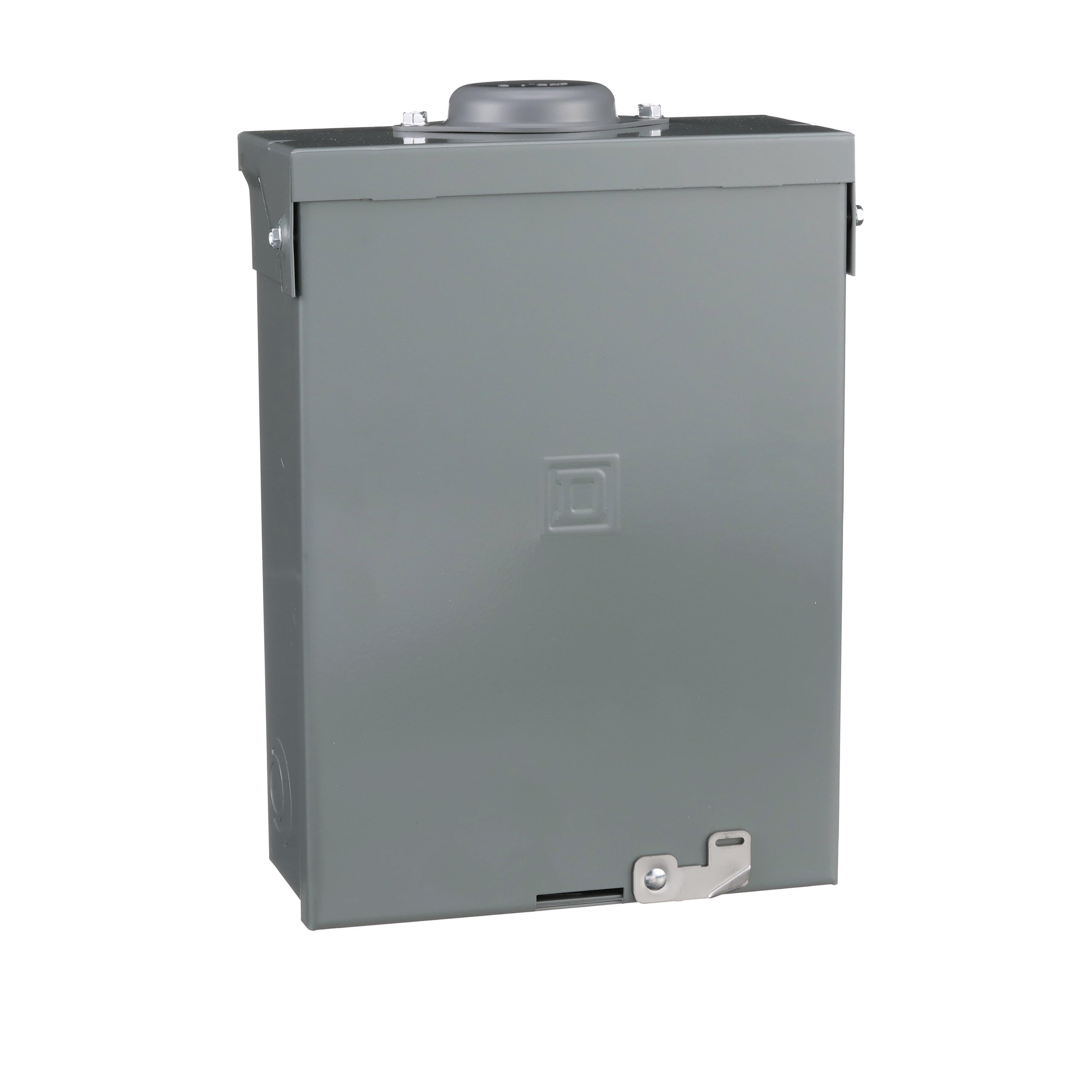

Picture of QO816L100RB - Load center, QO, 1 phase, 8 spaces, 16 circuits, 100A fixed main lugs, NEMA3R
Square D

QO816L100RB - Load center, QO, 1 phase, 8 spaces, 16 circuits, 100A fixed main lugs, NEMA3R

Item Code: 18633
Category Load Centers & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QO816L100RB

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 8 spaces and 16 circuits. This system provides 100A fixed main lugs in a NEMA 3R enclosure. This product is UL rated.

Specifications

Weight

9.72lb

Height

5.2mm

Width

10.2mm

Length

14.16mm

AD All Features

Provides superior performance and durability

AD Application

For residential, commercial and industrial requirements to protect electrical systems, equipment and people applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Includes

Rainproof Cover

AD Invoice Description

LOADCENTER MAIN LUG 120/240VAC 100A 10KA

AD Item Features 01

Provides superior performance and durability

AD Item Features 02

Straight in wiring saves wire, labor, and time

AD Item Features 03

Faster installation using PoN breakers that connect directly

AD Item Features 04

50% more terminations for clutter-free wiring

AD Manufacturer (Description)

Schneider Electric

AD Package Height

5.2000

AD Package Height UOM

IN

AD Package Length

14.1600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

776.6200

AD Package Volume UOM

cu-in

AD Package Weight

9.7200

AD Package Weight UOM

LB

AD Package Width

10.2000

AD Package Width UOM

IN

Brand

Square D

Category

Load Centers & Accessories

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

100

Spec 10 Attribute

Voltage Rating

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

120/240

Spec 11 Attribute

Wire Size

Spec 11 Attribute UOM

AWG

Spec 11 Attribute Value

8 To 1

Spec 12 Attribute

Wiring Configuration

Spec 12 Attribute Value

3-Wire

Spec 2 Attribute

Breaker Type

Spec 2 Attribute Value

QO

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

8.9 in W x 12.64 in H

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 2R/3R

Spec 5 Attribute

Housing Material

Spec 5 Attribute Value

Galvanized Steel

Spec 6 Attribute

Interrupt Rating

Spec 6 Attribute UOM

KA

Spec 6 Attribute Value

10

Spec 7 Attribute

Number of Circuits

Spec 7 Attribute Value

16

Spec 8 Attribute

Number of Spaces

Spec 8 Attribute Value

8

Spec 9 Attribute

Type

Spec 9 Attribute Value

1-ph Fixed
