QOB120AFI - Mini circuit breaker, QO, 20A, 1 pole, 120VAC, 10kA, bolt on, ARC fault, pigtail

Category Miscellaneous

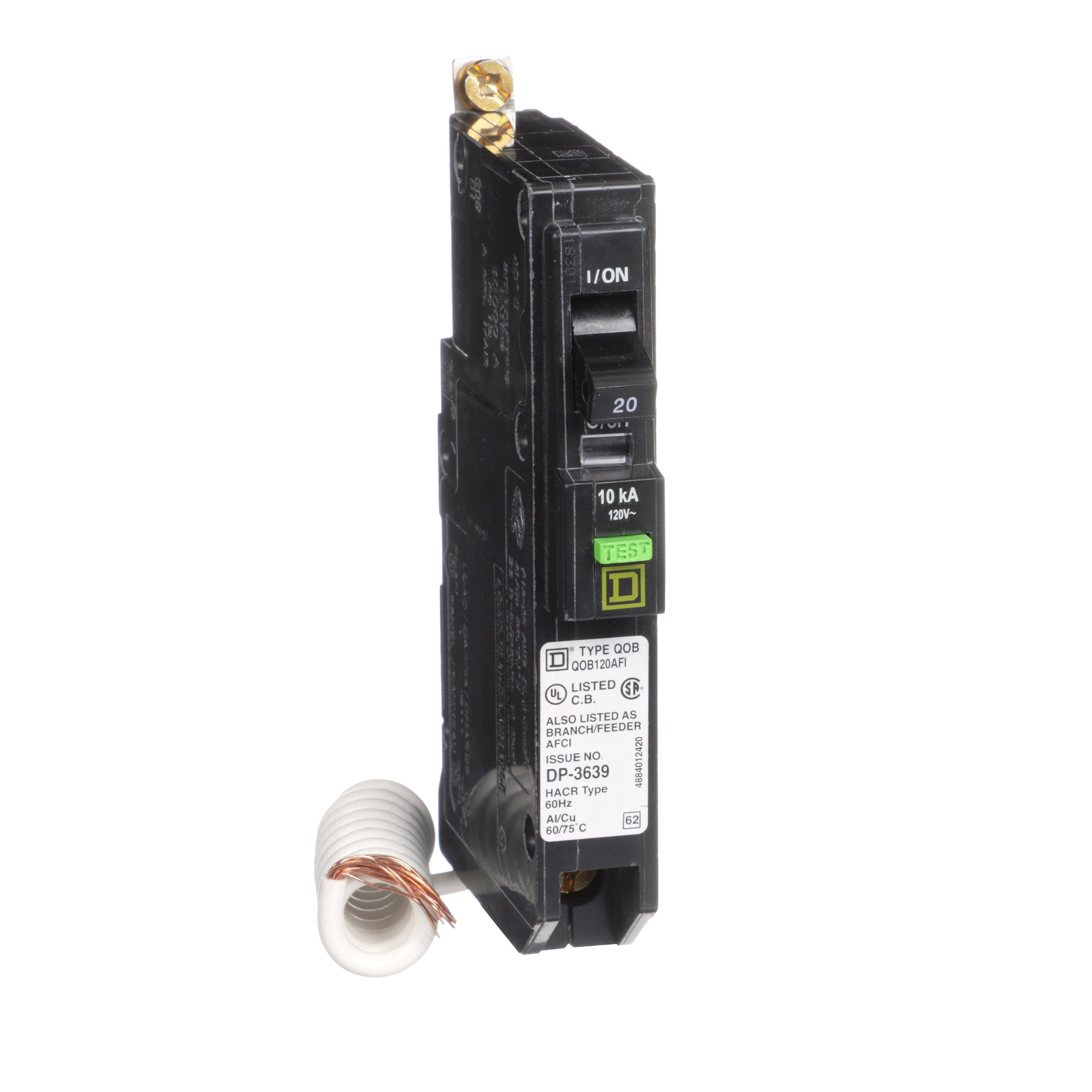

Picture of QOB120AFI - Mini circuit breaker, QO, 20A, 1 pole, 120VAC, 10kA, bolt on, ARC fault, pigtail
Square D

QOB120AFI - Mini circuit breaker, QO, 20A, 1 pole, 120VAC, 10kA, bolt on, ARC fault, pigtail

Item Code: 52313
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QOB120AFI

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 20A at 120VAC. This unit provides 10kA breaking capacity and bolt on mounting. This product includes an arc fault interrupt with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
