Square D

QOB220GFI - [TAA] Mini circuit breaker, QO, 20A, 2 pole, 120/240VAC, 10kA, bolt on, 6mA grd fault A, pigtail

Category Bolt-On Circuit Breakers

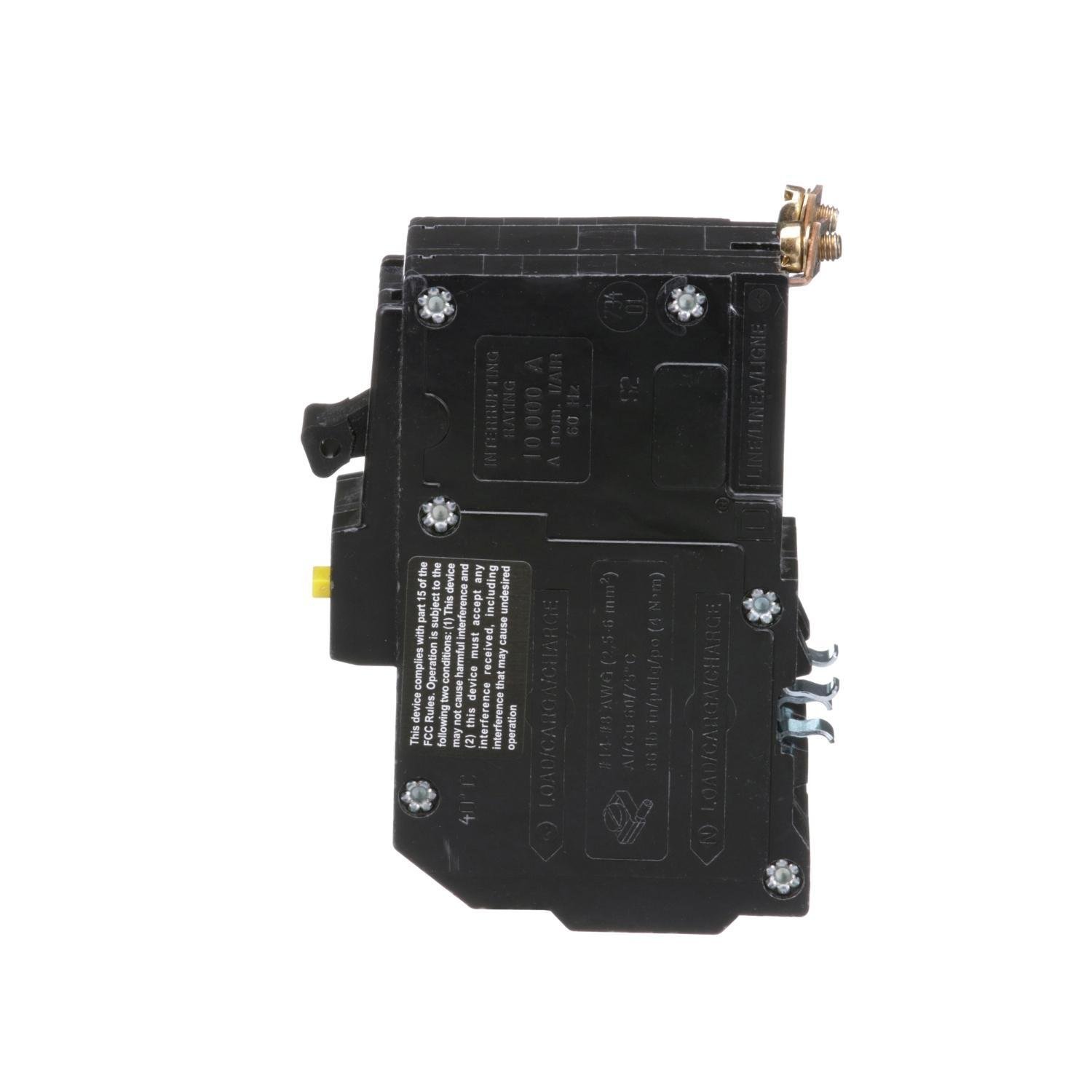

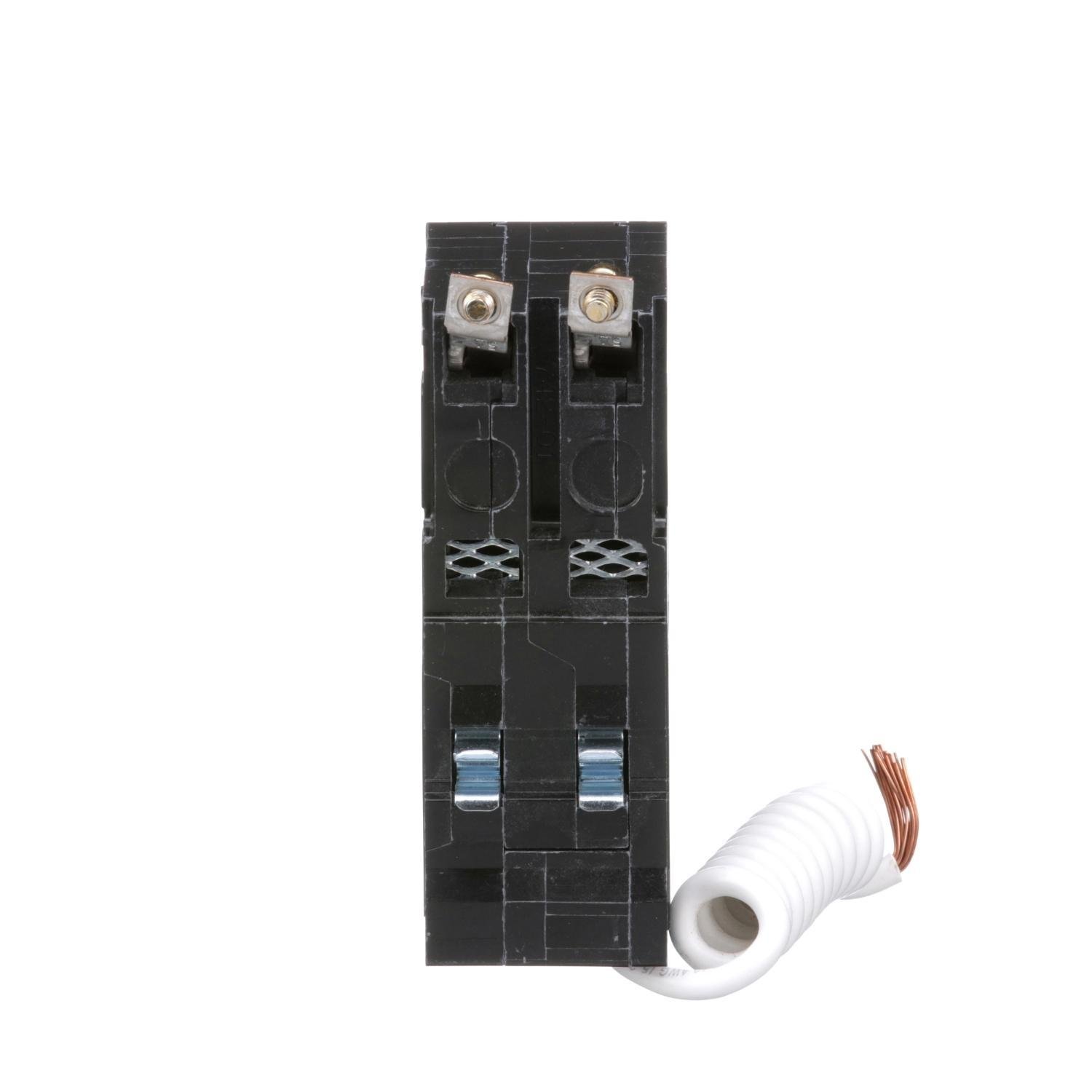

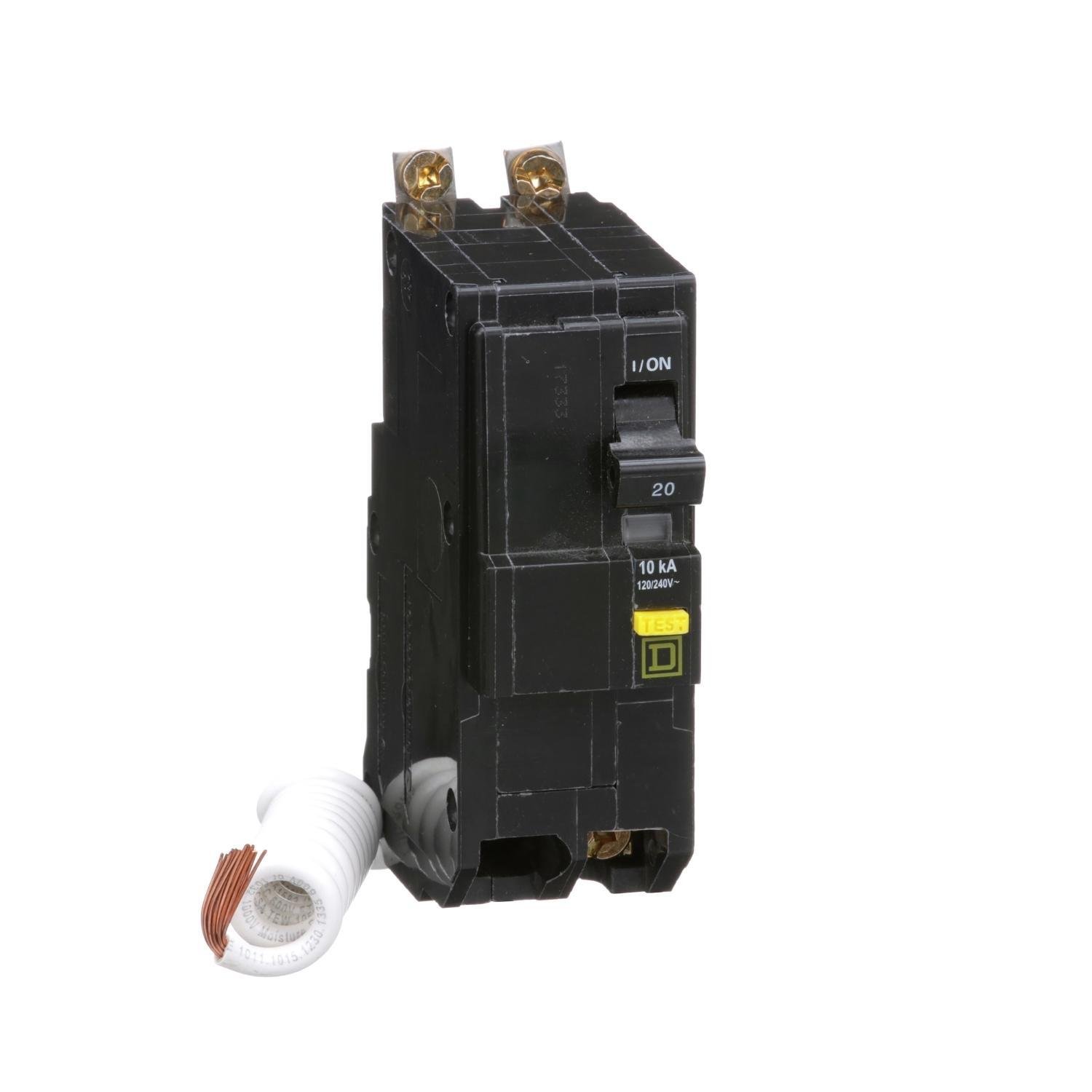

Picture of QOB220GFI - [TAA] Mini circuit breaker, QO, 20A, 2 pole, 120/240VAC, 10kA, bolt on, 6mA grd fault A, pigtail
Square D

QOB220GFI - [TAA] Mini circuit breaker, QO, 20A, 2 pole, 120/240VAC, 10kA, bolt on, 6mA grd fault A, pigtail

Item Code: 18645
Category Bolt-On Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QOB220GFI

Full Engineering Drawing
Owners User Manual
RoHS
Specification Sheet
Warranty Information
Watch video
Call for Availability
Add to Favorites
Compare

Description

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.

Specifications

Weight

0.96lb

Height

2.2mm

Width

3.47mm

Length

5.35mm

Depth

74mm

Amperage Rating

20 A

Brand

Square D

Category

BOLT-ON CIRCUIT BREAKERS

Connection Type

Pressure Plate

Dimensions

4.12 in H x 1.5 in W x 2.91 in D

Frame

QOB

Frequency Rating

60 Hz

Interrupt Rating

10 kA

Mounting Type

Bolted-On

Number Of Poles

2

Phase

1

Temperature Rating

40 deg C

Trip Type

Thermal Magnetic

Type

Class A Ground Fault

Voltage Rating

120/240 V AC

Wire Size

14 to 10 AWG, 14 to 8 AWG
