Square D

QOB320VH - Mini circuit breaker, QO, 20A, 3 pole, 120/240VAC, 22kA, bolt on

Category Bolt-On Circuit Breakers

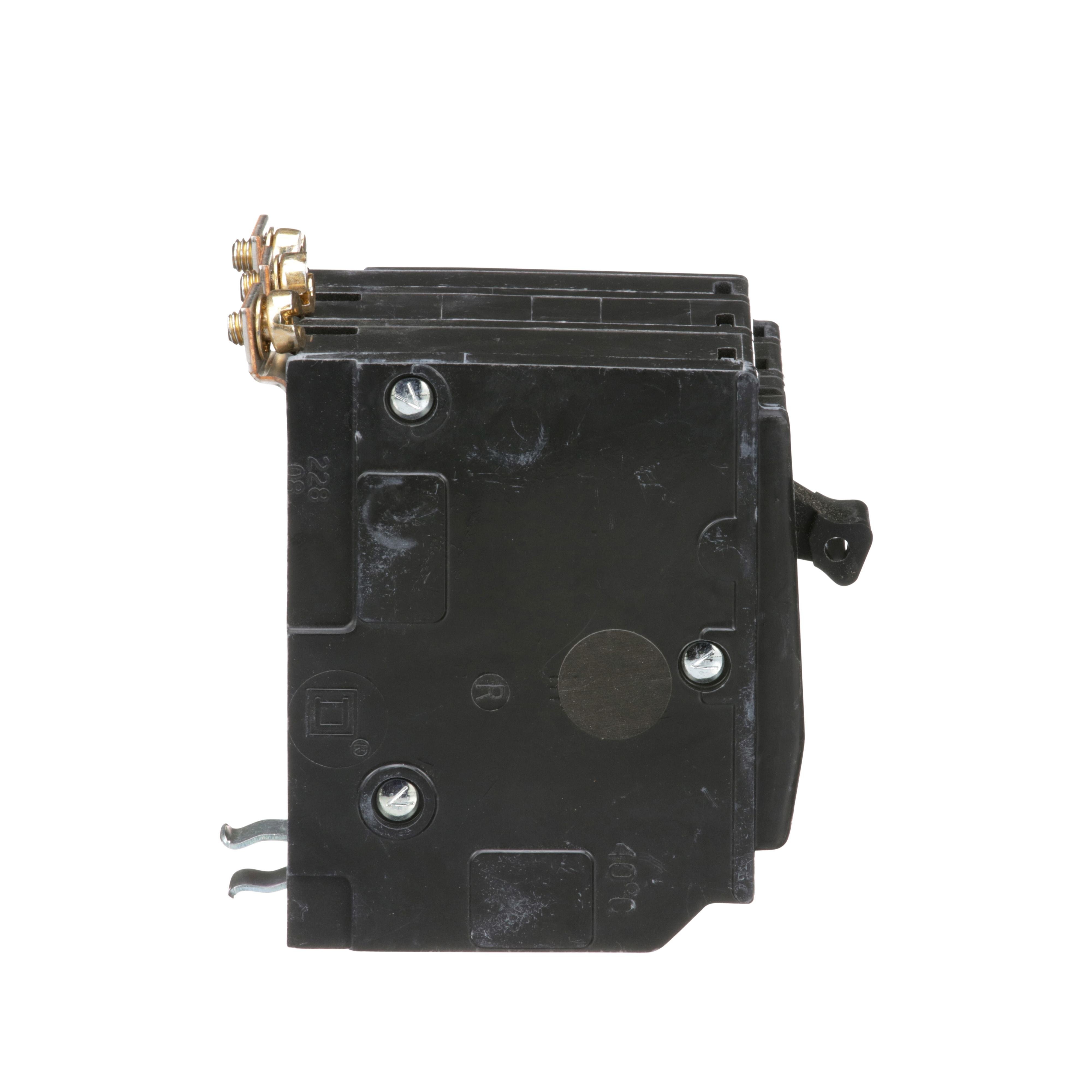

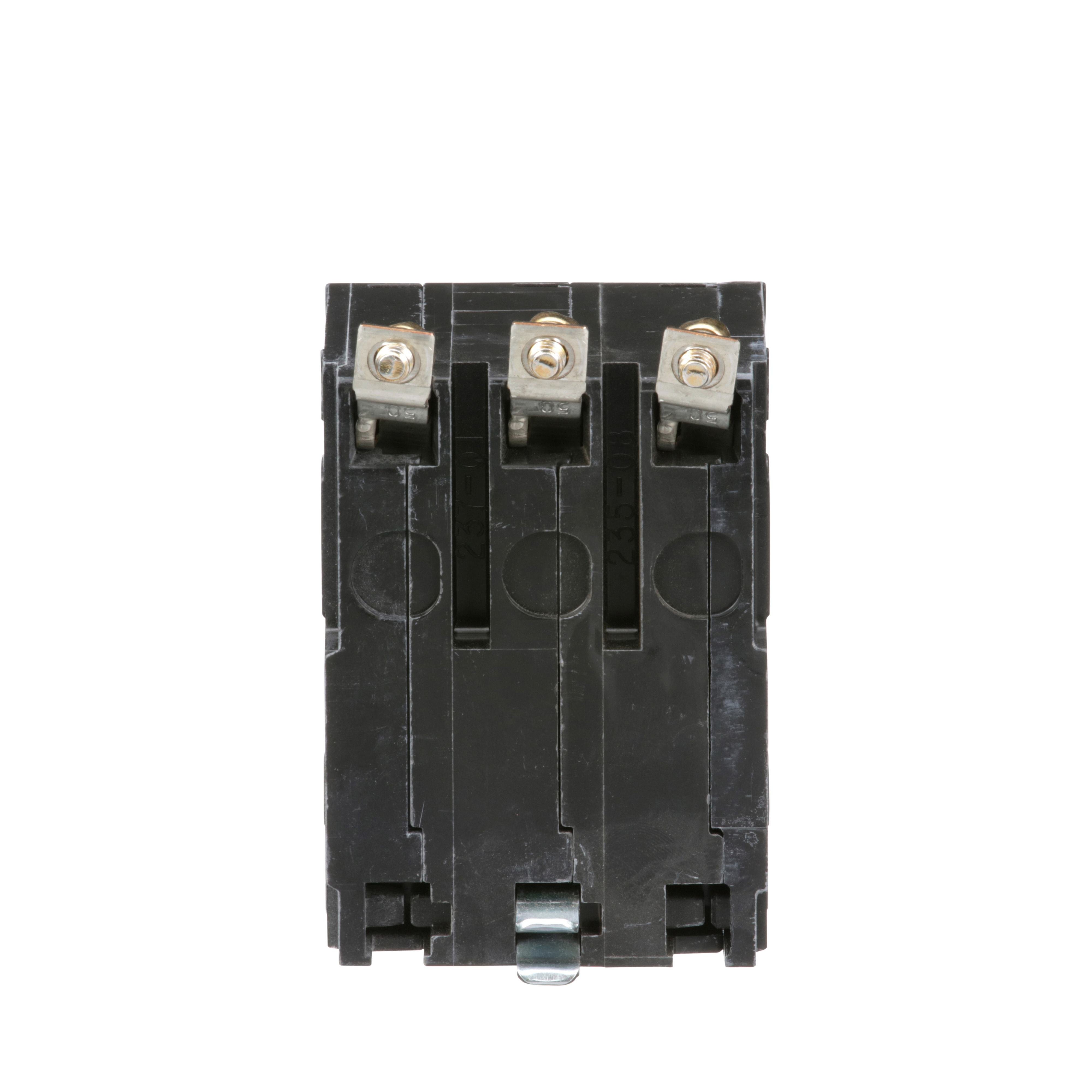

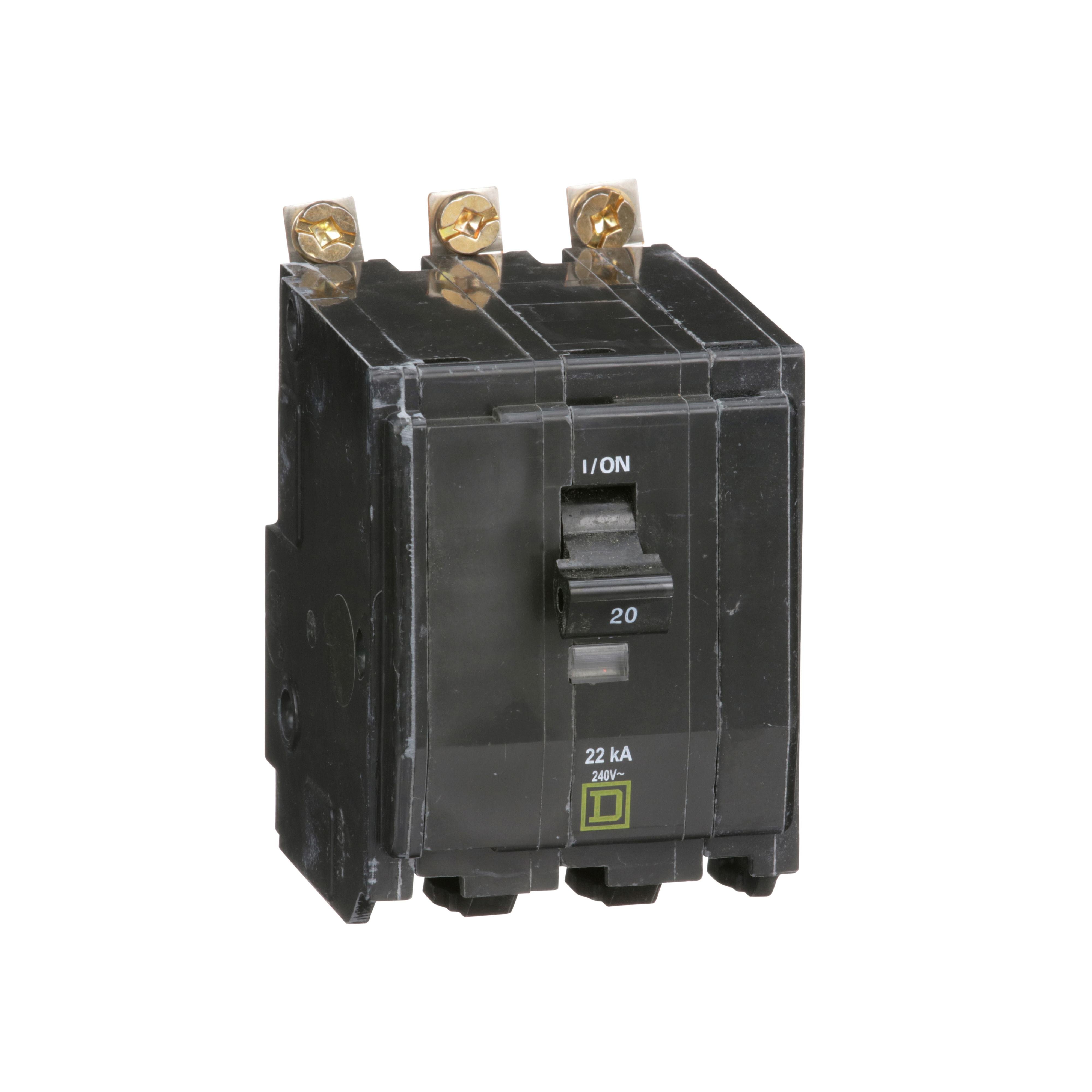

Picture of QOB320VH - Mini circuit breaker, QO, 20A, 3 pole, 120/240VAC, 22kA, bolt on
Square D

QOB320VH - Mini circuit breaker, QO, 20A, 3 pole, 120/240VAC, 22kA, bolt on

Item Code: 18660
Category Bolt-On Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QOB320VH

Full Engineering Drawing
Owners User Manual
RoHS
Specification Sheet
Call for Availability
Add to Favorites
Compare

Description

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 3 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.

Specifications

Weight

0.82lb

Height

2.3mm

Width

3mm

Length

3.28mm

Depth

74mm

Amperage Rating

20 A

Brand

Square D

Category

BOLT-ON CIRCUIT BREAKERS

Connection Type

Pressure Plate

Dimensions

2.91 in L x 2.25 in W x 3 in H

Frequency Rating

50/60 Hz

Interrupt Rating

22 kA

Mounting Type

Bolt-on

Number Of Poles

3

Phase

3

Temperature Rating

40 deg C

Trip Type

Thermal Magnetic

Type

Standard

Voltage Rating

240 V AC

Wire Size

14 To 8 AWG
