Square D

QOB350 - Mini circuit breaker, QO, 50A, 3 pole, 120/240VAC, 10kA, bolt on

Category Bolt-On Circuit Breakers

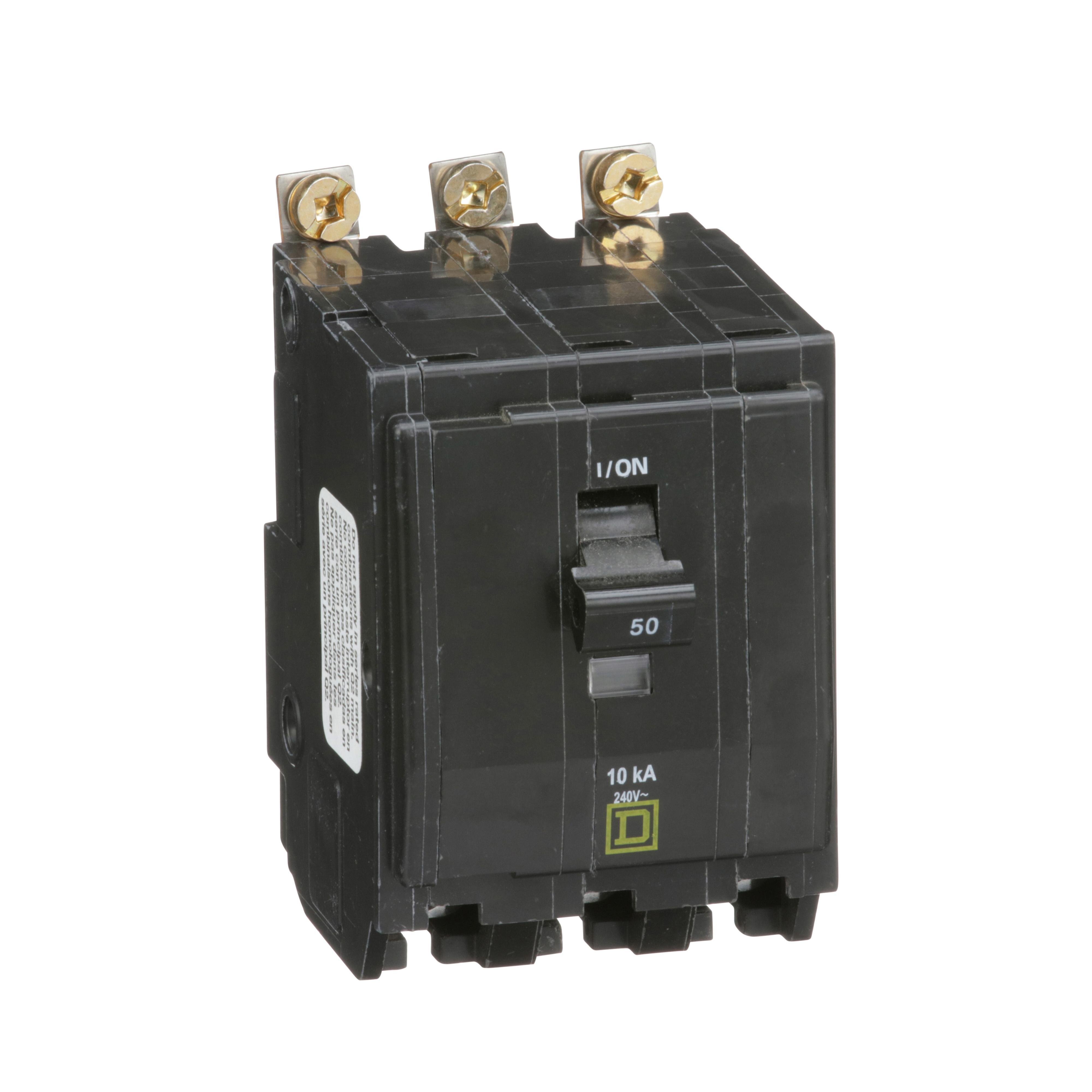

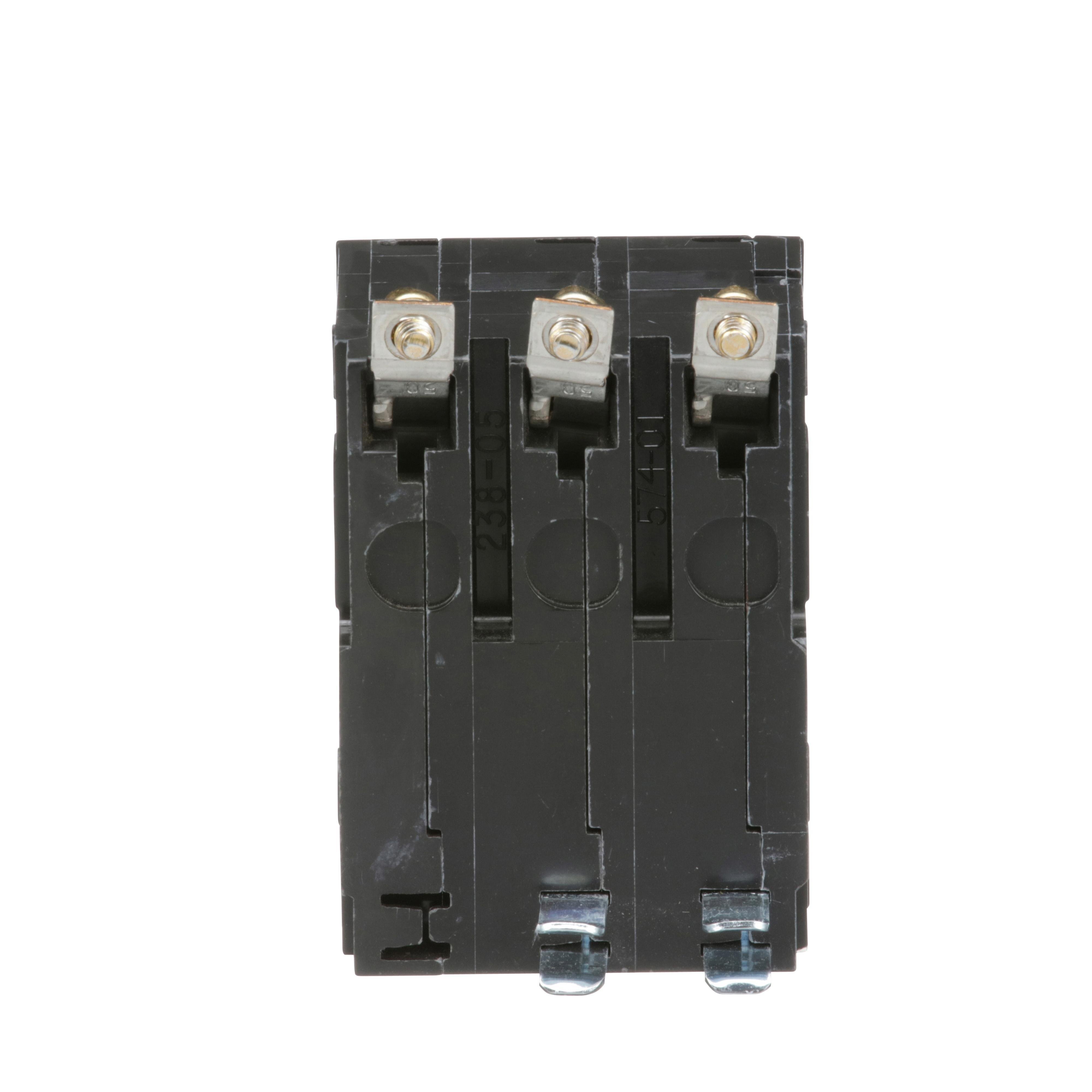

Picture of QOB350 - Mini circuit breaker, QO, 50A, 3 pole, 120/240VAC, 10kA, bolt on Picture of QOB350 - Mini circuit breaker, QO, 50A, 3 pole, 120/240VAC, 10kA, bolt on
Picture of QOB350 - Mini circuit breaker, QO, 50A, 3 pole, 120/240VAC, 10kA, bolt on Picture of QOB350 - Mini circuit breaker, QO, 50A, 3 pole, 120/240VAC, 10kA, bolt on
Picture of QOB350 - Mini circuit breaker, QO, 50A, 3 pole, 120/240VAC, 10kA, bolt on Picture of QOB350 - Mini circuit breaker, QO, 50A, 3 pole, 120/240VAC, 10kA, bolt on
Square D

QOB350 - Mini circuit breaker, QO, 50A, 3 pole, 120/240VAC, 10kA, bolt on

Item Code: 18664
Category Bolt-On Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QOB350

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 3 pole QO circuit breaker is rated at 50A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.

Specifications

Weight

0.85lb

Height

79mm

Width

2.97mm

Length

3.56mm

Depth

74mm

AD All Features

Reliable and durable

AD Application

For providing overload and short circuit protection

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

BREAKER CKT MINTR 240VAC 50A 50/60HZ

AD Item Features 01

Reliable and durable

AD Item Features 02

Plug-on neutral design and shorter footprint for faster installs

AD Item Features 03

Simple design and clear instructions for quick setup

AD Item Features 04

Time-saving diagnostics with touch of a button

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

3.5600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.8500

AD Package Weight UOM

LB

AD Package Width

2.9700

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/watch?v=abIf06C7qgc

Brand

Square D

Category

BOLT-ON CIRCUIT BREAKERS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

50

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg C

Spec 10 Attribute Value

40

Spec 11 Attribute

Trip Type

Spec 11 Attribute Value

Thermal Magnetic

Spec 12 Attribute

Type

Spec 12 Attribute Value

Standard

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

240

Spec 14 Attribute

Wire Size

Spec 14 Attribute UOM

AWG

Spec 14 Attribute Value

8 to 2

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Box Lug

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

2.91 in L x 2.25 in W x 3.12 in H

Spec 4 Attribute

Frame

Spec 4 Attribute Value

QOB

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

50/60

Spec 6 Attribute

Interrupt Rating

Spec 6 Attribute UOM

KA

Spec 6 Attribute Value

10

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Bolt-on

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

3

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

3
