Square D

QOB350GFI - [TAA] Mini circuit breaker, QO, 50A, 3 pole, 208Y/120VAC, 10kA, bolt on, 6mA grd fault A, pigtail

Category Bolt-On Circuit Breakers

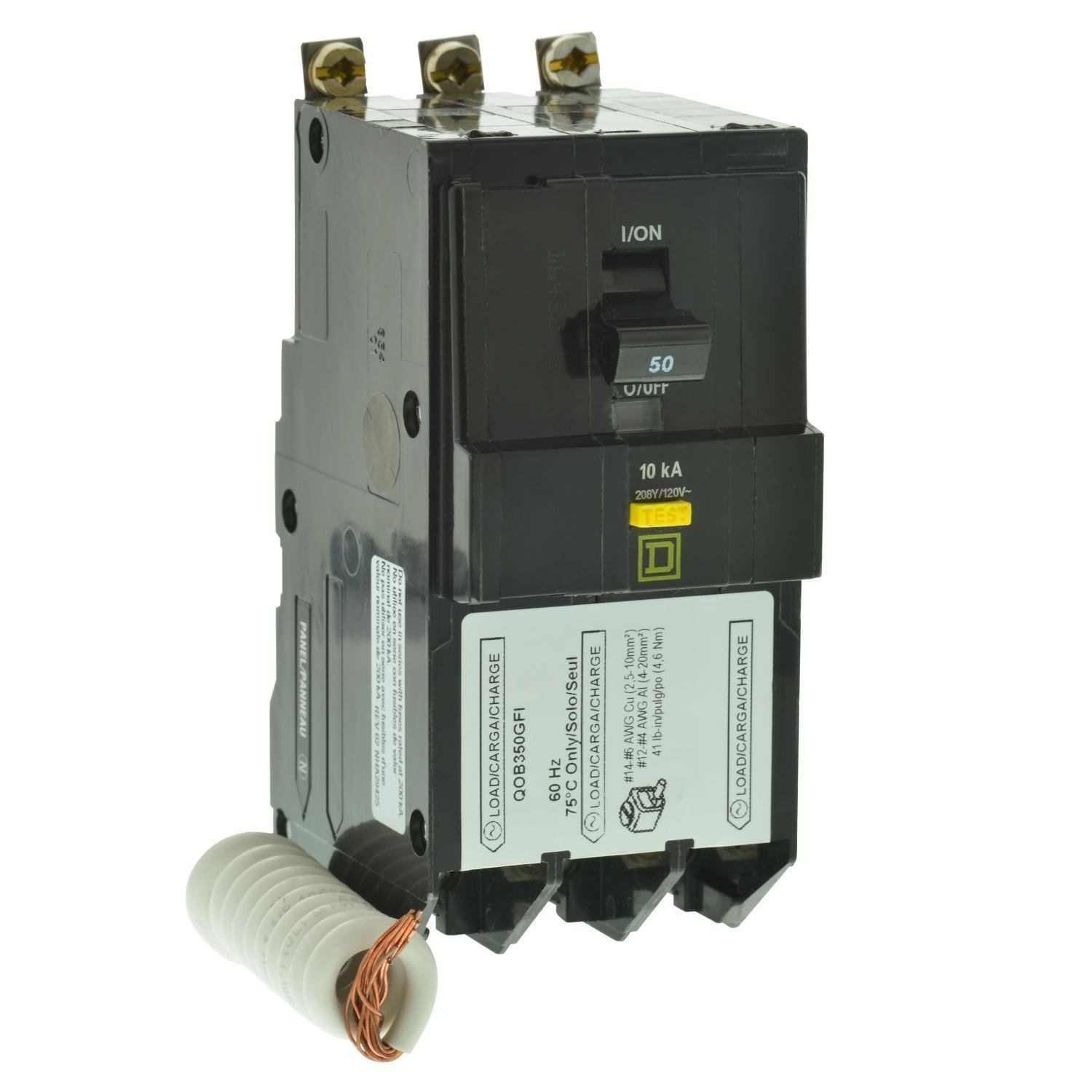

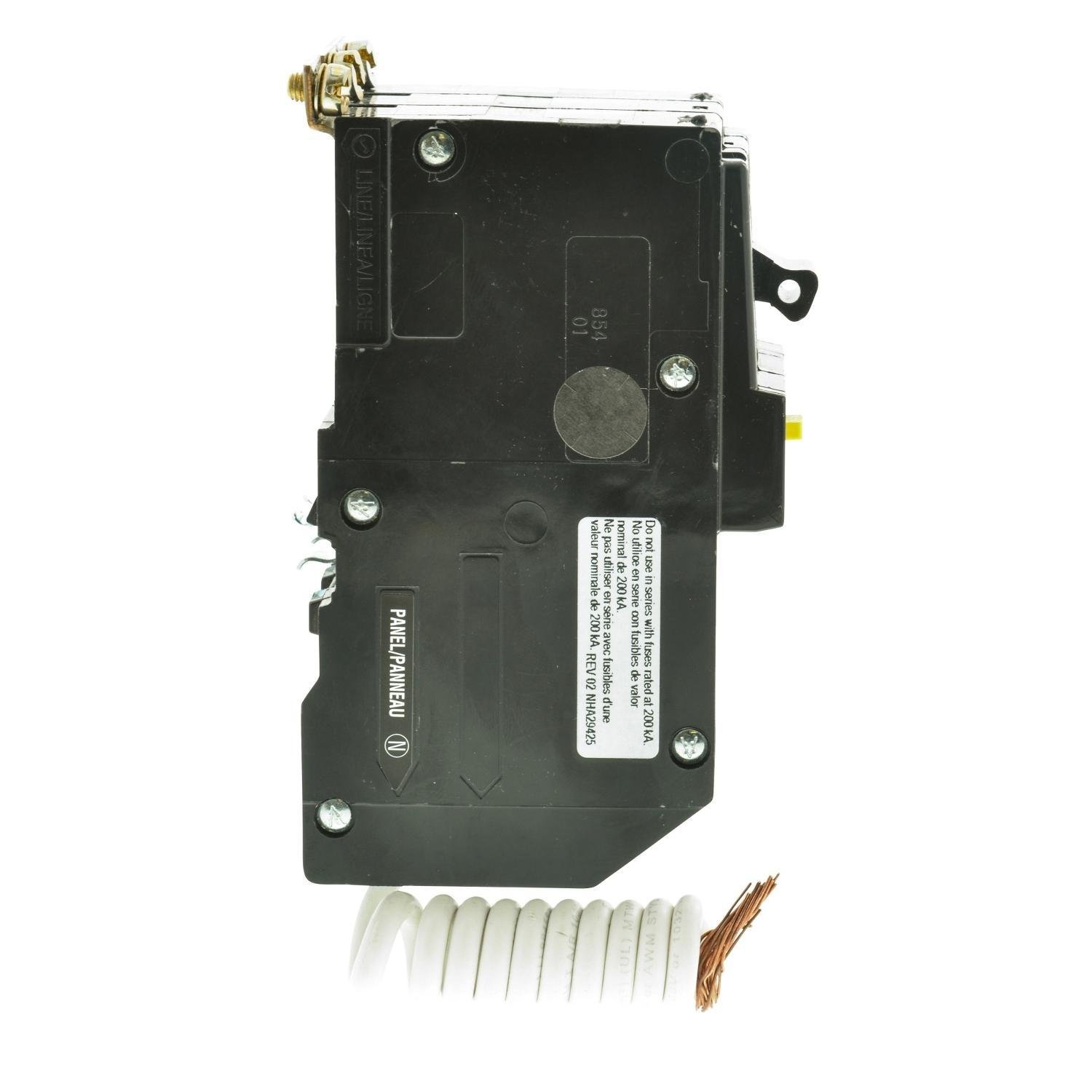

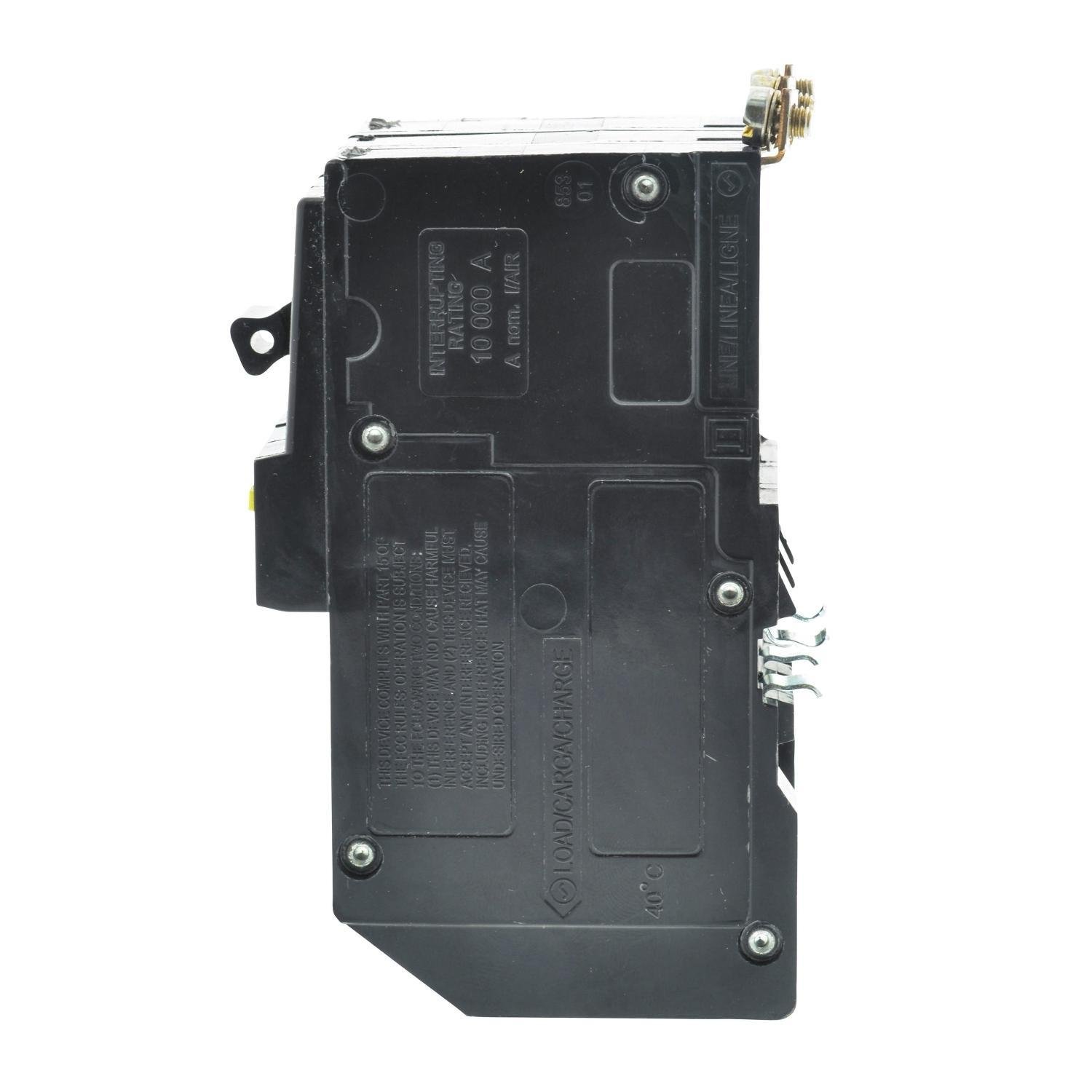

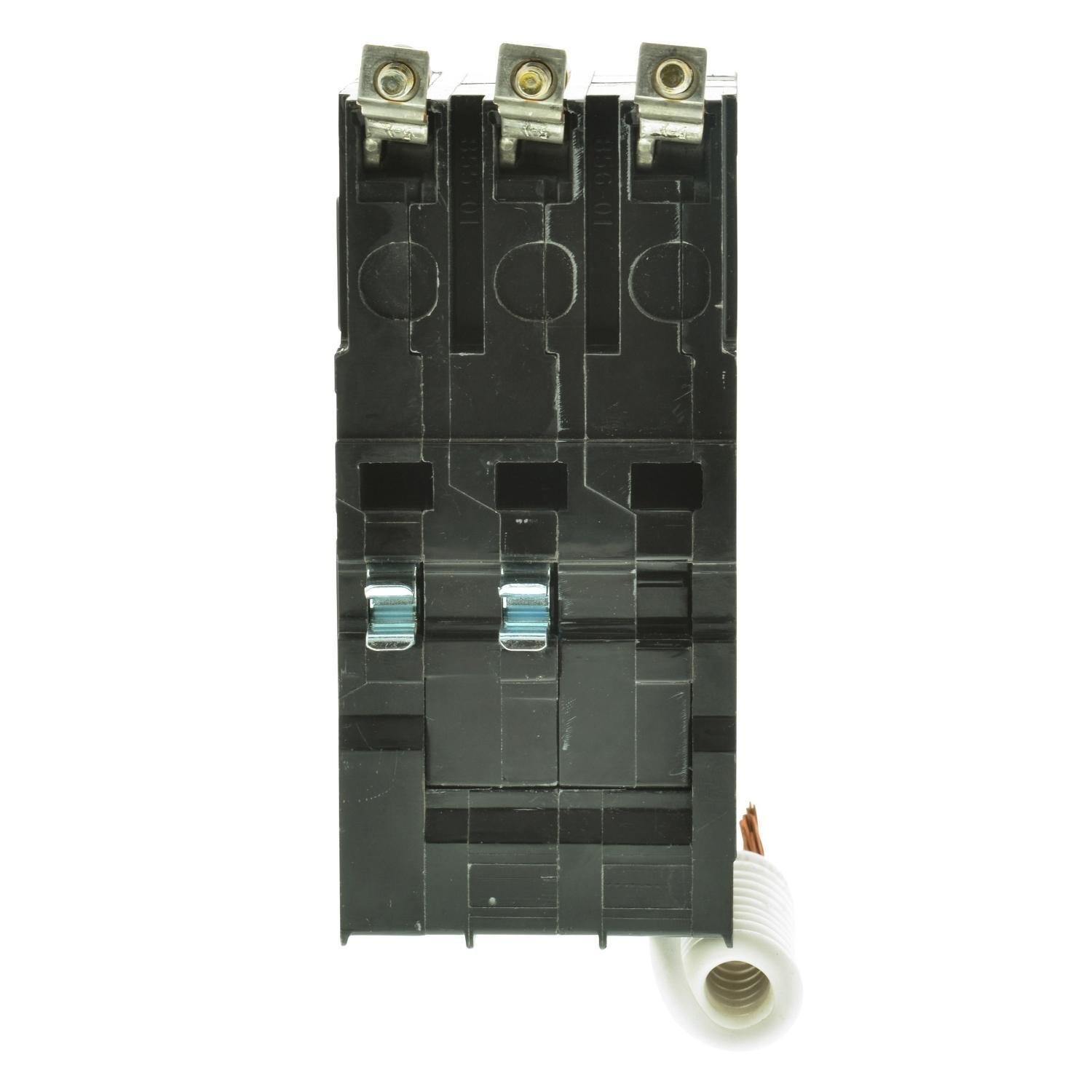

Picture of QOB350GFI - [TAA] Mini circuit breaker, QO, 50A, 3 pole, 208Y/120VAC, 10kA, bolt on, 6mA grd fault A, pigtail Picture of QOB350GFI - [TAA] Mini circuit breaker, QO, 50A, 3 pole, 208Y/120VAC, 10kA, bolt on, 6mA grd fault A, pigtail
Picture of QOB350GFI - [TAA] Mini circuit breaker, QO, 50A, 3 pole, 208Y/120VAC, 10kA, bolt on, 6mA grd fault A, pigtail Picture of QOB350GFI - [TAA] Mini circuit breaker, QO, 50A, 3 pole, 208Y/120VAC, 10kA, bolt on, 6mA grd fault A, pigtail
Picture of QOB350GFI - [TAA] Mini circuit breaker, QO, 50A, 3 pole, 208Y/120VAC, 10kA, bolt on, 6mA grd fault A, pigtail Picture of QOB350GFI - [TAA] Mini circuit breaker, QO, 50A, 3 pole, 208Y/120VAC, 10kA, bolt on, 6mA grd fault A, pigtail
Picture of QOB350GFI - [TAA] Mini circuit breaker, QO, 50A, 3 pole, 208Y/120VAC, 10kA, bolt on, 6mA grd fault A, pigtail Picture of QOB350GFI - [TAA] Mini circuit breaker, QO, 50A, 3 pole, 208Y/120VAC, 10kA, bolt on, 6mA grd fault A, pigtail
Picture of QOB350GFI - [TAA] Mini circuit breaker, QO, 50A, 3 pole, 208Y/120VAC, 10kA, bolt on, 6mA grd fault A, pigtail Picture of QOB350GFI - [TAA] Mini circuit breaker, QO, 50A, 3 pole, 208Y/120VAC, 10kA, bolt on, 6mA grd fault A, pigtail
Square D

QOB350GFI - [TAA] Mini circuit breaker, QO, 50A, 3 pole, 208Y/120VAC, 10kA, bolt on, 6mA grd fault A, pigtail

Item Code: 915519
Category Bolt-On Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QOB350GFI

Document
Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 3 pole QO circuit breaker is rated at 50A at 208Y/120VAC. This unit provides 10kA breaking capacity and bolt on mounting. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.

Specifications

Weight

1.4lb

Height

105mm

Width

3.47mm

Length

2.67mm

Depth

74mm

AD All Features

Reliable and durable

AD Application

For providing overload, short circuit protection and class A ground fault protection for people

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

BREAKER CKT MINTR 208Y/120 VAC 50A 10KA

AD Item Features 01

Reliable and durable

AD Item Features 02

Plug-on neutral design and shorter footprint for faster installs

AD Item Features 03

Simple design and clear instructions for quick setup

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

2.6700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

1.4000

AD Package Weight UOM

LB

AD Package Width

3.4700

AD Package Width UOM

IN

Brand

Square D

Category

BOLT-ON CIRCUIT BREAKERS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

50

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg F

Spec 10 Attribute Value

104

Spec 11 Attribute

Trip Type

Spec 11 Attribute Value

Thermal Magnetic

Spec 12 Attribute

Type

Spec 12 Attribute Value

Type QOB-GFI Class A Ground Fault

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

208Y/120

Spec 14 Attribute

Wire Size

Spec 14 Attribute Value

12 to 4 AWG Al, 14 to 6 AWG Cu

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Box Lug

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

2.25 in W x 2.91 in D x 4.12 in H

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

50/60

Spec 5 Attribute

Interrupt Rating

Spec 5 Attribute UOM

KA

Spec 5 Attribute Value

10

Spec 6 Attribute

Material

Spec 6 Attribute Value

Fiberglass Filled Thermoset

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Bolted-On

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

3

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

1
