Square D

QOM125VH - Main breaker, QO, 125A, 2 pole, 120/240VAC, 22kA, bolt on mount

Category Bolt-On Circuit Breakers

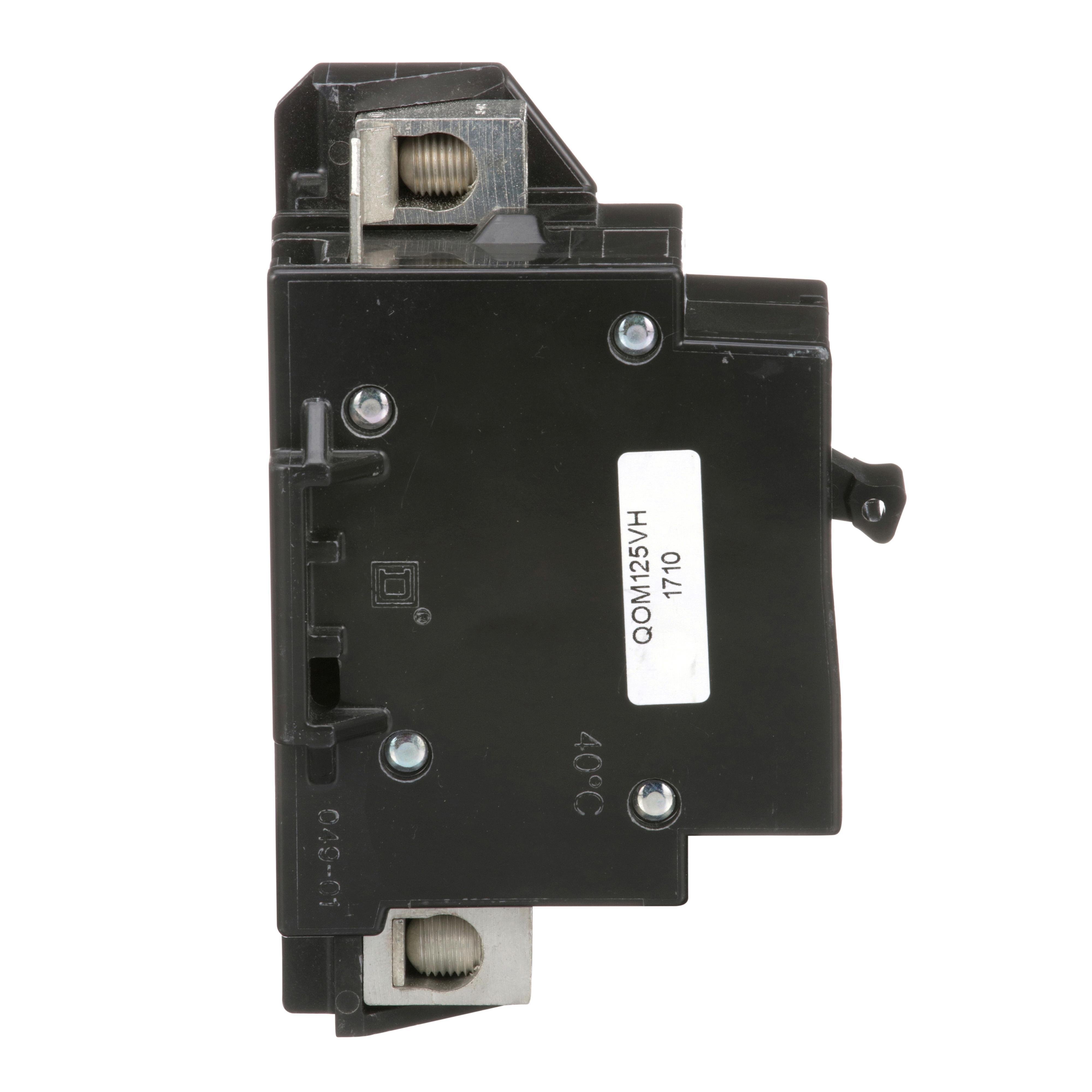

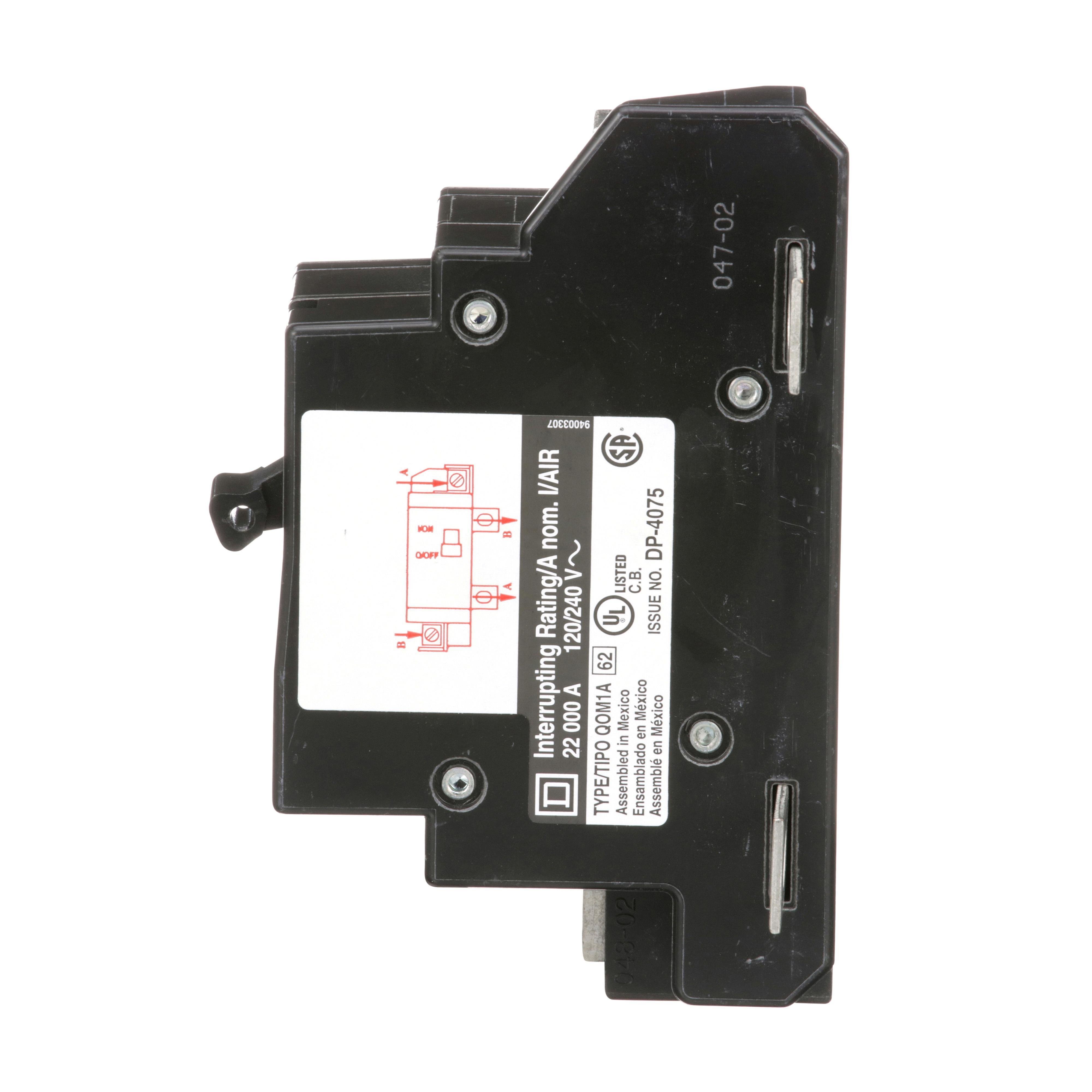

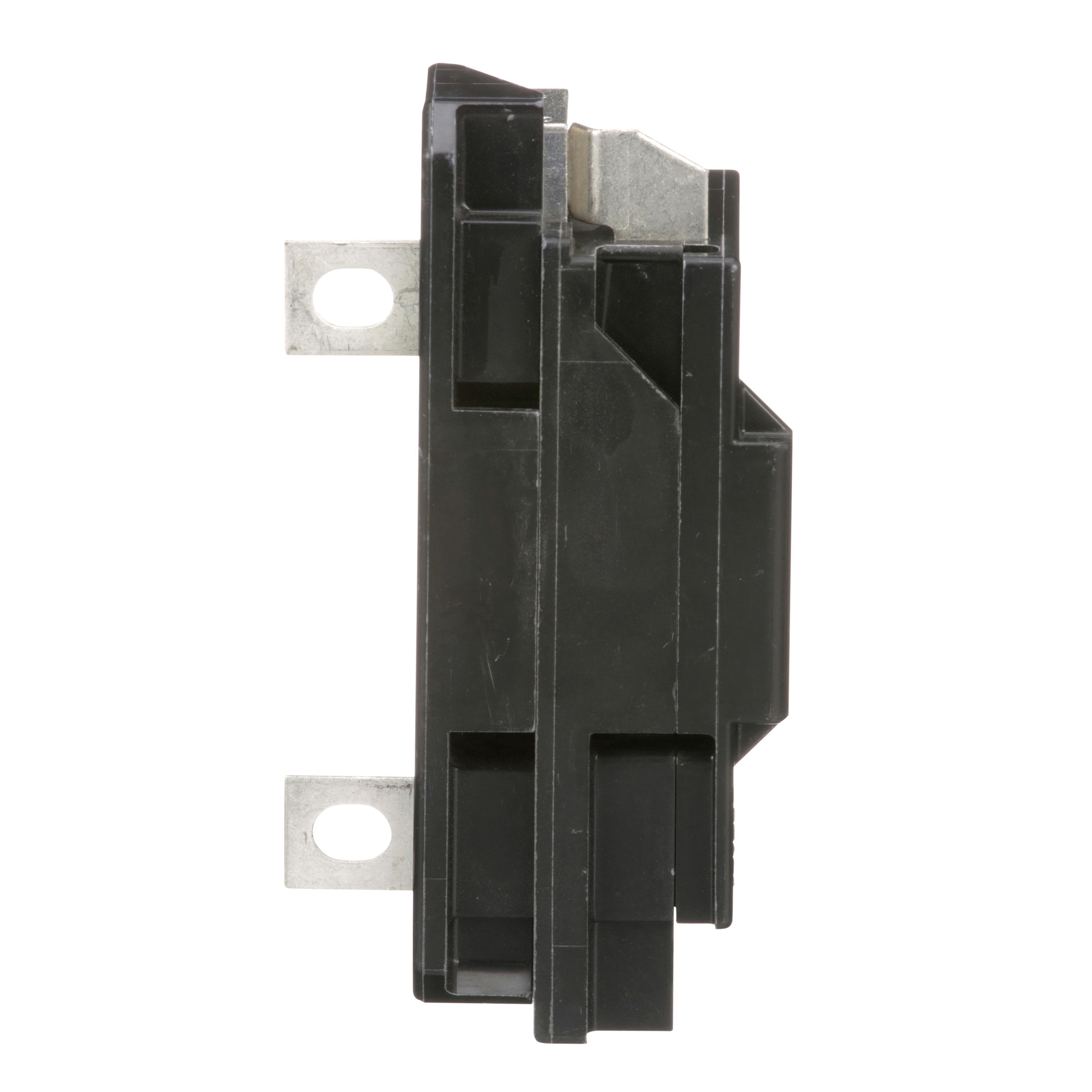

Picture of QOM125VH - Main breaker, QO, 125A, 2 pole, 120/240VAC, 22kA, bolt on mount Picture of QOM125VH - Main breaker, QO, 125A, 2 pole, 120/240VAC, 22kA, bolt on mount
Picture of QOM125VH - Main breaker, QO, 125A, 2 pole, 120/240VAC, 22kA, bolt on mount Picture of QOM125VH - Main breaker, QO, 125A, 2 pole, 120/240VAC, 22kA, bolt on mount
Picture of QOM125VH - Main breaker, QO, 125A, 2 pole, 120/240VAC, 22kA, bolt on mount Picture of QOM125VH - Main breaker, QO, 125A, 2 pole, 120/240VAC, 22kA, bolt on mount
Picture of QOM125VH - Main breaker, QO, 125A, 2 pole, 120/240VAC, 22kA, bolt on mount Picture of QOM125VH - Main breaker, QO, 125A, 2 pole, 120/240VAC, 22kA, bolt on mount
Square D

QOM125VH - Main breaker, QO, 125A, 2 pole, 120/240VAC, 22kA, bolt on mount

Item Code: 46278
Category Bolt-On Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QOM125VH

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO main breaker is rated at 125A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO breakers use a compact 3/4 inch width design for small system footprint. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555

Specifications

Weight

1.37lb

Height

4.2mm

Width

4.17mm

Length

5.26mm

Depth

127mm

AD All Features

Provides superior circuit protection

AD Application

Main Breaker Load Center Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

BREAKER CKT MINTR 240VAC 125A 50/60HZ

AD Item Features 01

Provides superior circuit protection

AD Item Features 02

Reliable and durable

AD Item Features 03

Plug-on neutral design and shorter footprint for faster installs

AD Item Features 04

Simple design and clear instructions for quick setup

AD Item Features 05

Time-saving diagnostics with touch of a button

AD Manufacturer (Description)

Schneider Electric

AD Package Height

4.2000

AD Package Height UOM

IN

AD Package Length

5.2600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

93.4900

AD Package Volume UOM

cu-in

AD Package Weight

1.3700

AD Package Weight UOM

LB

AD Package Width

4.1700

AD Package Width UOM

IN

Brand

Square D

Category

BOLT-ON CIRCUIT BREAKERS

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Toggle

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

1

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

40

Spec 12 Attribute

Trip Range

Spec 12 Attribute UOM

A

Spec 12 Attribute Value

125

Spec 13 Attribute

Trip Type

Spec 13 Attribute Value

Thermal Magnetic

Spec 14 Attribute

Type

Spec 14 Attribute Value

Standard

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V AC

Spec 15 Attribute Value

240

Spec 16 Attribute

Wire Size

Spec 16 Attribute UOM

AWG

Spec 16 Attribute Value

4 to 2/0

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

125

Spec 3 Attribute

Color

Spec 3 Attribute Value

Black

Spec 4 Attribute

Connection Type

Spec 4 Attribute Value

Box Lug

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

5 in L x 3.47 in W x 5.09 in H

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Interrupt Rating

Spec 7 Attribute UOM

KA

Spec 7 Attribute Value

22

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Bolt-on

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

2
