Square D

QOM2150VH - Main breaker, QO, 150A, 2 pole, 120/240VAC, 22kA, bolt on

Category Bolt-On Circuit Breakers

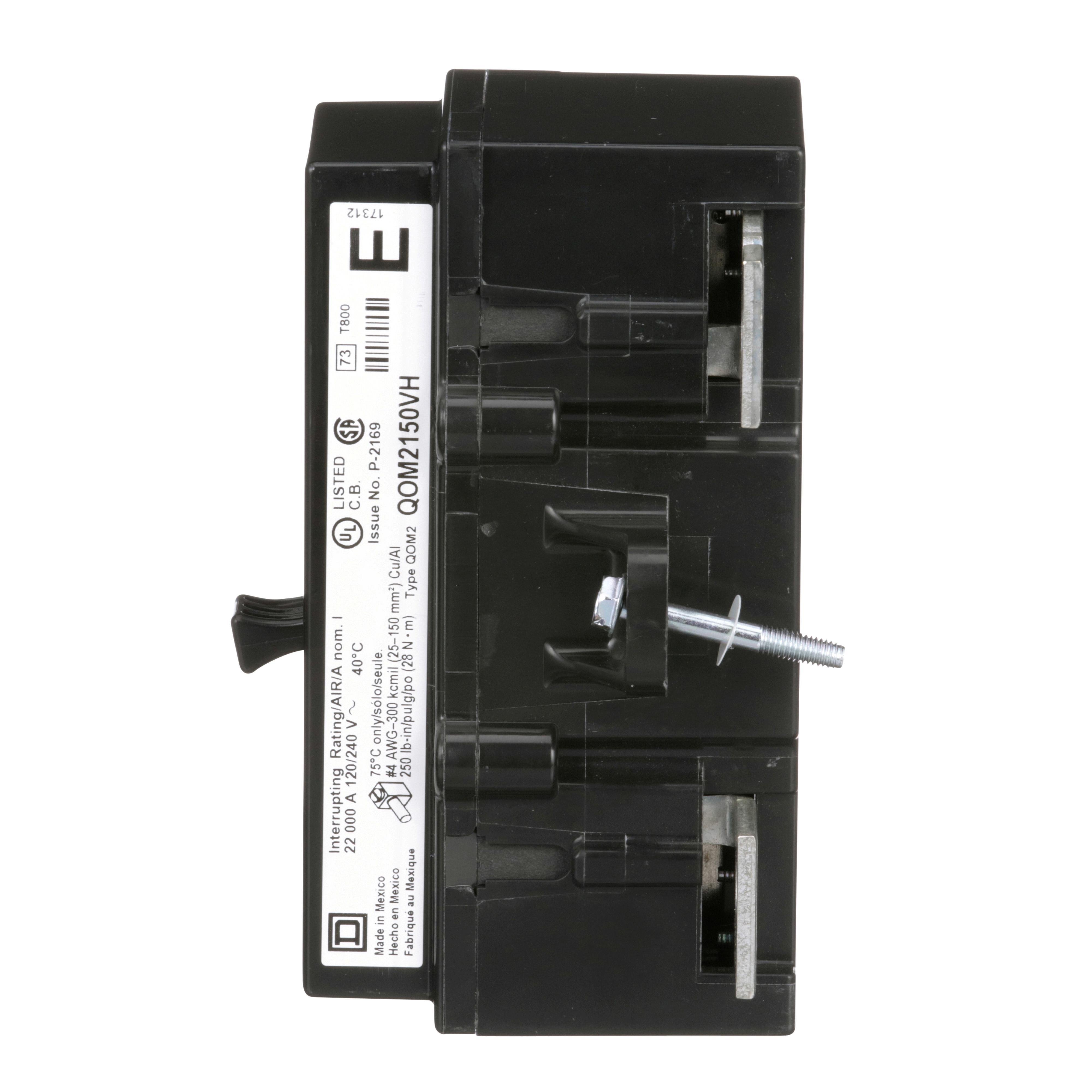

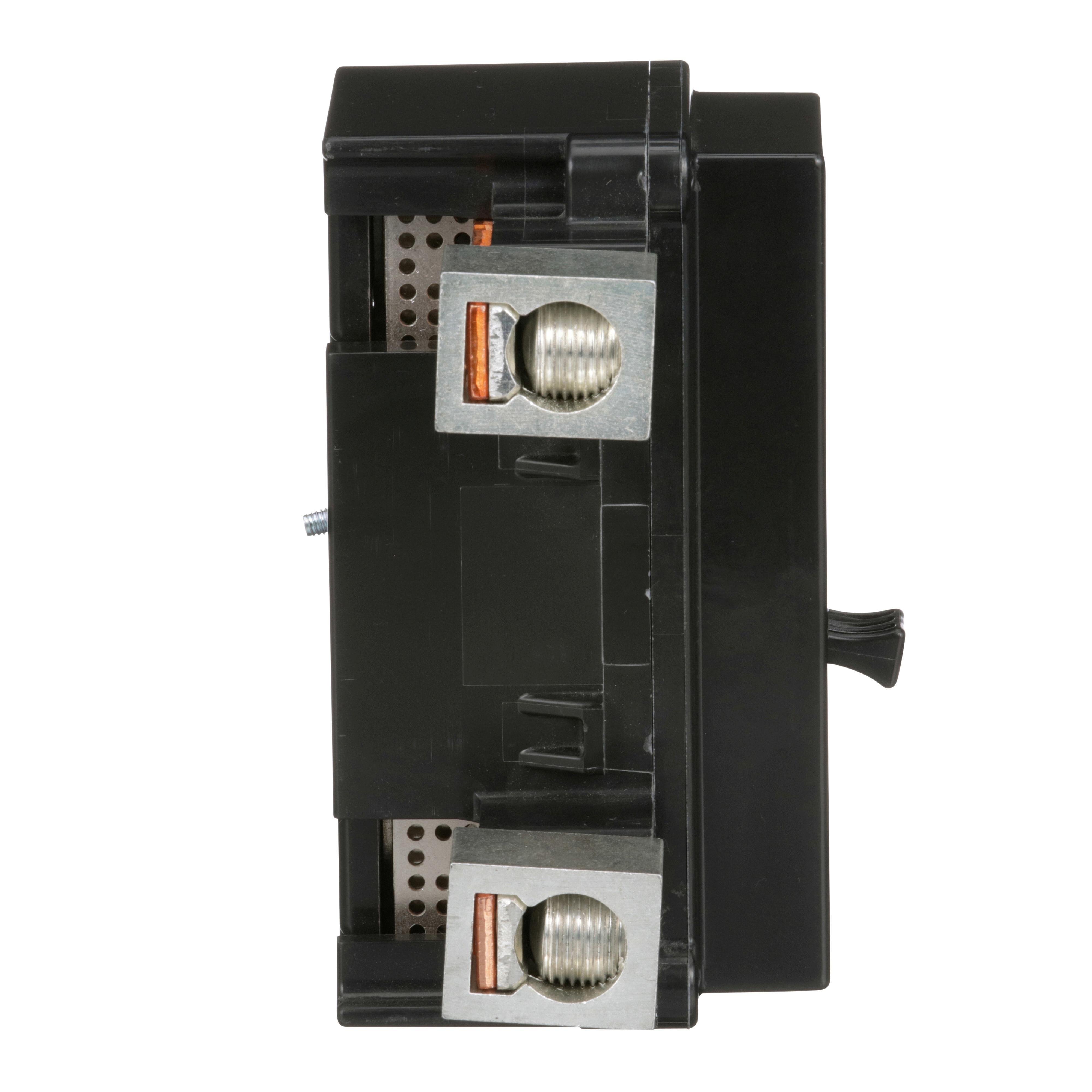

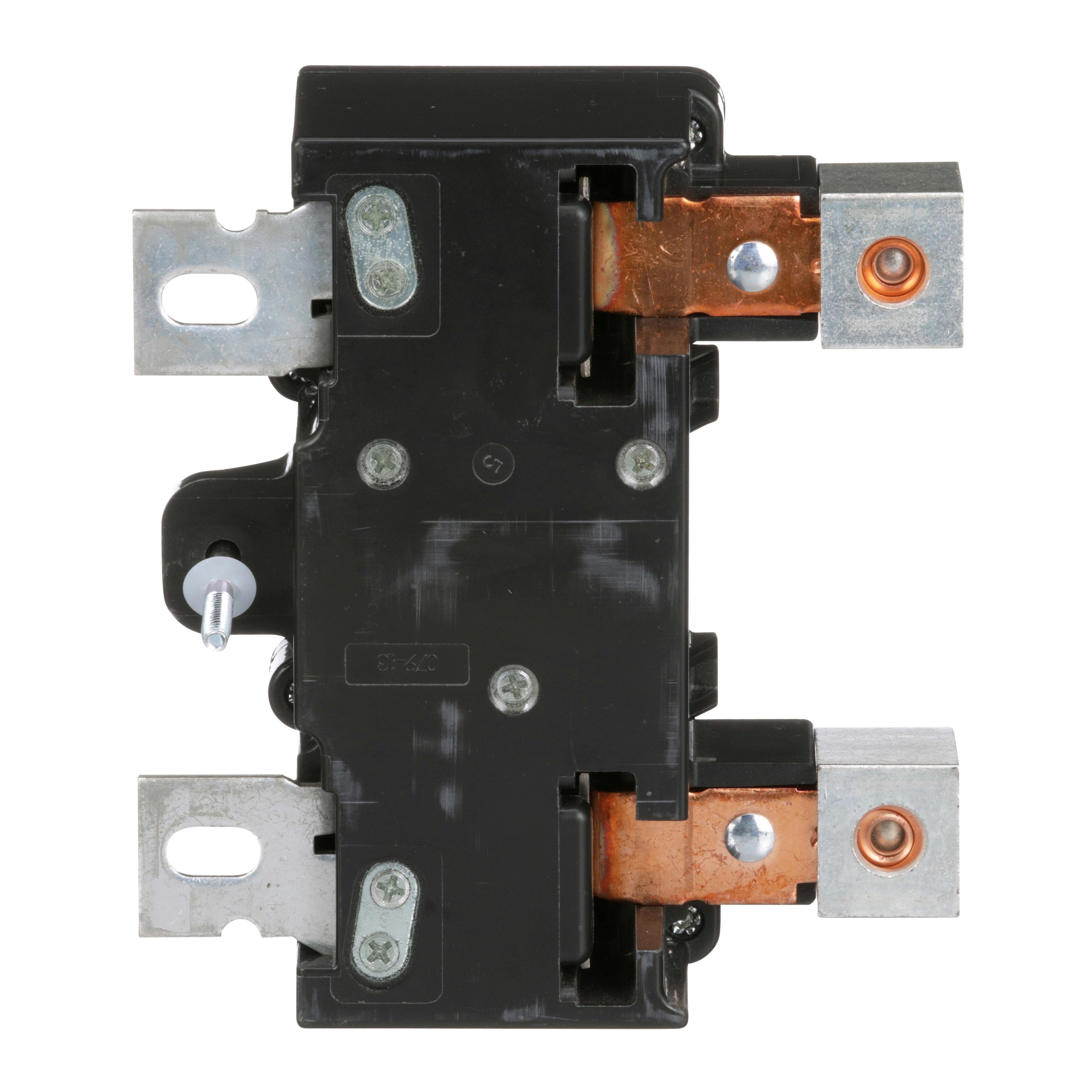

Picture of QOM2150VH - Main breaker, QO, 150A, 2 pole, 120/240VAC, 22kA, bolt on Picture of QOM2150VH - Main breaker, QO, 150A, 2 pole, 120/240VAC, 22kA, bolt on
Picture of QOM2150VH - Main breaker, QO, 150A, 2 pole, 120/240VAC, 22kA, bolt on Picture of QOM2150VH - Main breaker, QO, 150A, 2 pole, 120/240VAC, 22kA, bolt on
Picture of QOM2150VH - Main breaker, QO, 150A, 2 pole, 120/240VAC, 22kA, bolt on Picture of QOM2150VH - Main breaker, QO, 150A, 2 pole, 120/240VAC, 22kA, bolt on
Picture of QOM2150VH - Main breaker, QO, 150A, 2 pole, 120/240VAC, 22kA, bolt on Picture of QOM2150VH - Main breaker, QO, 150A, 2 pole, 120/240VAC, 22kA, bolt on
Square D

QOM2150VH - Main breaker, QO, 150A, 2 pole, 120/240VAC, 22kA, bolt on

Item Code: 18695
Category Bolt-On Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QOM2150VH

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO main breaker is rated at 150A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. A full line of accessories are available. The lug connectors will accept one 4 AWG to 300 kcmil copper or aluminum wire. This circuit breaker has a height of 5.60 inches, a width of 3.60 inches and a depth of 5.07 inches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.

Specifications

Weight

2.64lb

Height

142mm

Width

5.55mm

Length

6.34mm

Depth

129mm

AD All Features

Provides superior circuit protection

AD Application

Main Breaker Load Center Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

BREAKER CKT MINTR 120/240VAC 150A 22KA 2

AD Item Features 01

Provides superior circuit protection

AD Item Features 02

Reliable and durable

AD Item Features 03

Plug-on neutral design and shorter footprint for faster installs

AD Item Features 04

Simple design and clear instructions for quick setup

AD Item Features 05

Time-saving diagnostics with touch of a button

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

6.3400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

2.6400

AD Package Weight UOM

LB

AD Package Width

5.5500

AD Package Width UOM

IN

Brand

Square D

Category

BOLT-ON CIRCUIT BREAKERS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

150

Spec 10 Attribute

Trip Range

Spec 10 Attribute UOM

A

Spec 10 Attribute Value

150

Spec 11 Attribute

Trip Type

Spec 11 Attribute Value

Thermal Magnetic

Spec 12 Attribute

Type

Spec 12 Attribute Value

Standard

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

120/240

Spec 14 Attribute

Wire Size

Spec 14 Attribute Value

4 AWG to 300 kcmil

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Box Lug

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

5.07 in W x 3.6 in D x 5.6 in H

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

50/60

Spec 5 Attribute

Interrupt Rating

Spec 5 Attribute UOM

KA

Spec 5 Attribute Value

22

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Bolt-on

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

2

Spec 8 Attribute

PHASE

Spec 8 Attribute Value

1

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg F

Spec 9 Attribute Value

104
