Square D

QOM2200MM - Main breaker, QO, 200A, 2 pole, 120/240VAC, 10kA, bolt on, for metering devices

Category Bolt-On Circuit Breakers

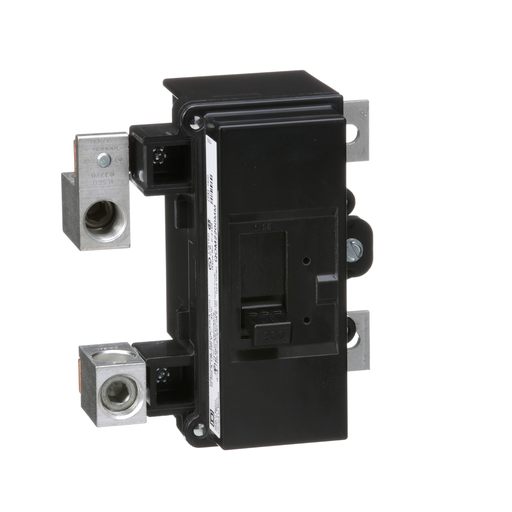

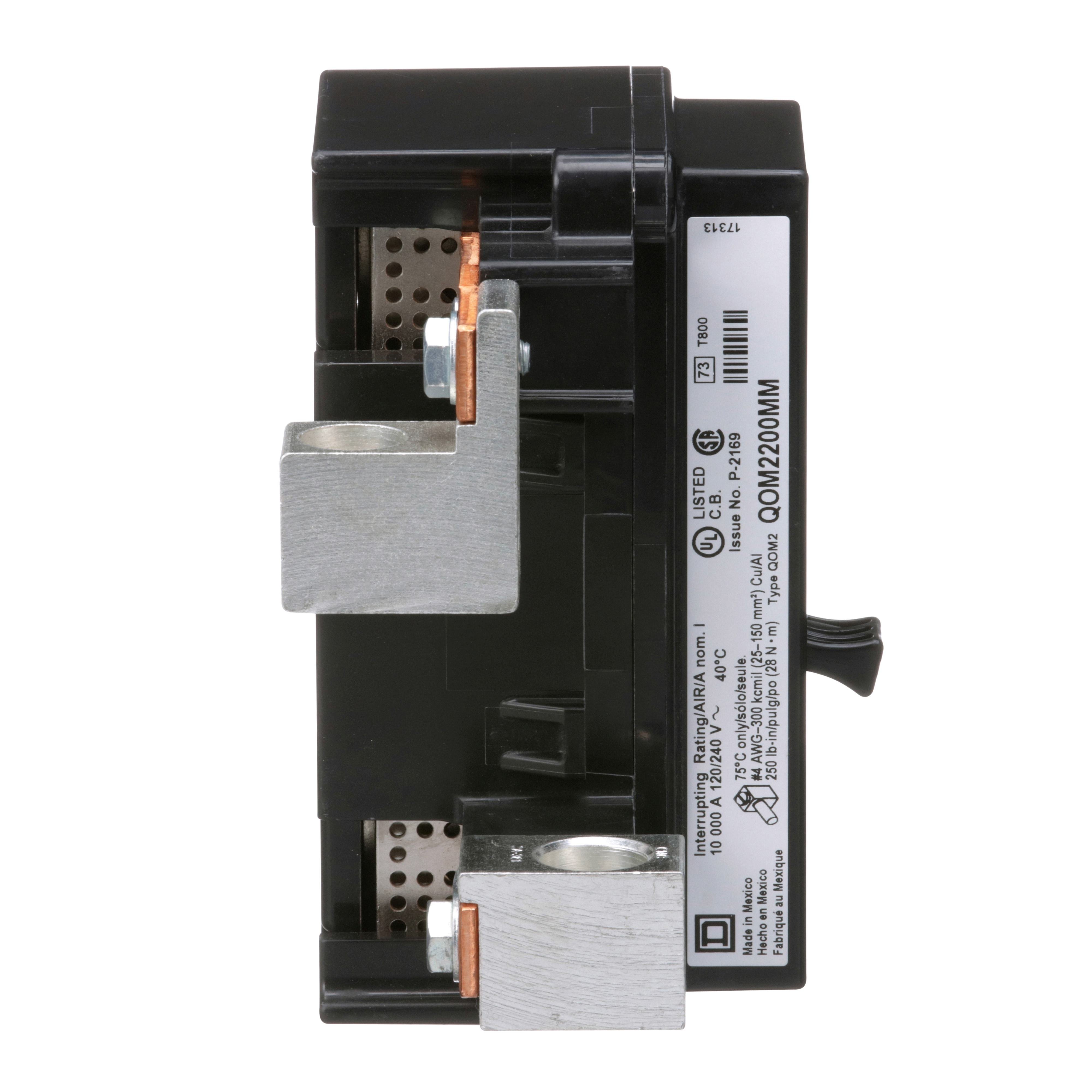

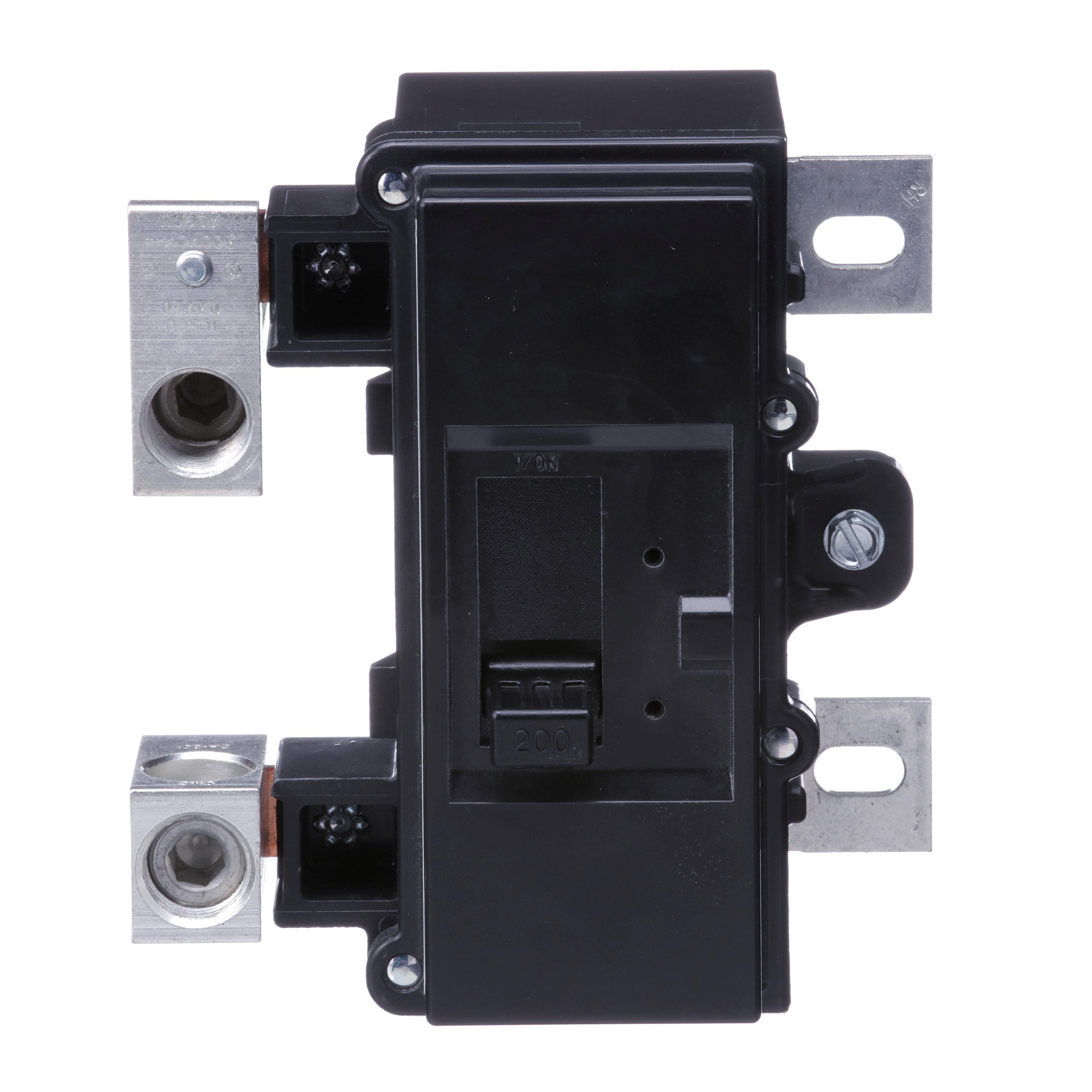

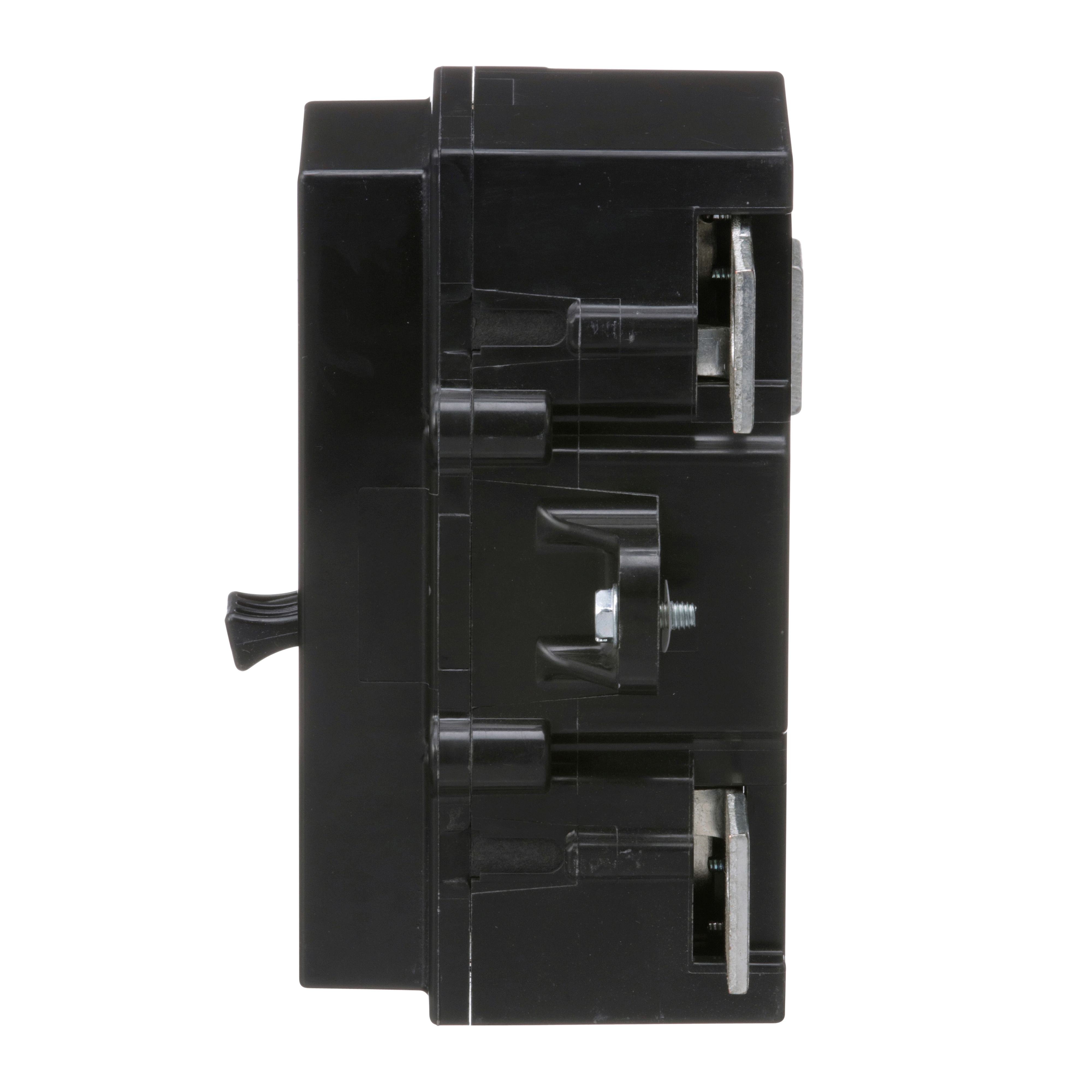

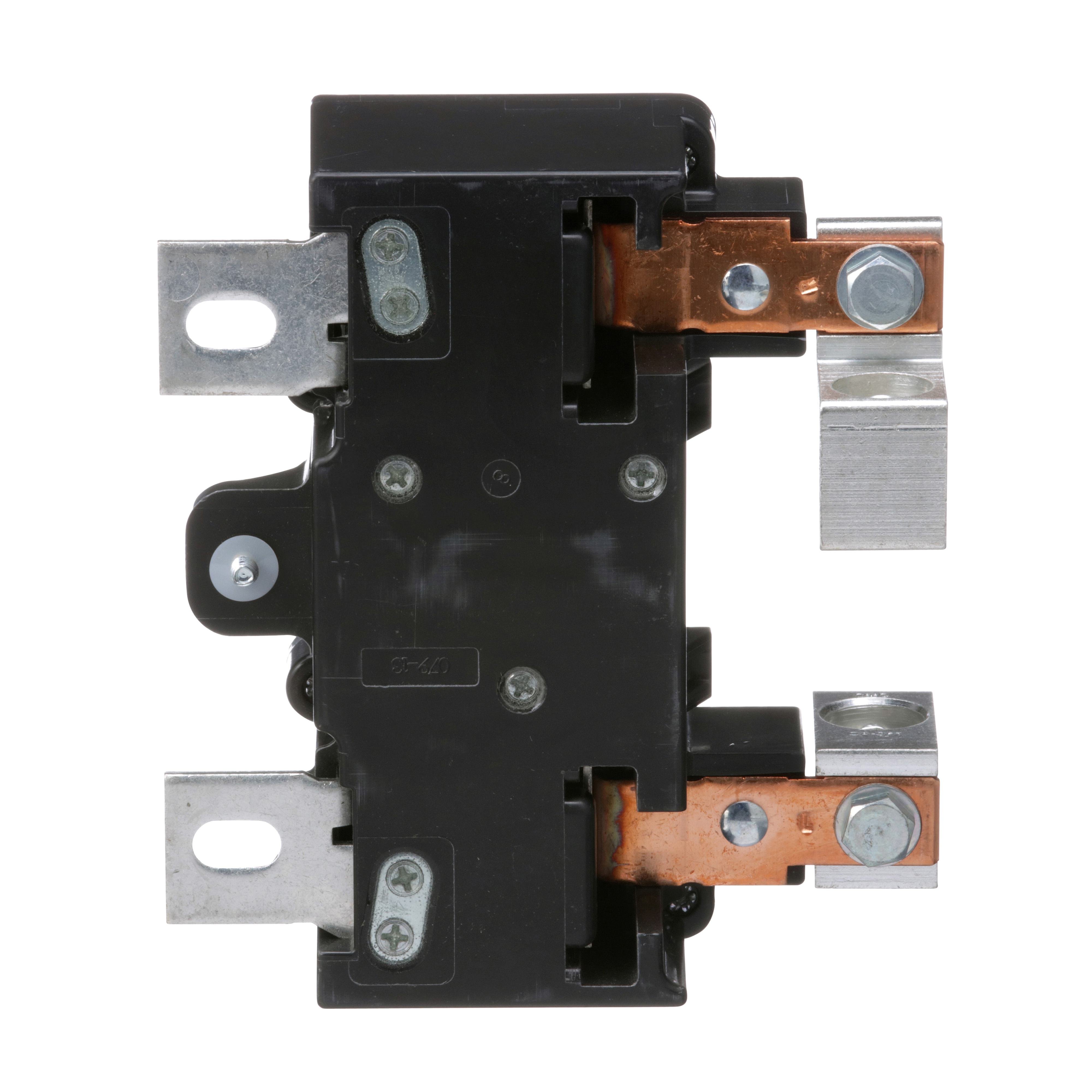

Picture of QOM2200MM - Main breaker, QO, 200A, 2 pole, 120/240VAC, 10kA, bolt on, for metering devices Picture of QOM2200MM - Main breaker, QO, 200A, 2 pole, 120/240VAC, 10kA, bolt on, for metering devices
Picture of QOM2200MM - Main breaker, QO, 200A, 2 pole, 120/240VAC, 10kA, bolt on, for metering devices Picture of QOM2200MM - Main breaker, QO, 200A, 2 pole, 120/240VAC, 10kA, bolt on, for metering devices
Picture of QOM2200MM - Main breaker, QO, 200A, 2 pole, 120/240VAC, 10kA, bolt on, for metering devices Picture of QOM2200MM - Main breaker, QO, 200A, 2 pole, 120/240VAC, 10kA, bolt on, for metering devices
Picture of QOM2200MM - Main breaker, QO, 200A, 2 pole, 120/240VAC, 10kA, bolt on, for metering devices Picture of QOM2200MM - Main breaker, QO, 200A, 2 pole, 120/240VAC, 10kA, bolt on, for metering devices
Picture of QOM2200MM - Main breaker, QO, 200A, 2 pole, 120/240VAC, 10kA, bolt on, for metering devices Picture of QOM2200MM - Main breaker, QO, 200A, 2 pole, 120/240VAC, 10kA, bolt on, for metering devices
Square D

QOM2200MM - Main breaker, QO, 200A, 2 pole, 120/240VAC, 10kA, bolt on, for metering devices

Item Code: 33346
Category Bolt-On Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QOM2200MM

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO main breaker is rated at 200A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.

Specifications

Weight

2.58lb

Height

4.2mm

Width

5.45mm

Length

6.24mm

Depth

91mm

AD All Features

Provides superior circuit protection

AD Application

For use with MP Meter-Pak™ metering equipment applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

BREAKER CKT MINTR 120/240VAC 200A 10KA

AD Item Features 01

Provides superior circuit protection

AD Item Features 02

Reliable and durable

AD Item Features 03

Plug-on neutral design and shorter footprint for faster installs

AD Item Features 04

Simple design and clear instructions for quick setup

AD Item Features 05

Time-saving diagnostics with touch of a button

AD Manufacturer (Description)

Schneider Electric

AD Package Height

4.2000

AD Package Height UOM

IN

AD Package Length

6.2400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

150.1500

AD Package Volume UOM

cu-in

AD Package Weight

2.5800

AD Package Weight UOM

LB

AD Package Width

5.4500

AD Package Width UOM

IN

Brand

Square D

Category

BOLT-ON CIRCUIT BREAKERS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

200

Spec 10 Attribute

Trip Range

Spec 10 Attribute UOM

A

Spec 10 Attribute Value

200

Spec 11 Attribute

Trip Type

Spec 11 Attribute Value

Thermal Magnetic

Spec 12 Attribute

Type

Spec 12 Attribute Value

Tenant

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

120/240

Spec 14 Attribute

Wire Size

Spec 14 Attribute Value

4 AWG to 300 kcmil

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Lug

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

3.6 in L x 5.07 in W x 5.6 in H

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

50/60

Spec 5 Attribute

Interrupt Rating

Spec 5 Attribute UOM

KA

Spec 5 Attribute Value

10

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Bolt-on

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

2

Spec 8 Attribute

PHASE

Spec 8 Attribute Value

1

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg C

Spec 9 Attribute Value

40
