Square D

QOU210 - Mini circuit breaker, QOU, 10A, 2 pole, 120/240VAC, 10kA

Category Base Mount, Unit Mount, Din Rail Mount Circuit Breakers

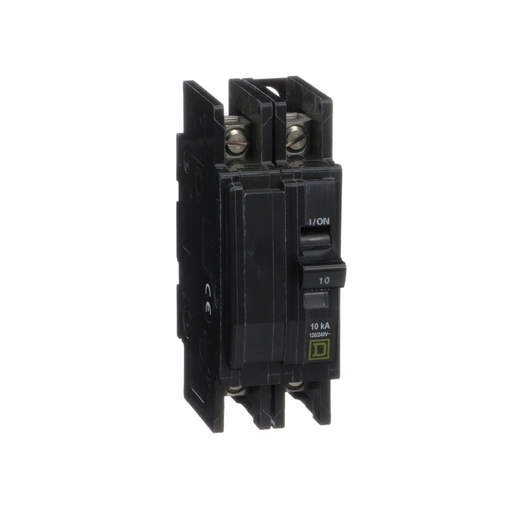

Picture of QOU210 - Mini circuit breaker, QOU, 10A, 2 pole, 120/240VAC, 10kA
Square D

QOU210 - Mini circuit breaker, QOU, 10A, 2 pole, 120/240VAC, 10kA

Item Code: 670235
Category Base Mount, Unit Mount, Din Rail Mount Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QOU210

Owners User Manual
RoHS
Specification Sheet
Technical Bulletin
Call for Availability
Add to Favorites
Compare

Description

QOU Miniature Molded Case Circuit Breakers are intended for use in residential and commercial applications. They are used for overcurrent protection and switching on both AC and DC electrical systems. These breakers provide a means to manually open a circuit using the interally magnetic strips. A range of accessories can be found for these breakers with their product range and are versatitle in their mounting.

Specifications

Weight

0.74lb

Height

2.1mm

Width

3.47mm

Length

4.75mm

Depth

2.95mm

Actuator Type

Toggle

Amperage Rating

10 A

Brand

Square D

Category

BASE MOUNT, UNIT MOUNT, DIN RAIL MOUNT CIRCUIT BREAKERS

Color

Black

Connection Type

Box Lug

Dimensions

2.95 in L x 1.5 in W x 4.05 in H

Frequency Rating

50/60 Hz

Interrupt Rating

10 kA

Mounting Type

DIN Rail/Flush

Number Of Poles

2

Phase

1

Temperature Rating

104 deg F

Trip Type

Thermal Magnetic

Type

Type QOU Standard Unit Mount

Voltage Rating

120/240 V AC

Wire Size

14 to 2 AWG
