Square D

QOU2100 - Mini circuit breaker, QOU, 100A, 2 pole, 120/240 VAC, 10kA

Category Miscellaneous

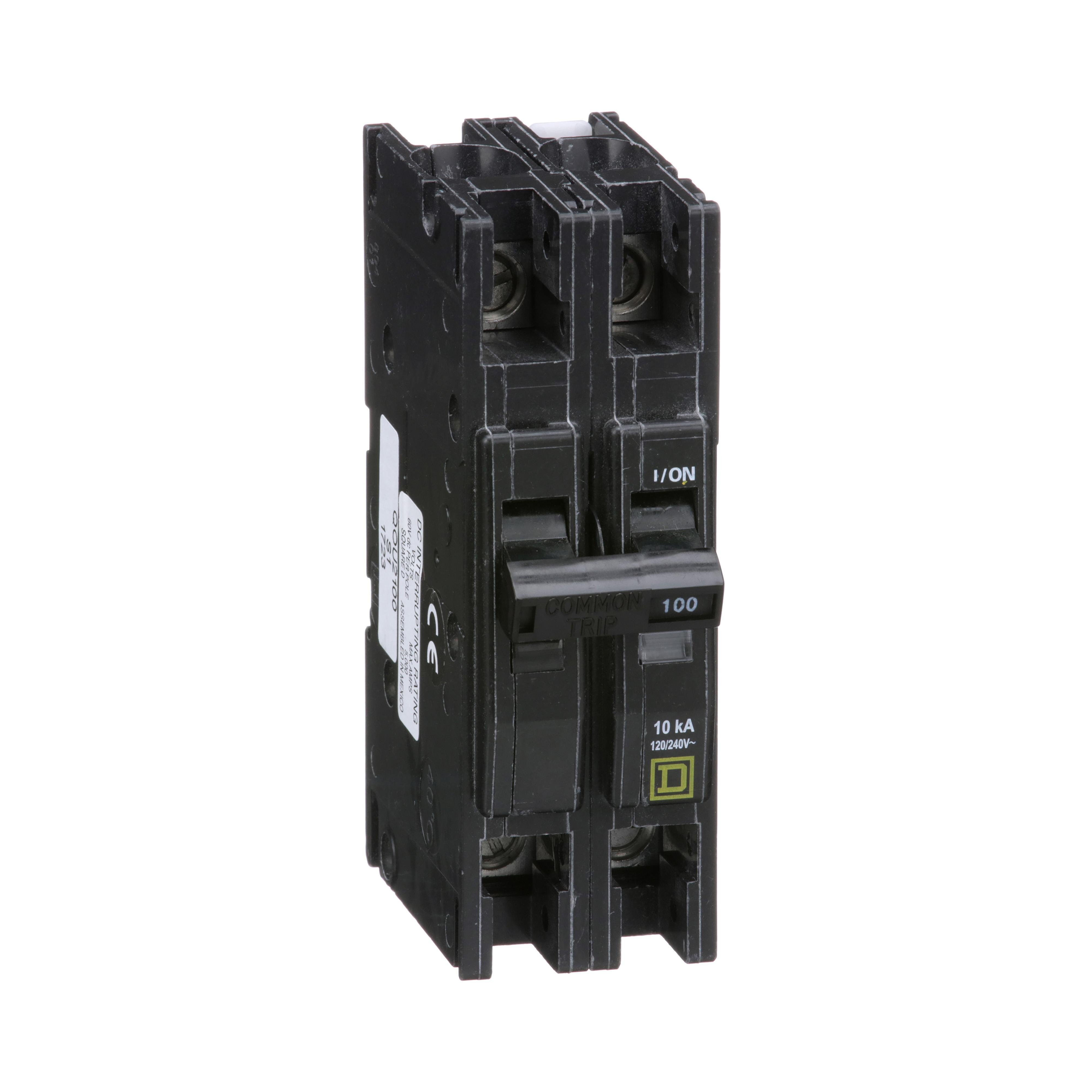

Picture of QOU2100 - Mini circuit breaker, QOU, 100A, 2 pole, 120/240 VAC, 10kA
Square D

QOU2100 - Mini circuit breaker, QOU, 100A, 2 pole, 120/240 VAC, 10kA

Item Code: 18701
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QOU2100

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

QOU Miniature Molded Case Circuit Breakers are intended for use in residential and commercial applications. They are used for overcurrent protection and switching on both AC and DC electrical systems. These breakers provide a means to manually open a circuit using the interally magnetic strips. QOU circuit breakers have been verified to adhere to their datasheet specifications by UL and CSA. A range of accessories can be found for these breakers with their product range and are versatitle in their mounting.

Specifications

Weight

0.94

Height

2

Width

3.47

Length

4.85

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/QOU2100/QOU2100.spin

AD All Features

QO MCBs are designed to sheild electronics from short-circuits and overcurrent

AD Alternative Part Number

7999635

AD Application

Appliance Manufacturers, Car Wash Systems, Facility and Infrastructure, Food and Beverage, HVAC, Industrial Machinery, Material Handling, Specialty Machinery and Waste Water Treatment Facilities Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD EAN

0785901060284

AD Gtin

00785901060284

AD IDEA Index ID

7999635

AD Invoice Description

BREAKER MINTR CKT 120/240VAC 100A 10KA 2

AD Item Features 01

QO MCBs are designed to sheild electronics from short-circuits and overcurrent

AD Item Features 02

Provides instaneous and time-delayed overcurrent protection

AD Item Features 03

Idle application for OEMs due to their high performances and multiple mounting options

AD Keywords

QOU2100 Type QOU Standard Miniature Circuit Breaker, 120/240 V AC, 100 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip ; Schneider Electric ; Square D ; QOU2100 ; QOU2100 ; 785901060284 ; Miniature Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

2.0000

AD Package Height UOM

IN

AD Package Length

4.8500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

34.3000

AD Package Volume UOM

cu-in

AD Package Weight

0.9400

AD Package Weight UOM

LB

AD Package Width

3.4700

AD Package Width UOM

IN

AD Part Number Keywords

QOU2100 ; 7999635 ; 785901060284 ; 78590106028 ; 00785901060284 ; 0785901060284

Brand

Square D

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Toggle

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

1

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg F

Spec 11 Attribute Value

104

Spec 12 Attribute

Trip Type

Spec 12 Attribute Value

Thermal Magnetic

Spec 13 Attribute

Type

Spec 13 Attribute Value

Type QOU Standard

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

120/240

Spec 15 Attribute

Wire Size

Spec 15 Attribute UOM

AWG

Spec 15 Attribute Value

12 to 2/0

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

100

Spec 3 Attribute

Color

Spec 3 Attribute Value

Black

Spec 4 Attribute

Connection Type

Spec 4 Attribute Value

Box Lug

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

2.95 in L x 1.5 in W x 4.45 in H

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Interrupt Rating

Spec 7 Attribute UOM

KA

Spec 7 Attribute Value

10

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

DIN Rail/Flush

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

2
