Square D

QOU260 - Mini circuit breaker, QOU, 60A, 2 pole, 120/240VAC, 10kA

Category Base Mount, Unit Mount, Din Rail Mount Circuit Breakers

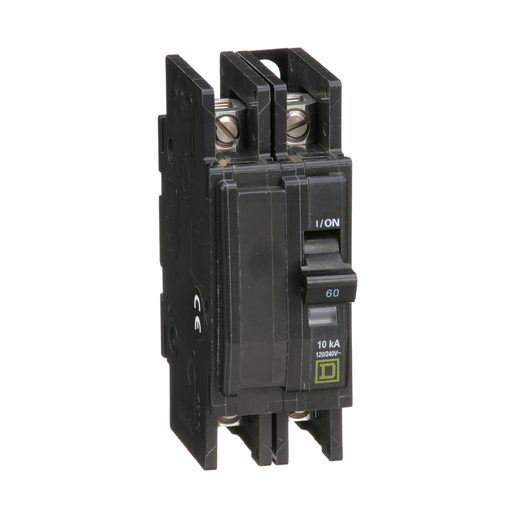

Picture of QOU260 - Mini circuit breaker, QOU, 60A, 2 pole, 120/240VAC, 10kA
Square D

QOU260 - Mini circuit breaker, QOU, 60A, 2 pole, 120/240VAC, 10kA

Item Code: 33358
Category Base Mount, Unit Mount, Din Rail Mount Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QOU260

Owners User Manual
RoHS
Specification Sheet
Technical Bulletin
Call for Availability
Add to Favorites
Compare

Description

QO™ and QOU Miniature Circuit Breakers, QOU260, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit.

Specifications

Weight

0.8lb

Height

3.6mm

Width

4.75mm

Length

2.08mm

Depth

2.95mm

Actuator Type

Toggle

Amperage Rating

60 A

Brand

Square D

Category

BASE MOUNT, UNIT MOUNT, DIN RAIL MOUNT CIRCUIT BREAKERS

Color

Black

Connection Type

Box Lug

Dimensions

2.95 in L x 1.5 in W x 4.05 in H

Frequency Rating

50/60 Hz

Interrupt Rating

10 kA

Mounting Type

DIN Rail/Flush

Number Of Poles

2

Phase

1

Temperature Rating

104 deg F

Trip Type

Thermal Magnetic

Type

Type QOU Standard Unit Mount

Voltage Rating

120/240 V AC

Wire Size

14 to 2 AWG
