Square D

QU12L400CL - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 12 spaces, Class 320 with lever bypass

Category Miscellaneous

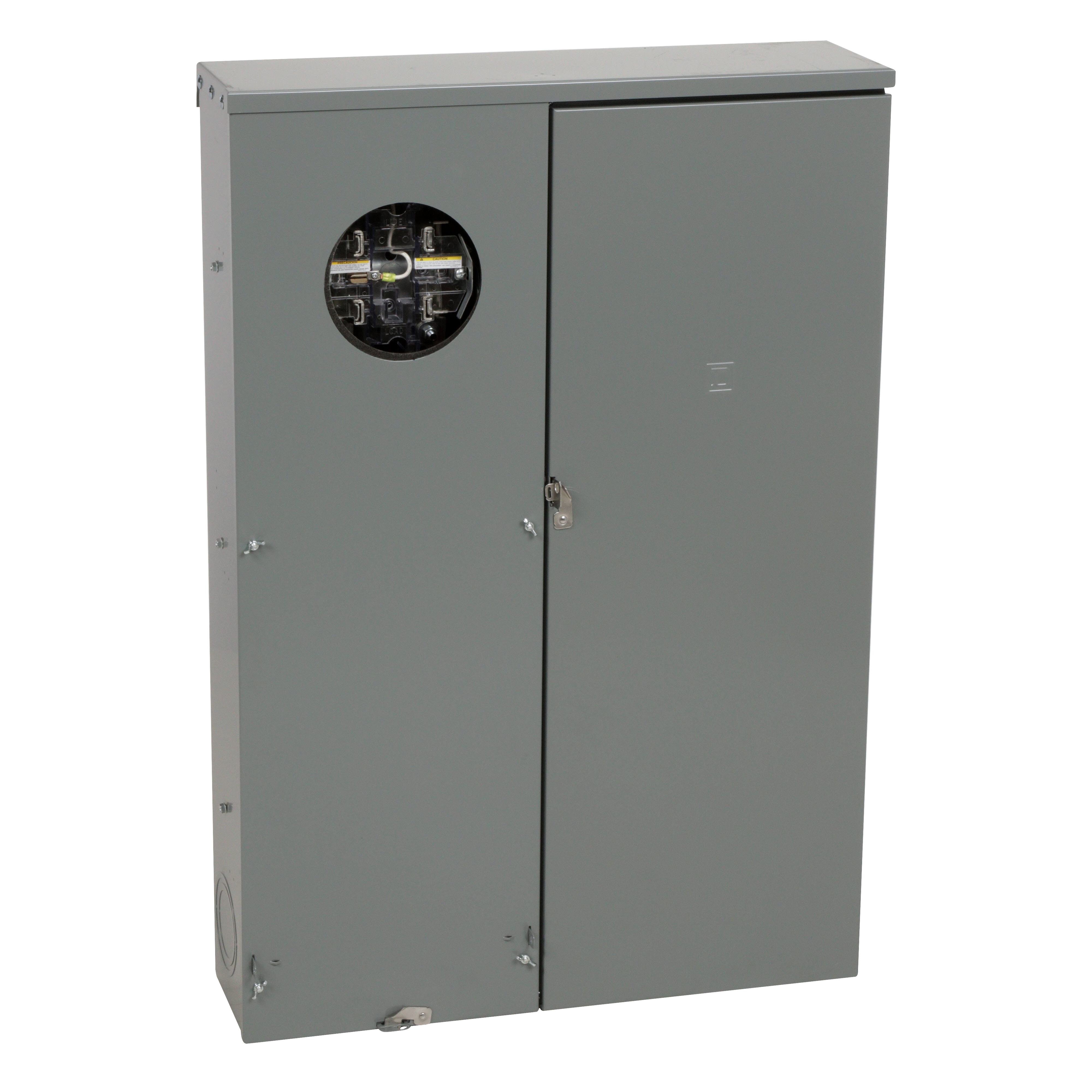

Picture of QU12L400CL - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 12 spaces, Class 320 with lever bypass Picture of QU12L400CL - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 12 spaces, Class 320 with lever bypass
Picture of QU12L400CL - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 12 spaces, Class 320 with lever bypass Picture of QU12L400CL - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 12 spaces, Class 320 with lever bypass
Square D

QU12L400CL - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 12 spaces, Class 320 with lever bypass

Item Code: 525607
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QU12L400CL

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D meter mains devices are single phase power distribution panels ideal for residential use for when the local codes require the service disconnect to be located outside the dwelling. These devices come with a meter socket that supports a standard utility meter and a main disconnect breaker and include provisions for field installation of service disconnect(s) to feed downstream devices. Square D meter mains products are single compact solution provides a time and space saving solution for contractors and installers as well as meet a wide range of applications in use today. This meter main is designed for QO range, is rated at 400A and has a short circuit current rating of 25 kA. This device has a lever bypass type, uses a ringless meter socket type and can only be service feed underground. This CSED uses studs on the line side and uses lugs on the service ground side of the device, has a wire range of 4 AWG–250 kcmil on the service ground side. The dimensions for this product are 43.00 in (H) x 28.25 in (W) x 7.87 in (D).

Specifications

Weight

111.76

Width

29.02

Length

41.89

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/QU12L400CL/QU12L400CL.spin

AD Alternative Part Number

8043594

AD Application

Residential Applications

AD Brand (Description)

Square D

AD Country

USA

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901421009

AD Gtin

00785901421009

AD IDEA Index ID

8043594

AD Includes

Factory Installed 5th Jaw

AD Invoice Description

MAIN MTR ENTR SVCE COMBINATION 400A

AD Item Features 01

Homeline ringless meter mains support standard utility meters and a main disconnect breakers

AD Item Features 02

This single compact solution provides a time and space saving solution for contractors and installers

AD Item Features 03

Suitable for use as service entrance equipment

AD Item Features 04

CSED allows for the meter socket to integrate with the load center into one compact design

AD Manufacturer (Description)

Schneider Electric

AD Package Length

41.8900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

111.7600

AD Package Weight UOM

LB

AD Package Width

29.0200

AD Package Width UOM

IN

AD Part Number Keywords

QU12L400CL ; 8043594 ; 785901421009 ; 78590142100 ; 00785901421009 ; 0785901421009

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

400

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

1

Spec 11 Attribute

Terminal Type

Spec 11 Attribute Value

Lug/Stud

Spec 12 Attribute

Type

Spec 12 Attribute Value

12-Circuit All-in-One Field Installed Rainproof

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

120/240

Spec 14 Attribute

Wire Size

Spec 14 Attribute Value

4 AWG to 250 kcmil

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ringless

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

43 in H x 28-1/4 in W x 7-1/2 in D

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Feed Type

Spec 5 Attribute Value

Underground

Spec 6 Attribute

Hub Size

Spec 6 Attribute Value

2-1/2 in, 3 in, 3-1/2 in, 4 in

Spec 7 Attribute

Hub Type

Spec 7 Attribute Value

A-L

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Surface

Spec 9 Attribute

Number of Jaws

Spec 9 Attribute Value

5
