Square D

QU12L400SL - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 12 spaces, Class 320 with lever bypass

Category Residential Meter Mains

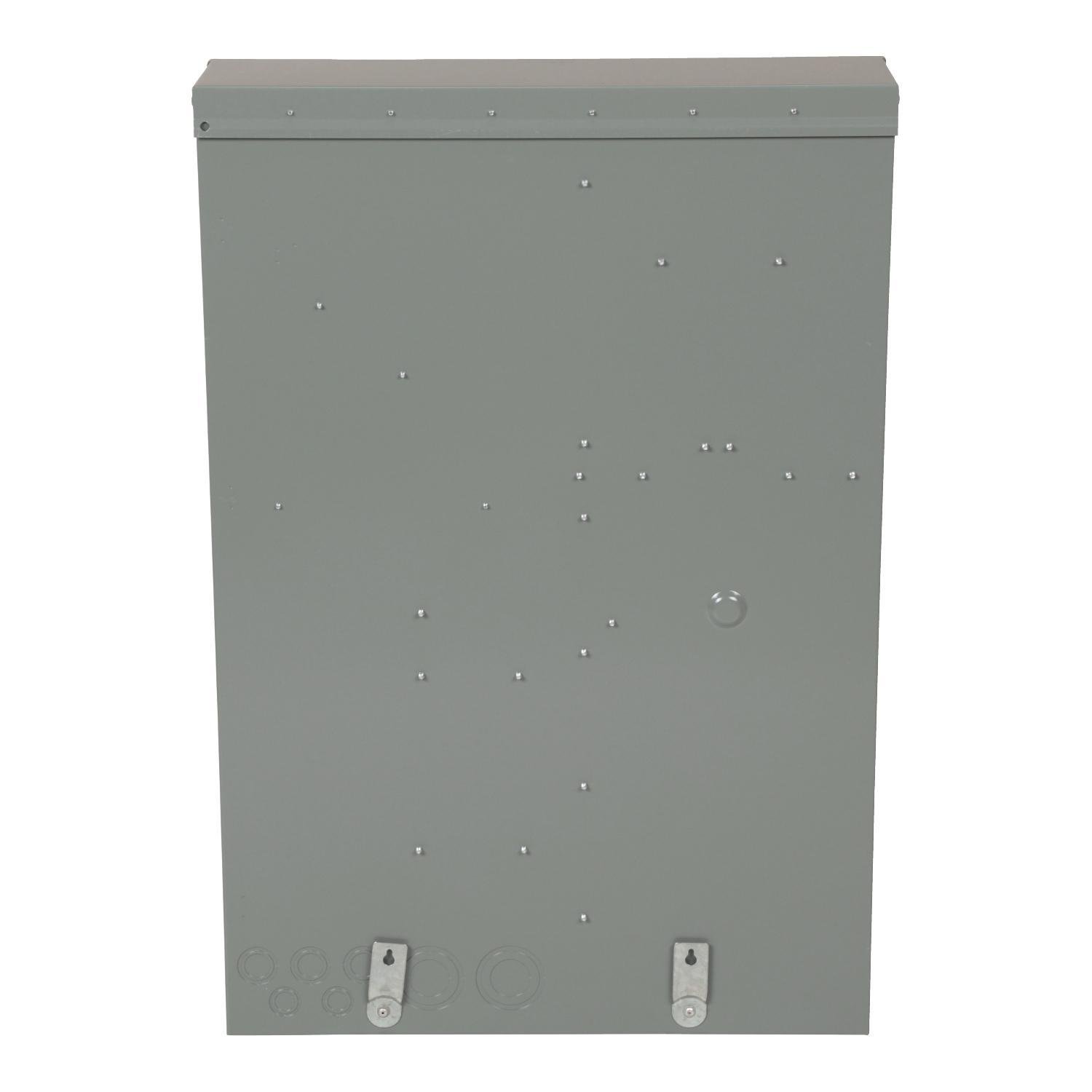

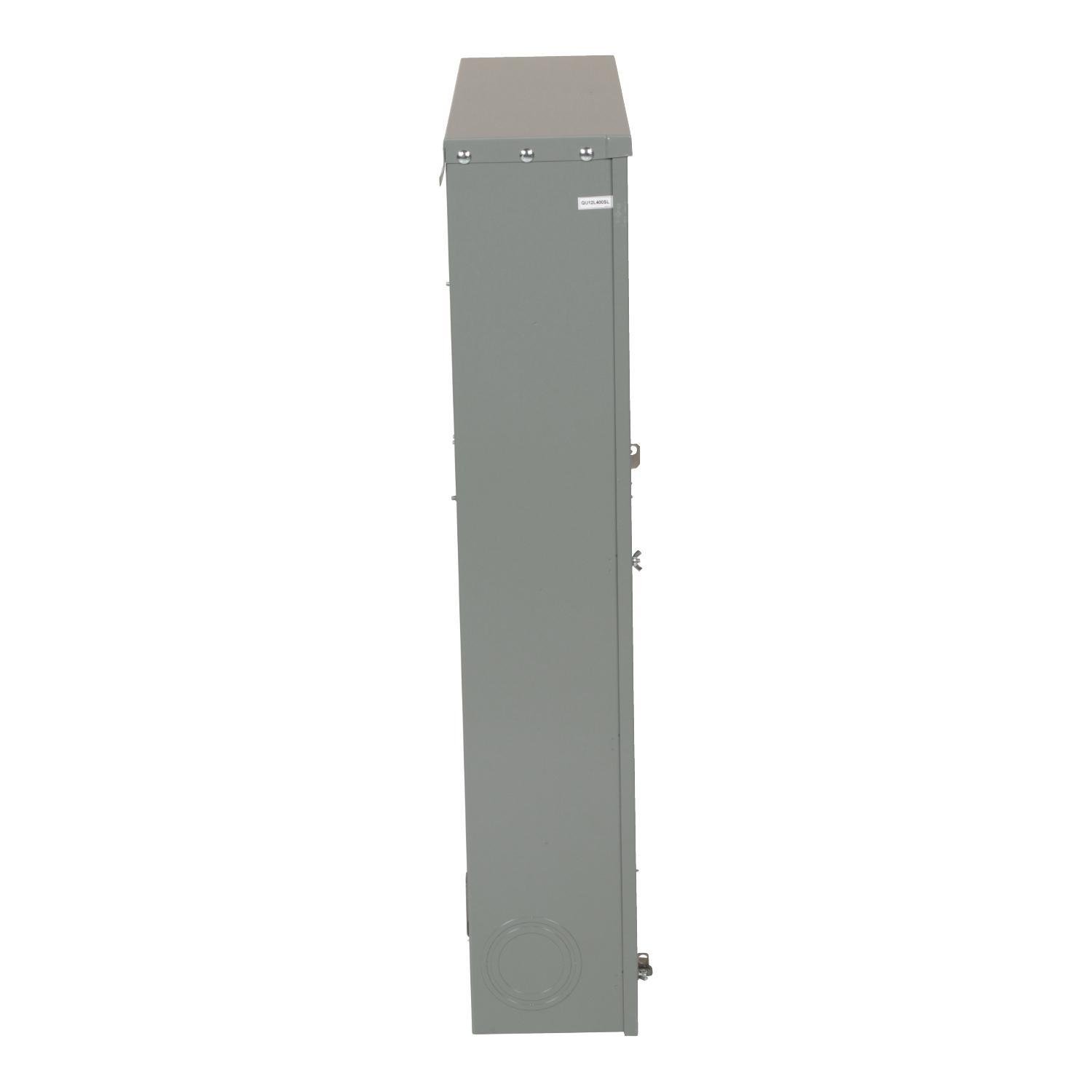

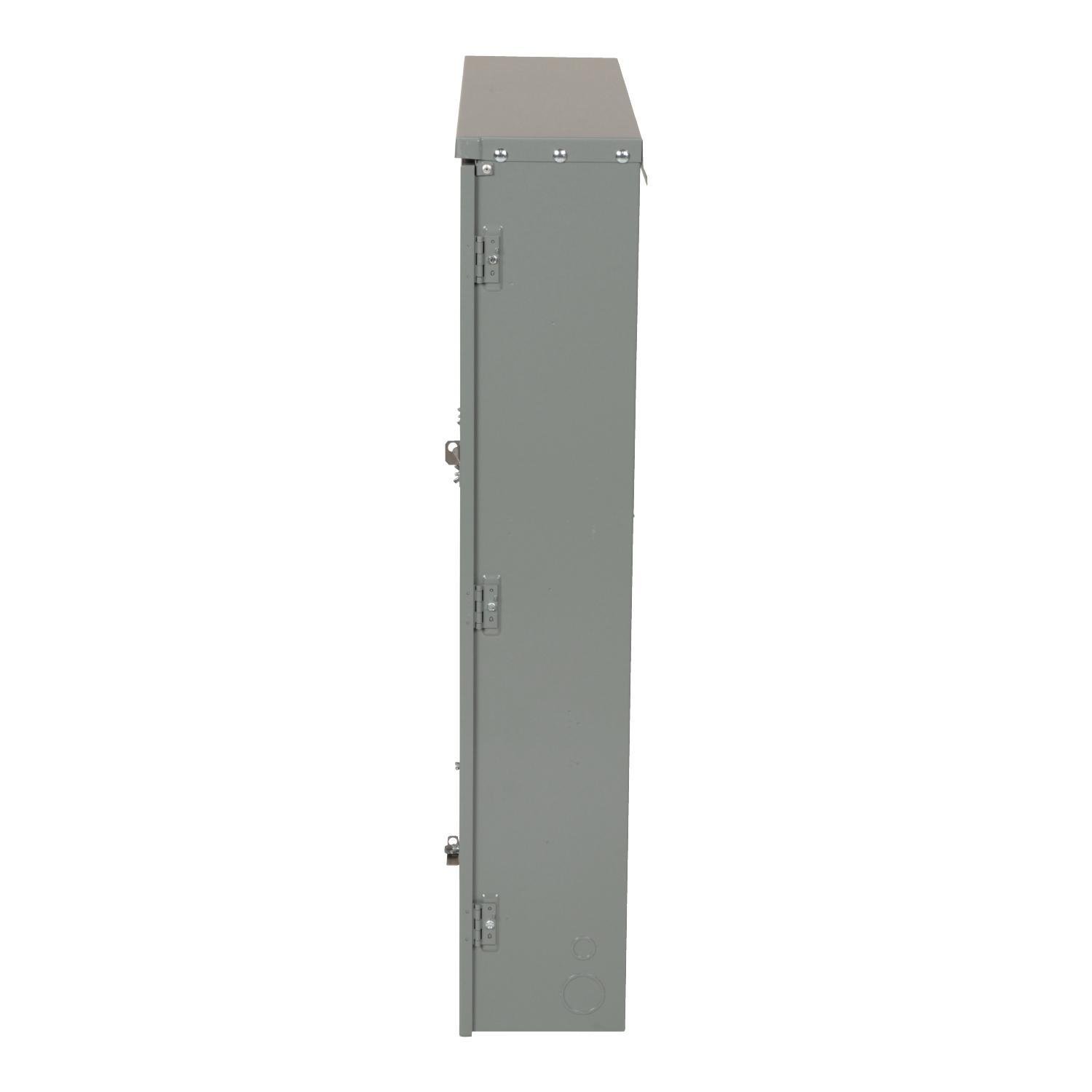

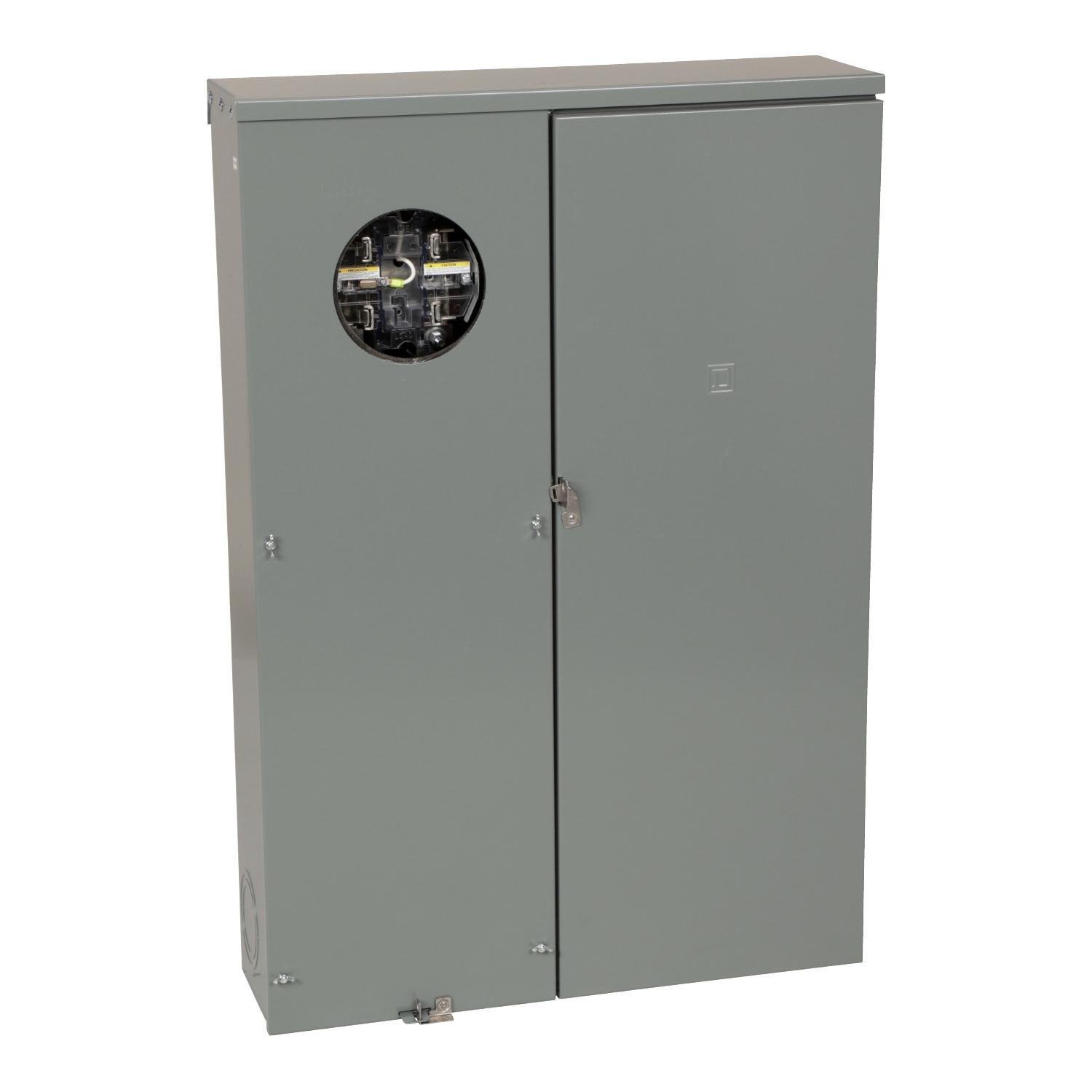

Picture of QU12L400SL - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 12 spaces, Class 320 with lever bypass Picture of QU12L400SL - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 12 spaces, Class 320 with lever bypass
Picture of QU12L400SL - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 12 spaces, Class 320 with lever bypass Picture of QU12L400SL - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 12 spaces, Class 320 with lever bypass
Picture of QU12L400SL - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 12 spaces, Class 320 with lever bypass Picture of QU12L400SL - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 12 spaces, Class 320 with lever bypass
Picture of QU12L400SL - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 12 spaces, Class 320 with lever bypass Picture of QU12L400SL - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 12 spaces, Class 320 with lever bypass
Picture of QU12L400SL - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 12 spaces, Class 320 with lever bypass Picture of QU12L400SL - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 12 spaces, Class 320 with lever bypass
Square D

QU12L400SL - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 12 spaces, Class 320 with lever bypass

Item Code: 986669
Category Residential Meter Mains
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QU12L400SL

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D meter mains devices are single phase power distribution panels ideal for residential use for when the local codes require the service disconnect to be located outside the dwelling. These devices come with a meter socket that supports a standard utility meter and a main disconnect breaker and include provisions for field installation of service disconnect(s) to feed downstream devices. Square D meter mains products are single compact solution provides a time and space saving solution for contractors and installers as well as meet a wide range of applications in use today. This meter main is designed for QO range, is rated at 400A and has a short circuit current rating of 25 kA. This device has a lever bypass type, uses a ringless meter socket type and can only be service feed underground. This CSED uses studs on the line side and uses lugs on the service ground side of the device, has a wire range of 4 AWG–250 kcmil on the service ground side. The dimensions for this product are 43.00 in (H) x 28.25 in (W) x 7.87 in (D).

Specifications

Weight

111.76

Height

9.6

Width

29.13

Length

41.81

AD Application

For service equipment applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

MAIN MTR 120/240VAC 200/400A 1 NEMA 3R

AD Item Features 01

QO ringless meter mains support standard utility meters and a main disconnect breakers

AD Item Features 02

This single compact solution provides a time and space saving solution for contractors and installers

AD Item Features 03

CSED allows for the meter socket to integrate with the load center into one compact design

AD Manufacturer (Description)

Schneider Electric

AD Package Height

9.6000

AD Package Height UOM

IN

AD Package Length

41.8100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

11910.5000

AD Package Volume UOM

cu-in

AD Package Weight

111.7600

AD Package Weight UOM

LB

AD Package Width

29.1300

AD Package Width UOM

IN

Brand

Square D

Category

RESIDENTIAL METER MAINS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

200/400

Spec 2 Attribute

Enclosure Type

Spec 2 Attribute Value

NEMA 3R

Spec 3 Attribute

Feed Type

Spec 3 Attribute Value

Underground

Spec 4 Attribute

Hub Type

Spec 4 Attribute Value

A-L

Spec 5 Attribute

Mounting Type

Spec 5 Attribute Value

Surface

Spec 6 Attribute

PHASE

Spec 6 Attribute Value

1

Spec 7 Attribute

Type

Spec 7 Attribute Value

Ringless

Spec 8 Attribute

Voltage Rating

Spec 8 Attribute UOM

V AC

Spec 8 Attribute Value

120/240

Spec 9 Attribute

Wire Size

Spec 9 Attribute Value

4 AWG to 250 kcmil
