Square D™

QU816D400CLX - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 with lever bypass

Category Miscellaneous

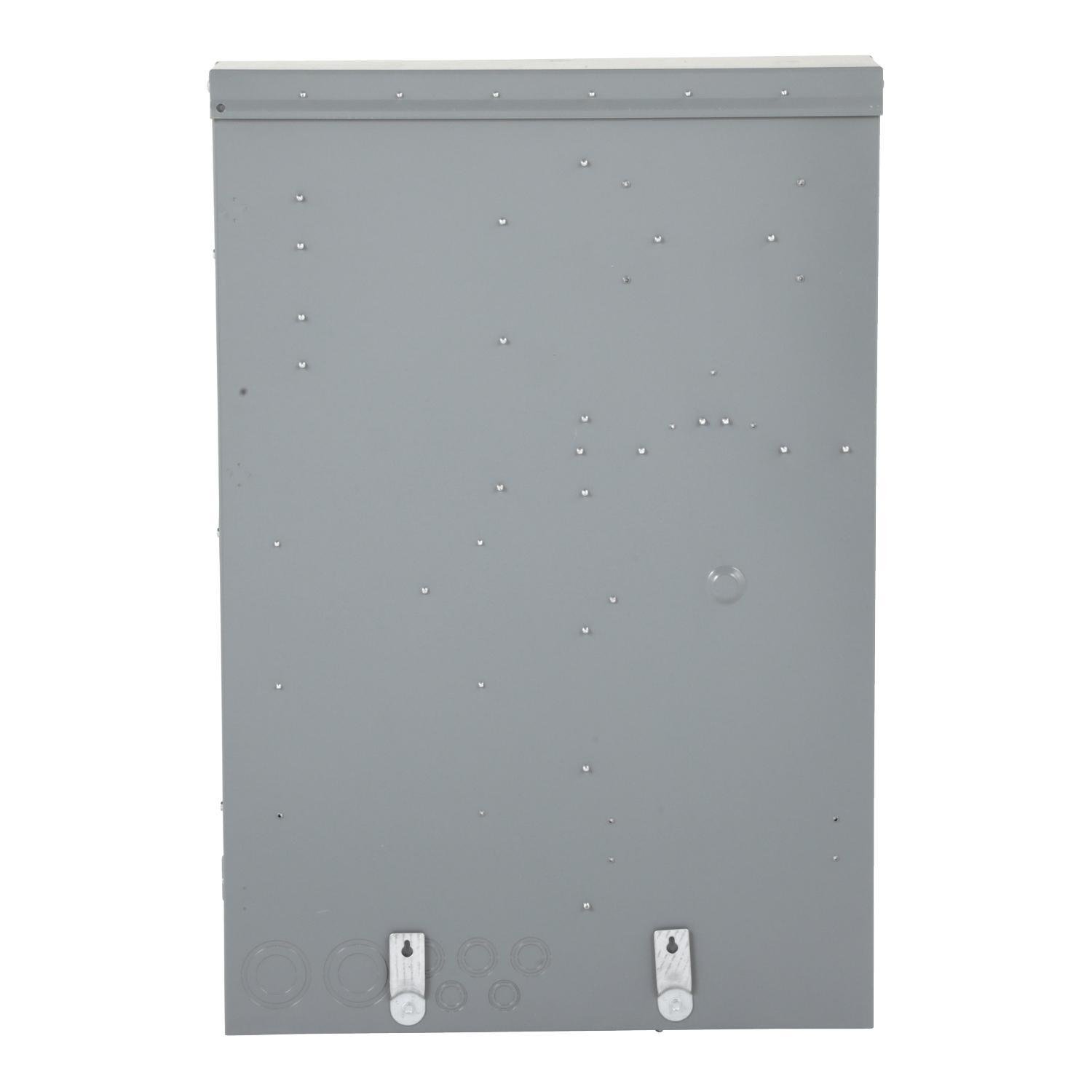

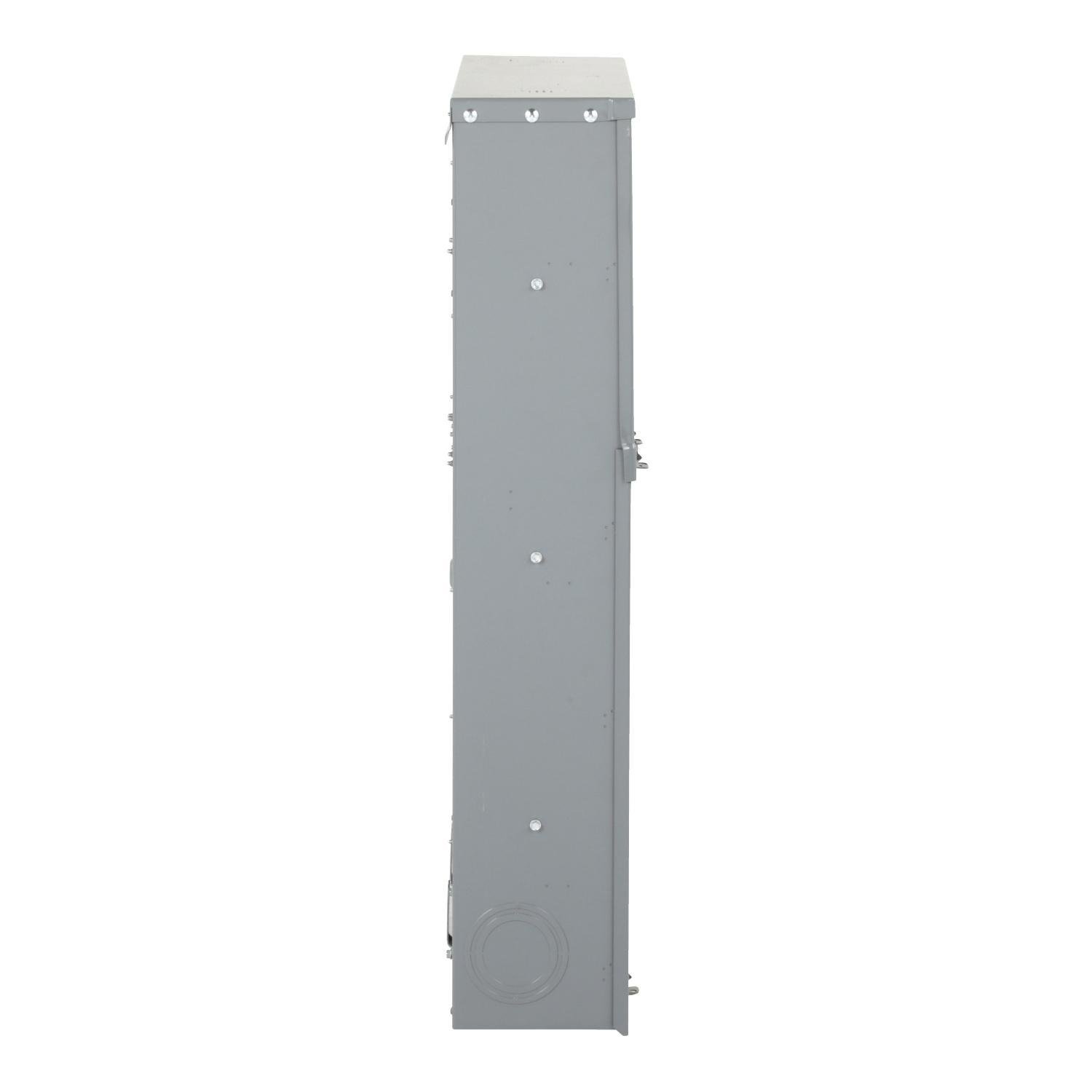

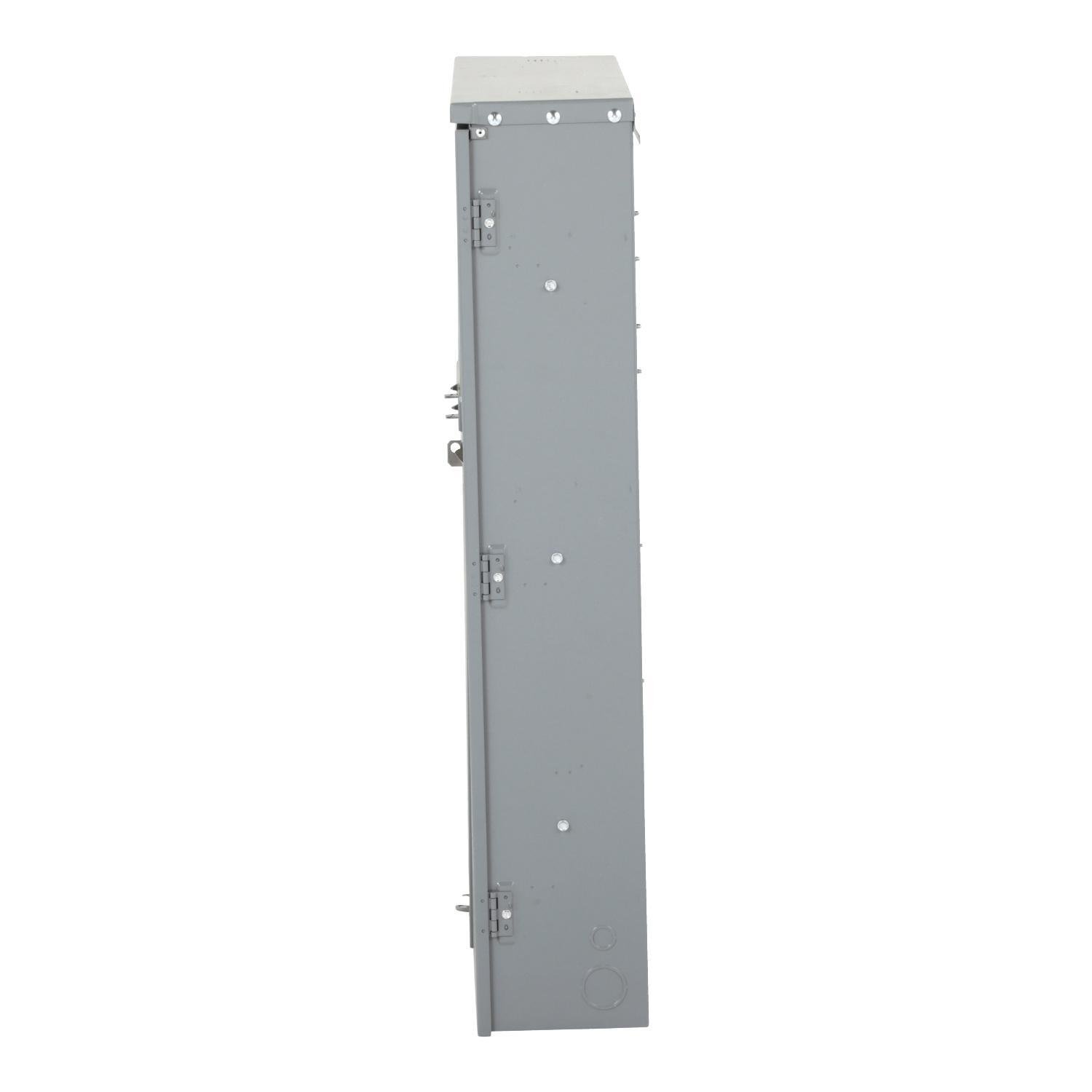

Picture of QU816D400CLX - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 with lever bypass Picture of QU816D400CLX - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 with lever bypass
Picture of QU816D400CLX - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 with lever bypass Picture of QU816D400CLX - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 with lever bypass
Picture of QU816D400CLX - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 with lever bypass Picture of QU816D400CLX - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 with lever bypass
Picture of QU816D400CLX - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 with lever bypass Picture of QU816D400CLX - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 with lever bypass
Picture of QU816D400CLX - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 with lever bypass Picture of QU816D400CLX - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 with lever bypass
Square D™

QU816D400CLX - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 with lever bypass

Item Code: 1011589
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QU816D400CLX

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D™ Meter Mains are single phase power distribution panels used in residential applications where local codes require service disconnects to be located outside the dwelling. The meter socket supports a standard utility meter and a main disconnect breaker which provides a time and space saving solution for contractors and installers. Meter mains are surface or semiflush mount with provisions. This is for the field installation of the service disconnect(s) that feed devices downstream. Interior subfeed load centers are typically used with these. This CSED is a QO ringless type, class 320 socket with lever bypass, and underground feed. With a current rating of 400A, this product has a short circuit current rating of 25kA. Main lug interior option is also available. Devices meet the Electric Utility Service Equipment Requirements Committee (EUSERC) standards, Federal Specifications W-P-115C for government housing.

Specifications

Weight

114.76

Width

28.74

Length

41.89

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/QU816D400CLX/QU816D400CLX.spin

AD Alternative Part Number

9411585

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901299400

AD Gtin

00785901299400

AD IDEA Index ID

9411585

AD Includes

Load Side Feed-Through Lugs

AD Invoice Description

MAIN MTR ENTR SVCE COMBINATION 400A

AD Item Features 01

QO ringless meter mains support standard utility meters and a main disconnect breakers

AD Item Features 02

This single compact solution provides a time and space saving solution for contractors and installers

AD Item Features 03

Suitable for use as service entrance equipment

AD Item Features 04

CSED allows for the meter socket to integrate with the load center into one compact design

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

41.8900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

114.7600

AD Package Weight UOM

LB

AD Package Width

28.7400

AD Package Width UOM

IN

AD Part Number Keywords

QU816D400CLX ; 9411585 ; 785901299400 ; 78590129940 ; 00785901299400 ; 0785901299400

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

400

Spec 10 Attribute

Type

Spec 10 Attribute Value

8-Space 16-Circuit All-in-One Field Installed Rainproof

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V AC

Spec 11 Attribute Value

120/240

Spec 12 Attribute

Wire Size

Spec 12 Attribute Value

4 AWG to 250 kcmil

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ringless

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

43 in H x 28-1/4 in W x 7-1/2 in D

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Feed Type

Spec 5 Attribute Value

Underground

Spec 6 Attribute

Hub Type

Spec 6 Attribute Value

A-L

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Surface

Spec 8 Attribute

PHASE

Spec 8 Attribute Value

1

Spec 9 Attribute

Terminal Type

Spec 9 Attribute Value

Line/Lug
