Square D

RC12L200C - Meter mains, Homeline, CSED, ringless socket, 200A, surface mount, maximum 12 spaces, no bypass

Category Miscellaneous

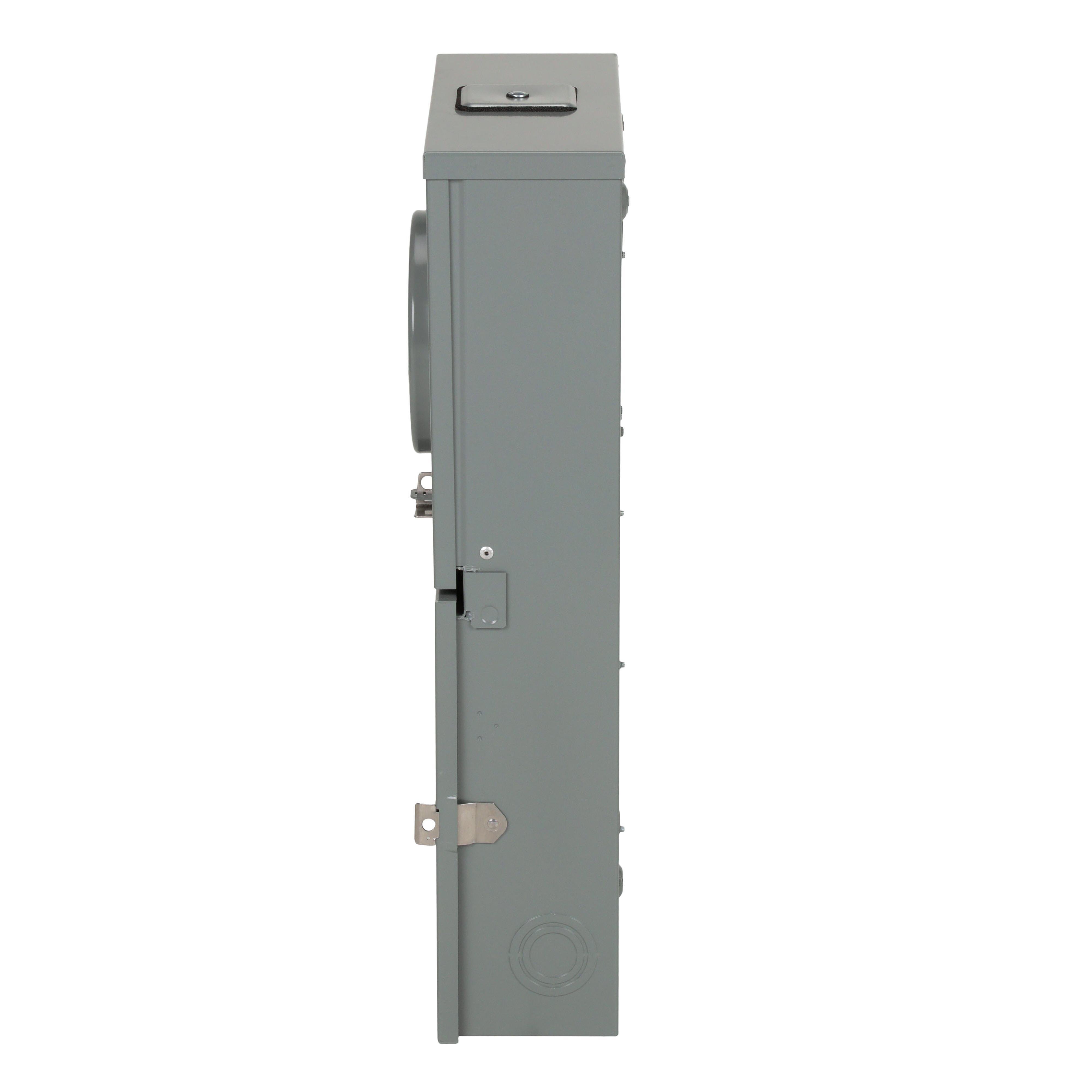

Picture of RC12L200C - Meter mains, Homeline, CSED, ringless socket, 200A, surface mount, maximum 12 spaces, no bypass Picture of RC12L200C - Meter mains, Homeline, CSED, ringless socket, 200A, surface mount, maximum 12 spaces, no bypass
Picture of RC12L200C - Meter mains, Homeline, CSED, ringless socket, 200A, surface mount, maximum 12 spaces, no bypass Picture of RC12L200C - Meter mains, Homeline, CSED, ringless socket, 200A, surface mount, maximum 12 spaces, no bypass
Square D

RC12L200C - Meter mains, Homeline, CSED, ringless socket, 200A, surface mount, maximum 12 spaces, no bypass

Item Code: 570834
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref RC12L200C

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

The Square D® Load Centers and Combination Service Entrance Devices, RC12L200C. Enclosure mounting style performed as surface mount or convertible to semi-flush (use appropriate flange kit). This HOM Ringless Meter Mains meets Federal Specification W-P-115c as Type 1, Class 2, are UL Listed, suitable only for use as service equipment. In interior main lug (service disconnects field installed). Meter Socket has no By-pass. Designed for 3 wire 120/240 VAC single phase systems. Surgebreaker has a NEMA 2 indoor rating. This surge protection device is rated at 50 kA per phase. This surge protection device has a height of 3.98 inches, a width of 1.97 inches and depth of 2.60 inches. This surge protection device is CSA certified

Specifications

Weight

50.81

Width

7.92

Length

33.28

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/RC12L200C/RC12L200C.spin

AD All Features

Homeline meter mains support standard utility meters and a main disconnect breakers

AD Alternative Part Number

8064790

AD Application

Residential and Indoor Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD EAN

0785901863984

AD Gtin

00785901863984

AD IDEA Index ID

8064790

AD Includes

Closing Plate Hub and Factory Installed Barrel Lock

AD Invoice Description

MAIN MTR ENTR SVCE COMBINATION 200A

AD Item Features 01

Homeline meter mains support standard utility meters and a main disconnect breakers

AD Item Features 02

This single compact solution provides a time and space saving solution for contractors and installers

AD Item Features 03

Suitable for use as service entrance equipment

AD Keywords

HomeLine RC12L200C 12-Circuit All-In-One Field Installed Rainproof Combination Service Entrance Meter Main, 120/240, 208Y/120 V AC, 200 A, 1 Phase, NEMA 3R Enclosure ; Schneider Electric ; Square D ; RC12L200C ; RC12L200C ; 785901863984 ; Meter Mains

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

33.2800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

50.8100

AD Package Weight UOM

LB

AD Package Width

7.9200

AD Package Width UOM

IN

AD Part Number Keywords

RC12L200C ; 8064790 ; 785901863984 ; 78590186398 ; 00785901863984 ; 0785901863984

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

200

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

1

Spec 11 Attribute

Terminal Type

Spec 11 Attribute Value

Line/Lug

Spec 12 Attribute

Type

Spec 12 Attribute Value

12-Circuit All-in-One Field Installed Rainproof

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

120/240, 208Y/120

Spec 14 Attribute

Wire Size

Spec 14 Attribute Value

6 AWG to 350 kcmil/12 to 2/0 AWG

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ringless

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

14.37 in W x 4.67 in D x 35.13 in H

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Feed Type

Spec 5 Attribute Value

Overhead/Underground

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Hub Size

Spec 7 Attribute Value

A

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Surface

Spec 9 Attribute

Number of Jaws

Spec 9 Attribute Value

4
