Square D™

RC200SFMG - Meter mains, QO, CSED, ringless socket, 200A, outdoor surface mount, no bypass

Category Miscellaneous

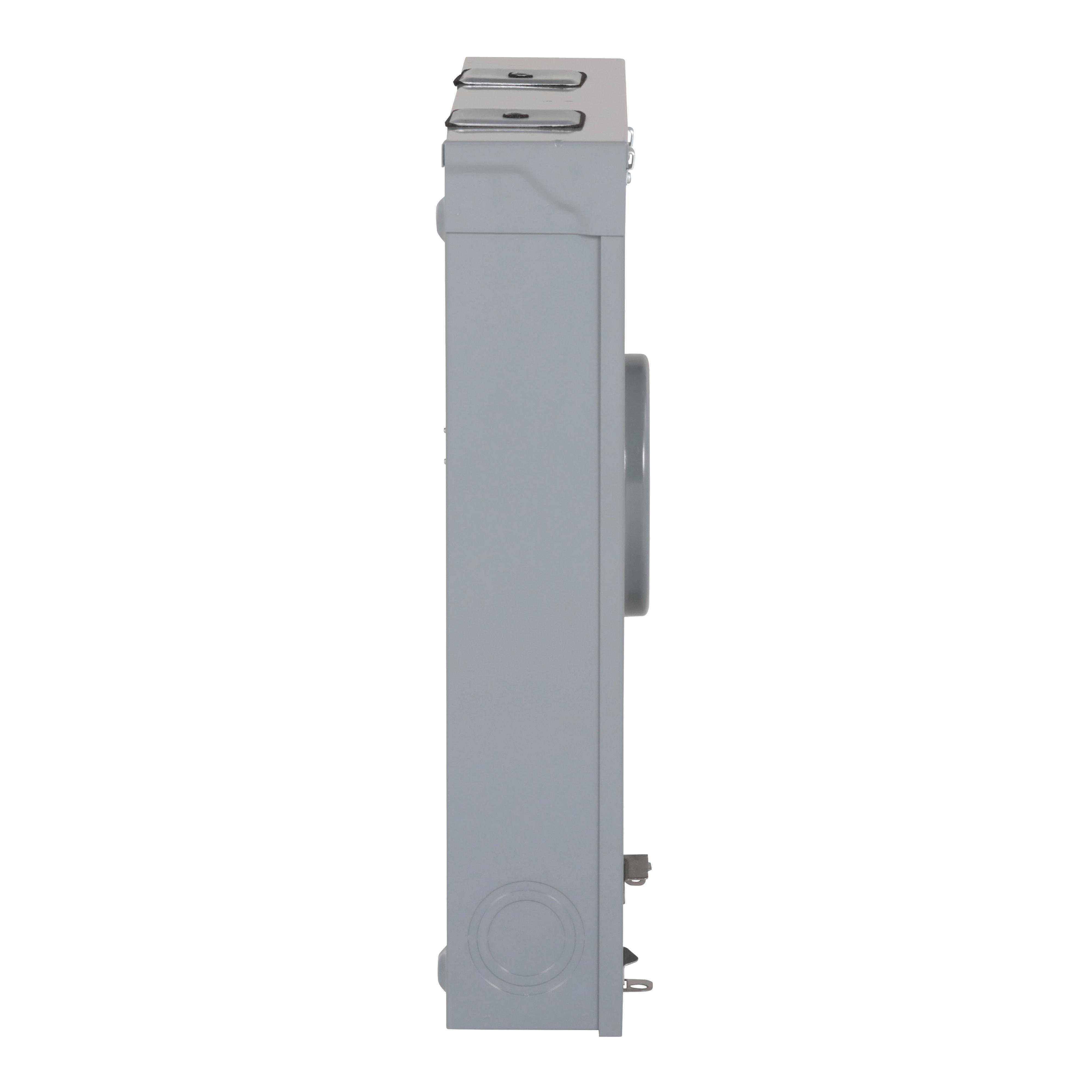

Picture of RC200SFMG - Meter mains, QO, CSED, ringless socket, 200A, outdoor surface mount, no bypass Picture of RC200SFMG - Meter mains, QO, CSED, ringless socket, 200A, outdoor surface mount, no bypass
Picture of RC200SFMG - Meter mains, QO, CSED, ringless socket, 200A, outdoor surface mount, no bypass Picture of RC200SFMG - Meter mains, QO, CSED, ringless socket, 200A, outdoor surface mount, no bypass
Square D™

RC200SFMG - Meter mains, QO, CSED, ringless socket, 200A, outdoor surface mount, no bypass

Item Code: 1012644
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref RC200SFMG

Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D™ Meter Mains are single phase power distribution panels used in residential applications where local codes require service disconnects to be located outside the dwelling. The meter socket supports a standard utility meter and a main disconnect breaker which provides a time and space saving solution for contractors and installers. Meter mains are surface or semiflush mount with provisions. This is for the field installation of the service disconnect(s) that feed devices downstream. Interior subfeed load centers are typically used with these. This CSED is a QO ringless type, no bypass, and combination overhead/underground feet. With a current rating of 400A, this product has a short circuit current rating of 25kA. Main lug interior option is also available. Devices meet the Electric Utility Service Equipment Requirements Committee (EUSERC) standards, Federal Specifications W-P-115C for government housing. Rated for the Florida Meter Group.

Specifications

Weight

29.74

Width

26.55

Length

26.85

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/RC200SFMG/RC200SFMG.spin

AD All Features

Compatible with QO bolt on mount breakers

AD Alternative Part Number

14258529

AD Application

Residential, Florida Meter Group Applications

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD EAN

0785901945253

AD Gtin

00785901945253

AD IDEA Index ID

14258529

AD Includes

Factory Installed Barrel Lock

AD Invoice Description

MAIN MTR ENTR SVCE COMBINATION 200A 1A

AD Item Features 01

Compatible with QO bolt on mount breakers

AD Item Features 02

5-jaw no-bypass ringless meter socket

AD Item Features 03

Suitable for use as service entrance equipment

AD Keywords

HomeLine RC200SFMG Field Installed Rainproof Combination Service Entrance Meter Main, 120/240 V AC, 200 A, 1 Phase, NEMA 3R Enclosure ; Schneider Electric ; Square D ; RC200SFMG ; RC200SFMG ; 785901945253 ; Meter Socket Meter Main Combinations

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

26.8500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

29.7400

AD Package Weight UOM

LB

AD Package Width

26.5500

AD Package Width UOM

IN

AD Part Number Keywords

RC200SFMG ; 14258529 ; 785901945253 ; 78590194525 ; 00785901945253 ; 0785901945253

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

200

Spec 10 Attribute

Terminal Type

Spec 10 Attribute Value

Line/Service Ground Lug

Spec 11 Attribute

Type

Spec 11 Attribute Value

Field Installed Rainproof

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

120/240

Spec 13 Attribute

Wire Size

Spec 13 Attribute Value

6 AWG to 300 kcmil Aluminum/Copper, 8 to 2/0 AWG Aluminum/Copper

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ringless

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

18.23 in H x 19.58 in W x 4.6 in D

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Feed Type

Spec 5 Attribute Value

Overhead/Underground

Spec 6 Attribute

Hub Size

Spec 6 Attribute Value

1/4 in, 3/4 in, 1-1/4 in, 2 in, 2-1/2 in, 3 in

Spec 7 Attribute

Hub Type

Spec 7 Attribute Value

A

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Surface

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

1
