Square D

RC2040M200CH - All in one, Homeline, combination service entrance, ringless socket, 200A, surface mount, 20 spaces, 40 circuits, 22kA SCCR, horn bypass

Category Main Circuit Breaker Modules

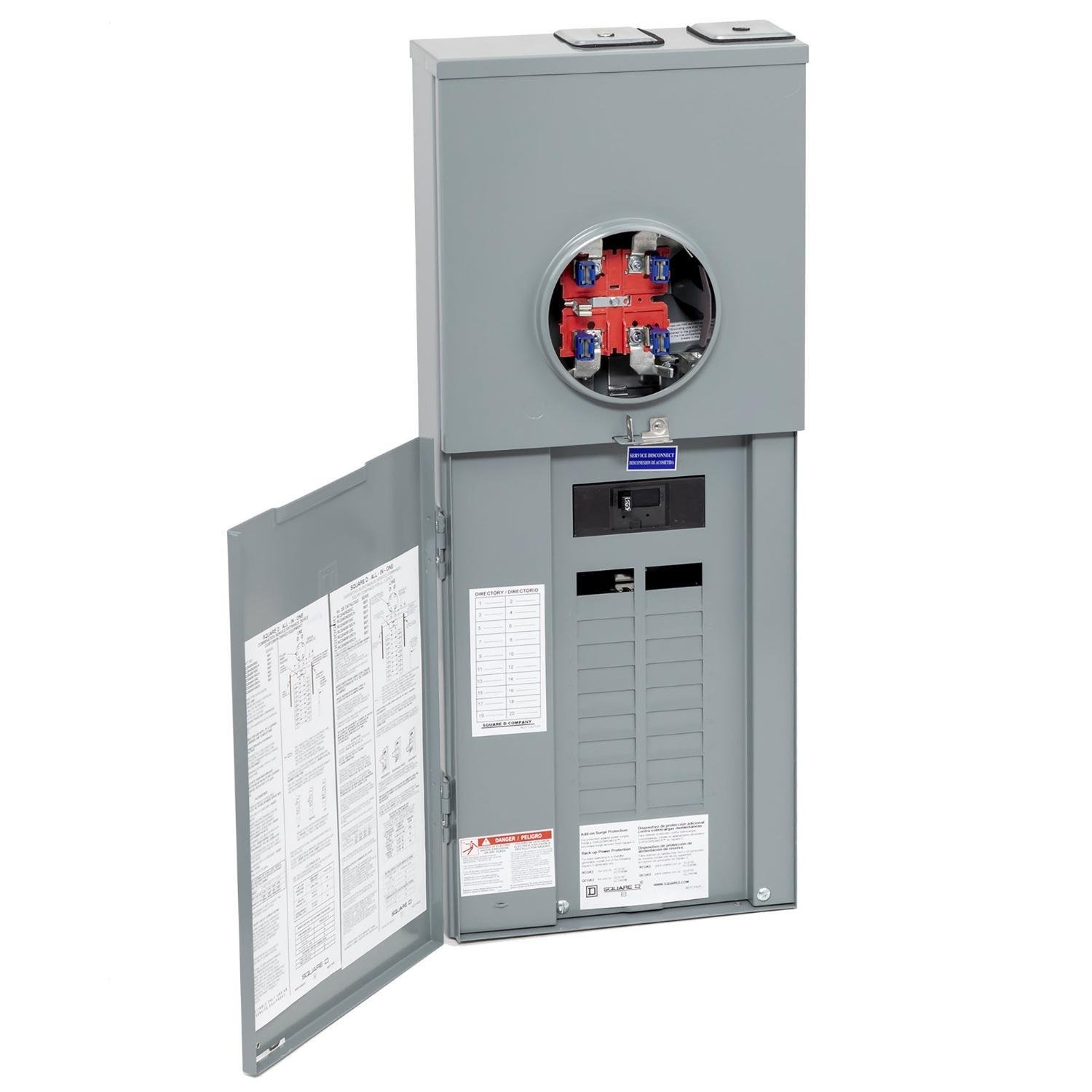

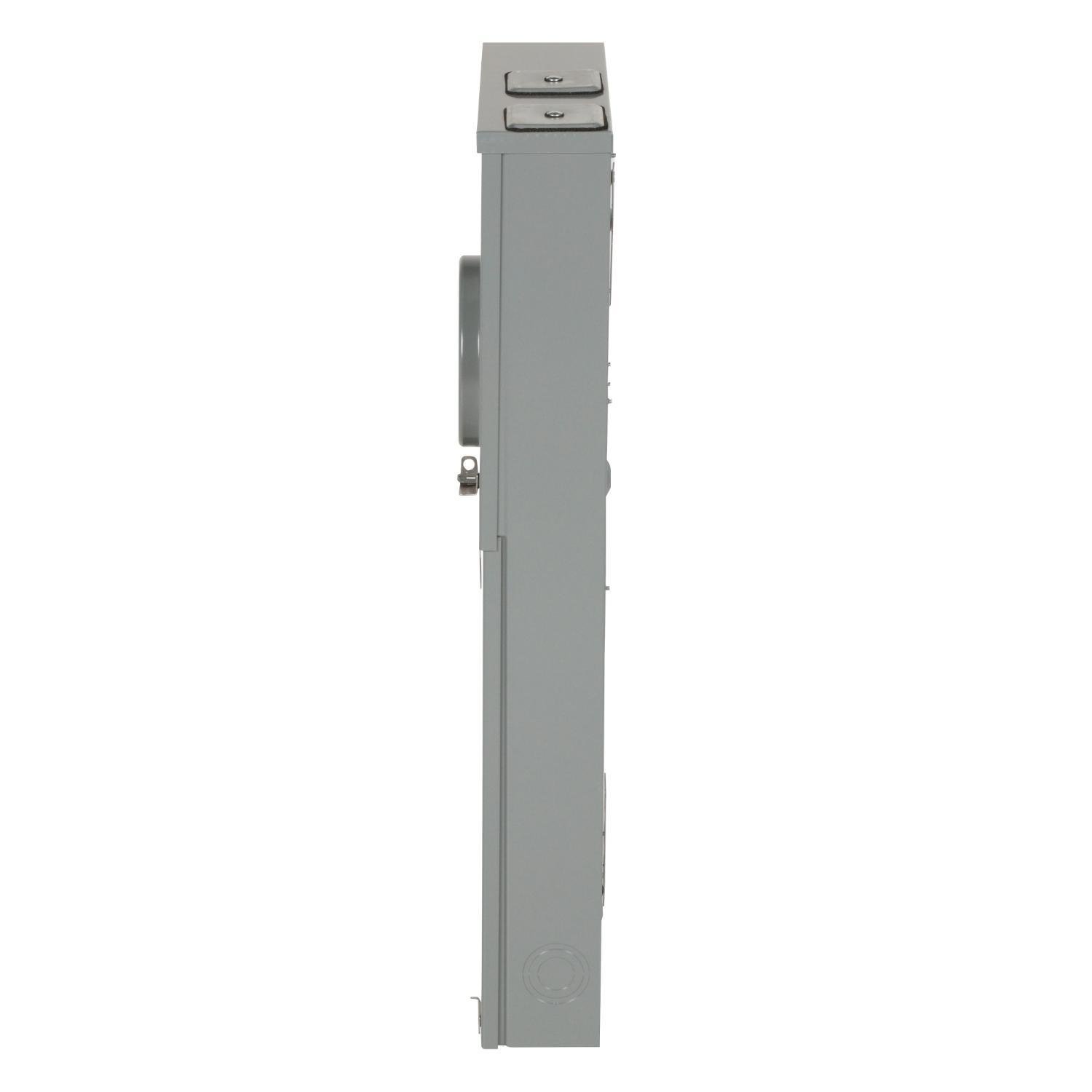

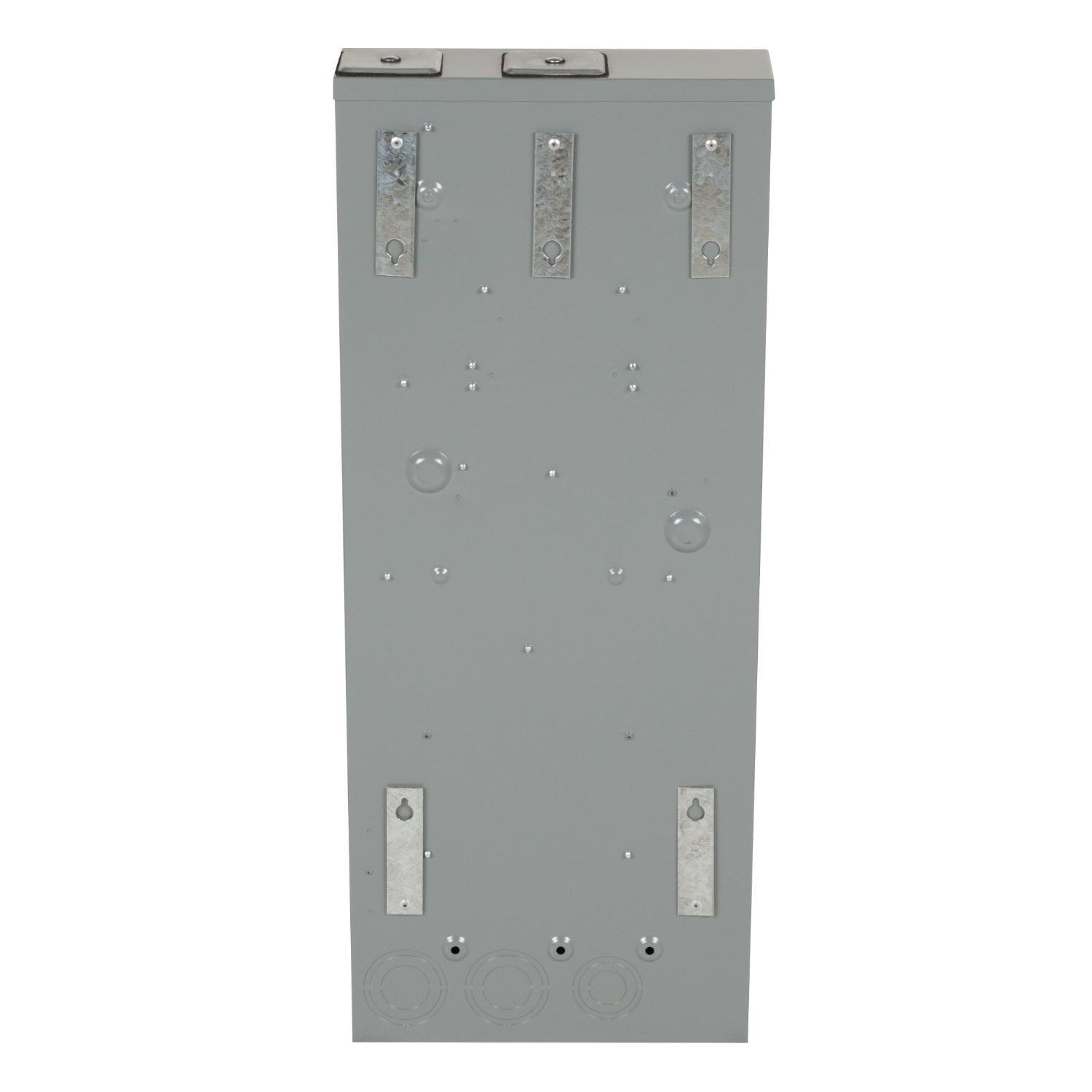

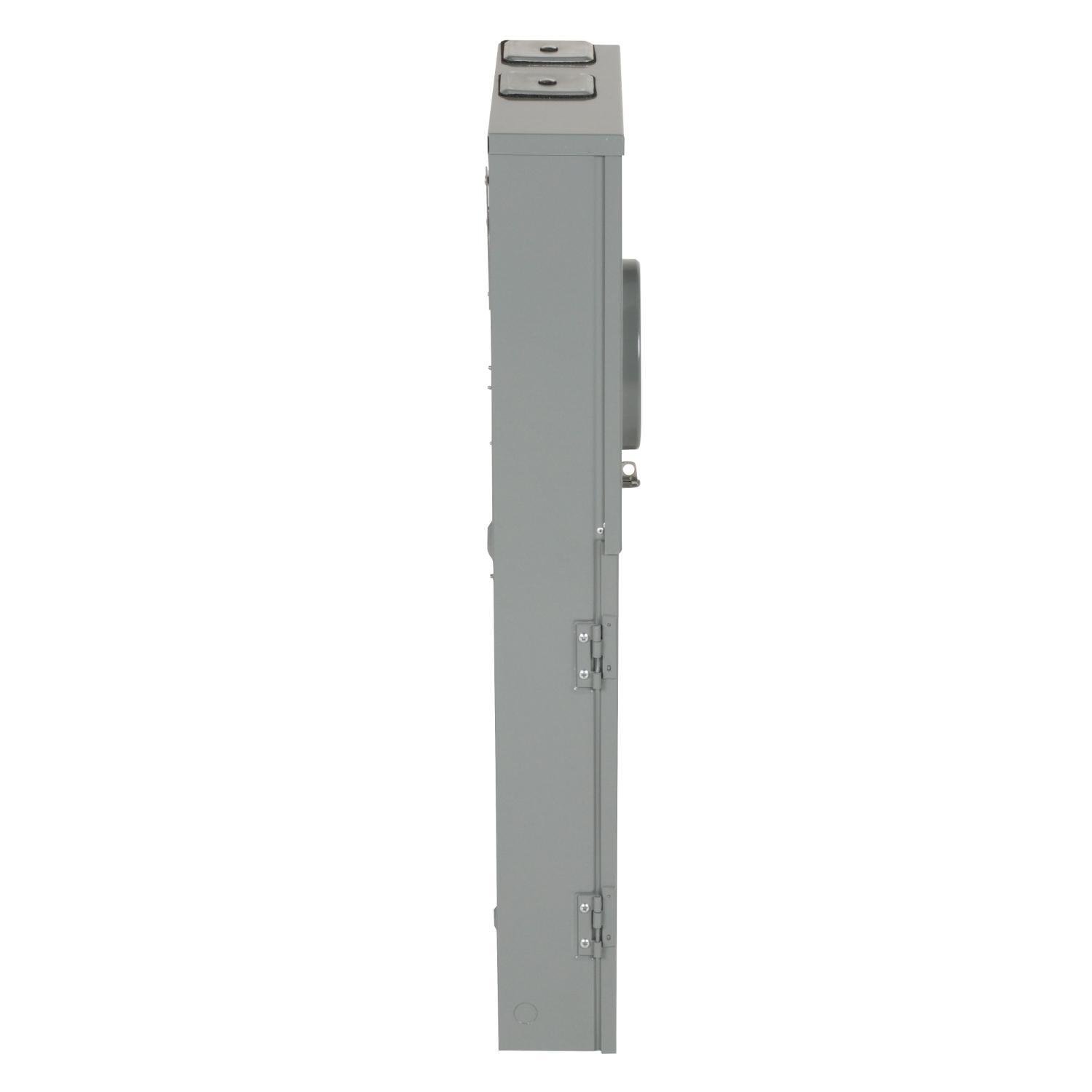

Picture of RC2040M200CH - All in one, Homeline, combination service entrance, ringless socket, 200A, surface mount, 20 spaces, 40 circuits, 22kA SCCR, horn bypass Picture of RC2040M200CH - All in one, Homeline, combination service entrance, ringless socket, 200A, surface mount, 20 spaces, 40 circuits, 22kA SCCR, horn bypass
Picture of RC2040M200CH - All in one, Homeline, combination service entrance, ringless socket, 200A, surface mount, 20 spaces, 40 circuits, 22kA SCCR, horn bypass Picture of RC2040M200CH - All in one, Homeline, combination service entrance, ringless socket, 200A, surface mount, 20 spaces, 40 circuits, 22kA SCCR, horn bypass
Picture of RC2040M200CH - All in one, Homeline, combination service entrance, ringless socket, 200A, surface mount, 20 spaces, 40 circuits, 22kA SCCR, horn bypass Picture of RC2040M200CH - All in one, Homeline, combination service entrance, ringless socket, 200A, surface mount, 20 spaces, 40 circuits, 22kA SCCR, horn bypass
Picture of RC2040M200CH - All in one, Homeline, combination service entrance, ringless socket, 200A, surface mount, 20 spaces, 40 circuits, 22kA SCCR, horn bypass Picture of RC2040M200CH - All in one, Homeline, combination service entrance, ringless socket, 200A, surface mount, 20 spaces, 40 circuits, 22kA SCCR, horn bypass
Picture of RC2040M200CH - All in one, Homeline, combination service entrance, ringless socket, 200A, surface mount, 20 spaces, 40 circuits, 22kA SCCR, horn bypass Picture of RC2040M200CH - All in one, Homeline, combination service entrance, ringless socket, 200A, surface mount, 20 spaces, 40 circuits, 22kA SCCR, horn bypass
Square D

RC2040M200CH - All in one, Homeline, combination service entrance, ringless socket, 200A, surface mount, 20 spaces, 40 circuits, 22kA SCCR, horn bypass

Item Code: 630820
Category Main Circuit Breaker Modules
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref RC2040M200CH

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W P 115c as Type 1, Class 2 specifications. This Homeline All In One combination service entrance device has a ringless meter socket with horn bypass. This unit can be feed from an overhead or underground service. The service disconnect is a QOM2200VH which has a maximum rating of 200 A. Device has a 10 kA short circuit current rating. Load center has 20 spaces which will accept up to 20 tandem Homeline circuit breakers. This unit has a NEMA 3R surface mounting enclosure that is 35.13 inches tall, 14.37 inches wide and 4.67 inches deep. The line side lugs will accept 6 AWG to 350 kcmil copper or aluminum wire. The service ground lug will accept 8 AWG to 2/0 AWG copper or aluminum wire. This Homeline All In One combination service entrance device is UL Listed. The device is only suitable for use as service equipment. Device meets EUSERC standards.

Specifications

Weight

41.91

Height

5.8

Width

14.86

Length

36.16

AD All Features

Compatible with Homeline plug in mount breakers

AD Application

Residential Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Includes

Factory Installed Barrel Lock

AD Invoice Description

MAIN MTR ENTR SVCE COMBINATION 200A 1A

AD Item Features 01

Compatible with Homeline plug in mount breakers

AD Item Features 02

5-jaw horn-bypass ringless meter socket

AD Item Features 03

Suitable for use as service entrance equipment

AD Item Features 04

20-spaces, 40 circuits

AD Item Features 05

Accommodates plug-on secondary surge arrester and features a plug-in deisgn for easy installation

AD Manufacturer (Description)

Schneider Electric

AD Package Height

5.8000

AD Package Height UOM

IN

AD Package Length

36.1600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

3175.5000

AD Package Volume UOM

cu-in

AD Package Weight

41.9100

AD Package Weight UOM

LB

AD Package Width

14.8600

AD Package Width UOM

IN

Brand

Square D

Category

MAIN CIRCUIT BREAKER MODULES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

200

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

1

Spec 11 Attribute

Terminal Type

Spec 11 Attribute Value

Line/Service Ground Lug

Spec 12 Attribute

Type

Spec 12 Attribute Value

3-Wire 20-Circuit 40-Space All-In-One Field Installed Rainproof

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

120/240

Spec 14 Attribute

Wire Size

Spec 14 Attribute Value

6 AWG to 350 kcmil, 12 to 2/0 AWG Aluminum/Copper

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ringless

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

35.13 in H x 14.37 in W x 4.67 in D

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Feed Type

Spec 5 Attribute Value

Overhead/Underground

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Hub Size

Spec 7 Attribute UOM

IN

Spec 7 Attribute Value

2-Jan

Spec 8 Attribute

Hub Type

Spec 8 Attribute Value

A

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Flush
