Square D

RC3042M200PS - All in one, Homeline, combination service entrance, ringless socket, 200A, surface, 30 spaces, 42 circuits, 22kA SCCR, OH, UG, no bypass, PON

Category Miscellaneous

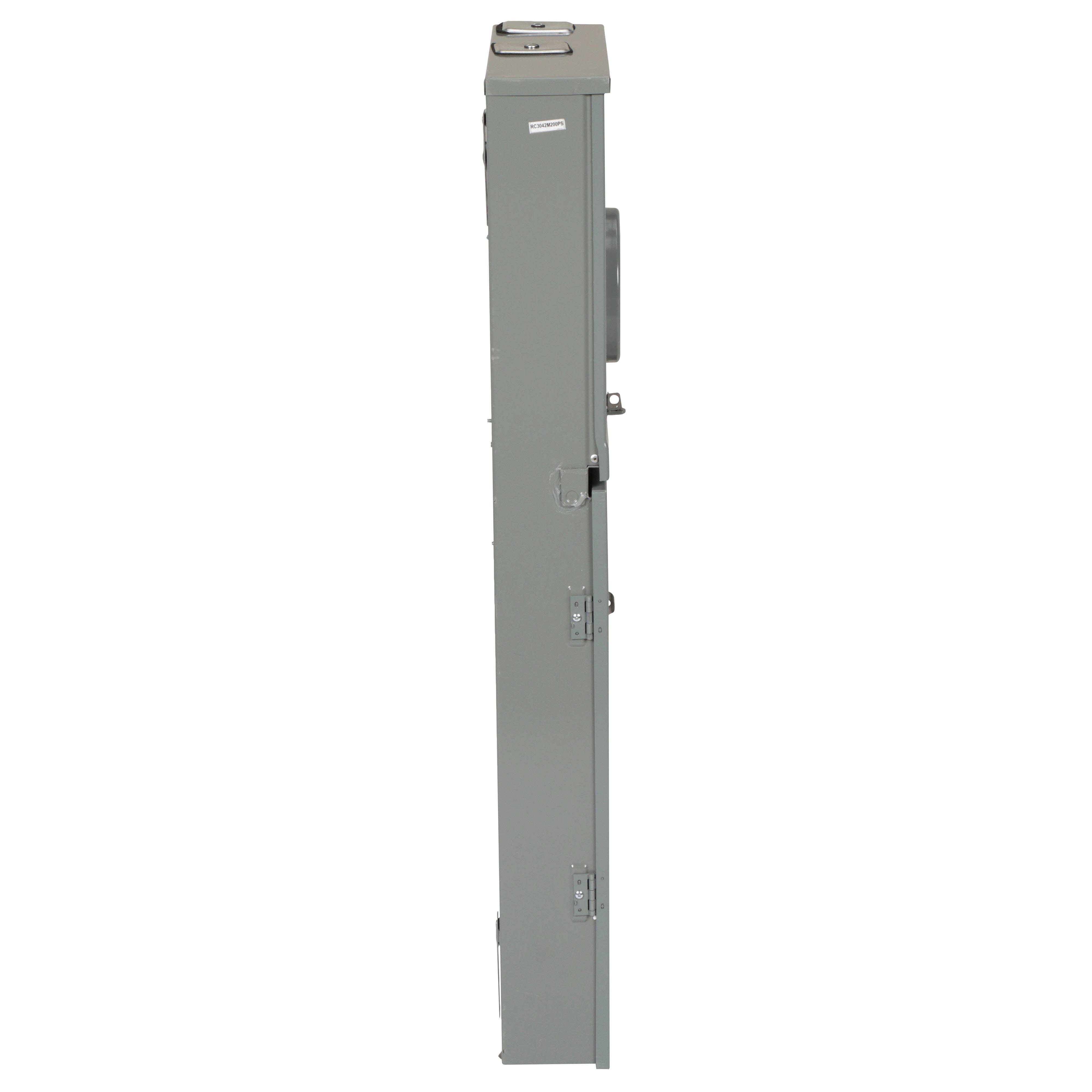

Picture of RC3042M200PS - All in one, Homeline, combination service entrance, ringless socket, 200A, surface, 30 spaces, 42 circuits, 22kA SCCR, OH, UG, no bypass, PON Picture of RC3042M200PS - All in one, Homeline, combination service entrance, ringless socket, 200A, surface, 30 spaces, 42 circuits, 22kA SCCR, OH, UG, no bypass, PON
Picture of RC3042M200PS - All in one, Homeline, combination service entrance, ringless socket, 200A, surface, 30 spaces, 42 circuits, 22kA SCCR, OH, UG, no bypass, PON Picture of RC3042M200PS - All in one, Homeline, combination service entrance, ringless socket, 200A, surface, 30 spaces, 42 circuits, 22kA SCCR, OH, UG, no bypass, PON
Square D

RC3042M200PS - All in one, Homeline, combination service entrance, ringless socket, 200A, surface, 30 spaces, 42 circuits, 22kA SCCR, OH, UG, no bypass, PON

Item Code: 1113395
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref RC3042M200PS

Document
Document
Call for Availability
Add to Favorites
Compare

Description

Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W P 115c as Type 1, Class 2 specifications. This Homeline All In One combination service entrance device with a plug on neutral has a ringless meter socket. This unit has no bypass. This unit can be feed from an overhead or underground service. The service disconnect is a QOM2200VH which has a maximum rating of 200 A. Device has a 22 kA short circuit current rating. Load center has 30 spaces which will accept up to 12 tandem Homeline circuit breakers. This unit has a NEMA 3R surface mounting enclosure that is 45.47 inches tall, 18.78 inches wide and 4.41 inches deep. The line side lugs will accept 6 AWG to 350 kcmil copper or aluminum wire. The service ground lug will accept 8 AWG to 2/0 AWG copper or aluminum wire. This Homeline All In One combination service entrance device with plug on neutral is UL Listed.

Specifications

Weight

69.4

Width

19.3

Length

49.53

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/rc3042m200ps/rc3042m200ps.spin

AD Alternative Part Number

14891879

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD EAN

0785901009733

AD Gtin

00785901009733

AD IDEA Index ID

14891879

AD Invoice Description

MAIN MTR ENTR SVCE COMBINATION 200A A

AD Item Features 01

Homeline All in ones CSEDs support standard utility meters and a main disconnect breakers

AD Item Features 02

This single compact solution provides a time and space saving solution for contractors and installers

AD Item Features 03

Suitable for use as service entrance equipment

AD Item Features 04

CSED allows for the meter socket to integrate with the load center into one compact design

AD Keywords

Homeline RC3042M200PS All-in-One 30-Space 42-Circuit Combination Service Entrance Meter Main, 200 A, NEMA 3R Enclosure ; Schneider Electric ; Square D ; RC3042M200PS ; RC3042M200PS ; 785901009733 ; Meter Socket Meter Main Combinations

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

49.5300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

69.4000

AD Package Weight UOM

LB

AD Package Width

19.3000

AD Package Width UOM

IN

AD Part Number Keywords

RC3042M200PS ; 14891879 ; 785901009733 ; 78590100973 ; 00785901009733 ; 0785901009733

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

200

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ringless

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

18.76 in W x 5.41 in D x 45.47 in H

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Feed Type

Spec 5 Attribute Value

Overhead/Underground

Spec 6 Attribute

Hub Type

Spec 6 Attribute Value

A

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Surface

Spec 8 Attribute

Type

Spec 8 Attribute Value

All-in-One 30-Space 42-Circuit

Spec 9 Attribute

Wire Size

Spec 9 Attribute UOM

AWG

Spec 9 Attribute Value

12 to 2/0
