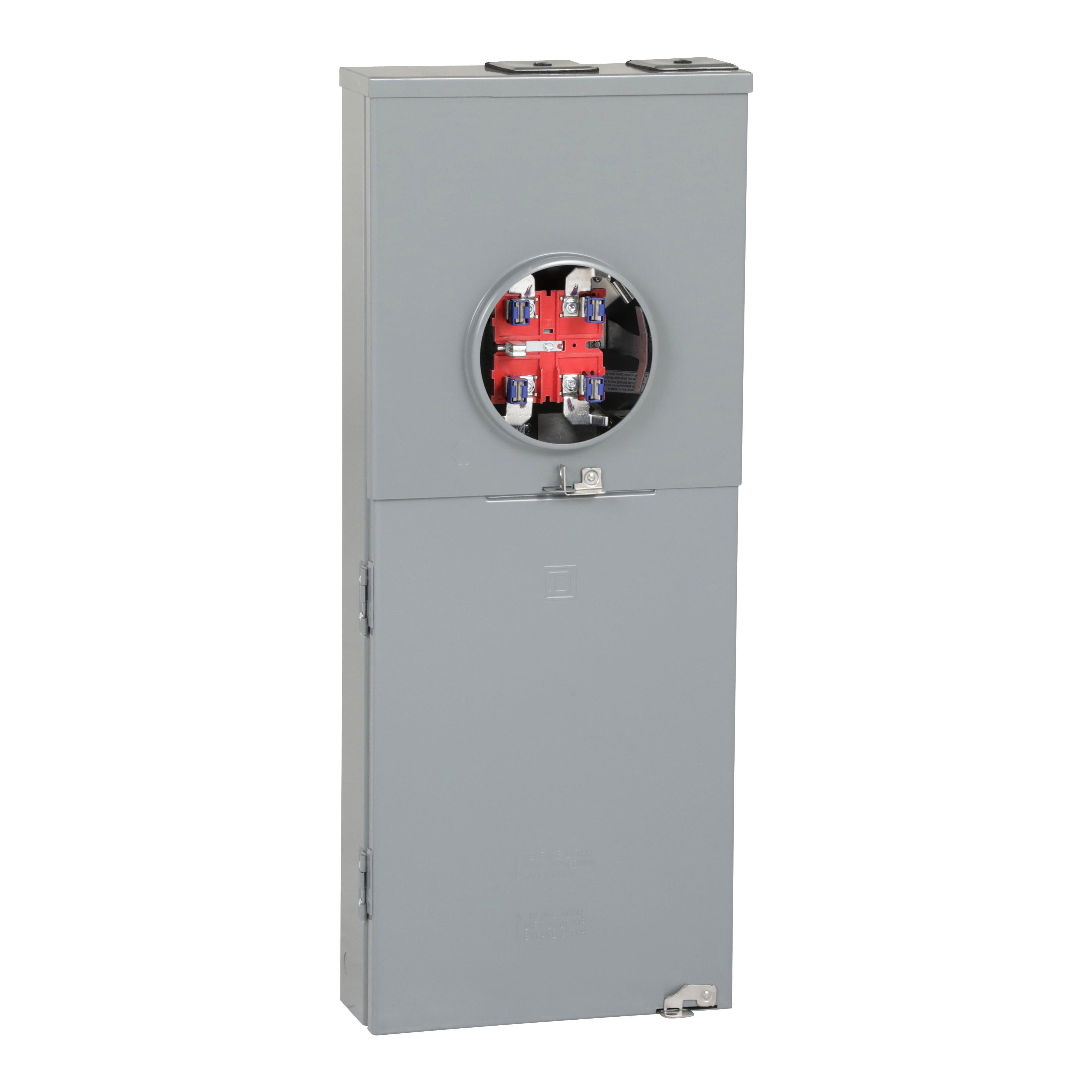

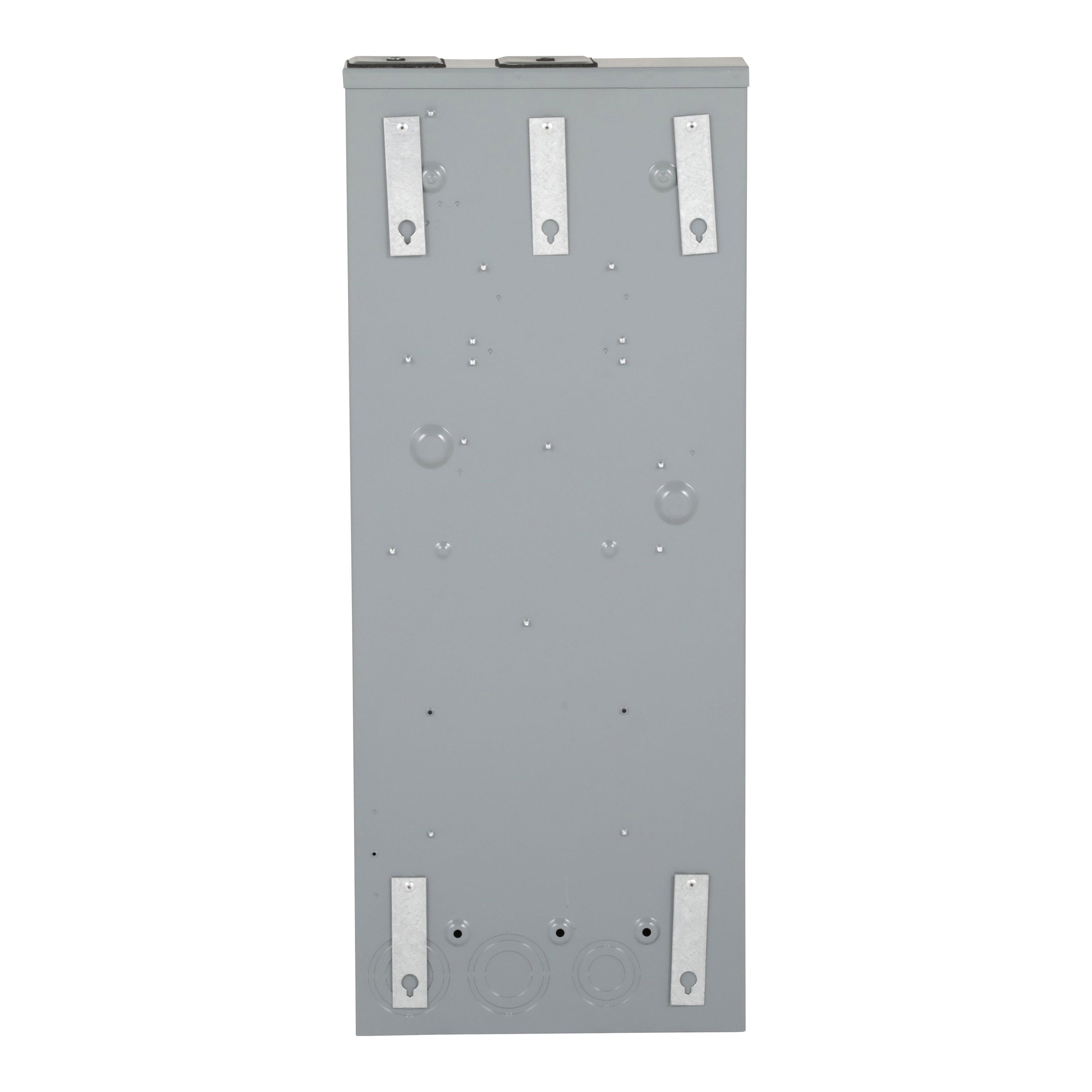

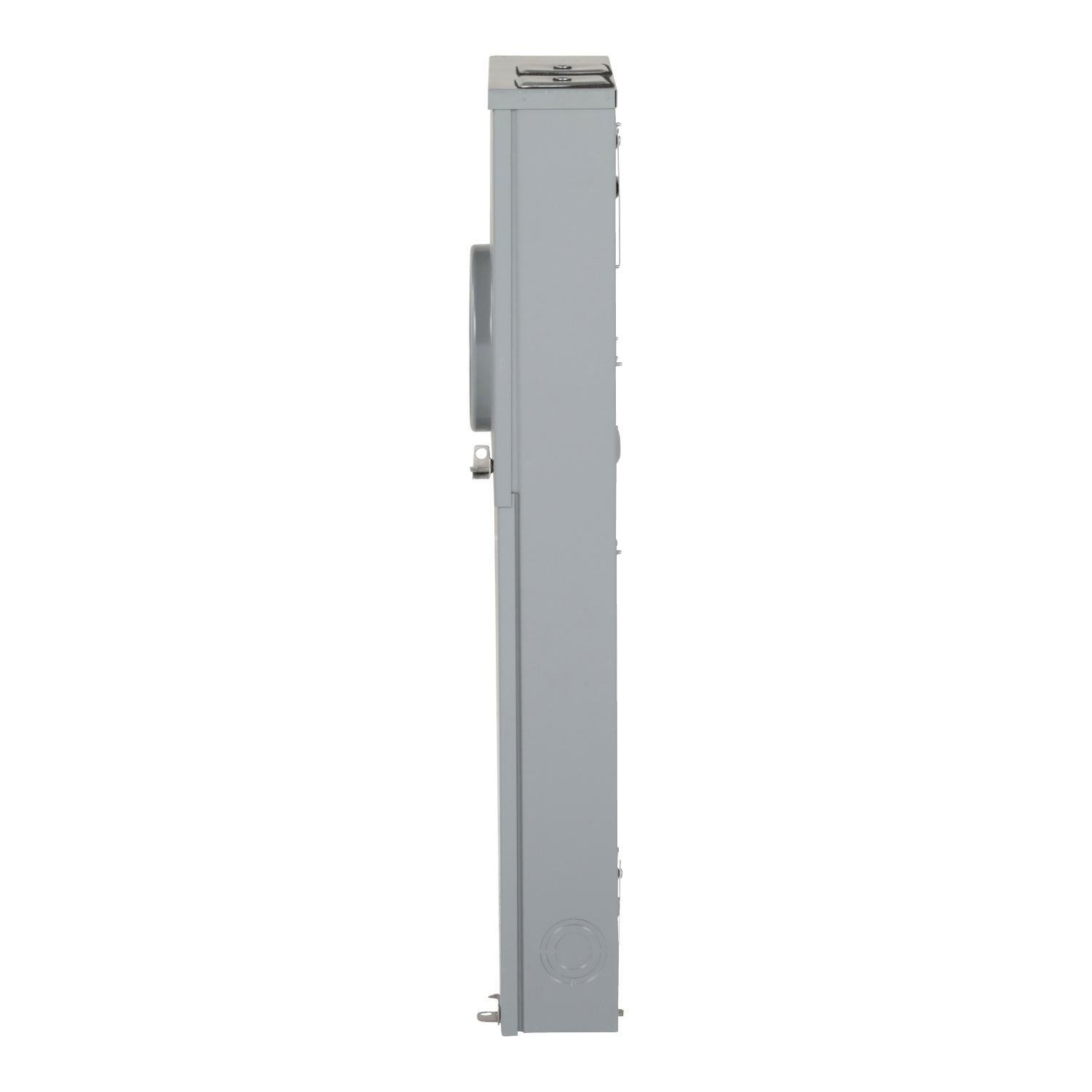

RC816F125CH - Meter mains, Homeline, CSED, ringless socket, 125A, surface mount, maximum 8 spaces, 16 circuits, horn bypass

Item Code: 1011767

Category Miscellaneous

Manufacturer SCHNEIDER ELECTRIC

Manufacturer Ref RC816F125CH

Document
Document
Document
Document

selection not available, try a different combination

Call for Availability

Add to Favorites

Compare

Description

Square D™ Meter Mains are single phase power distribution panels used in residential applications where local codes require service disconnects to be located outside the dwelling. The meter socket supports a standard utility meter and a main disconnect breaker which provides a time and space saving solution for contractors and installers. Meter mains are surface or semiflush mount with provisions. This is for the field installation of the service disconnect(s) that feed devices downstream. Interior subfeed load centers are typically used with these. This CSED is a Homeline ringless type with horn bypass, and combination overhead/underground feed. With a current rating of 125A, this product has a short circuit current rating of 22kA. This unit is supplied with a factory installed QOM2125VH main breaker. Single main service disconnects with feedthru lugs option is also available. Devices meet the Electric Utility Service Equipment Requirements Committee (EUSERC) standards, Federal Specifications W-P-115C for government housing.

Specifications

Weight

42.02

Height

6.1

Width

14.86

Length

35.96

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/rc816f125ch/rc816f125ch.spin

AD Alternative Part Number

8028737

AD Application

Residential Applications

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD EAN

0785901401834

AD Gtin

00785901401834

AD IDEA Index ID

8028737

AD Includes

Closing Plate Hub, Factory Installed Barrel Lock, Load Side Feed Through Lugs

AD Invoice Description

MAIN MTR ENTR SVCE COMBINATION 125A 1 A

AD Item Features 01

Homeline ringless meter mains support standard utility meters and a main disconnect breakers

AD Item Features 02

This single compact solution provides a time and space saving solution for contractors and installers

AD Item Features 03

Suitable for use as service entrance equipment

AD Item Features 04

CSED allows for the meter socket to integrate with the load center into one compact design

AD Manufacturer (Description)

Schneider Electric

AD Package Height

6.1000

AD Package Height UOM

AD Package Length

35.9600

AD Package Length UOM

AD Package Quantity

AD Package Volume

3304.2500

AD Package Volume UOM

cu-in

AD Package Weight

42.0200

AD Package Weight UOM

AD Package Width

14.8600

AD Package Width UOM

AD Part Number Keywords

RC816F125CH ; 8028737 ; 785901401834 ; 78590140183 ; 00785901401834 ; 0785901401834

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

Spec 1 Attribute Value

125

Spec 10 Attribute

Terminal Type

Spec 10 Attribute Value

Line/Service Ground/Feed Through Lug

Spec 11 Attribute

Type

Spec 11 Attribute Value

3-Wire 8-Circuit 16-Space Field Installed Rainproof

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

120 to 240/208Y to 120

Spec 13 Attribute

Wire Size

Spec 13 Attribute Value

6 AWG to 350 kcmil, 12 to 2/0 AWG Aluminum/Copper

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ringless

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

35.13 in H x 14.37 in W x 4.67 in D

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Feed Type

Spec 5 Attribute Value

Overhead/Underground

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Hub Type

Spec 7 Attribute Value

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Flush

Spec 9 Attribute

PHASE
