Square D™

RC816F200C - Meter mains, Homeline, CSED, ringless socket, 200A, surface mount, maximum 8 spaces, 16 circuits, no bypass

Category Residential Meter Mains

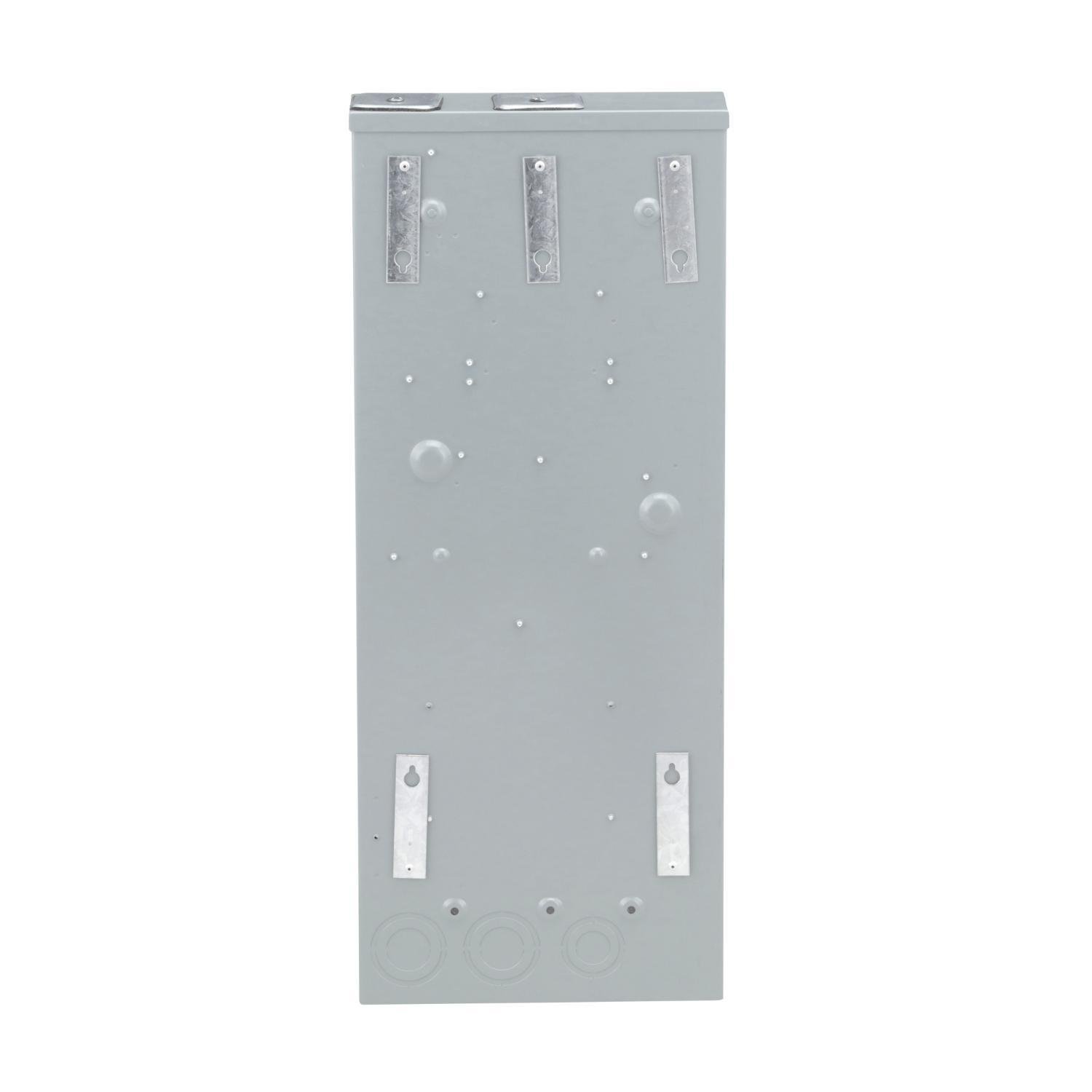

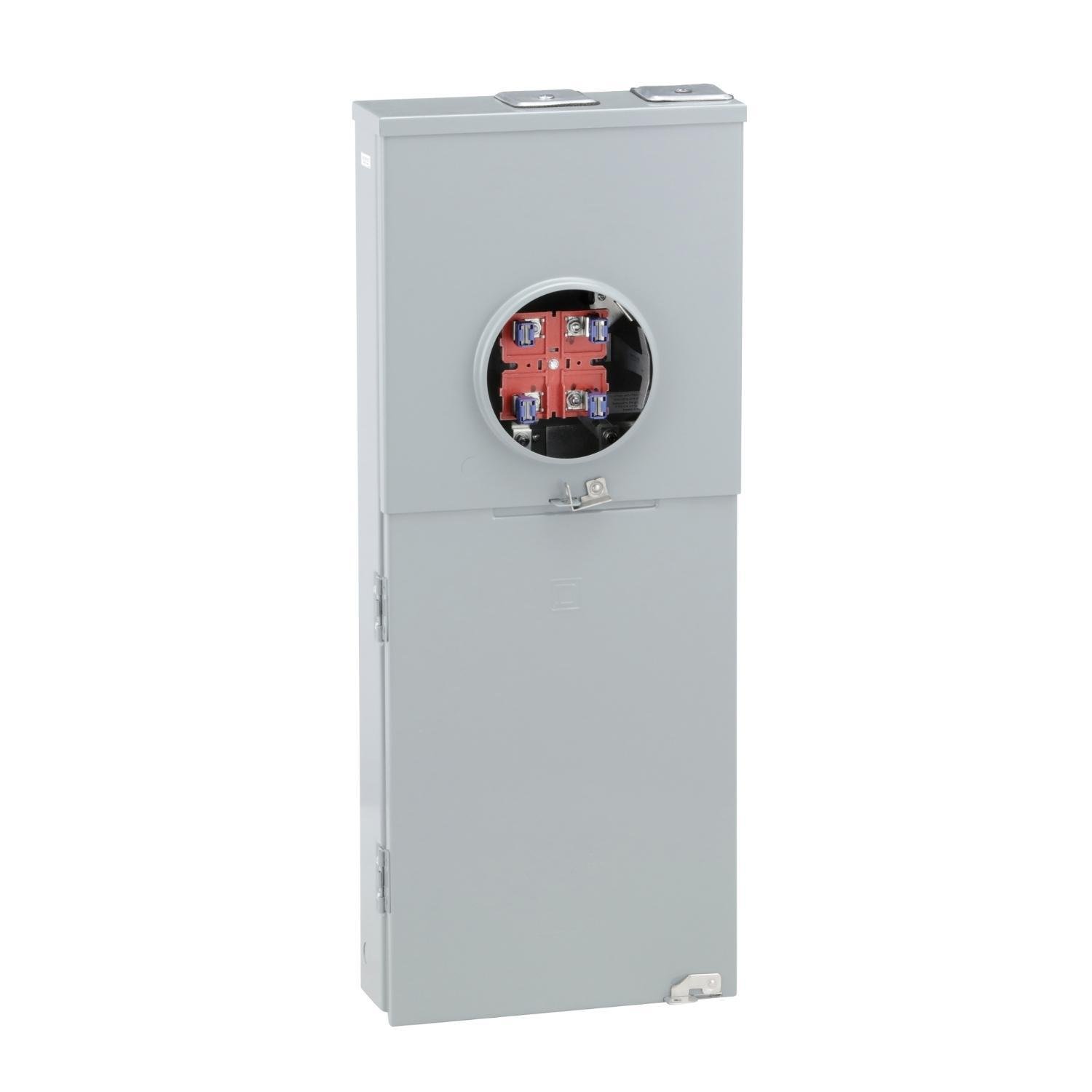

Picture of RC816F200C - Meter mains, Homeline, CSED, ringless socket, 200A, surface mount, maximum 8 spaces, 16 circuits, no bypass Picture of RC816F200C - Meter mains, Homeline, CSED, ringless socket, 200A, surface mount, maximum 8 spaces, 16 circuits, no bypass

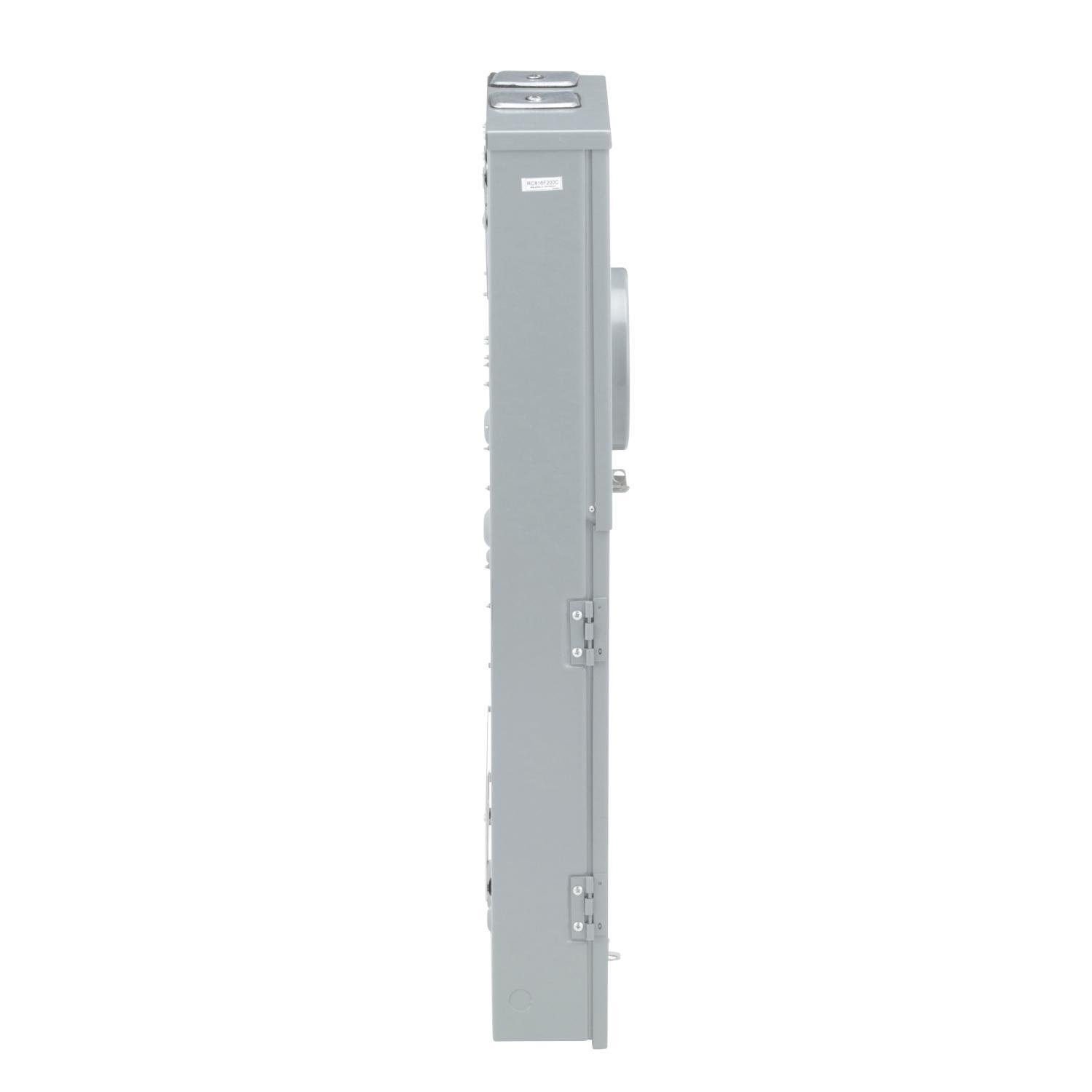

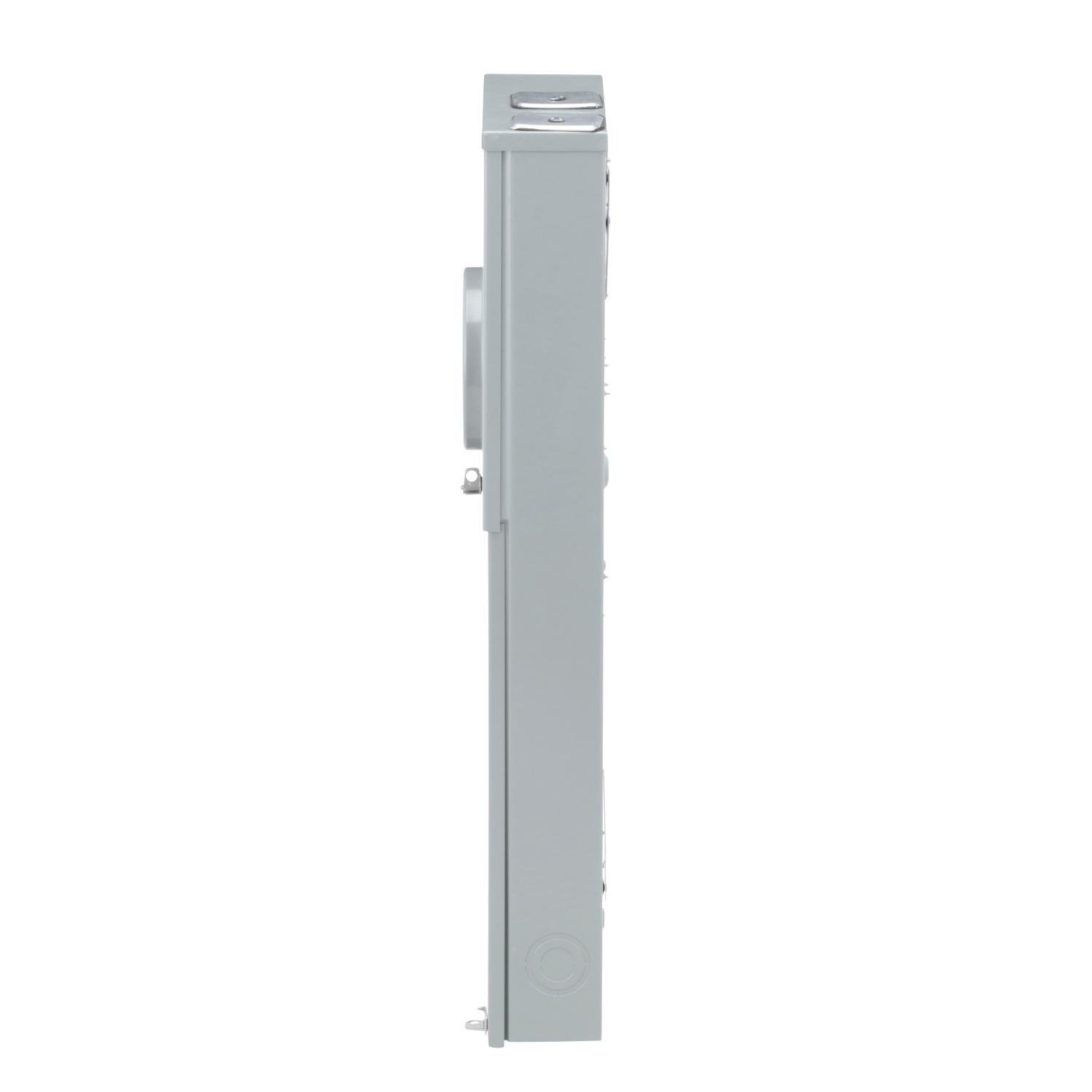

Picture of RC816F200C - Meter mains, Homeline, CSED, ringless socket, 200A, surface mount, maximum 8 spaces, 16 circuits, no bypass Picture of RC816F200C - Meter mains, Homeline, CSED, ringless socket, 200A, surface mount, maximum 8 spaces, 16 circuits, no bypass
Picture of RC816F200C - Meter mains, Homeline, CSED, ringless socket, 200A, surface mount, maximum 8 spaces, 16 circuits, no bypass Picture of RC816F200C - Meter mains, Homeline, CSED, ringless socket, 200A, surface mount, maximum 8 spaces, 16 circuits, no bypass
Picture of RC816F200C - Meter mains, Homeline, CSED, ringless socket, 200A, surface mount, maximum 8 spaces, 16 circuits, no bypass Picture of RC816F200C - Meter mains, Homeline, CSED, ringless socket, 200A, surface mount, maximum 8 spaces, 16 circuits, no bypass
Square D™

RC816F200C - Meter mains, Homeline, CSED, ringless socket, 200A, surface mount, maximum 8 spaces, 16 circuits, no bypass

Item Code: 587484
Category Residential Meter Mains
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref RC816F200C

Document
Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

The Square D® Load Centers and Combination Service Entrance Devices, RC816F200C. Enclosure mounting style performed as surface mount or convertible to semi-flush (use appropriate flange kit). This HOM Ringless Meter Mains meets Federal Specification W-P-115c as Type 1, Class 2, are UL Listed, suitable only for use as service equipment. In interior single main service disconnect with feed-thru lugs.

Specifications

Weight

43.56

Width

14.49

Length

35.79

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/RC816F200C/RC816F200C.spin

AD Alternative Part Number

8064745

AD Application

Residential Applications

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD Document Caption 5

Technical Bulletin

AD EAN

0785901863922

AD Gtin

00785901863922

AD IDEA Index ID

8064745

AD Includes

Closing Plate Hub, Factory Installed Barrel Lock and Load Side Feed Through Lugs

AD Invoice Description

MAIN COMBINATION SVCE ENTR MTR 200A 1 A

AD Item Features 01

Homeline ringless meter mains support standard utility meters and a main disconnect breakers

AD Item Features 02

This single compact solution provides a time and space saving solution for contractors and installers

AD Item Features 03

Suitable for use as service entrance equipment

AD Item Features 04

CSED allows for the meter socket to integrate with the load center into one compact design

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

35.7900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

43.5600

AD Package Weight UOM

LB

AD Package Width

14.4900

AD Package Width UOM

IN

AD Part Number Keywords

RC816F200C ; 8064745 ; 785901863922 ; 78590186392 ; 00785901863922 ; 0785901863922

Brand

Square D

Category

RESIDENTIAL METER MAINS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

200

Spec 10 Attribute

Terminal Type

Spec 10 Attribute Value

Line/Lug

Spec 11 Attribute

Type

Spec 11 Attribute Value

8-Space 16-Circuit All-in-One Field Installed Rainproof

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

120/240, 208Y/120

Spec 13 Attribute

Wire Size

Spec 13 Attribute Value

6 AWG to 350 kcmil, 12 to 2/0 AWG

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ringless

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

14.37 in W x 4.67 in D x 35.13 in H

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Feed Type

Spec 5 Attribute Value

Overhead/Underground

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Hub Size

Spec 7 Attribute Value

A

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Surface

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

1
