Schneider Electric

RE17RMMU - multifunction relay, Harmony Timer Relays, 8A, 1CO, 0.1s..10 h, power on delay, symmetrical flashing, 24V DC or 24...240V AC DC

Category Timing Relays & Accessories

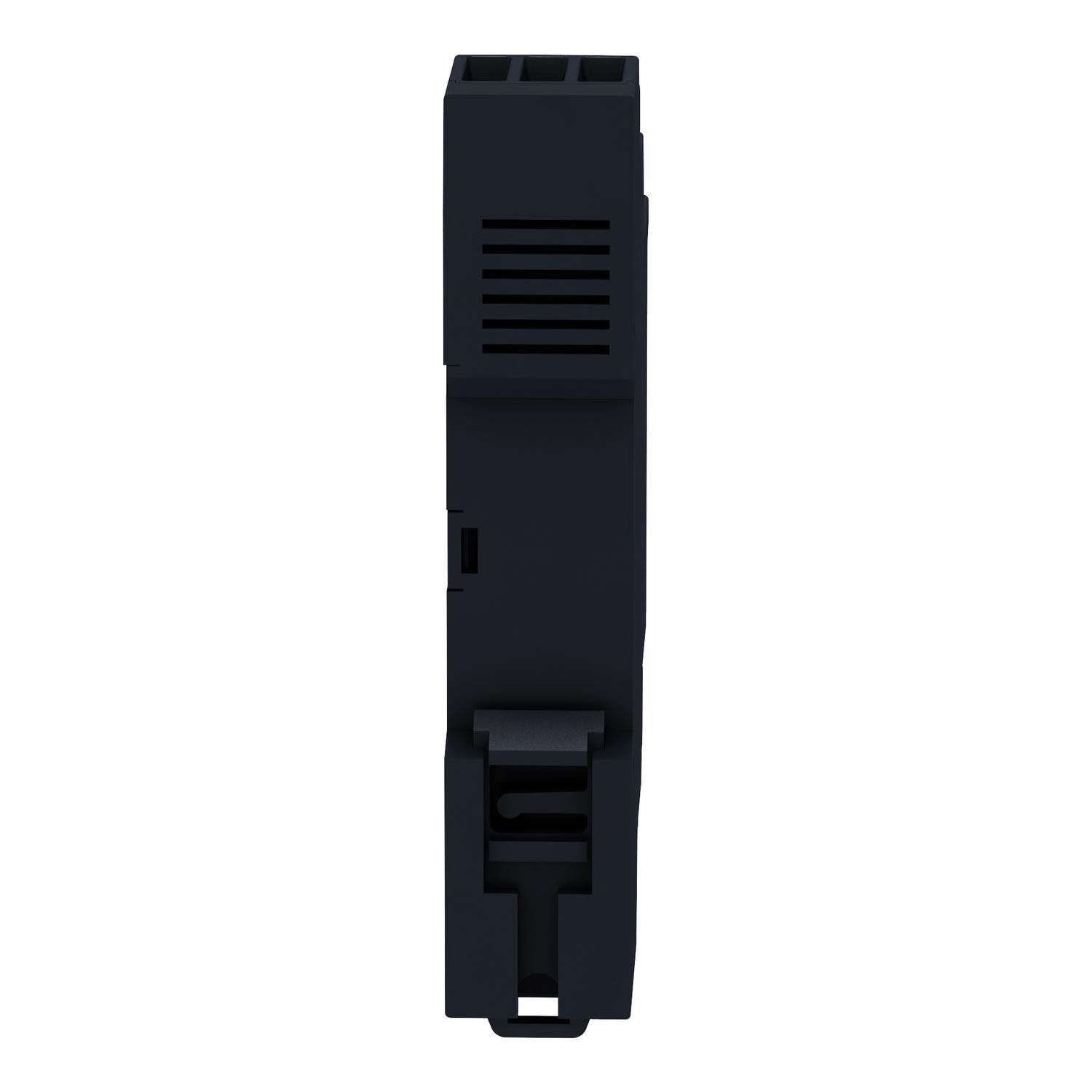

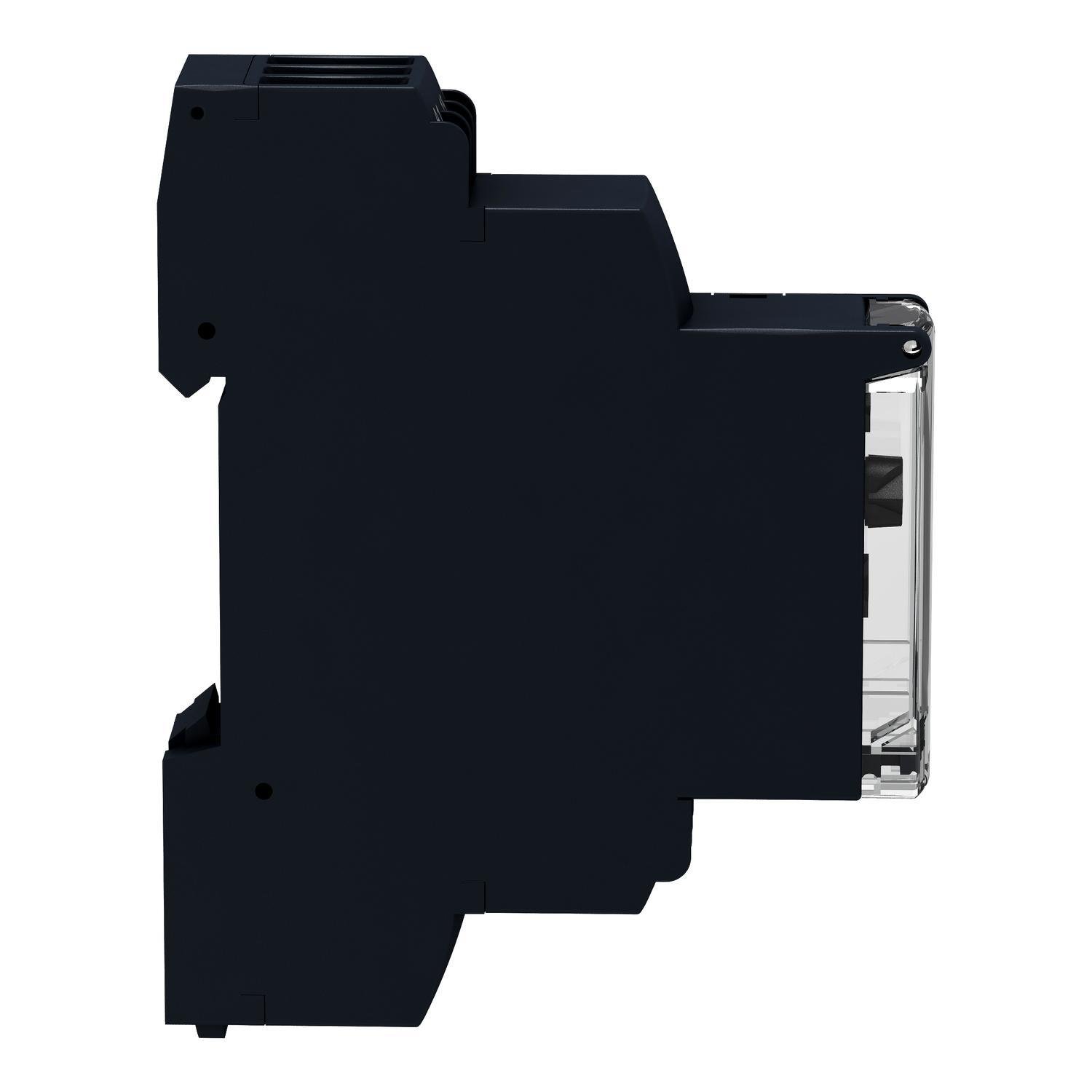

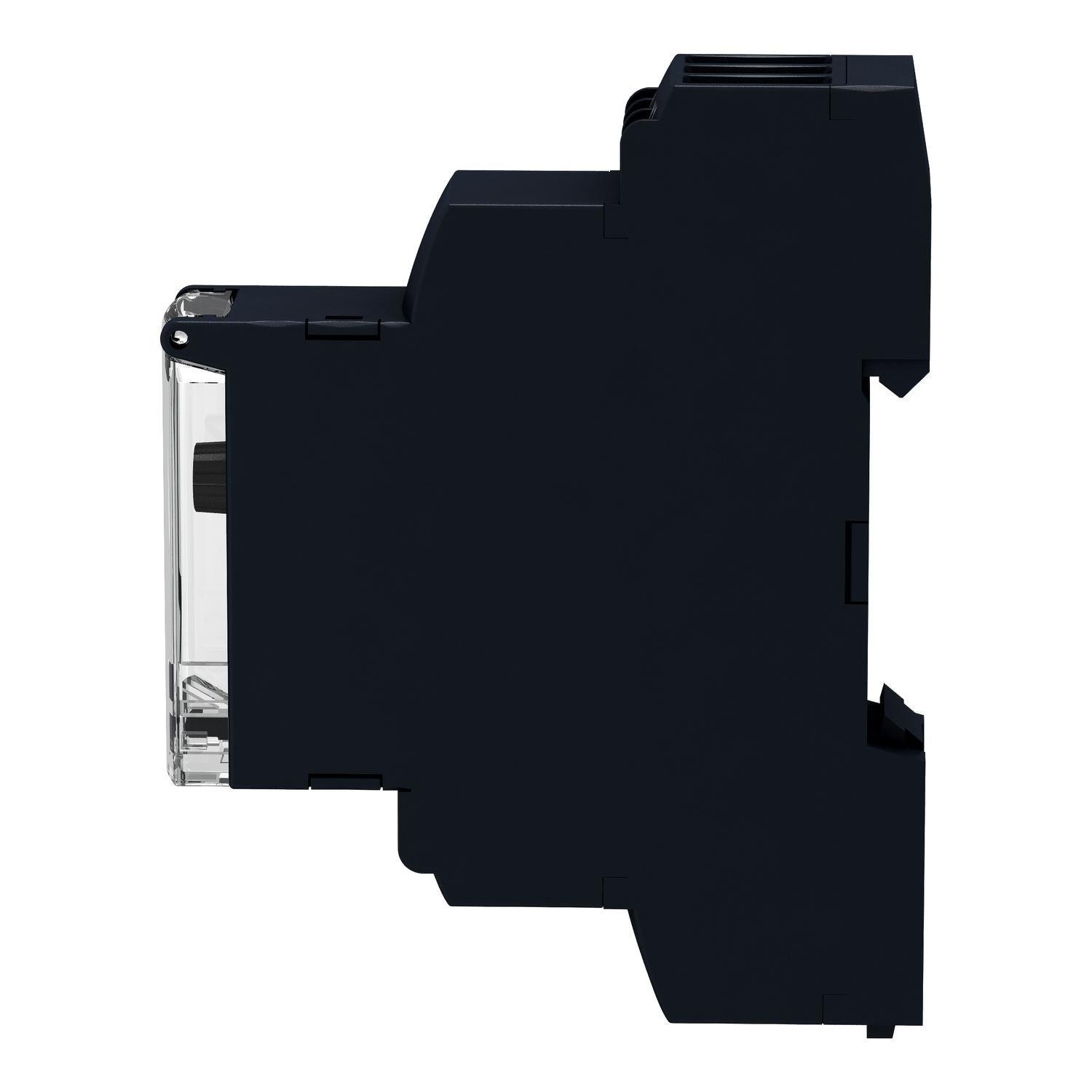

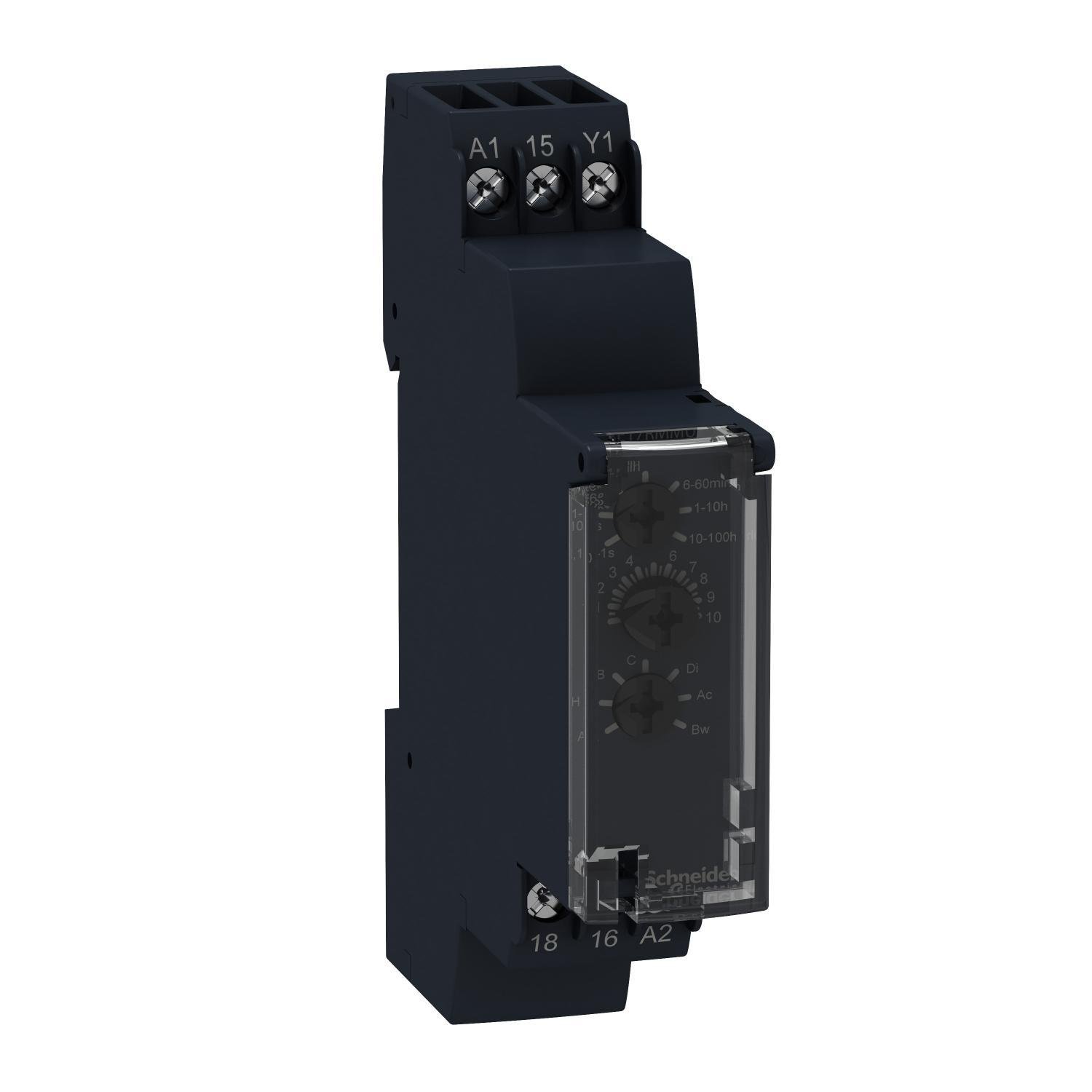

Picture of RE17RMMU - multifunction relay, Harmony Timer Relays, 8A, 1CO, 0.1s..10 h, power on delay, symmetrical flashing, 24V DC or 24...240V AC DC Picture of RE17RMMU - multifunction relay, Harmony Timer Relays, 8A, 1CO, 0.1s..10 h, power on delay, symmetrical flashing, 24V DC or 24...240V AC DC
Picture of RE17RMMU - multifunction relay, Harmony Timer Relays, 8A, 1CO, 0.1s..10 h, power on delay, symmetrical flashing, 24V DC or 24...240V AC DC Picture of RE17RMMU - multifunction relay, Harmony Timer Relays, 8A, 1CO, 0.1s..10 h, power on delay, symmetrical flashing, 24V DC or 24...240V AC DC
Picture of RE17RMMU - multifunction relay, Harmony Timer Relays, 8A, 1CO, 0.1s..10 h, power on delay, symmetrical flashing, 24V DC or 24...240V AC DC Picture of RE17RMMU - multifunction relay, Harmony Timer Relays, 8A, 1CO, 0.1s..10 h, power on delay, symmetrical flashing, 24V DC or 24...240V AC DC
Picture of RE17RMMU - multifunction relay, Harmony Timer Relays, 8A, 1CO, 0.1s..10 h, power on delay, symmetrical flashing, 24V DC or 24...240V AC DC Picture of RE17RMMU - multifunction relay, Harmony Timer Relays, 8A, 1CO, 0.1s..10 h, power on delay, symmetrical flashing, 24V DC or 24...240V AC DC
Picture of RE17RMMU - multifunction relay, Harmony Timer Relays, 8A, 1CO, 0.1s..10 h, power on delay, symmetrical flashing, 24V DC or 24...240V AC DC Picture of RE17RMMU - multifunction relay, Harmony Timer Relays, 8A, 1CO, 0.1s..10 h, power on delay, symmetrical flashing, 24V DC or 24...240V AC DC
Schneider Electric

RE17RMMU - multifunction relay, Harmony Timer Relays, 8A, 1CO, 0.1s..10 h, power on delay, symmetrical flashing, 24V DC or 24...240V AC DC

Item Code: 872444
Category Timing Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref RE17RMMU

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This Harmony RE17R timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 8A, is 17.5mm wide and can be supplied with 24V DC, 24V to 240V AC. It also has 1 changeover contact SPDT (single pole double throw). It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Specifications

Height

90mm

Width

17.5mm

Depth

72mm

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

RELAY TMG 24 TO 240VAC 24VDC 8A 30MS

AD Item Features 01

Diagnostic button to check downstream circuit immediately, shorten the commission and troubleshooting time

AD Item Features 02

Wide range of time delay for adjustment - from 0.01 s to 999 hr

AD Item Features 03

Unprecedented accuracy, predictive maintenance, and superior security

AD Item Features 04

Flexible choice of screw or spring connection terminals for wiring

AD Item Features 05

Multi-function timer for a simple integration in hard-wired logic schematics

AD Manufacturer (Description)

Schneider Electric

AD Package Quantity

1

Brand

Square D

Category

TIMING RELAYS & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

8

Spec 10 Attribute

Time Setting

Spec 10 Attribute Value

1 s to 100 hr

Spec 11 Attribute

Type

Spec 11 Attribute Value

Modular

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute Value

24 to 240 V AC/24 V DC

Spec 2 Attribute

Contact Form

Spec 2 Attribute Value

1CO 1 Form C SPDT

Spec 3 Attribute

Dimensions

Spec 3 Attribute UOM

MM

Spec 3 Attribute Value

17.5 x 72 x 90

Spec 4 Attribute

Electrical Connections

Spec 4 Attribute Value

Screw clamp

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

IP20/IP40/IP50

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

35 Mm DIN Rail

Spec 7 Attribute

Pulse Duration

Spec 7 Attribute UOM

Ms

Spec 7 Attribute Value

30

Spec 8 Attribute

Series

Spec 8 Attribute Value

RE17

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg C

Spec 9 Attribute Value

-20 To 60
