Schneider Electric

RE22R2MMW - multifunction relay, Harmony Timer Relays, 8A, 2CO, 0.1s…100h, symmetrical flashing, 12..240V AC DC

Category Miscellaneous

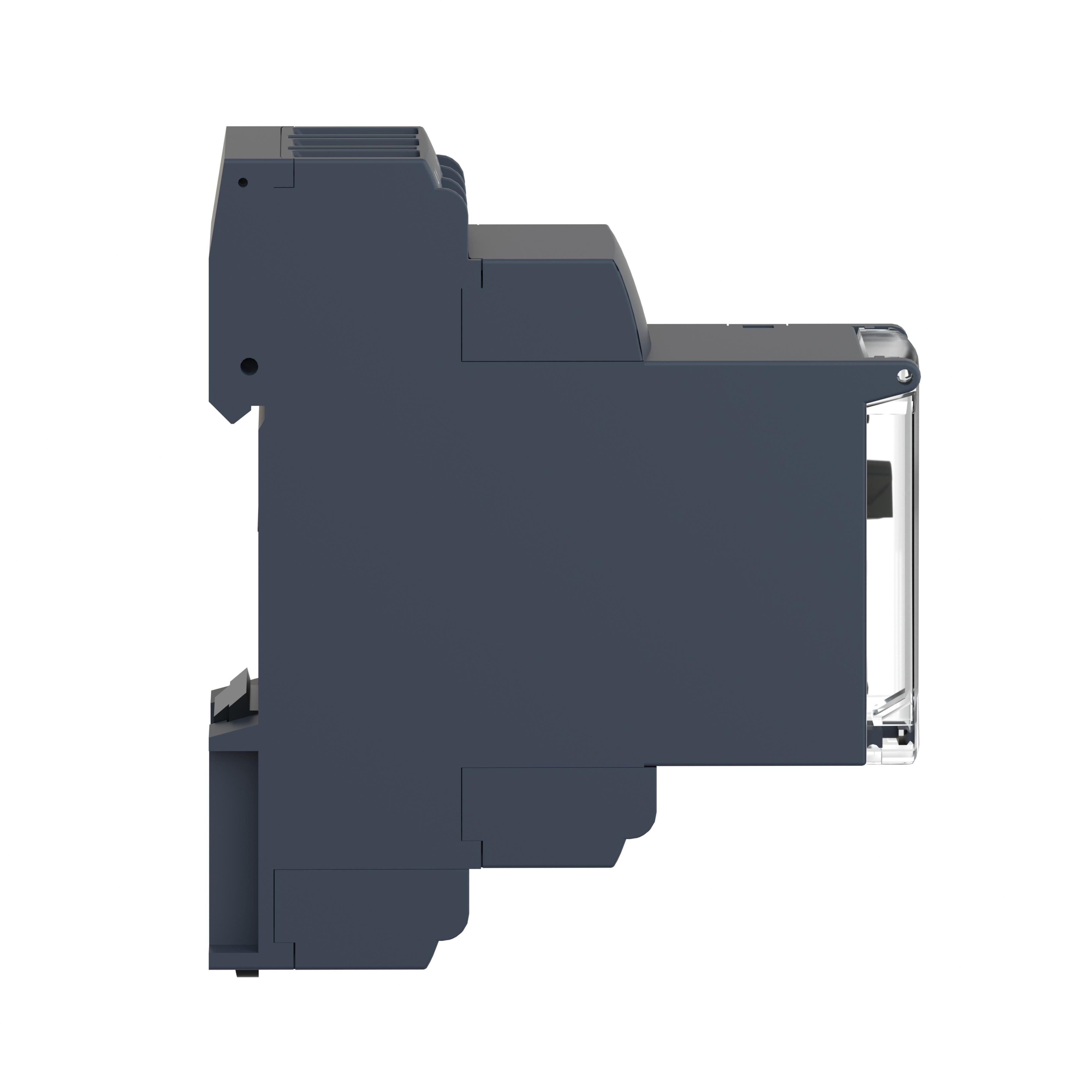

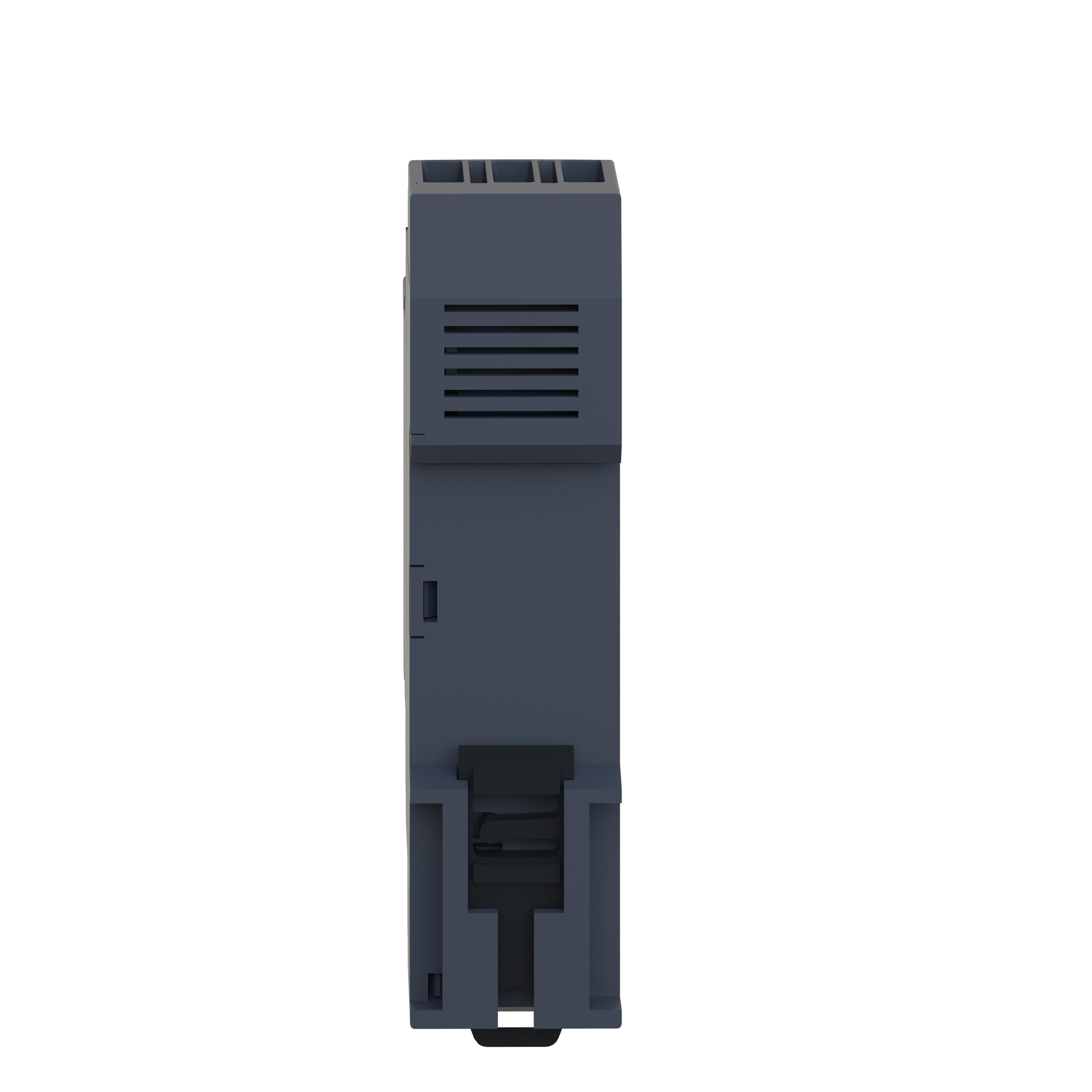

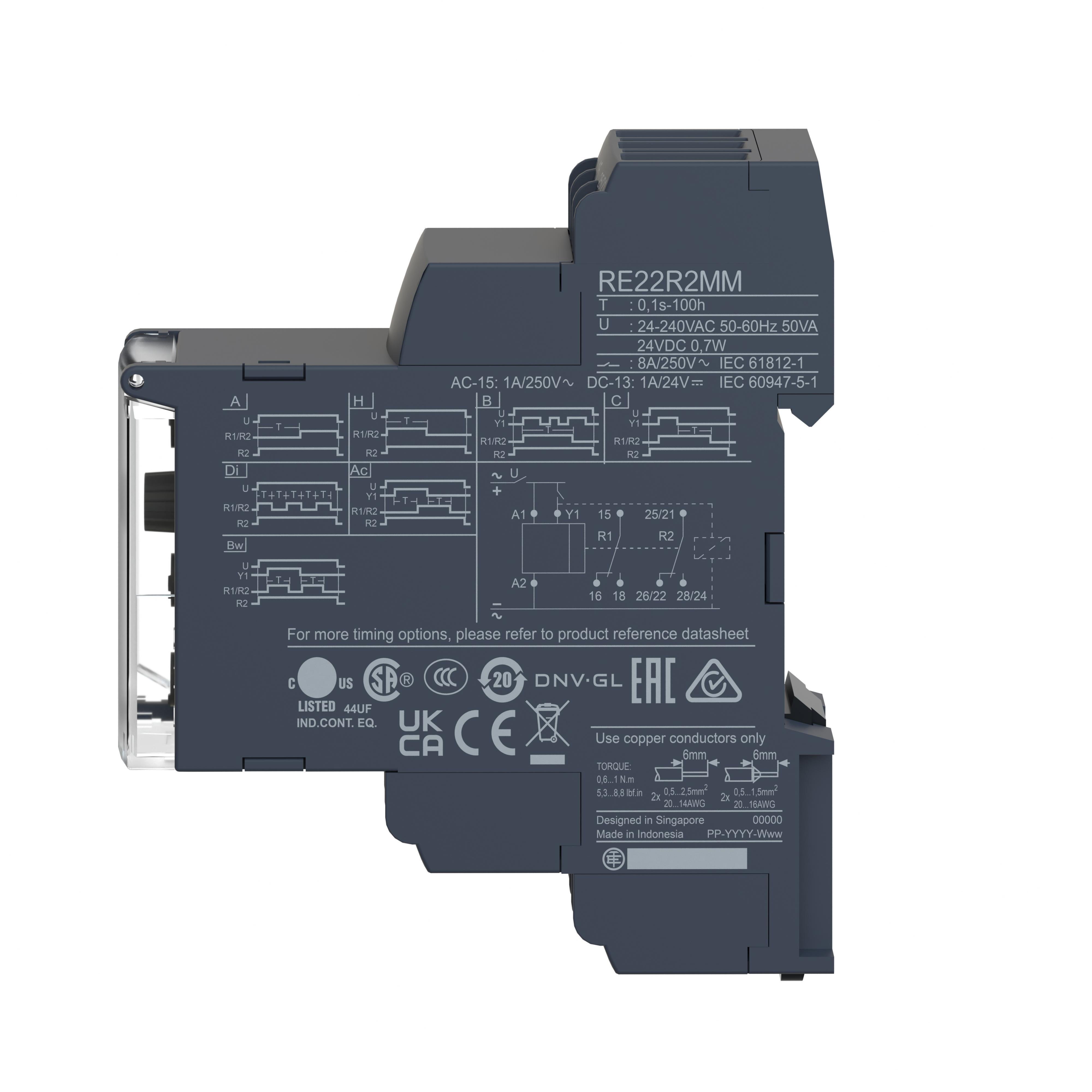

Picture of RE22R2MMW - multifunction relay, Harmony Timer Relays, 8A, 2CO, 0.1s…100h, symmetrical flashing, 12..240V AC DC Picture of RE22R2MMW - multifunction relay, Harmony Timer Relays, 8A, 2CO, 0.1s…100h, symmetrical flashing, 12..240V AC DC
Picture of RE22R2MMW - multifunction relay, Harmony Timer Relays, 8A, 2CO, 0.1s…100h, symmetrical flashing, 12..240V AC DC Picture of RE22R2MMW - multifunction relay, Harmony Timer Relays, 8A, 2CO, 0.1s…100h, symmetrical flashing, 12..240V AC DC
Picture of RE22R2MMW - multifunction relay, Harmony Timer Relays, 8A, 2CO, 0.1s…100h, symmetrical flashing, 12..240V AC DC Picture of RE22R2MMW - multifunction relay, Harmony Timer Relays, 8A, 2CO, 0.1s…100h, symmetrical flashing, 12..240V AC DC
Picture of RE22R2MMW - multifunction relay, Harmony Timer Relays, 8A, 2CO, 0.1s…100h, symmetrical flashing, 12..240V AC DC Picture of RE22R2MMW - multifunction relay, Harmony Timer Relays, 8A, 2CO, 0.1s…100h, symmetrical flashing, 12..240V AC DC
Picture of RE22R2MMW - multifunction relay, Harmony Timer Relays, 8A, 2CO, 0.1s…100h, symmetrical flashing, 12..240V AC DC Picture of RE22R2MMW - multifunction relay, Harmony Timer Relays, 8A, 2CO, 0.1s…100h, symmetrical flashing, 12..240V AC DC
Schneider Electric

RE22R2MMW - multifunction relay, Harmony Timer Relays, 8A, 2CO, 0.1s…100h, symmetrical flashing, 12..240V AC DC

Item Code: 1033672
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref RE22R2MMW

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

This Harmony RE22 modular multi function timer can be set between 0.1 seconds and 100 hours. It provides multi functions and it is mountable on DIN rail. This modular multi function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Selectable timing range offers a one stop solution for your power management system. multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Specifications

Weight

0.23

Width

3.24

Length

3.74

AD Application

Automatic Doors, Bottling, Car Washes, Complex and Special Machines, Control Equipment Panels, Educational Campuses, Food and Beverage, HVAC, Industrial Buildings, Manufacturing, Material Handling and Process Control Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

ID

AD Invoice Description

RELAY TMG MODULAR 250VAC 2CO RE22

AD Item Features 01

Diagnostic button to check downstream circuit immediately, shorten the commission and troubleshooting time

AD Item Features 02

Wide range of time delay for adjustment - from 0.01 s to 999 hr

AD Item Features 03

Unprecedented accuracy, predictive maintenance, and superior security

AD Item Features 04

Flexible choice of screw or spring connection terminals for wiring

AD Item Features 05

Multi-function timer for a simple integration in hard-wired logic schematics

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

3.7400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.2300

AD Package Weight UOM

LB

AD Package Width

3.2400

AD Package Width UOM

IN

AD Video Links

https://youtu.be/W6W-90ovcos

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

8

Spec 10 Attribute

Pulse Duration

Spec 10 Attribute Value

100 ms Under Load/30 ms

Spec 11 Attribute

Series

Spec 11 Attribute Value

RE22

Spec 12 Attribute

Temperature Rating

Spec 12 Attribute UOM

deg F

Spec 12 Attribute Value

-4 To 140

Spec 13 Attribute

Time Setting

Spec 13 Attribute Value

0.1 to 1 s, 6 to 60 s, 1 to 10 hr, 1 to 10 min, 1 to 10 s, 10 to 100 hr, 6 to 60 min

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

250

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V AC/DC

Spec 2 Attribute Value

12 to 240

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

2CO 2 Form C

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

0.89 in W

Spec 5 Attribute

Display Type

Spec 5 Attribute Value

Led

Spec 6 Attribute

Electrical Connections

Spec 6 Attribute Value

Screw Terminal

Spec 7 Attribute

Enclosure Type

Spec 7 Attribute Value

IP20/IP40

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

35 Mm DIN Rail

Spec 9 Attribute

Operation Mode

Spec 9 Attribute Value

Multi-Function
