Schneider Electric

RE22R2MYMR - multifunction relay, Harmony Timer Relays, 8A, 2CO, 0.05s…300h, screw connectors, 24...240V AC DC

Category Miscellaneous

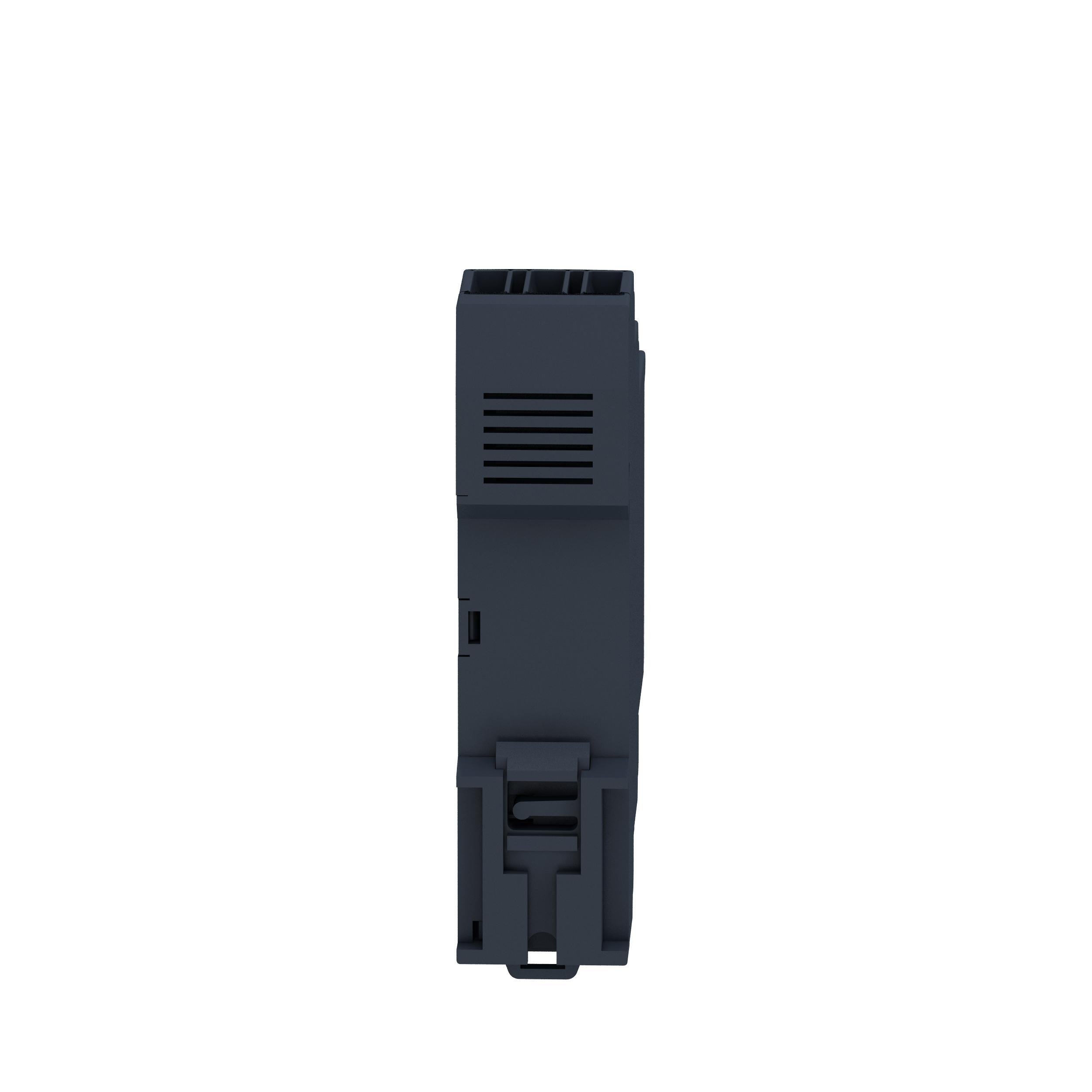

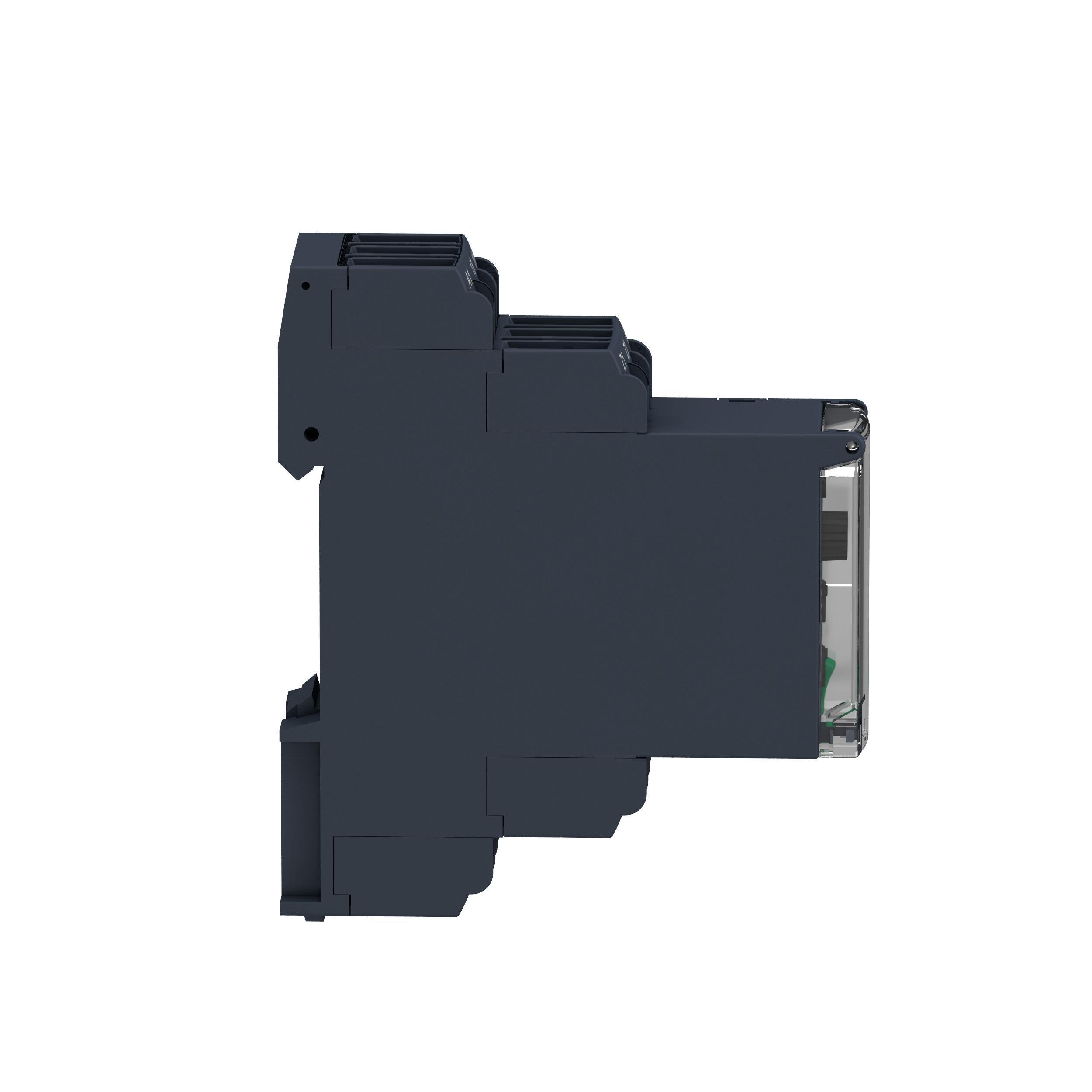

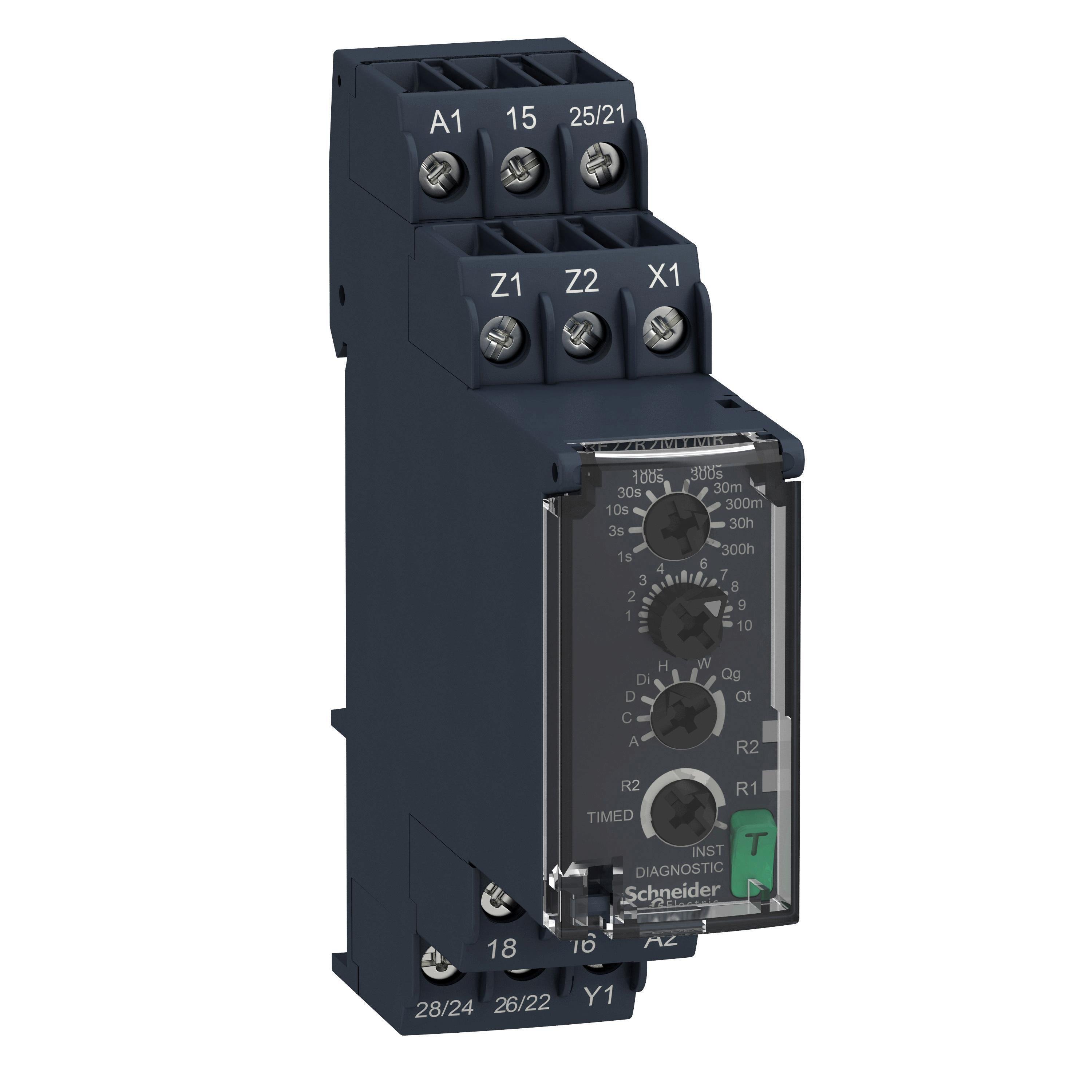

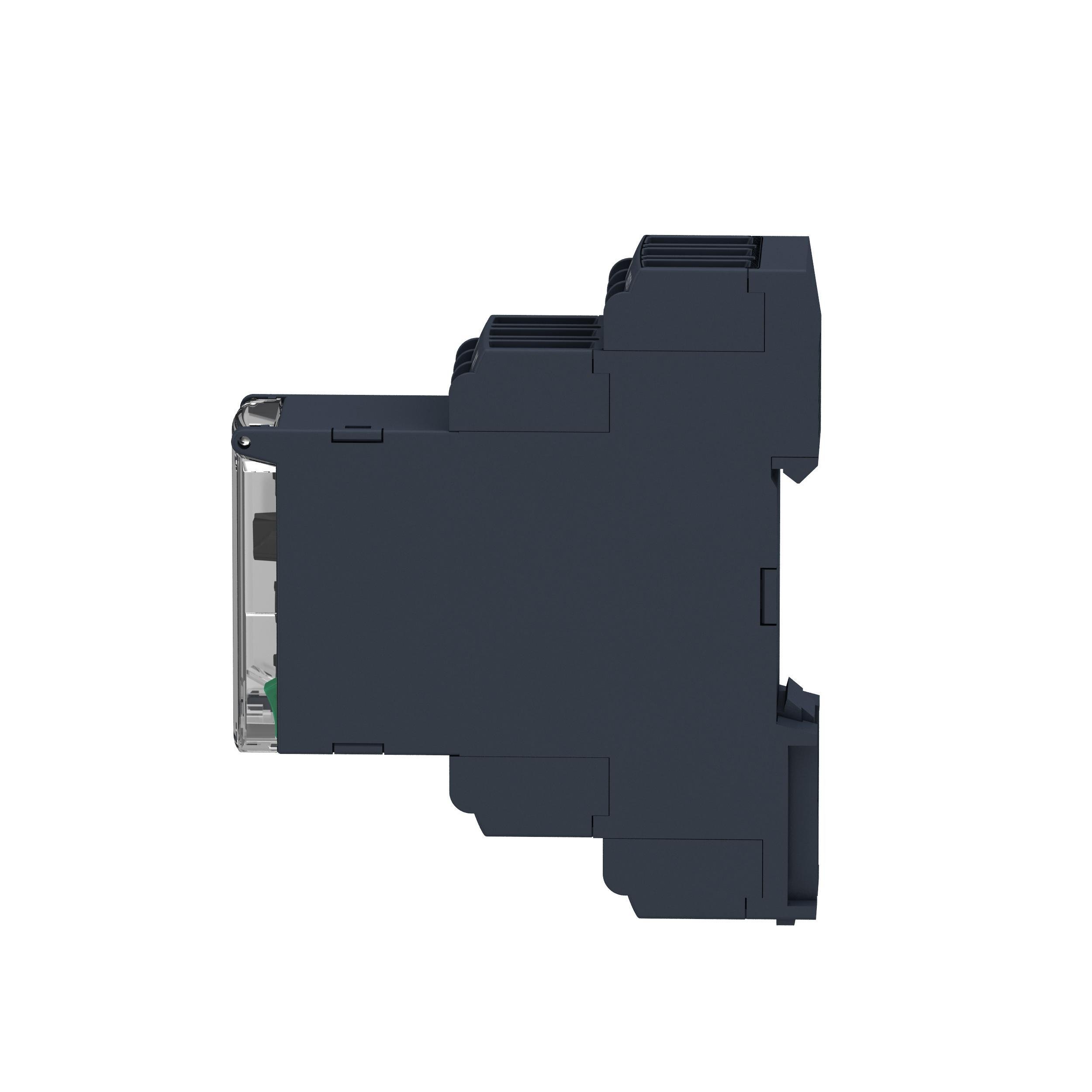

Picture of RE22R2MYMR - multifunction relay, Harmony Timer Relays, 8A, 2CO, 0.05s…300h, screw connectors, 24...240V AC DC Picture of RE22R2MYMR - multifunction relay, Harmony Timer Relays, 8A, 2CO, 0.05s…300h, screw connectors, 24...240V AC DC
Picture of RE22R2MYMR - multifunction relay, Harmony Timer Relays, 8A, 2CO, 0.05s…300h, screw connectors, 24...240V AC DC Picture of RE22R2MYMR - multifunction relay, Harmony Timer Relays, 8A, 2CO, 0.05s…300h, screw connectors, 24...240V AC DC
Picture of RE22R2MYMR - multifunction relay, Harmony Timer Relays, 8A, 2CO, 0.05s…300h, screw connectors, 24...240V AC DC Picture of RE22R2MYMR - multifunction relay, Harmony Timer Relays, 8A, 2CO, 0.05s…300h, screw connectors, 24...240V AC DC
Picture of RE22R2MYMR - multifunction relay, Harmony Timer Relays, 8A, 2CO, 0.05s…300h, screw connectors, 24...240V AC DC Picture of RE22R2MYMR - multifunction relay, Harmony Timer Relays, 8A, 2CO, 0.05s…300h, screw connectors, 24...240V AC DC
Picture of RE22R2MYMR - multifunction relay, Harmony Timer Relays, 8A, 2CO, 0.05s…300h, screw connectors, 24...240V AC DC Picture of RE22R2MYMR - multifunction relay, Harmony Timer Relays, 8A, 2CO, 0.05s…300h, screw connectors, 24...240V AC DC
Schneider Electric

RE22R2MYMR - multifunction relay, Harmony Timer Relays, 8A, 2CO, 0.05s…300h, screw connectors, 24...240V AC DC

Item Code: 971757
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref RE22R2MYMR

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This Harmony RE22 timing relay can be set between 0.05 seconds and 300 hours, has an output rating of 8A, is 22.5mm wide and can be supplied with 24V to 240V AC. It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail. It also offers a sealable cover, simple and precise settings with rotary trimmers. multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. Status display with 2 LEDs, visually inspect the status of you system without specialized tools. Diagnostic button allows simple setup and trouble shooting by non-specialists. 0 0 0 0 0 0 0 0 0 0 0 0 0

Specifications

Weight

0.26

Width

3.2

Length

3.71

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

RELAY TMG 0.05 S TO 300 HR 3NO-3NC 8A

AD Item Features 01

Diagnostic button to check downstream circuit immediately, shorten the commission and troubleshooting time

AD Item Features 02

Wide range of time delay for adjustment - from 0.01 s to 999 hr

AD Item Features 03

Unprecedented accuracy, predictive maintenance, and superior security

AD Item Features 04

Flexible choice of screw or spring connection terminals for wiring

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

3.7100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.2600

AD Package Weight UOM

LB

AD Package Width

3.2000

AD Package Width UOM

IN

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

8

Spec 10 Attribute

Series

Spec 10 Attribute Value

RE22

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

-20 To 60

Spec 12 Attribute

Time Setting

Spec 12 Attribute Value

0.05 s to 300 hr

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC/DC

Spec 13 Attribute Value

24 to 240

Spec 2 Attribute

Contact Form

Spec 2 Attribute Value

3NO-3NC 3 Form A/3 Form B

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

22.5 mm W x 73 mm D x 3.54 mm H

Spec 4 Attribute

Display Type

Spec 4 Attribute Value

Led

Spec 5 Attribute

Electrical Connections

Spec 5 Attribute Value

Screw Terminal

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

IP20/IP40/IP50

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

DIN Rail

Spec 8 Attribute

Operation Mode

Spec 8 Attribute Value

Multi-Function

Spec 9 Attribute

Pulse Duration

Spec 9 Attribute Value

100 ms with Load Parallel/30 ms
