Square D™

RGF36160U31A - Circuit breaker, PowerPacT R, 1600A, 3 pole, 600VAC, 18kA, busbar, Micrologic 3.0, 80%

Category Miscellaneous

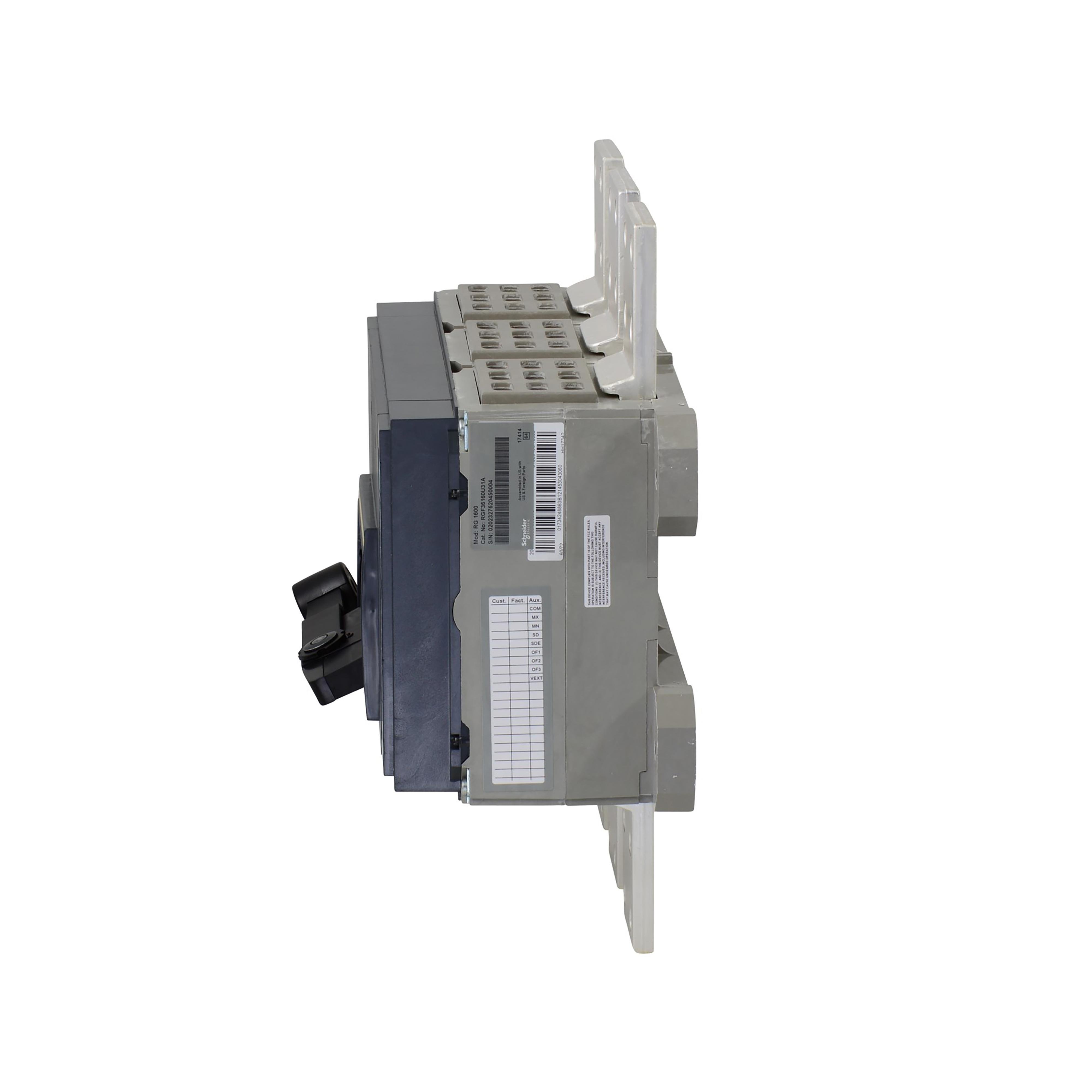

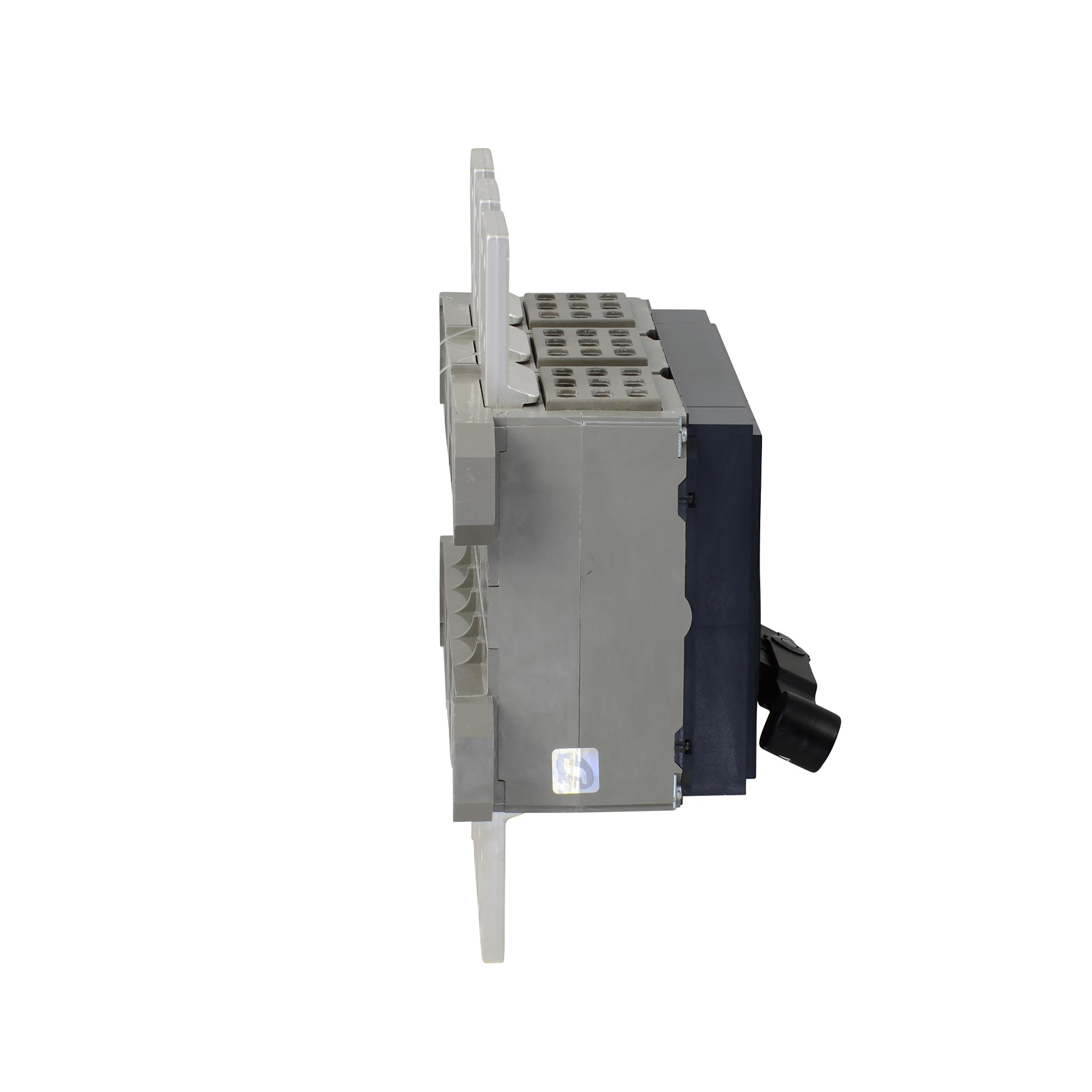

Picture of RGF36160U31A - Circuit breaker, PowerPacT R, 1600A, 3 pole, 600VAC, 18kA, busbar, Micrologic 3.0, 80% Picture of RGF36160U31A - Circuit breaker, PowerPacT R, 1600A, 3 pole, 600VAC, 18kA, busbar, Micrologic 3.0, 80%
Picture of RGF36160U31A - Circuit breaker, PowerPacT R, 1600A, 3 pole, 600VAC, 18kA, busbar, Micrologic 3.0, 80% Picture of RGF36160U31A - Circuit breaker, PowerPacT R, 1600A, 3 pole, 600VAC, 18kA, busbar, Micrologic 3.0, 80%
Picture of RGF36160U31A - Circuit breaker, PowerPacT R, 1600A, 3 pole, 600VAC, 18kA, busbar, Micrologic 3.0, 80% Picture of RGF36160U31A - Circuit breaker, PowerPacT R, 1600A, 3 pole, 600VAC, 18kA, busbar, Micrologic 3.0, 80%
Picture of RGF36160U31A - Circuit breaker, PowerPacT R, 1600A, 3 pole, 600VAC, 18kA, busbar, Micrologic 3.0, 80% Picture of RGF36160U31A - Circuit breaker, PowerPacT R, 1600A, 3 pole, 600VAC, 18kA, busbar, Micrologic 3.0, 80%
Square D™

RGF36160U31A - Circuit breaker, PowerPacT R, 1600A, 3 pole, 600VAC, 18kA, busbar, Micrologic 3.0, 80%

Item Code: 1008092
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref RGF36160U31A

Document
Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

PowerPacT R-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT R-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Standard Trip with a 3.0 trip unit and an LI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT R circuit breakers are available in 2, 3, and 4-pole unit mount and I-Line construction (I-Line construction is available for 1000A and 1200A rated circuit breakers only). This unit has a busbar connection. This PowerPacT P, 1600A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT R circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

Weight

68.86

Height

13.2

Width

19.32

Length

19.42

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/RGF36160U31A/RGF36160U31A.spin

AD All Features

Available in 2, 3, 4 pole design

AD Alternative Part Number

8127644

AD Application

For providing overload and short circuit protection

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD Document Caption 5

Technical Bulletin

AD EAN

0785901299448

AD Gtin

00785901299448

AD IDEA Index ID

8127644

AD Invoice Description

BREAKER CKT CASE MLD 600VAC 1600A 65KA

AD Item Features 01

Available in 2, 3, 4 pole design

AD Item Features 02

Common accessories across the range

AD Item Features 03

Compatible with PowerLogic systems and high amp power circuit breakers

AD Keywords

RGF36160U31A RGF 3-Pole Molded Case Circuit Breaker, 600 V AC, 1600 A, 65 kA Interrupt, 3 Poles, Electronic Trip ; Square D ; RGF36160U31A ; 8127644 ; 13917703 ; 785901299448 ; Molded Case Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

13.2000

AD Package Height UOM

IN

AD Package Length

19.4200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

68.8600

AD Package Weight UOM

LB

AD Package Width

19.3200

AD Package Width UOM

IN

AD Part Number Keywords

RGF36160U31A ; 8127644 ; 13917703 ; 785901299448 ; 78590129944 ; 00785901299448 ; 0785901299448

Brand

Square D

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Electrical

Spec 10 Attribute

Series

Spec 10 Attribute Value

RGF

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

40

Spec 12 Attribute

Trip Range

Spec 12 Attribute UOM

A

Spec 12 Attribute Value

240 to 3000

Spec 13 Attribute

Trip Type

Spec 13 Attribute Value

Electronic

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

600

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

1600

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Line/Load Busbar

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

16.24 in H x 16.3 in W x 14.49 in D

Spec 5 Attribute

Frame

Spec 5 Attribute Value

R

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Interrupt Rating

Spec 7 Attribute UOM

KA

Spec 7 Attribute Value

65

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

3

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

3
