Square D™

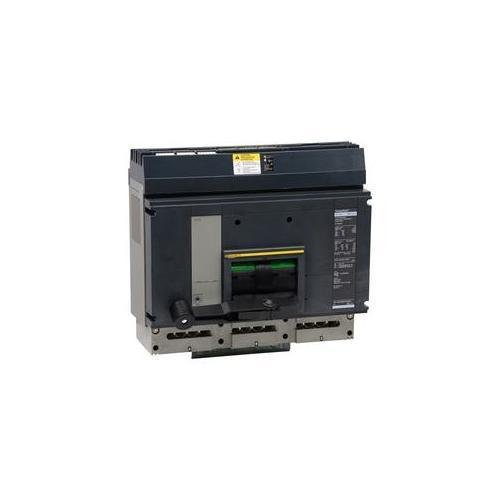

RJA36120CU44A - Circuit breaker, PowerPacT R, 1200A, 3 pole, 600VAC, 25kA, I-Line, Micrologic 6.0A, 100%

Category Miscellaneous
Picture of RJA36120CU44A - Circuit breaker, PowerPacT R, 1200A, 3 pole, 600VAC, 25kA, I-Line, Micrologic 6.0A, 100% Picture of RJA36120CU44A - Circuit breaker, PowerPacT R, 1200A, 3 pole, 600VAC, 25kA, I-Line, Micrologic 6.0A, 100%
Picture of RJA36120CU44A - Circuit breaker, PowerPacT R, 1200A, 3 pole, 600VAC, 25kA, I-Line, Micrologic 6.0A, 100% Picture of RJA36120CU44A - Circuit breaker, PowerPacT R, 1200A, 3 pole, 600VAC, 25kA, I-Line, Micrologic 6.0A, 100%
Square D™

RJA36120CU44A - Circuit breaker, PowerPacT R, 1200A, 3 pole, 600VAC, 25kA, I-Line, Micrologic 6.0A, 100%

Item Code: 1090932
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref RJA36120CU44A

Document
Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

PowerPacT R-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT R-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Ammeter with a 6.0A trip unit and an LSIG function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT R circuit breakers are available in 2, 3, and 4-pole unit mount and I-Line construction (I-Line construction is available for 1000A and 1200A rated circuit breakers only). This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT P, 1200A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 100% with an ABC phase connection. PowerPacT R circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

Weight

64.86

Height

13.3

Width

19.32

Length

19.32

AD All Features

Available in 2, 3, 4 pole design

AD Alternative Part Number

8098209

AD Application

For providing overload and short circuit protection

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD Document Caption 5

Technical Bulletin

AD EAN

0785901566526

AD Gtin

00785901566526

AD IDEA Index ID

8098209

AD Invoice Description

BREAKER CKT CASE MLD 600VAC 1200A 3 R

AD Item Features 01

Available in 2, 3, 4 pole design

AD Item Features 02

Common accessories across the range

AD Item Features 03

Compatible with PowerLogic systems and high amp power circuit breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

13.3000

AD Package Height UOM

IN

AD Package Length

19.3200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

5057.3300

AD Package Volume UOM

cu-in

AD Package Weight

64.8600

AD Package Weight UOM

LB

AD Package Width

19.3200

AD Package Width UOM

IN

AD Part Number Keywords

RJA36120CU44A ; 8098209 ; 785901566526 ; 78590156652 ; 00785901566526 ; 0785901566526

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

1200

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

3

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg F

Spec 11 Attribute Value

104

Spec 12 Attribute

Trip Range

Spec 12 Attribute UOM

A

Spec 12 Attribute Value

240 to 3000

Spec 13 Attribute

Trip Type

Spec 13 Attribute Value

Electronic

Spec 14 Attribute

Type

Spec 14 Attribute Value

100% Rated

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V AC

Spec 15 Attribute Value

600

Spec 16 Attribute

Wire Size

Spec 16 Attribute Value

3/0 AWG to 600 kcmil Al/Cu

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Line/Load Lug

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

13.38 in H x 14.96 in W x 13.78 in D

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA AB1

Spec 5 Attribute

Frame

Spec 5 Attribute Value

R

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Interrupt Rating

Spec 7 Attribute Value

100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600 VAC

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Plug-On

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

3
