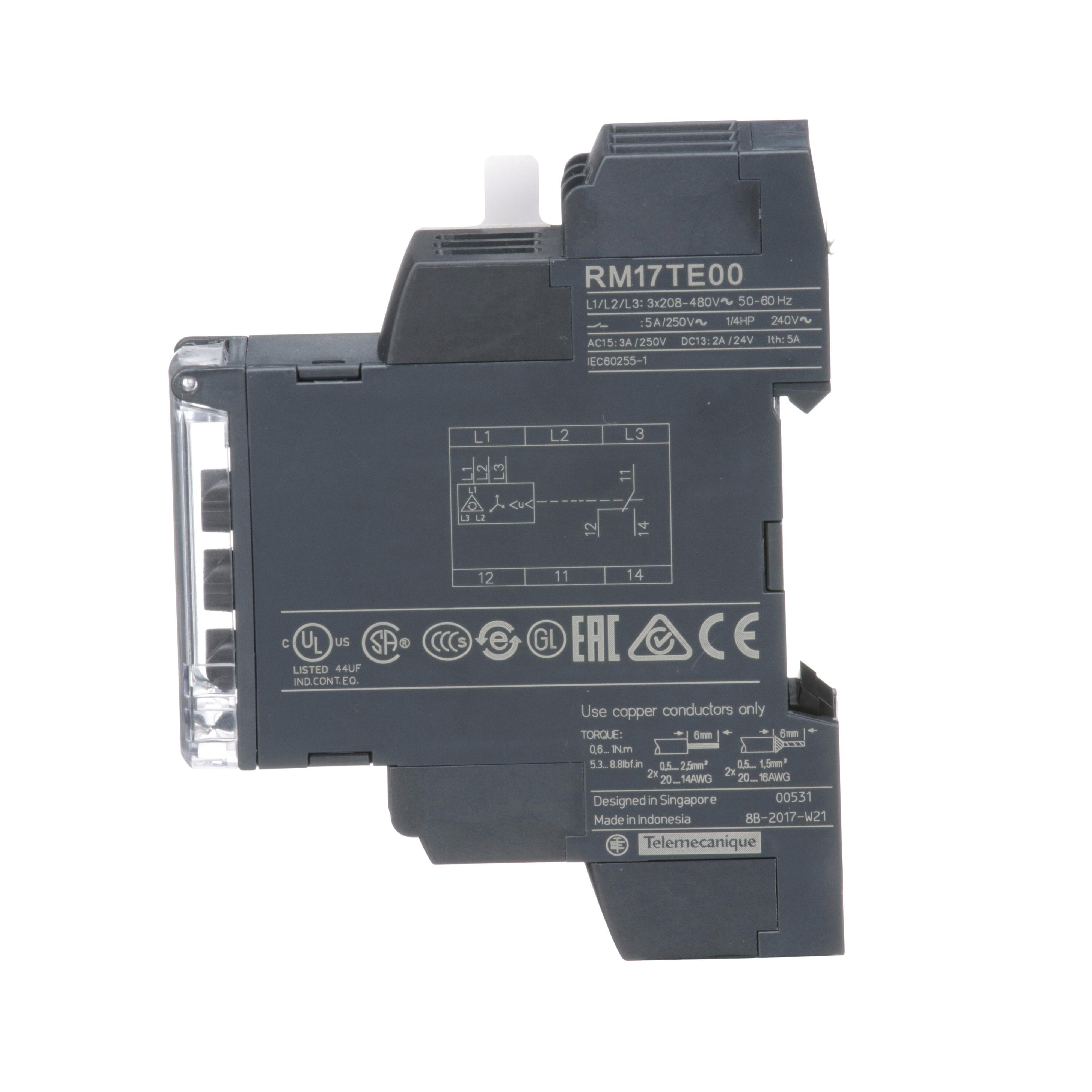

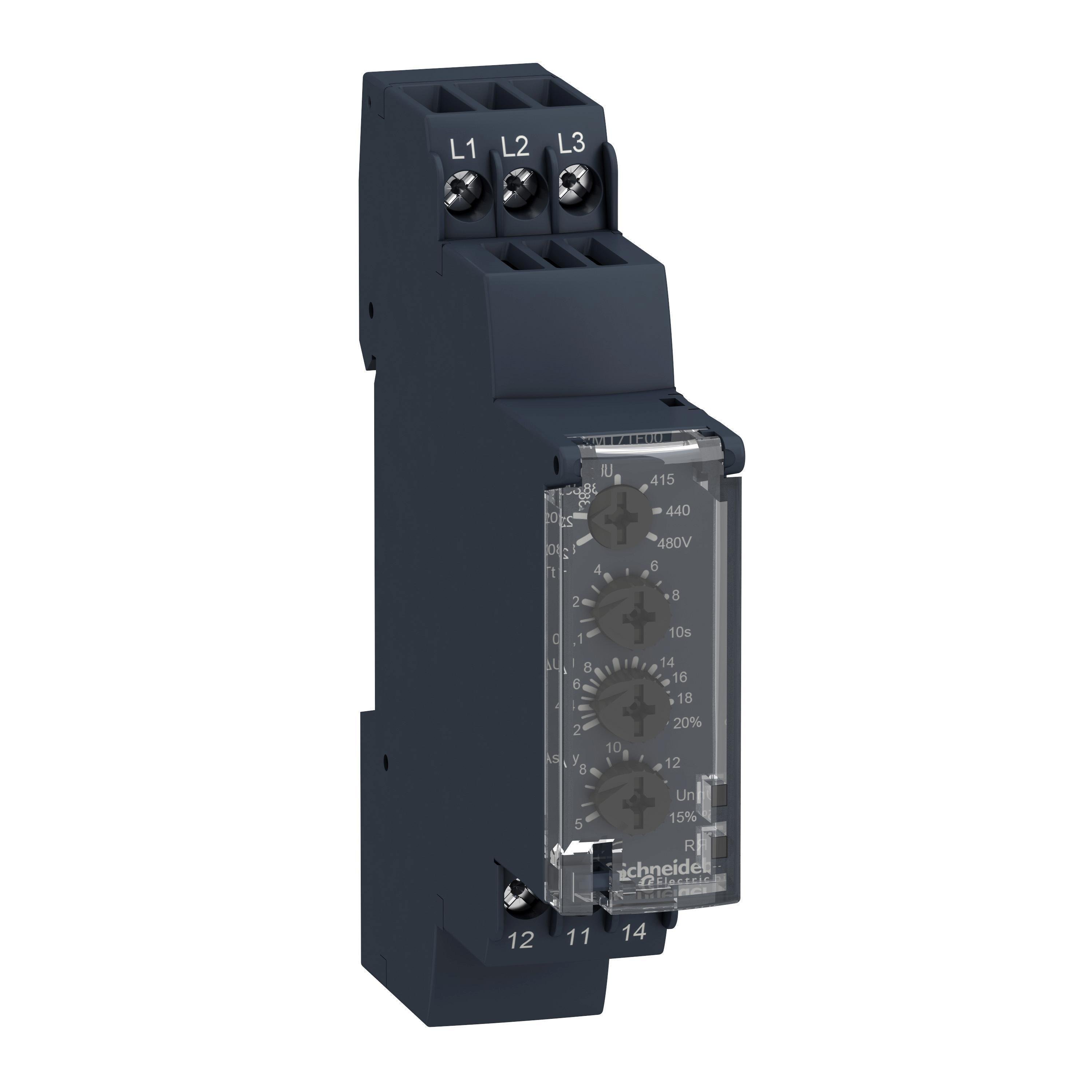

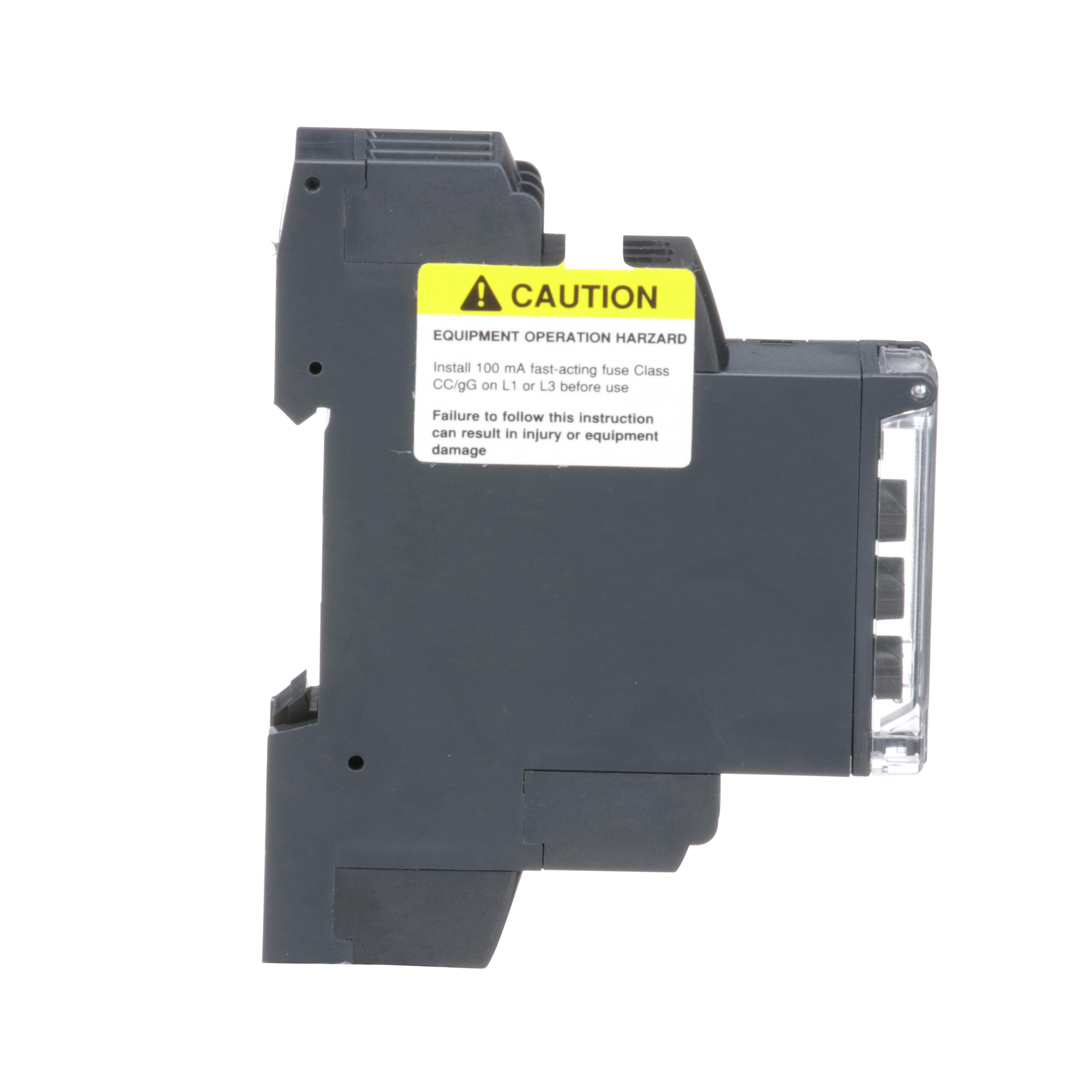

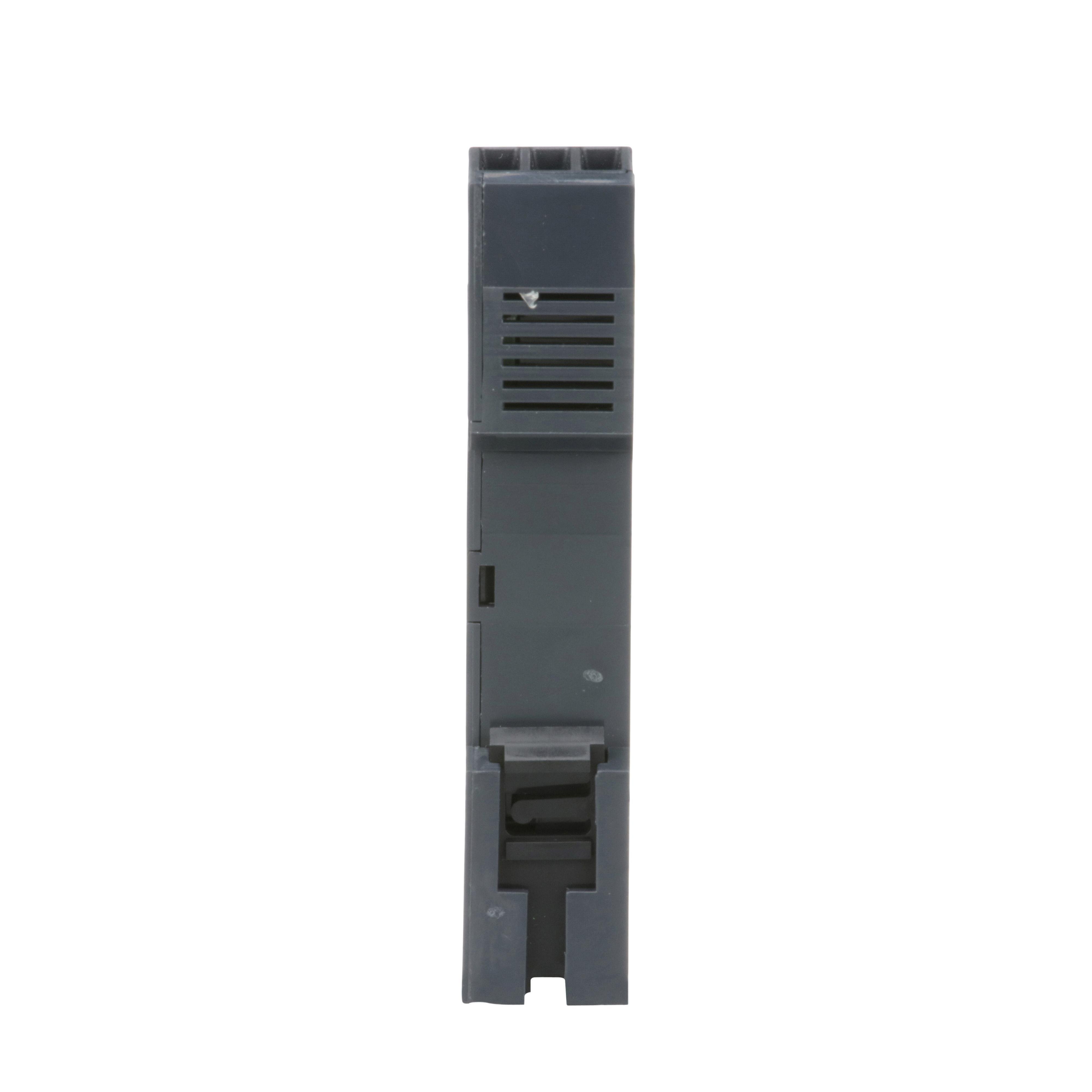

RM17TE00 - Harmony, 3 phase supply control relay, range 208 to 480 VAC, sequence, phase failure, phase imbalance, voltage
Description
Specifications
0.2
3
3.74
For 3-phase Supply applications
Schneider Electric
USA
US
RELAY CTRL 5A 22VA 50 TO 60HZ 400VAC 1CO
Simplified panel design due to 0.69in width same as 1-pole circuit breaker
Experience unprecedented accuracy, predictive maintenance, and superior security
The product monitors its own power supply
When the power supply is abnormal, the output relay de-energizes
Transparent cover offers tamper protection and reduces maintenance
Compatible with a wide range of applications, such as hoisting, packaging, lifts, textile, pumping, and water
Schneider Electric
IN
3.7400
IN
1
0.2000
LB
3.0000
IN
Square D
SENSING RELAYS & ACCESSORIES
Amperage Rating
A
5
Power Rating
VA
22
Series
RM17-TE
Temperature Rating
deg C
-20 To 50
Terminal Type
Screw
Type
3-Phase Multi-Function
Coil Voltage
V AC
400
Contact Form
1CO 1 Form C
Contact Rating
5 A at 12/13/14/15 V AC, 12/13 V DC
Dimensions
17.5 mm W
Display Type
Led
Enclosure Type
IP20/IP30
Frequency Rating
HZ
50 To 60
Mounting Type
DIN Rail
