Schneider Electric

RM17TG00 - 3-phase control relay, Harmony Control Relays, 5A, 1CO, screw connectors, 208...480V AC

Category Sensing Relays & Accessories

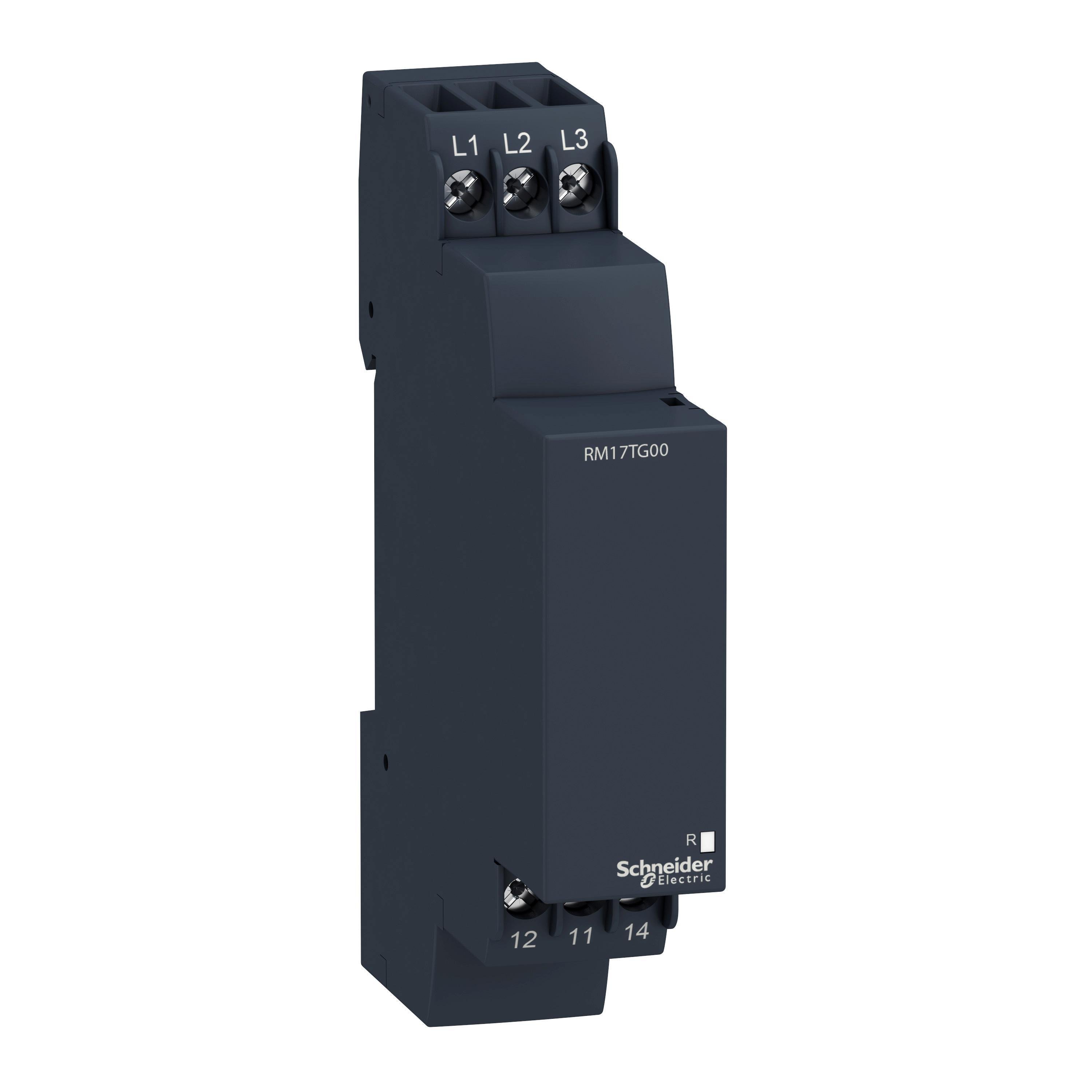

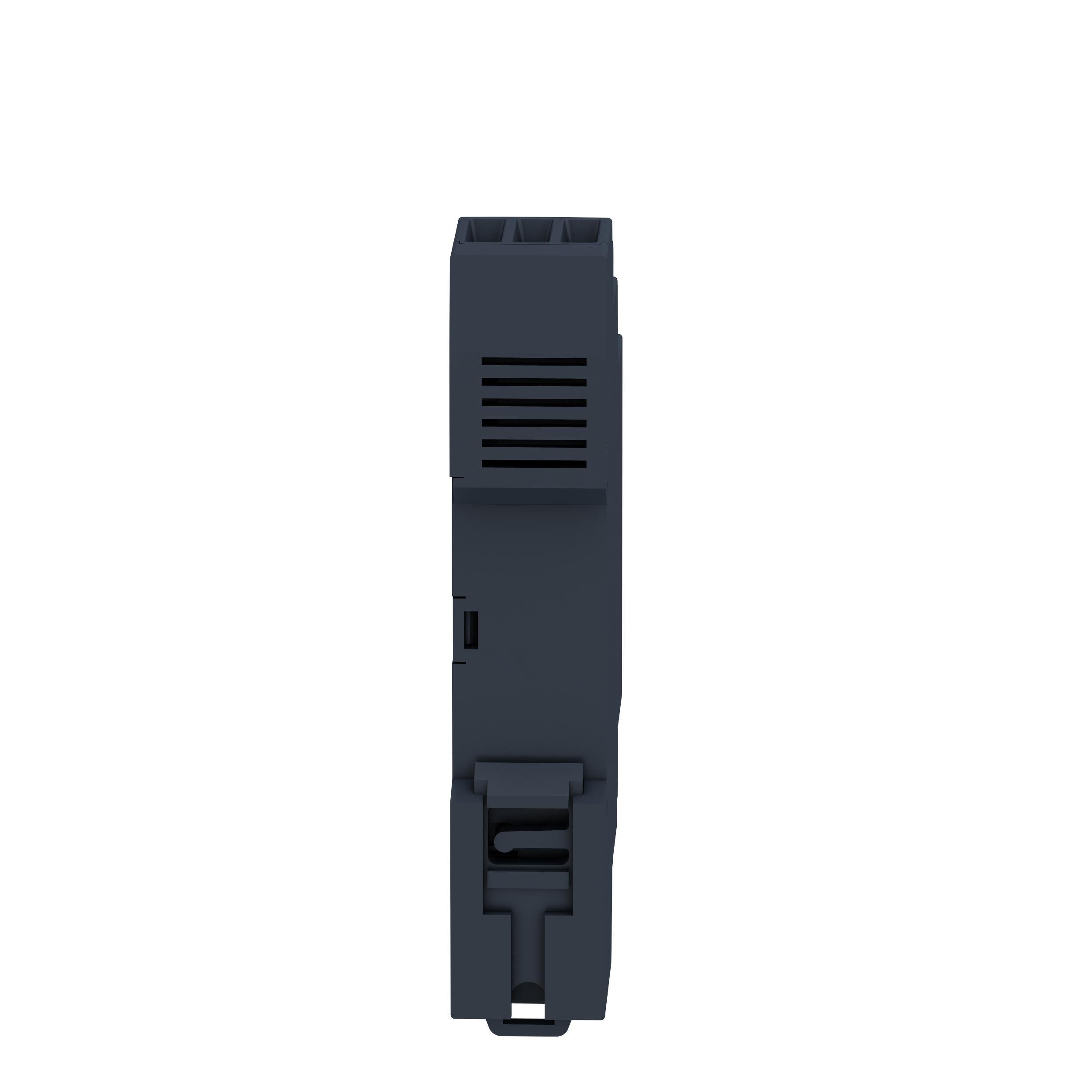

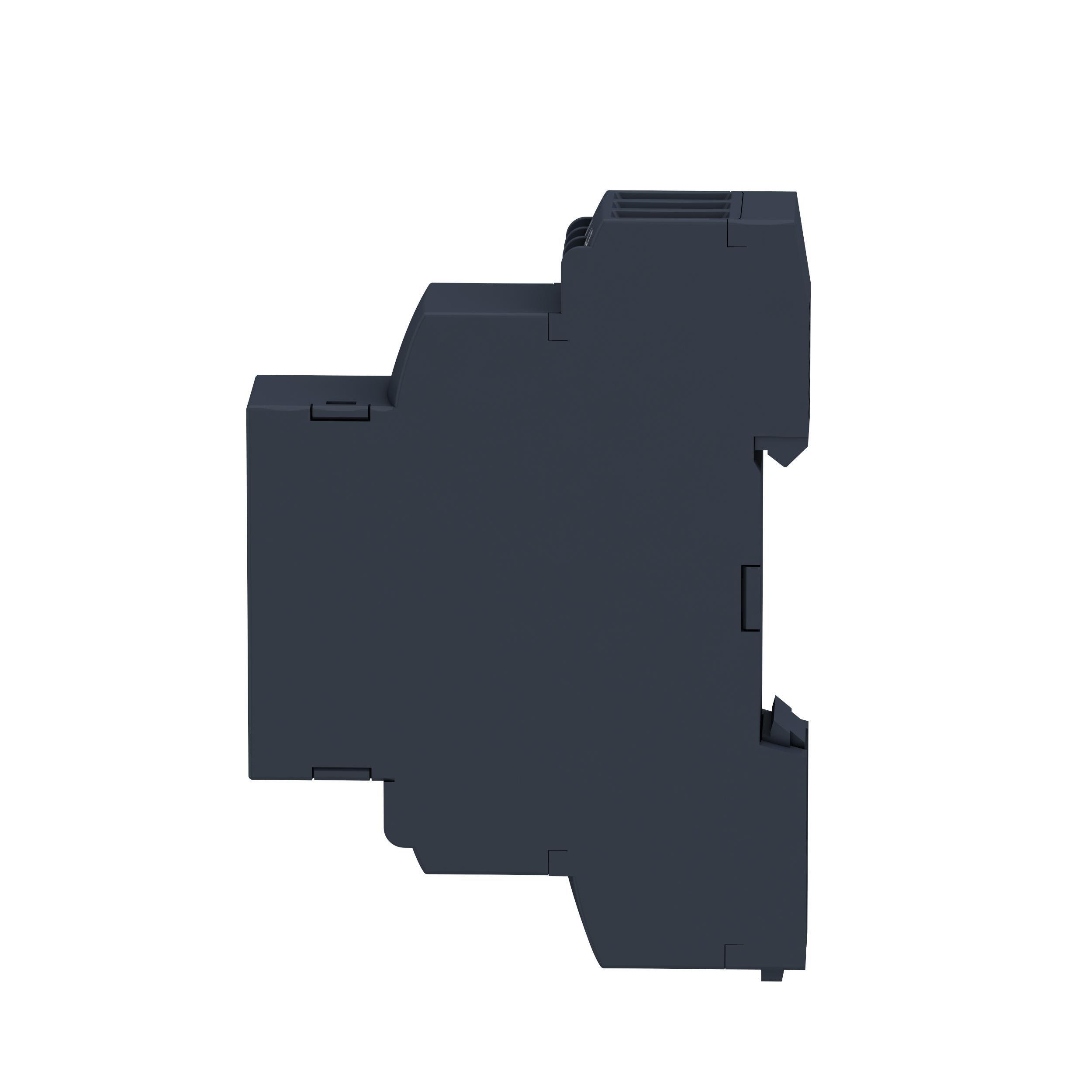

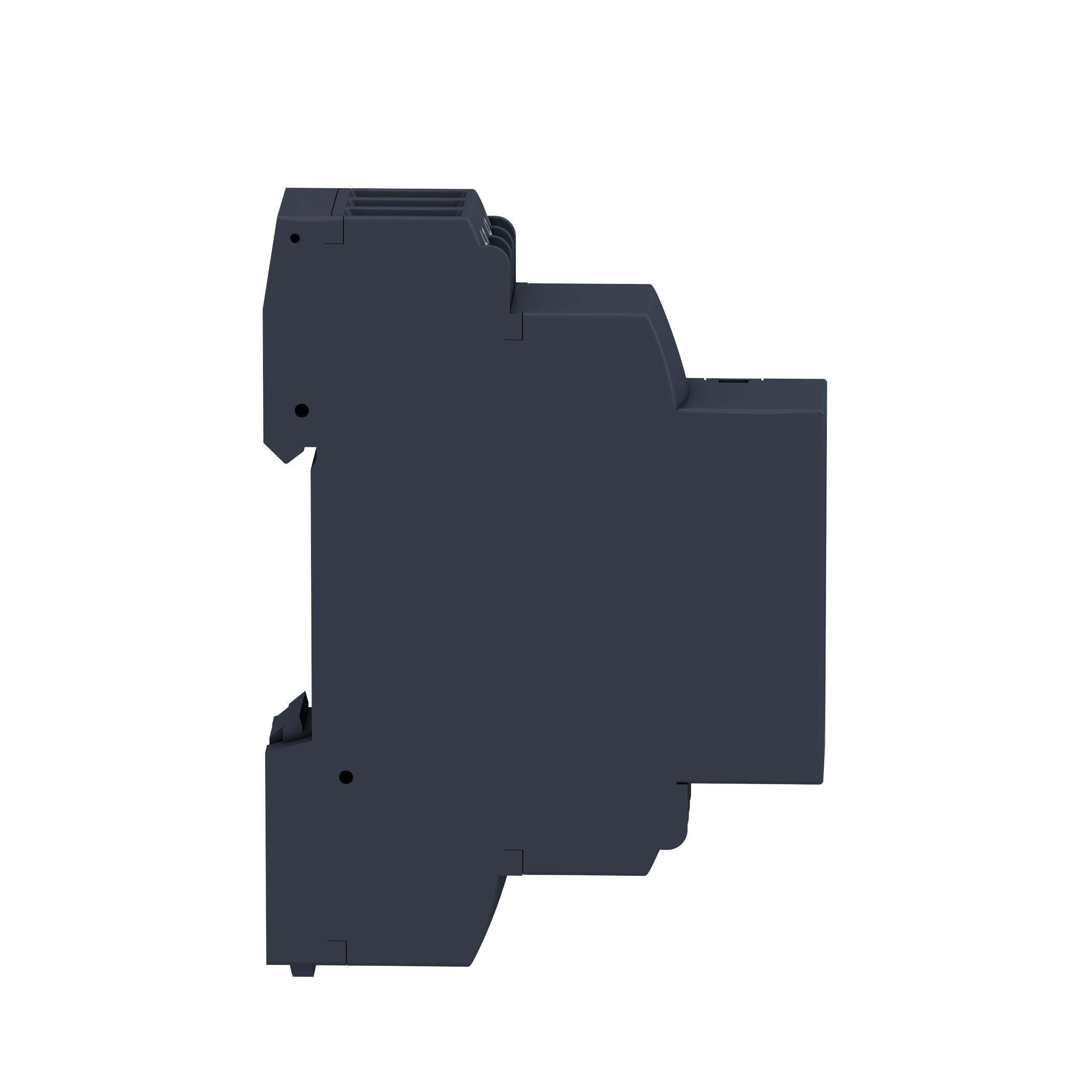

Picture of RM17TG00 - 3-phase control relay, Harmony Control Relays, 5A, 1CO, screw connectors, 208...480V AC Picture of RM17TG00 - 3-phase control relay, Harmony Control Relays, 5A, 1CO, screw connectors, 208...480V AC
Picture of RM17TG00 - 3-phase control relay, Harmony Control Relays, 5A, 1CO, screw connectors, 208...480V AC Picture of RM17TG00 - 3-phase control relay, Harmony Control Relays, 5A, 1CO, screw connectors, 208...480V AC
Picture of RM17TG00 - 3-phase control relay, Harmony Control Relays, 5A, 1CO, screw connectors, 208...480V AC Picture of RM17TG00 - 3-phase control relay, Harmony Control Relays, 5A, 1CO, screw connectors, 208...480V AC
Picture of RM17TG00 - 3-phase control relay, Harmony Control Relays, 5A, 1CO, screw connectors, 208...480V AC Picture of RM17TG00 - 3-phase control relay, Harmony Control Relays, 5A, 1CO, screw connectors, 208...480V AC
Picture of RM17TG00 - 3-phase control relay, Harmony Control Relays, 5A, 1CO, screw connectors, 208...480V AC Picture of RM17TG00 - 3-phase control relay, Harmony Control Relays, 5A, 1CO, screw connectors, 208...480V AC
Schneider Electric

RM17TG00 - 3-phase control relay, Harmony Control Relays, 5A, 1CO, screw connectors, 208...480V AC

Item Code: 650251
Category Sensing Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref RM17TG00

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This Harmony RM17-TG relay allows monitoring of power supply circuits in 3-phase networks. This modular multi function 3-phase supply control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slimmest form-factors with 17.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. The product monitors its own power supply, when the power supply is abnormal, the output relay de-energizes. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Specifications

Weight

0.2lb

Width

3.04mm

Length

3.71mm

AD Application

For 3-phase Supply applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

ID

AD Invoice Description

RELAY CTRL 5A 22VA 50 TO 60HZ 400VAC 1CO

AD Item Features 01

Simplified panel design due to 0.69in width same as 1-pole circuit breaker

AD Item Features 02

Experience unprecedented accuracy, predictive maintenance, and superior security

AD Item Features 03

The product monitors its own power supply

AD Item Features 04

When the power supply is abnormal, the output relay de-energizes

AD Item Features 05

Transparent cover offers tamper protection and reduces maintenance

AD Item Features 06

Compatible with a wide range of applications, such as hoisting, packaging, lifts, textile, pumping, and water

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

3.7100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.2000

AD Package Weight UOM

LB

AD Package Width

3.0400

AD Package Width UOM

IN

Brand

Square D

Category

SENSING RELAYS & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

5

Spec 10 Attribute

Series

Spec 10 Attribute Value

RM17-T

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

-20 To 50

Spec 12 Attribute

Terminal Type

Spec 12 Attribute Value

Screw

Spec 13 Attribute

Type

Spec 13 Attribute Value

3-Phase

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

400

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

1CO 1 Form C

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

17.5 mm W x 3.54 in H

Spec 5 Attribute

Display Type

Spec 5 Attribute Value

Led

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

IP20/IP30

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

HZ

Spec 7 Attribute Value

50 To 60

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

DIN Rail

Spec 9 Attribute

Power Rating

Spec 9 Attribute UOM

VA

Spec 9 Attribute Value

22
