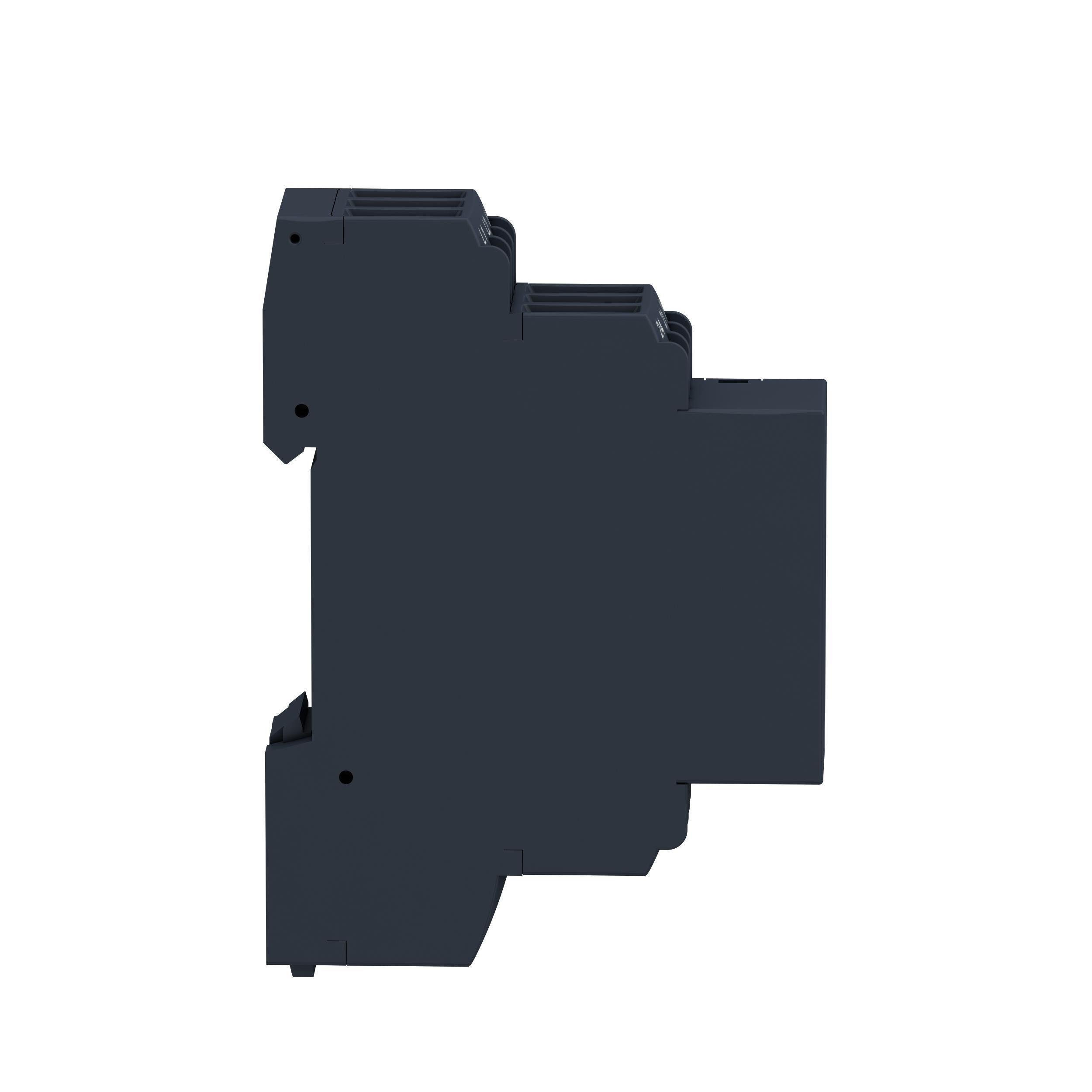

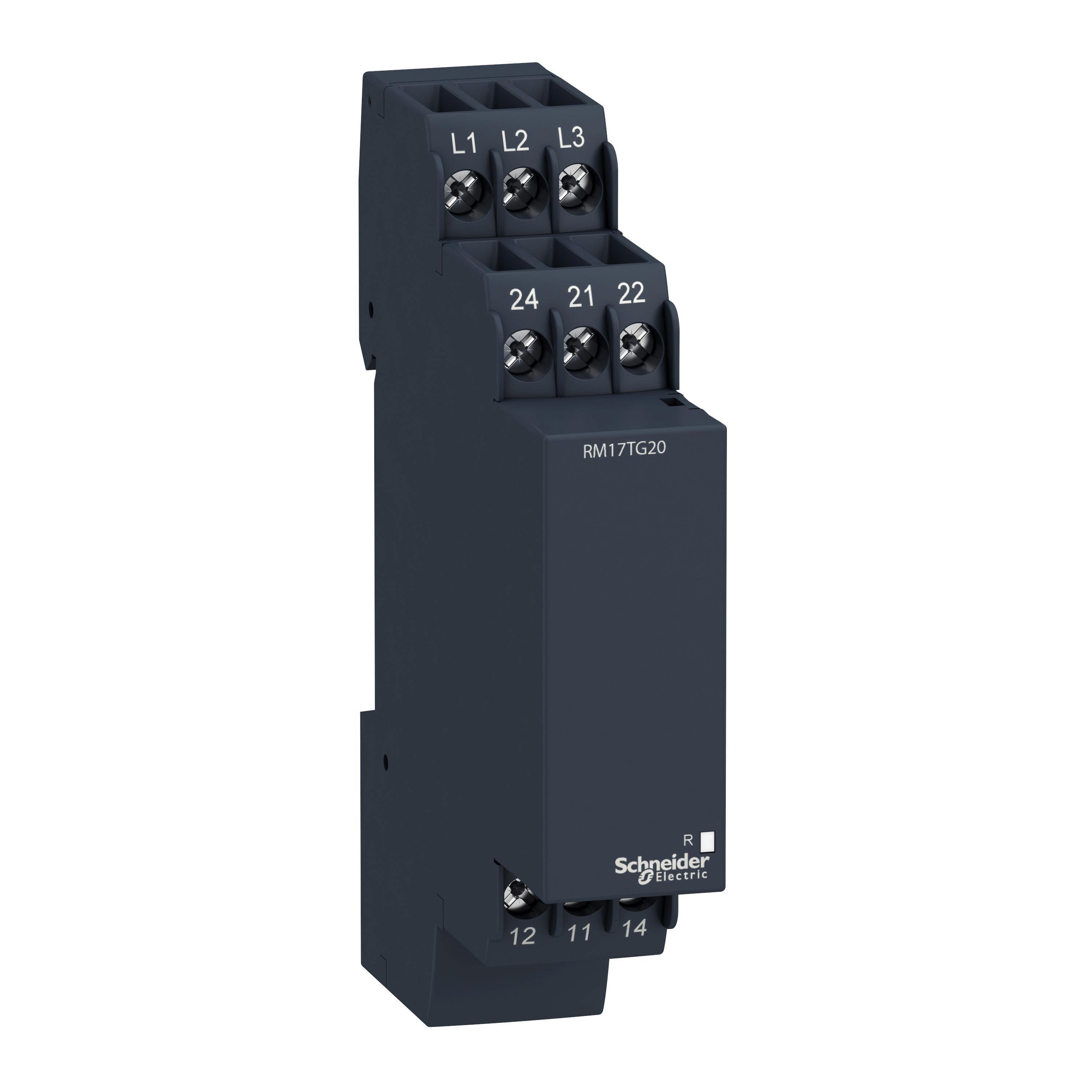

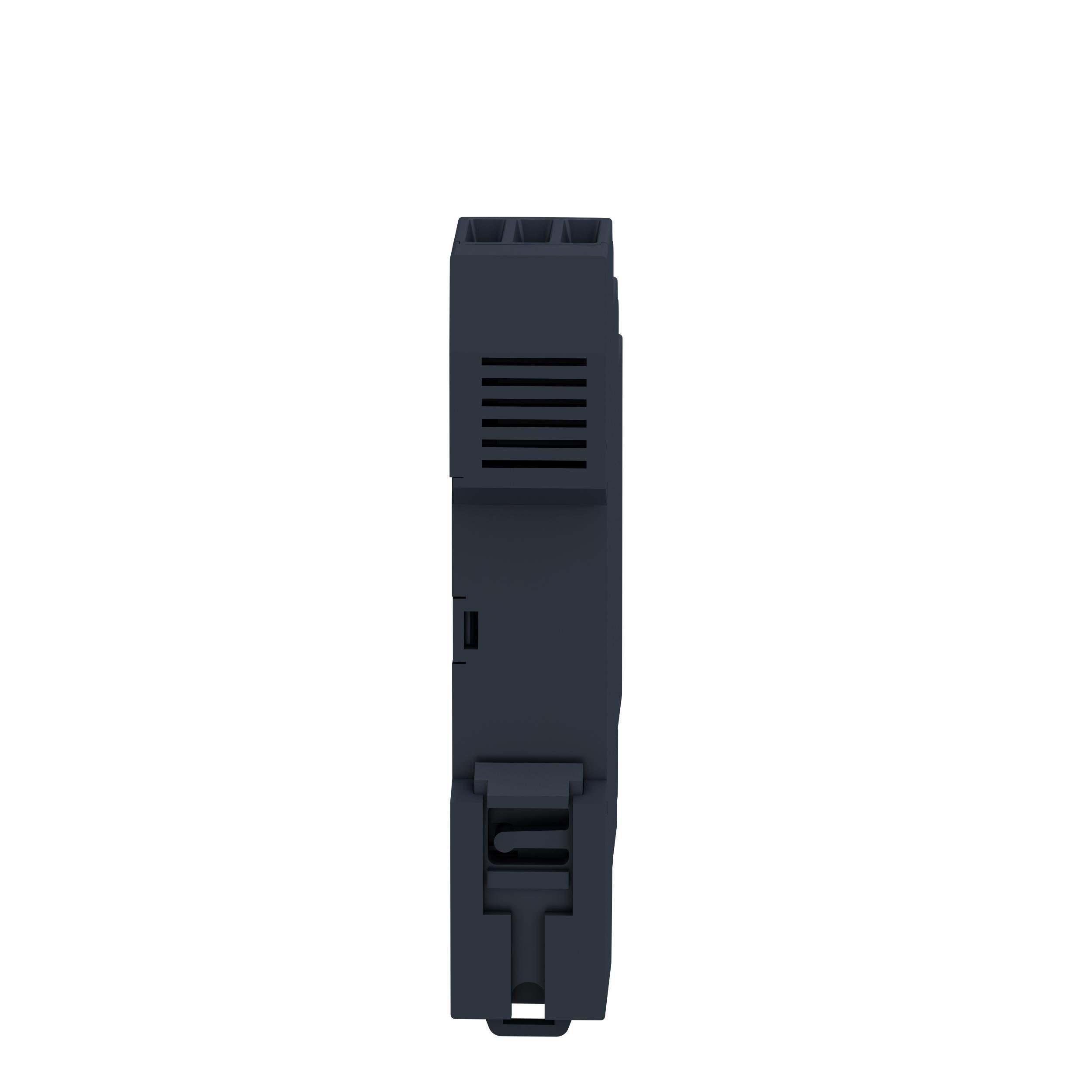

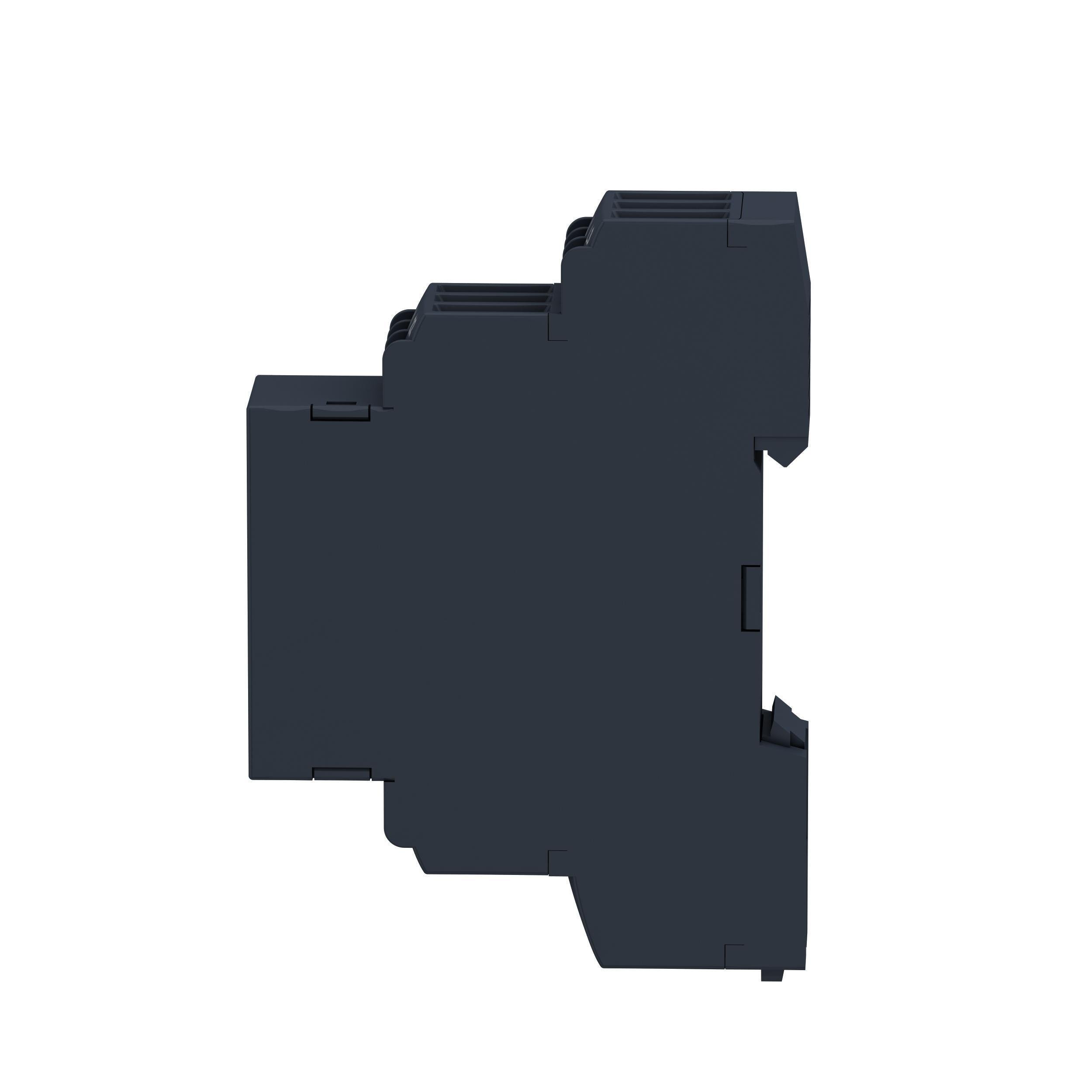

RM17TG20 - 3-phase control relay, Harmony Control Relays, 5A, 2CO, 208...480V AC
Description
Specifications
Construction Cranes, Harbor Cranes, Motor Voltage, Current Overload, Construction Lifts, Passenger Lifts, Escalators, Motor Voltage, Current Overload, Liquid Level on Water Tank at Water and Waste Water Recycling Plant Applications
Schneider Electric
USA
US
RELAY CTRL 5A 0 TO 22VA 50/60HZ 2CO
Simplified panel design due to 0.69in width same as 1-pole circuit breaker
Experience unprecedented accuracy, predictive maintenance, and superior security
The product monitors its own power supply
When the power supply is abnormal, the output relay de-energizes
Transparent cover offers tamper protection and reduces maintenance
Compatible with a wide range of applications, such as hoisting, packaging, lifts, textile, pumping, and water
Schneider Electric
1
Square D
SENSING RELAYS & ACCESSORIES
Amperage Rating
A
5
Series
RM17
Temperature Rating
deg C
-20 To 50
Terminal Type
Screw clamp
Type
3-Phase Modular Measurement
Coil Voltage
V AC
208 To 480
Contact Form
2CO 2 Form C
Dimensions
17.5 mm W
Enclosure Type
IP20/IP30
Frequency Rating
HZ
50/60
Mounting Type
DIN Rail
Number Of Poles
2
Power Rating
VA
0 to 22
