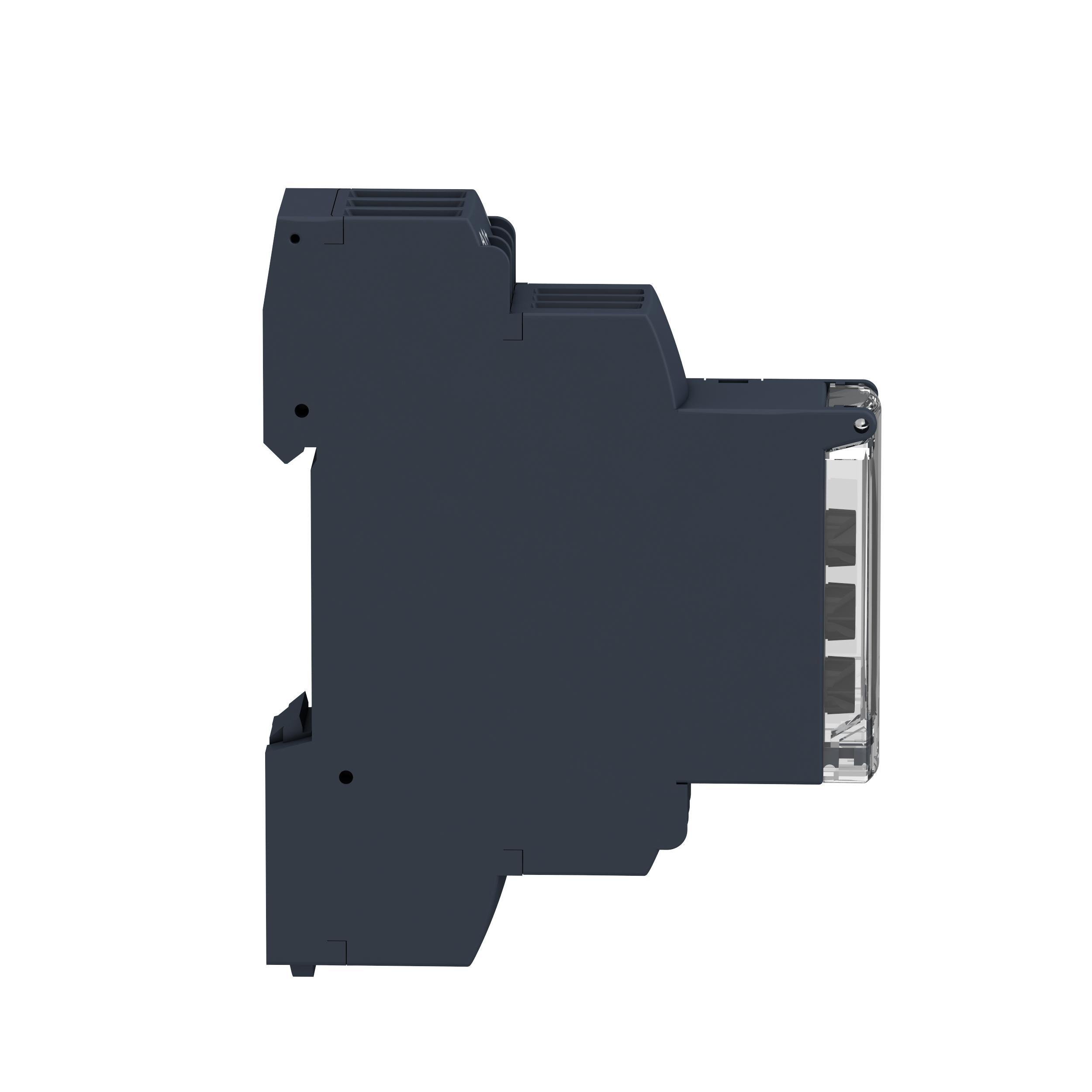

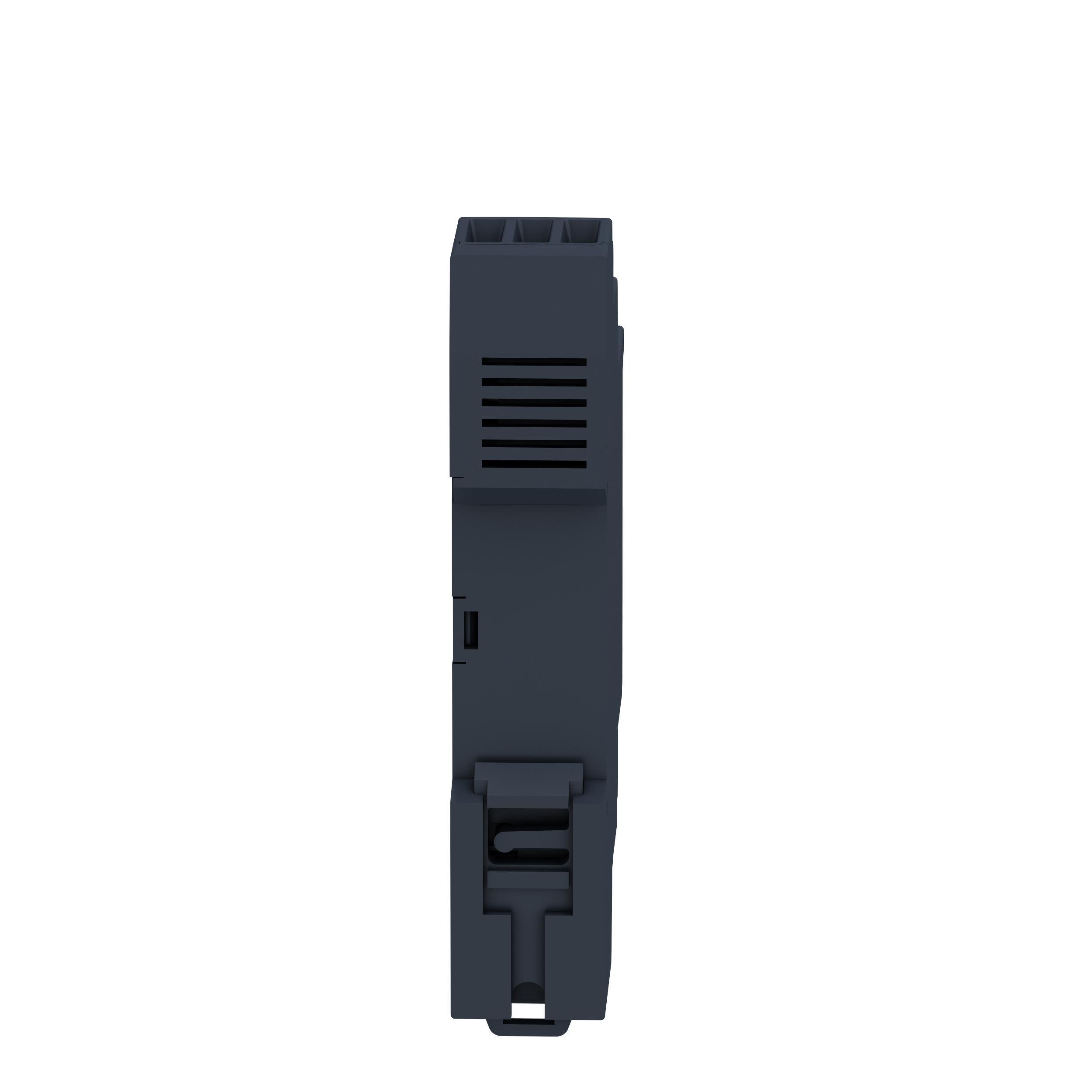

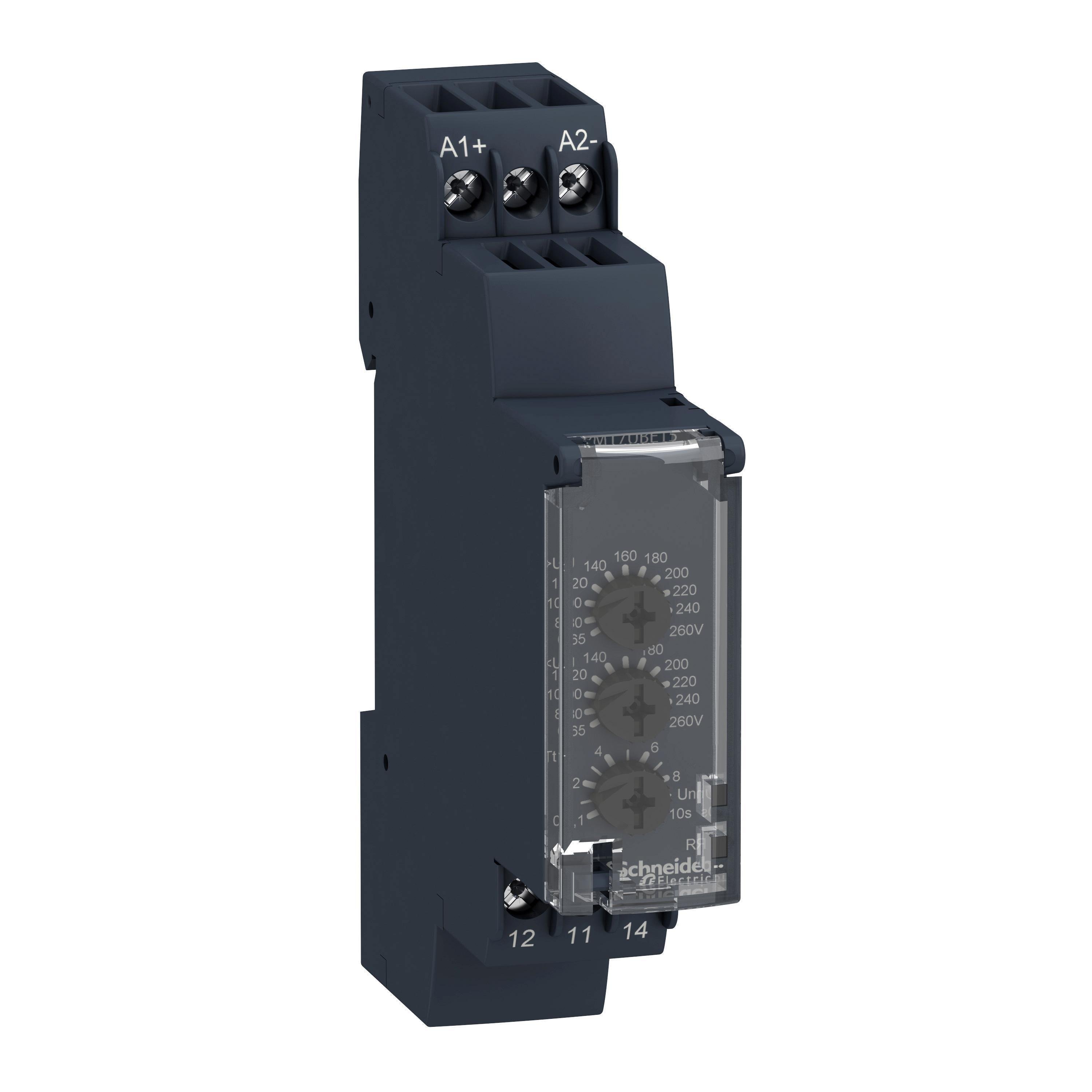

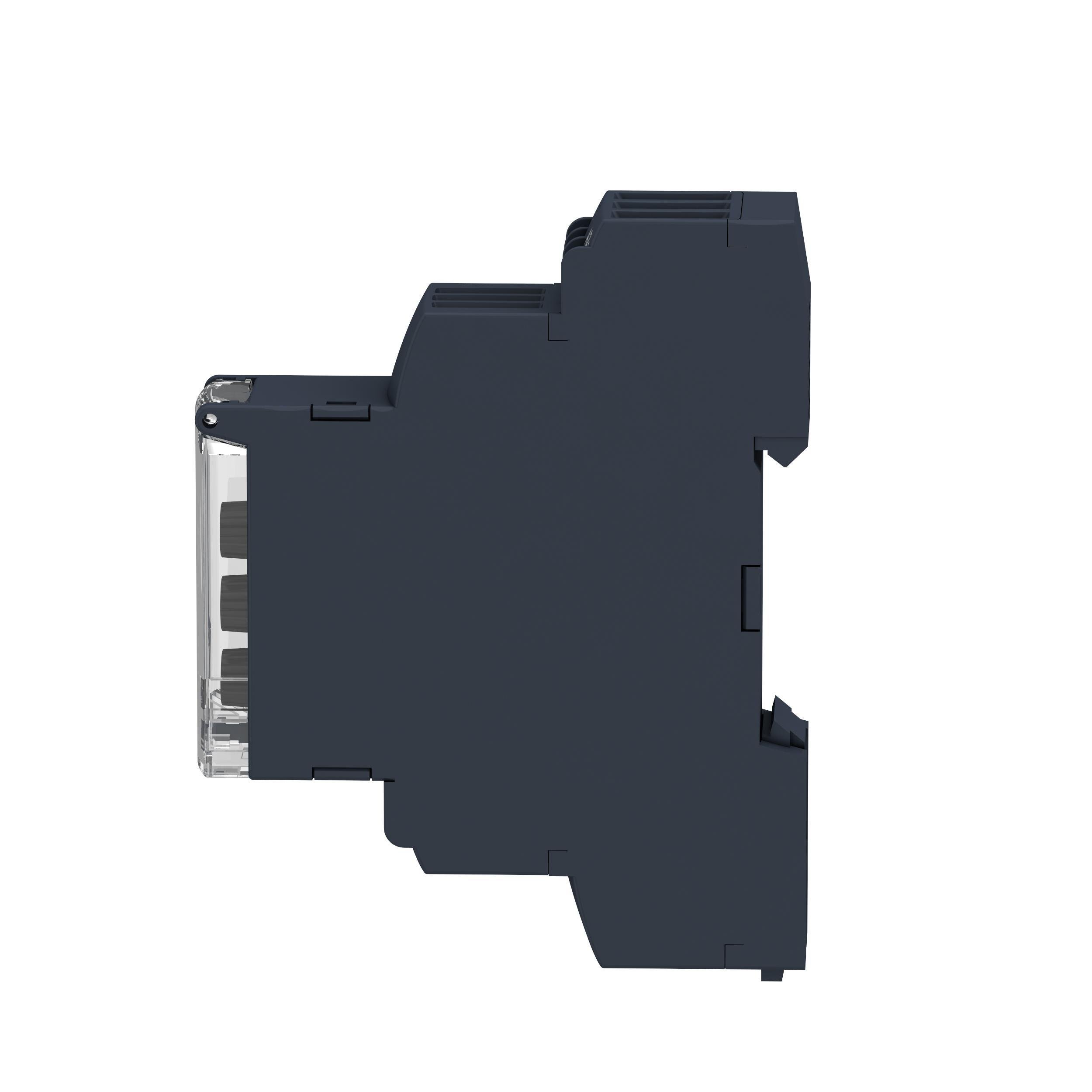

RM17UBE15 - voltage control relay, Harmony Control Relays, 5A, 1CO, overvoltage and undervoltage detection, 65...260V AC DC
Description
Specifications
0.18
3.04
3.78
Construction Cranes, Harbor Cranes, Motor Voltage, Current Overload, Construction Lifts, Passenger Lifts, Escalators, Motor Voltage, Current Overload, Liquid Level on Water Tank at Water and Waste Water Recycling Plant Applications
Schneider Electric
USA
US
RELAY CTRL 5A 1CO-SPDT 110 TO 240VAC/VDC
Simplified panel design due to 0.69in width same as 1-pole circuit breaker
Experience unprecedented accuracy, predictive maintenance, and superior security
Provides automatic shutdown management and fault information for a quick fault identification and troubleshooting
Transparent cover offers tamper protection and reduces maintenance
Compatible with a wide range of applications, such as hoisting, packaging, lifts, textile, pumping, and water
Schneider Electric
IN
3.7800
IN
1
0.1800
LB
3.0400
IN
Square D
GENERAL PURPOSE PLUG-IN RELAYS & ACCESSORIES
Amperage Rating
A
5
Series
RM17
Temperature Rating
deg C
-20 To 50
Terminal Type
Screw clamp
Type
1-Phase Modular Measurement Overvoltage/Undervoltage Self-Powered
Coil Voltage
V AC/DC
110 to 240
Contact Form
1CO 1 Form C SPDT
Dimensions
0.69 in W
Enclosure Type
IP20/IP30
Frequency Rating
HZ
50/60
Mounting Type
DIN Rail
Number Of Poles
1
Power Rating
W
1
