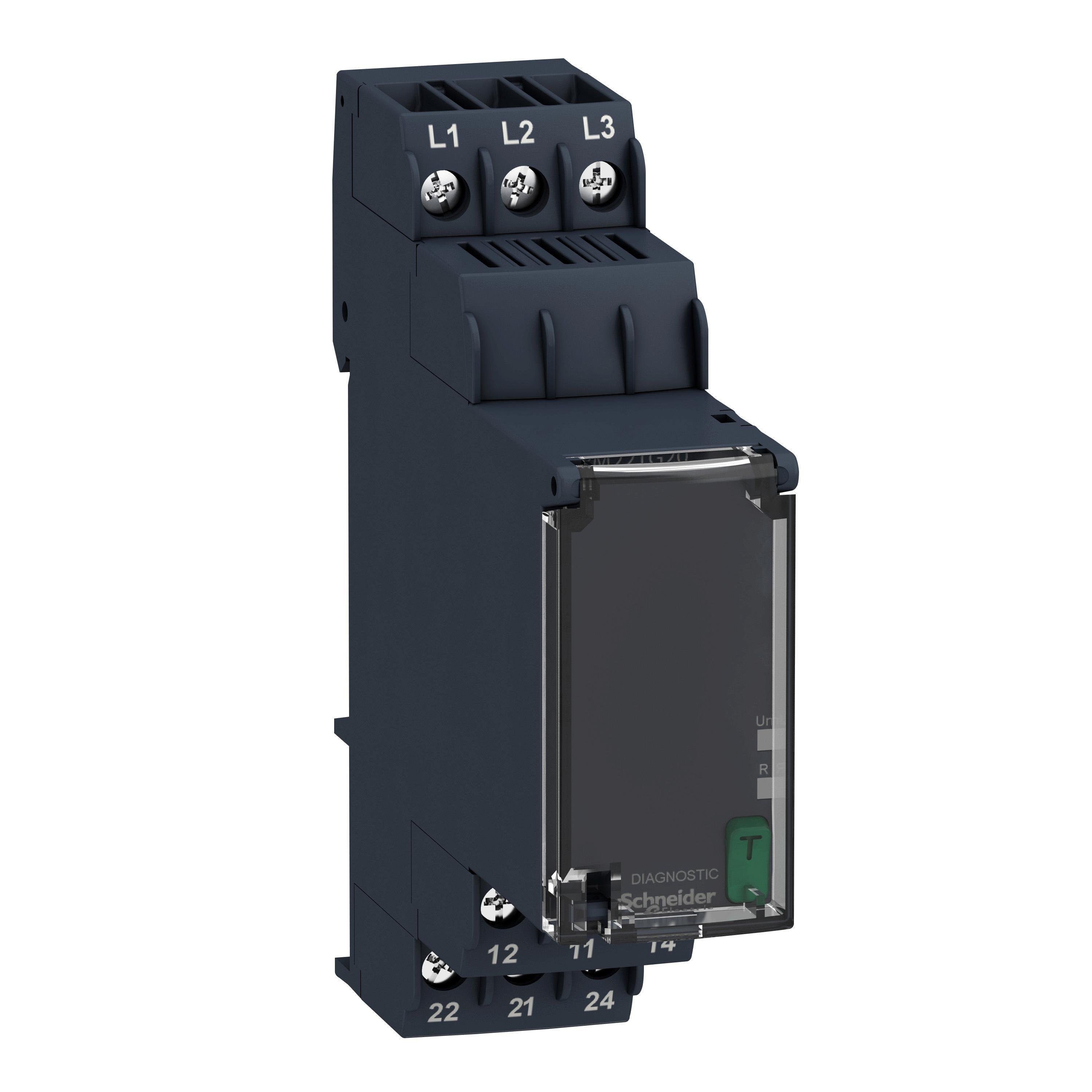

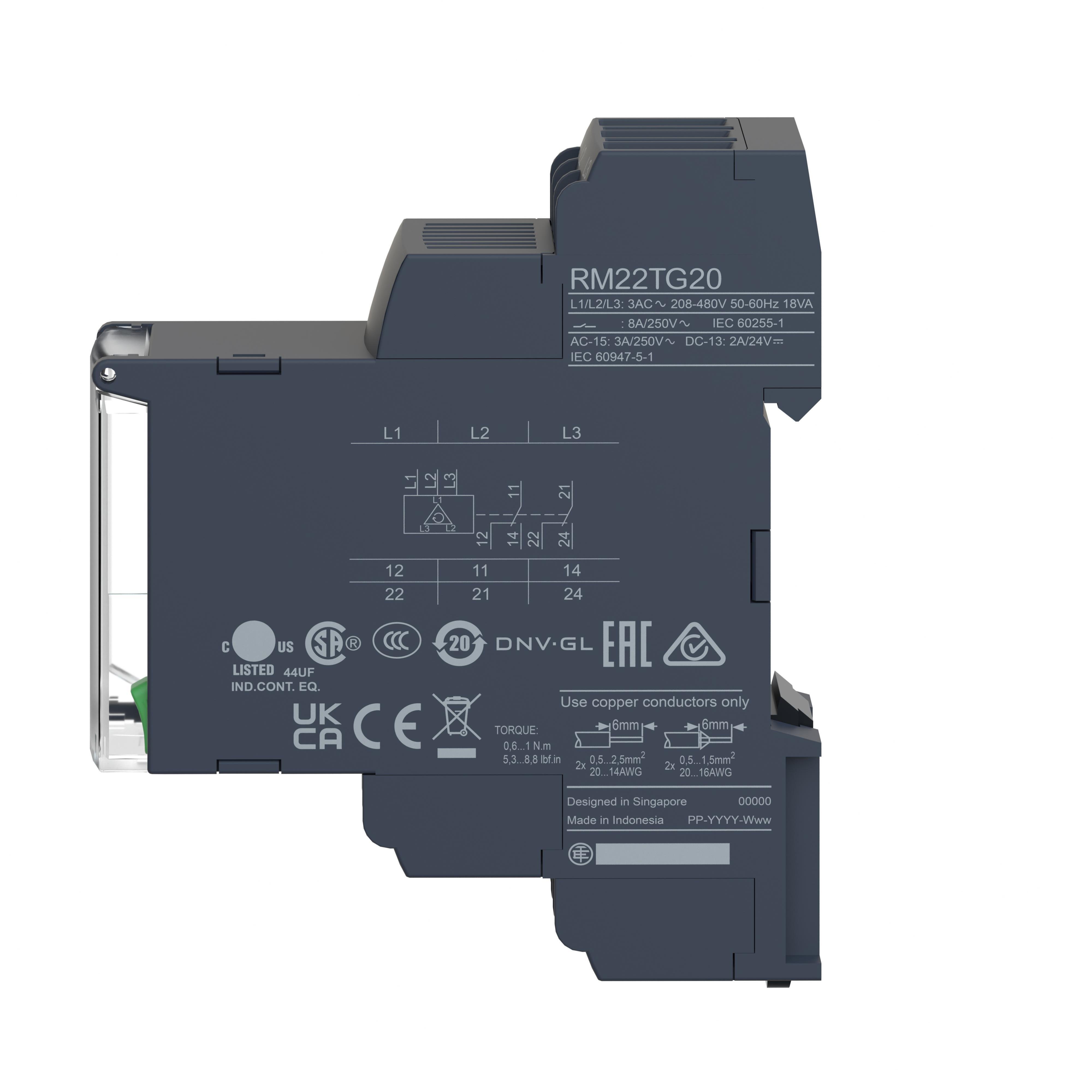

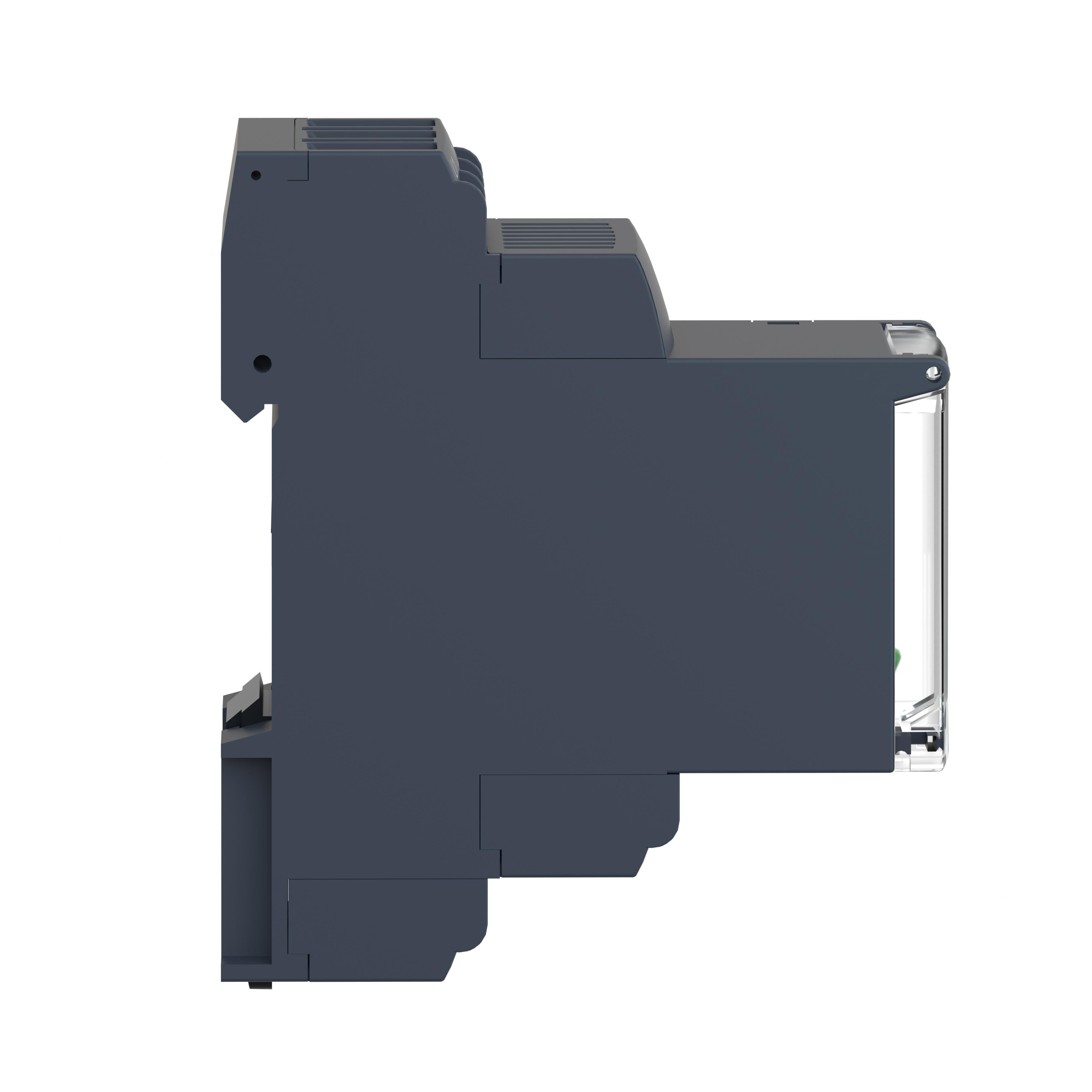

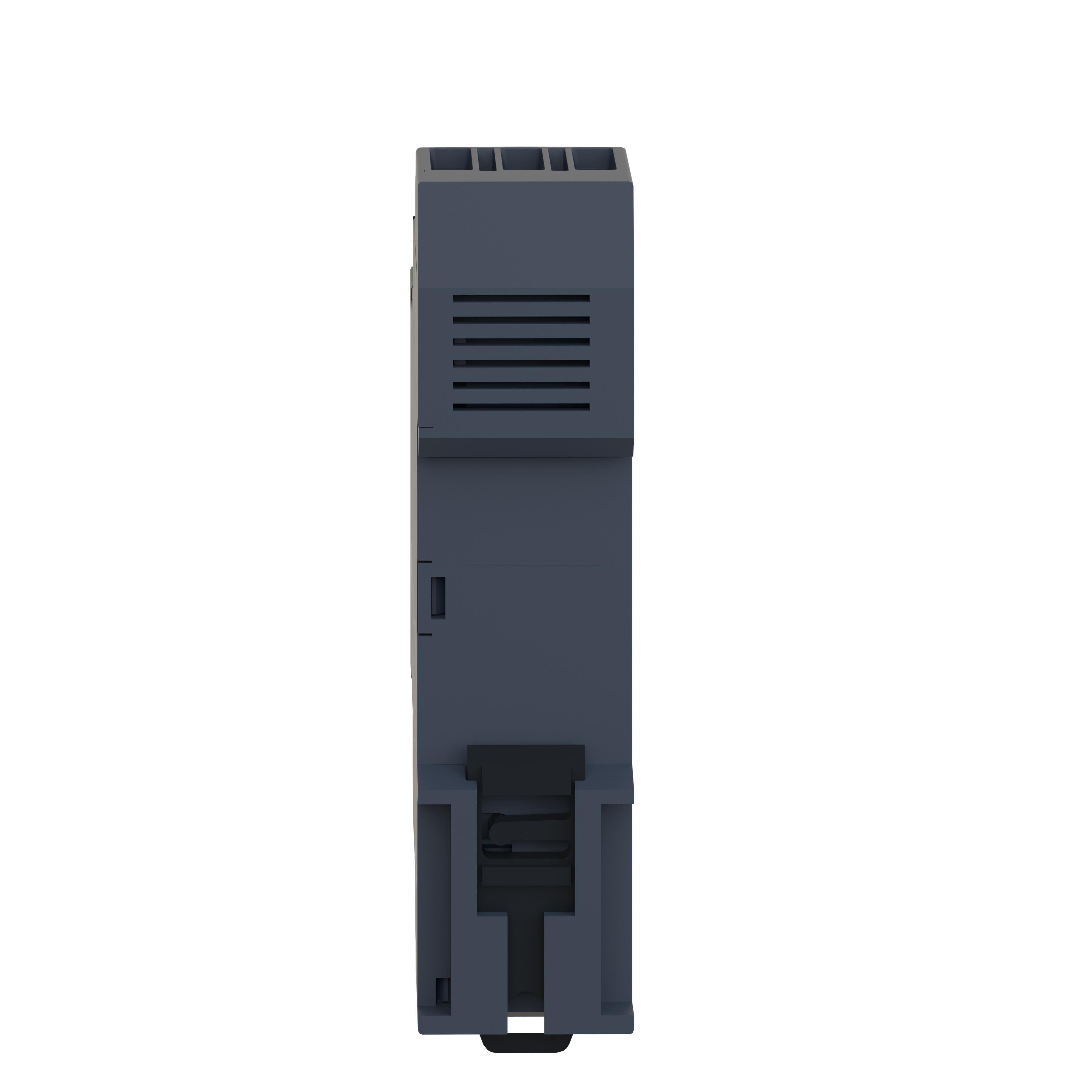

RM22TG20 - Harmony, Modular 3-phase supply control relay, 8A, 2 CO, 183…528VAC
Description
Specifications
0.23
3.2
3.71
Construction Cranes, Harbor Cranes, Motor Voltage, Current Overload, Construction Lifts, Passenger Lifts, Escalators, Motor Voltage, Current Overload, Liquid Level on Water Tank at Water and Waste Water Recycling Plant Applications
Schneider Electric
USA
ID
RELAY CTRL IEC 8A 2CO-DPDT 183 TO 528VAC
Simplified panel design due to 0.89in width same as 2-pole circuit breaker
Experience unprecedented accuracy, predictive maintenance, and superior security
Provides automatic shutdown management and fault information for a quick fault identification and troubleshooting
Transparent cover offers tamper protection and reduces maintenance
Multi-functional - gives you flexibility in maintenance, reducing the variety of products to stock
Schneider Electric
3.7100
IN
1
0.2300
LB
3.2000
IN
Square D
MONITORING RELAYS & ACCESSORIES
Amperage Rating
A
8
Series
RM22
Temperature Rating
deg C
-20 to 50/-20 to 60
Terminal Type
Screw clamp
Type
3 ph Modular Measurement Multi-Function
Coil Voltage
V AC
183 to 528
Contact Form
2CO 2 Form C DPDT
Dimensions
0.89 in W
Enclosure Type
IP20/IP40/IP50
Frequency Rating
HZ
50/60
Mounting Type
DIN Rail
Number Of Poles
2
Power Rating
VA
15
