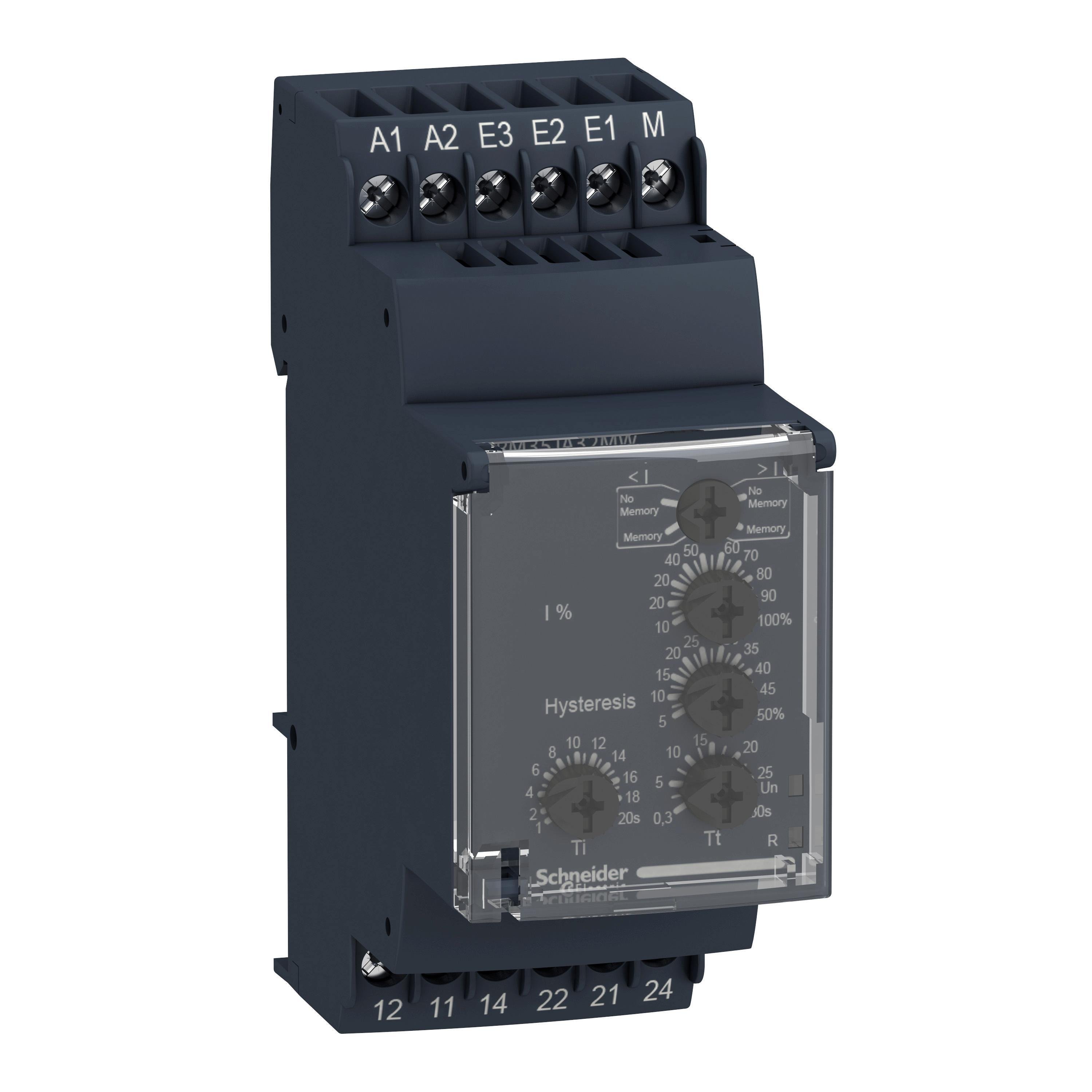

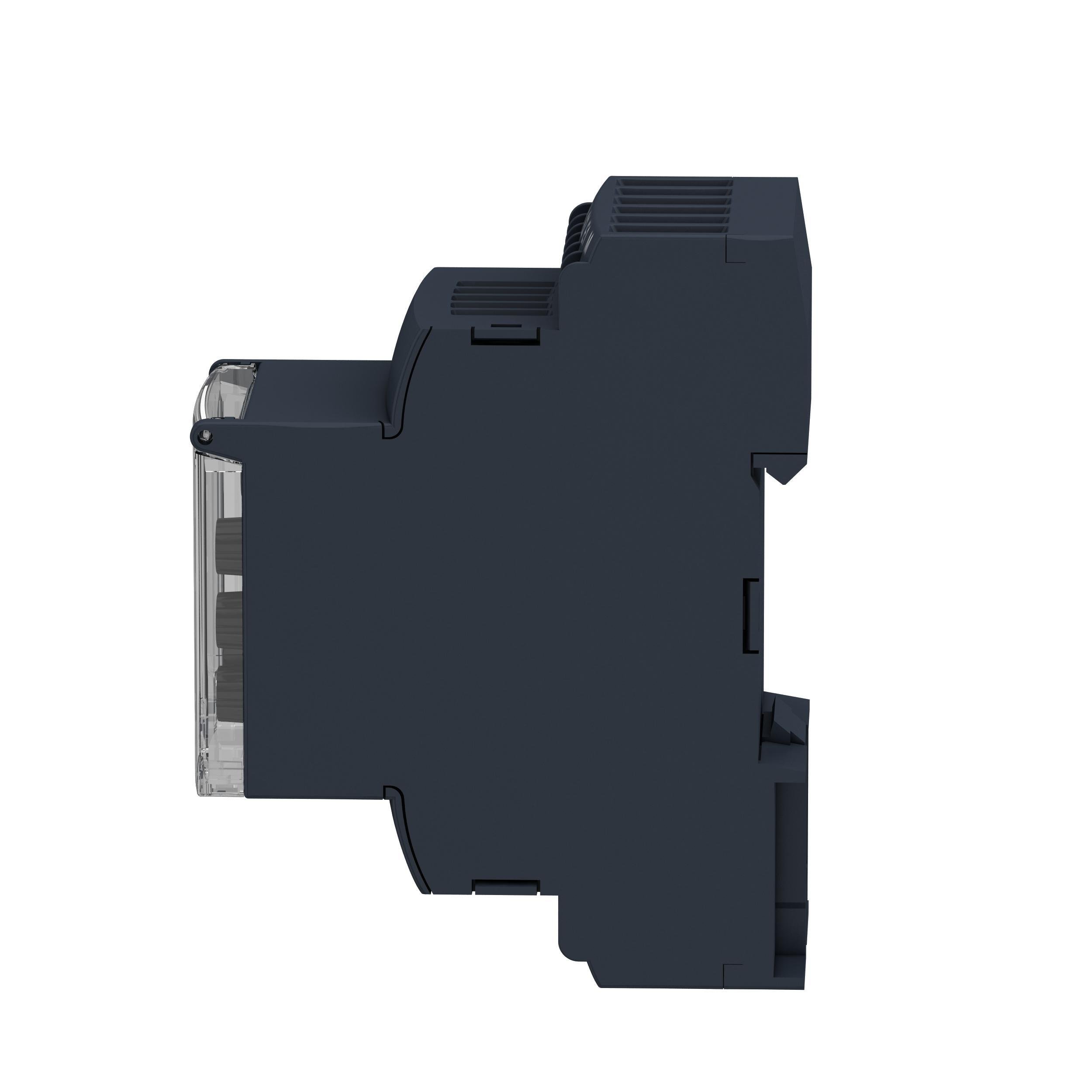

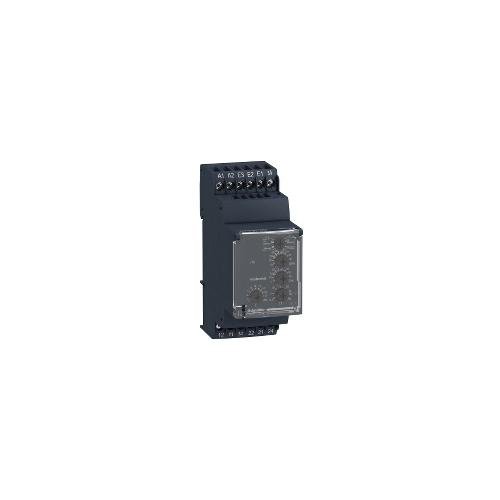

RM35JA31MW - current control relay, Harmony Control Relays, 5A, 2CO, 2...500mA, 24...240V AC DC
Description
Specifications
0.3
3.04
3.71
Construction Cranes, Harbor Cranes, Motor Voltage, Current Overload, Construction Lifts, Passenger Lifts, Escalators, Motor Voltage, Current Overload, Liquid Level on Water Tank at Water and Waste Water Recycling Plant Applications
Schneider Electric
USA
ID
RELAY CTRL CUR 5A 2CO-DPDT 3.5VA 50/60HZ
Simplified panel design due to 1.38in width same as 3-pole circuit breaker
Experience unprecedented accuracy, predictive maintenance, and superior security
Provides automatic shutdown management and fault information for a quick fault identification and troubleshooting
Transparent cover offers tamper protection and reduces maintenance
Compatible with a wide range of applications, such as hoisting, packaging, lifts, textile, pumping, and water
Schneider Electric
IN
3.7100
IN
1
0.3000
LB
3.0400
IN
Square D
SENSING RELAYS & ACCESSORIES
Amperage Rating
A
5
Series
RM35
Temperature Rating
deg C
-20 To 50
Terminal Type
Screw clamp
Type
Modular Measurement Overcurrent/Undercurrent
Coil Voltage
V AC/DC
24 to 240
Contact Form
2CO 2 Form C DPDT
Dimensions
1.38 in W
Enclosure Type
IP20/IP30
Frequency Rating
HZ
50/60
Mounting Type
DIN Rail
Number Of Poles
2
Power Rating
VA
3.5
