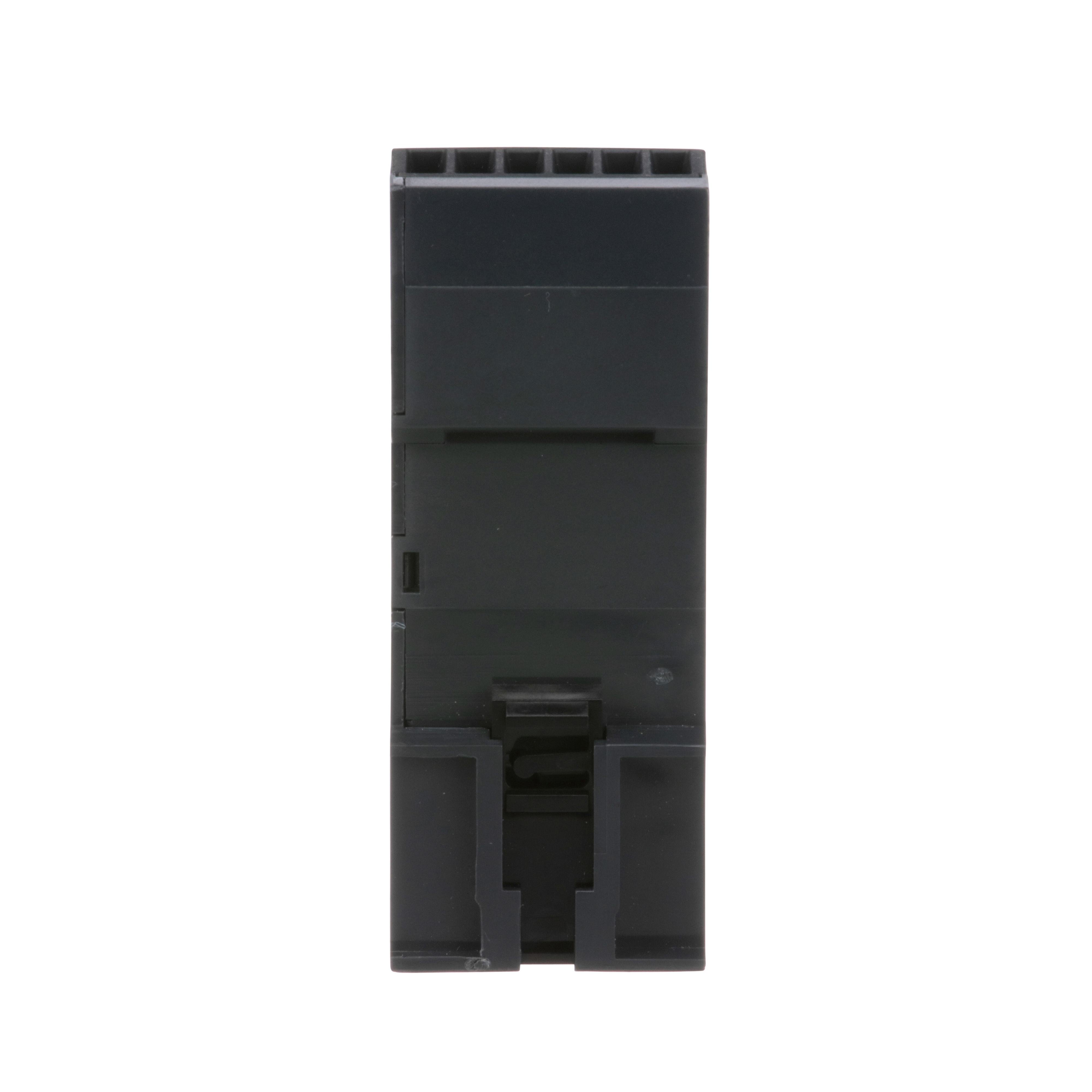

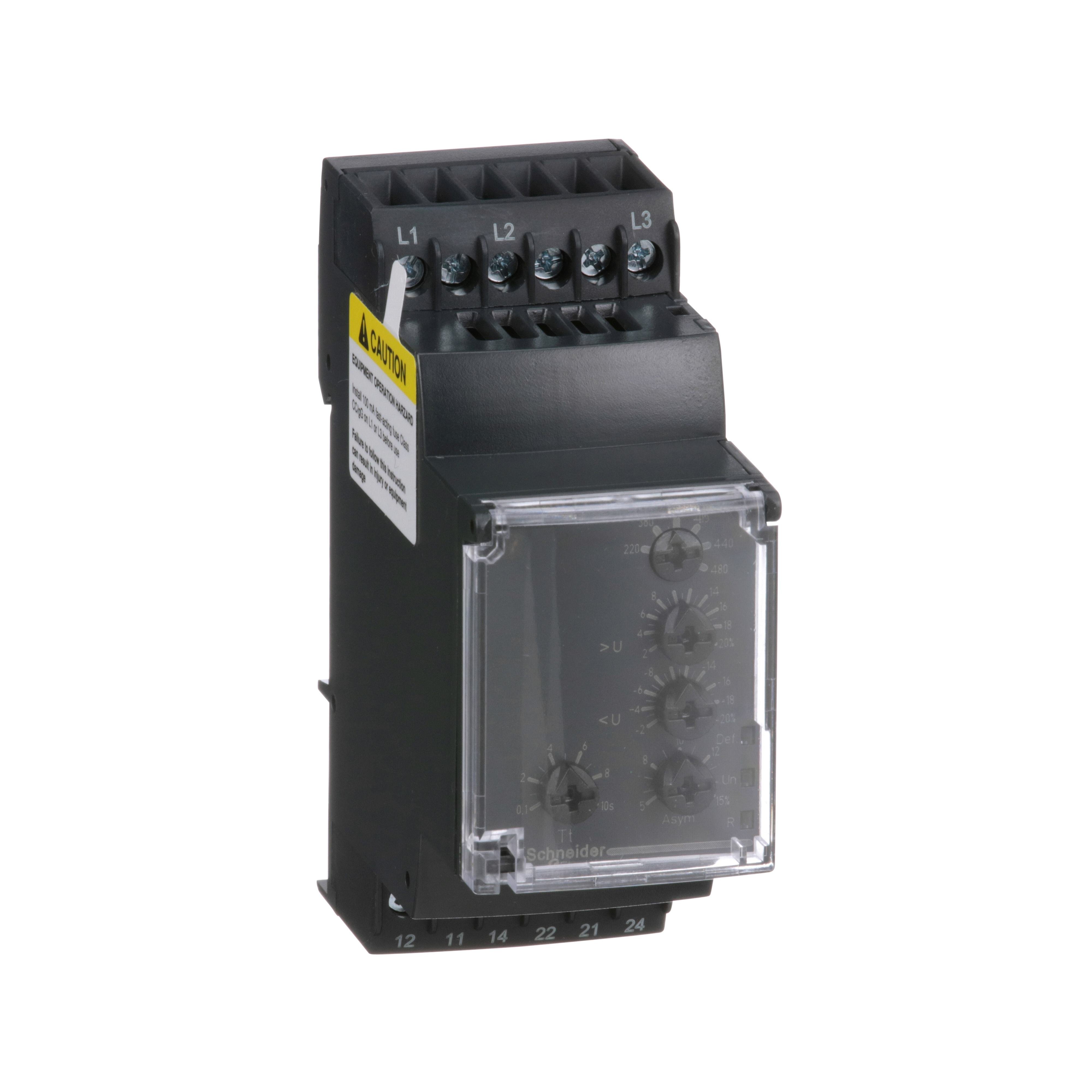

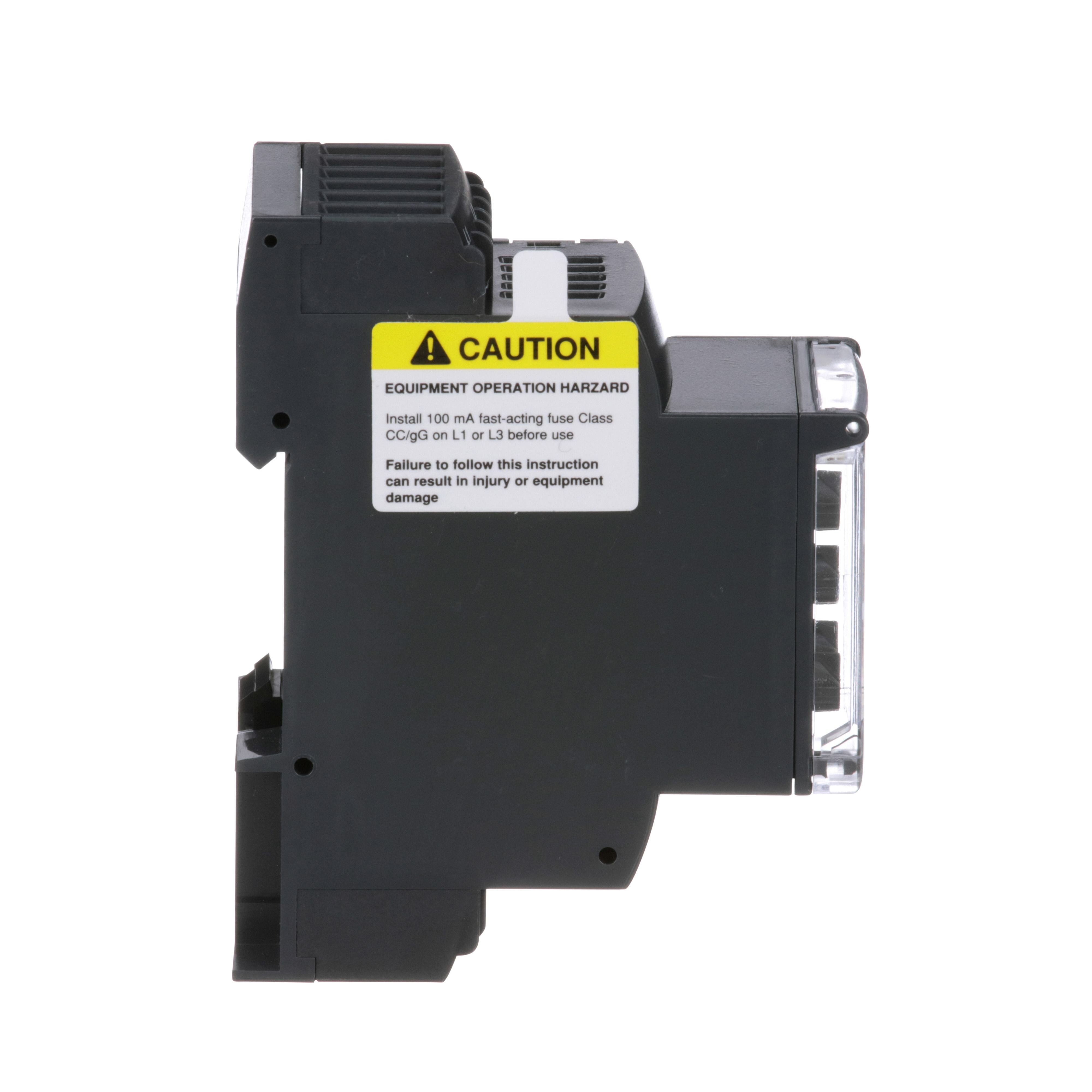

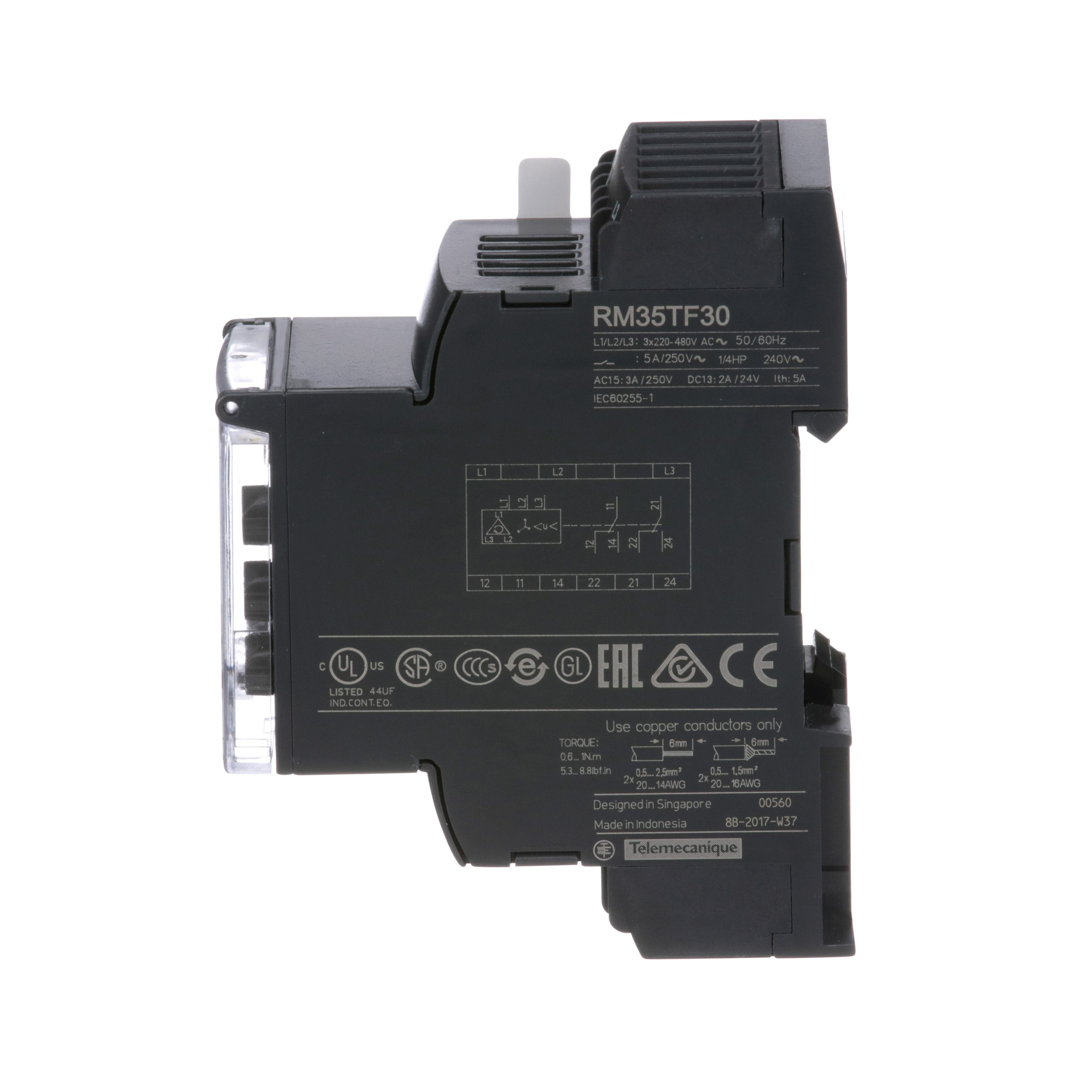

RM35TF30 - Harmony, 3 phase supply control relay, range 220 to 480 VAC, sequence, phase failure, phase imbalance, voltage
Description
Specifications
0.29
3.04
3.78
For 3-phase Supply applications
Schneider Electric
USA
FR
RELAY CTRL 5A <22VA 50 TO 60HZ 400VAC
Simplified panel design due to 1.38in width same as 3-pole circuit breaker
Experience unprecedented accuracy, predictive maintenance, and superior security
Provides automatic shutdown management and fault information for a quick fault identification and troubleshooting
Transparent cover offers tamper protection and reduces maintenance
Multi-functional - gives you flexibility in maintenance, reducing the variety of products to stock
Schneider Electric
IN
3.7800
IN
1
0.2900
LB
3.0400
IN
Square D
SENSING RELAYS & ACCESSORIES
Amperage Rating
A
5
Power Rating
VA
<22
Series
RM35-T
Temperature Rating
deg C
-20 To 50
Terminal Type
Screw
Type
3-Phase Modular Measurement Multi-Function
Coil Voltage
V AC
400
Contact Form
2CO 2 Form C
Contact Rating
5 A at 250 V AC
Dimensions
35 mm W
Display Type
Led
Enclosure Type
IP20/IP30
Frequency Rating
HZ
50 To 60
Mounting Type
DIN Rail
