Schneider Electric

RMCV60BD - Isolated analog converter, Harmony analog, 0...500V to 0...10V or 4...20mA

Category Programmable Logic & Automation Input/Output Modules

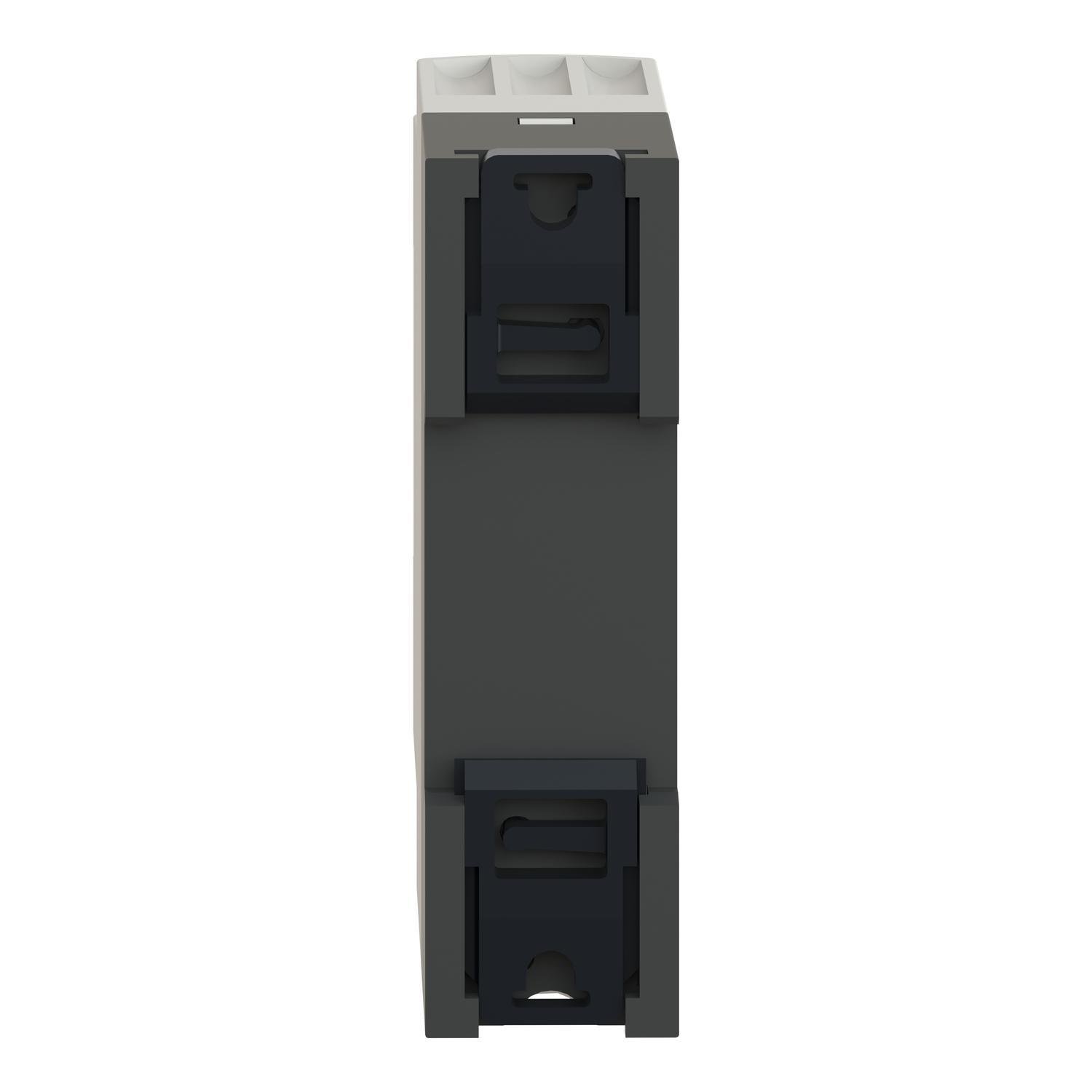

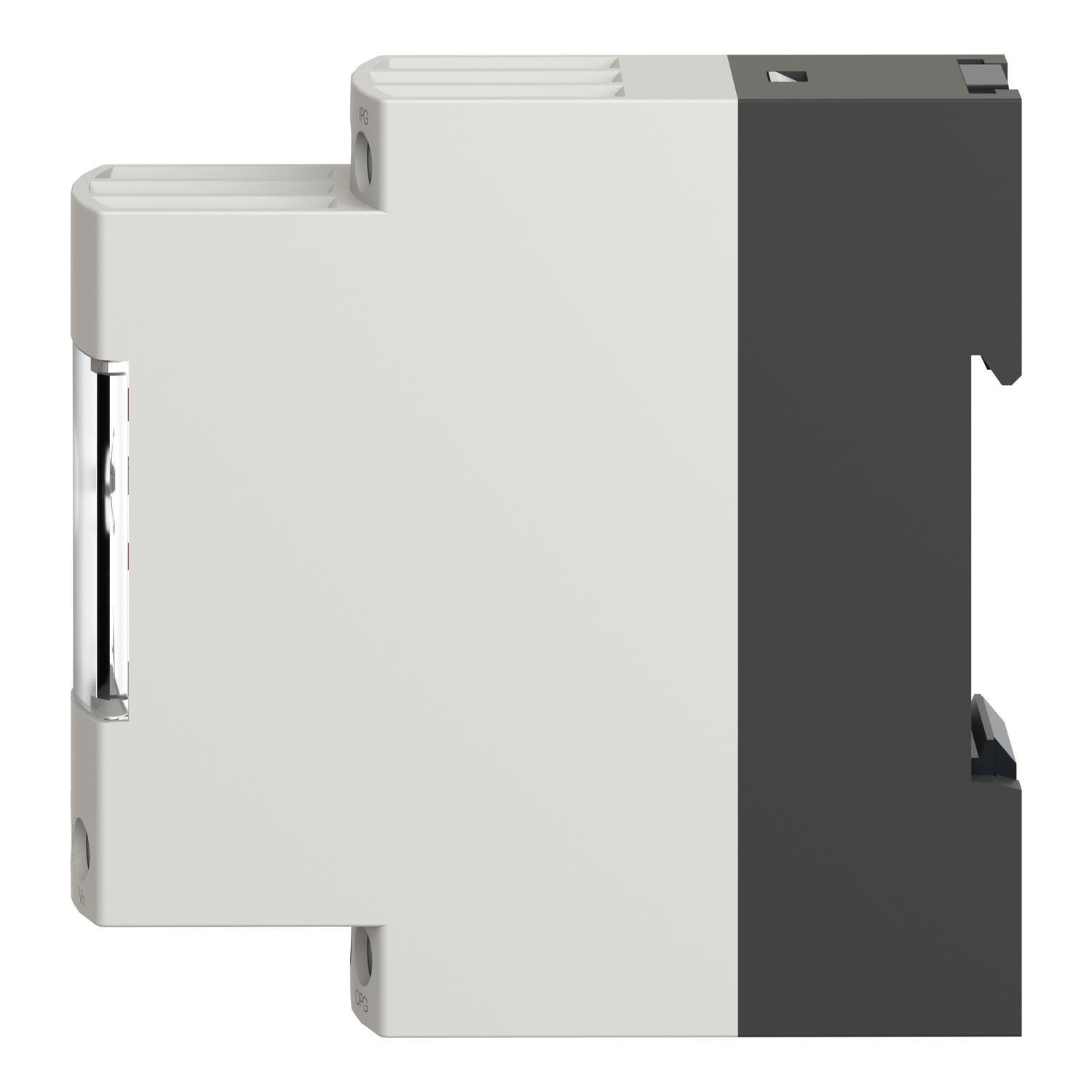

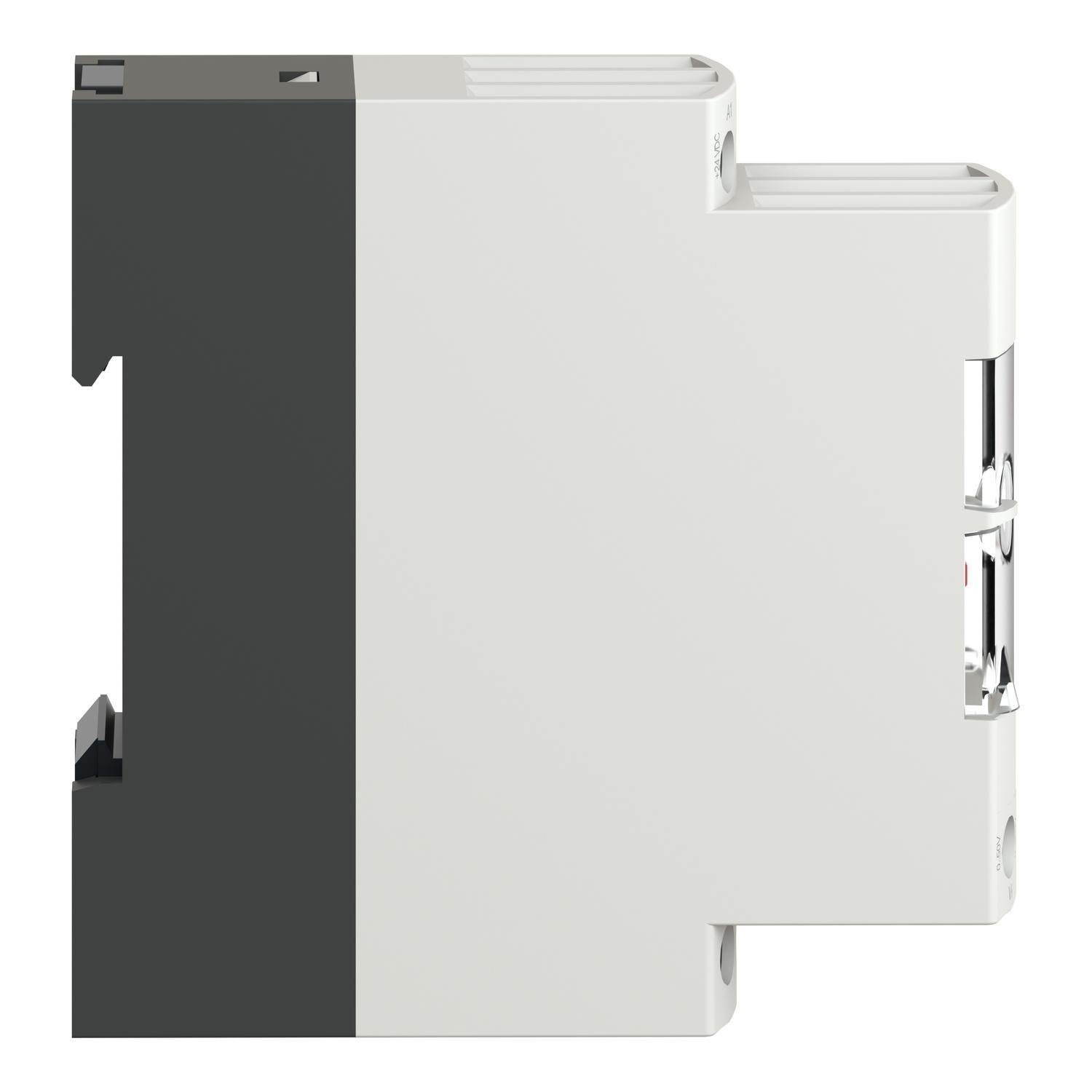

Picture of RMCV60BD - Isolated analog converter, Harmony analog, 0...500V to 0...10V or 4...20mA Picture of RMCV60BD - Isolated analog converter, Harmony analog, 0...500V to 0...10V or 4...20mA
Picture of RMCV60BD - Isolated analog converter, Harmony analog, 0...500V to 0...10V or 4...20mA Picture of RMCV60BD - Isolated analog converter, Harmony analog, 0...500V to 0...10V or 4...20mA
Picture of RMCV60BD - Isolated analog converter, Harmony analog, 0...500V to 0...10V or 4...20mA Picture of RMCV60BD - Isolated analog converter, Harmony analog, 0...500V to 0...10V or 4...20mA
Picture of RMCV60BD - Isolated analog converter, Harmony analog, 0...500V to 0...10V or 4...20mA Picture of RMCV60BD - Isolated analog converter, Harmony analog, 0...500V to 0...10V or 4...20mA
Picture of RMCV60BD - Isolated analog converter, Harmony analog, 0...500V to 0...10V or 4...20mA Picture of RMCV60BD - Isolated analog converter, Harmony analog, 0...500V to 0...10V or 4...20mA
Schneider Electric

RMCV60BD - Isolated analog converter, Harmony analog, 0...500V to 0...10V or 4...20mA

Item Code: 802094
Category Programmable Logic & Automation Input/Output Modules
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref RMCV60BD

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This voltage/current converter is part of the range of interfaces Harmony Analog. This cost effective converter converts a 0…50 V, 0…300 V, 0…500 V AC/DC signal to a switchable 0…10 V, ± 10 V, 0…20 mA or 4…20 mA signal. Its supply voltage is 24V DC, isolated. It also allows the connection distance between a sensor and the measurement acquisition device to be increased. 0 0 It weighs 150g and its dimensions are, 25mm wide, 78mm high, 80mm deep. 0 0 Conforming to IEC standards, UL and CSA certified, this converter is suitable for universal use. 0 0 It can be mounted on 35mm DIN rail or fixed by screws on a mounting plate. 0 0 0

Specifications

AD Application

Industries and Building Trade, Switchboards in Simple Machines, Process Control, Start-Up and Monitoring of Water Treatment Equipment Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

ID

AD Invoice Description

CONVERTER ANLG 0 TO 20MA 0 TO 10VAC SCR

AD Item Features 01

Designed to convert the signals from sensors or electrical measurement devices into standard electrical signals

AD Item Features 02

Experience unprecedented accuracy, predictive maintenance, and superior security

AD Item Features 03

Reverse polarity, overvoltage and short circuit protection

AD Item Features 04

Output with fallback value if no input signal is present

AD Item Features 05

Compatible with automation platforms and controllers

AD Manufacturer (Description)

Schneider Electric

AD Package Quantity

1

Brand

Square D

Category

PROGRAMMABLE LOGIC & AUTOMATION INPUT/OUTPUT MODULES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

MA

Spec 1 Attribute Value

0 to 20/4 to 20

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

3.07 in H x 3.15 in W x 2.01 in D

Spec 3 Attribute

Signal Range

Spec 3 Attribute UOM

MA

Spec 3 Attribute Value

0 to 20

Spec 4 Attribute

Temperature Rating

Spec 4 Attribute UOM

deg F

Spec 4 Attribute Value

32 to 140

Spec 5 Attribute

Terminal Type

Spec 5 Attribute Value

Screw

Spec 6 Attribute

Type

Spec 6 Attribute Value

Current Voltage

Spec 7 Attribute

Voltage Rating

Spec 7 Attribute UOM

V AC

Spec 7 Attribute Value

0 to 10
