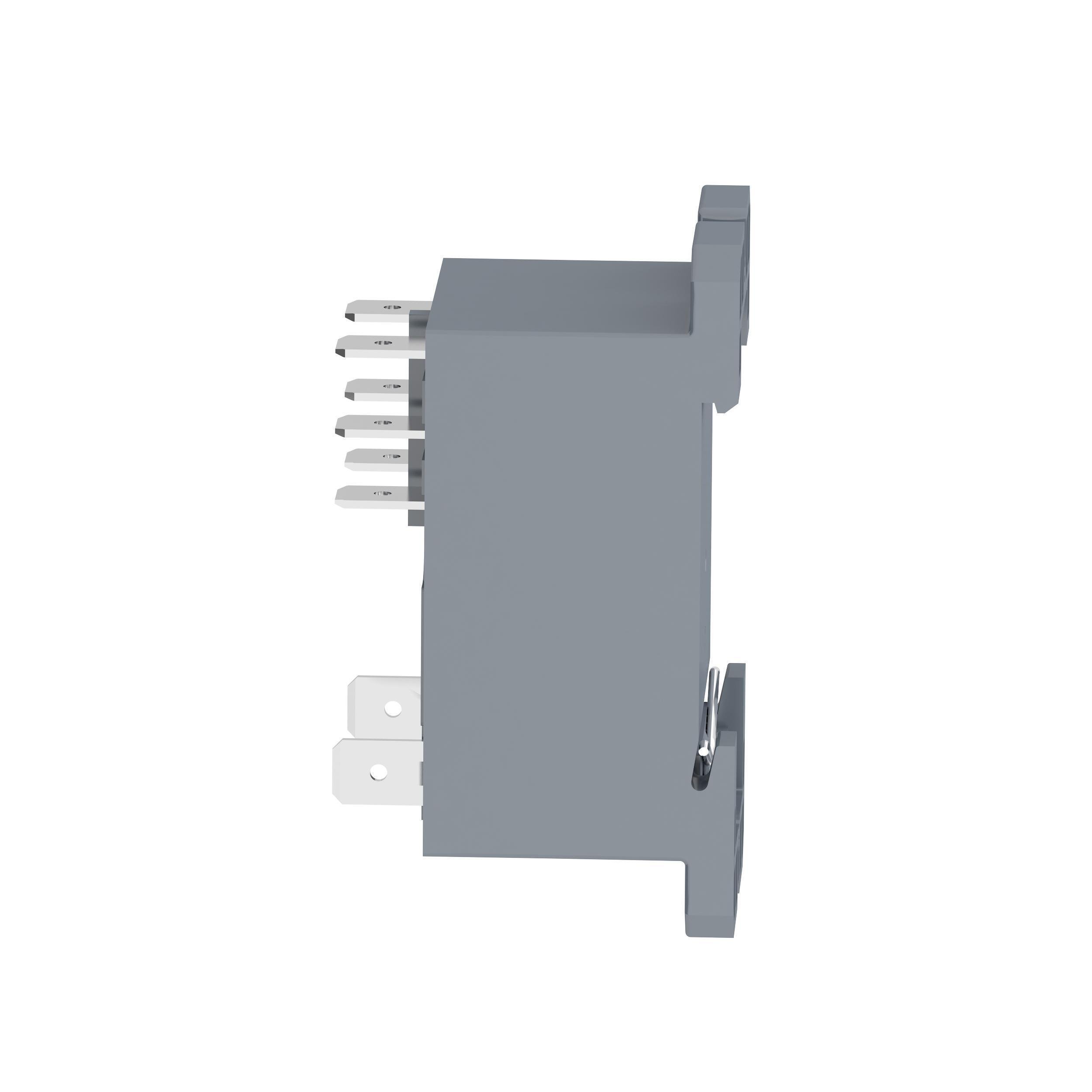

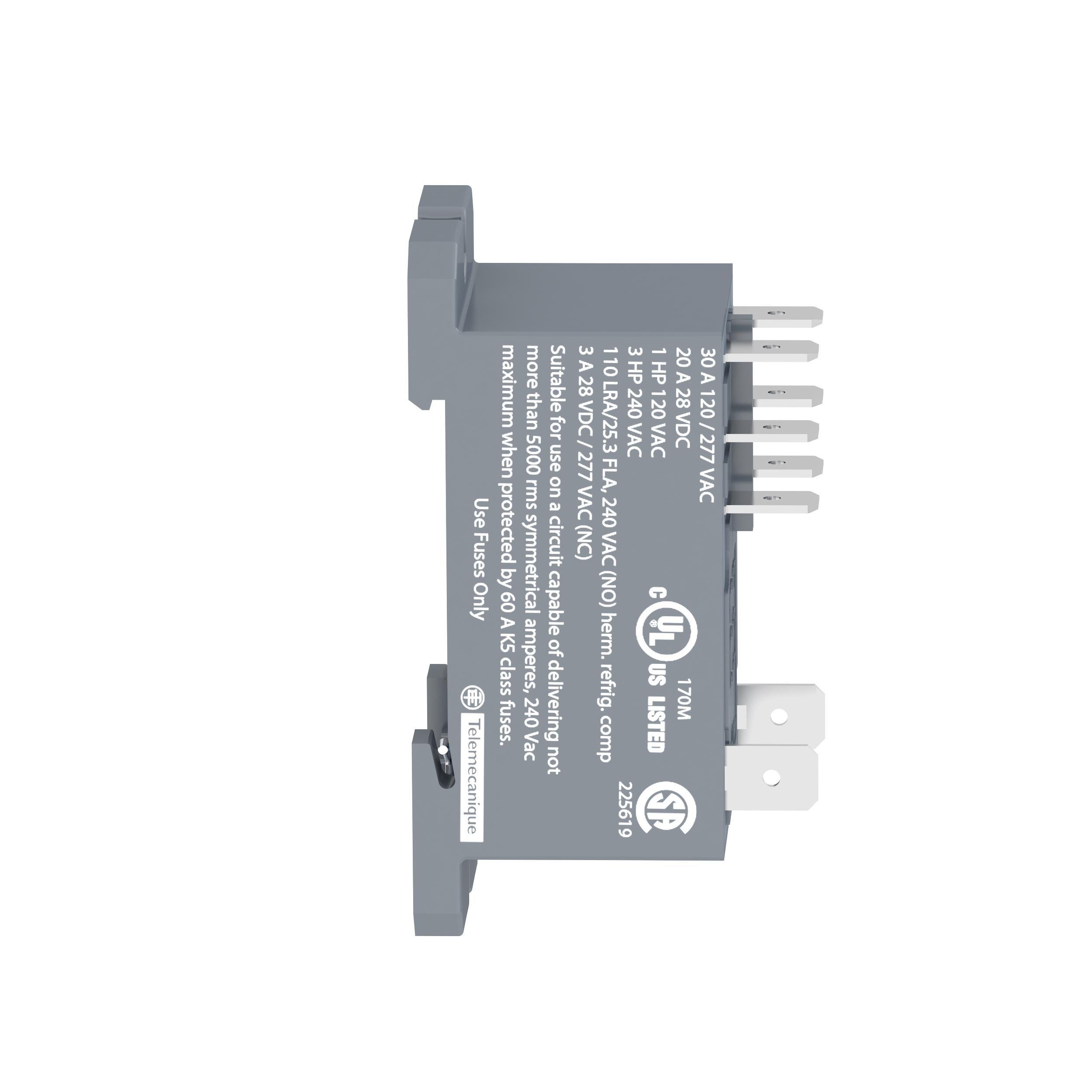

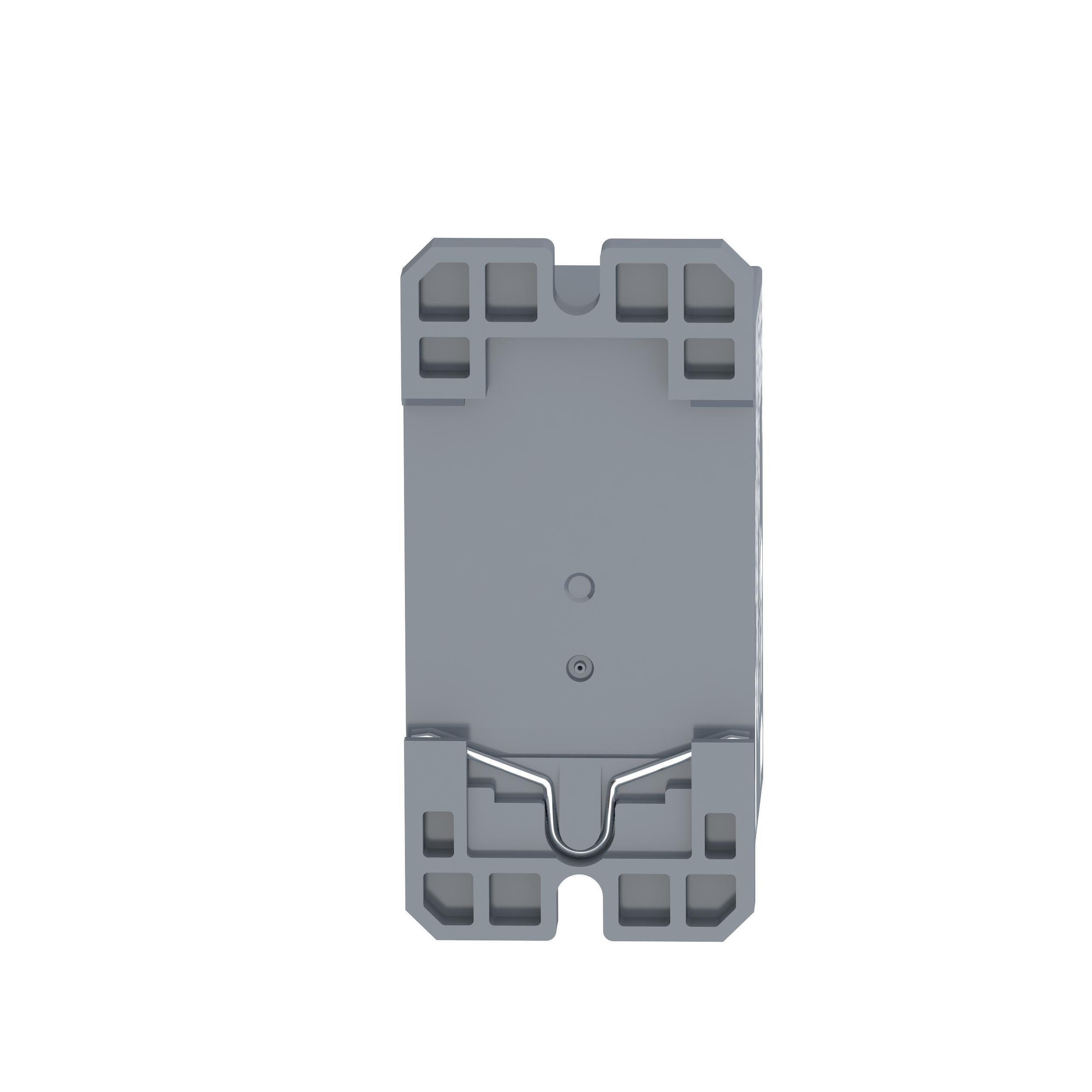

RPF2BF7 - power relay, Harmony electromechanical relays, DIN rail or panel mount relay, 30A, 2CO, 120V AC
Description
Specifications
0.2
1.31
2.67
Help to reduce the size of enclosures
Industrial Machines, Packaging Machines, Textile Machines, HVAC, Conveyance Lines, Food and Beverage, Automation Control Panels, Low/Medium Voltage Switchgear, Motor Controls, Compressor, Blower Controls and PLC Interfaces Applications
Schneider Electric
USA
CN
RELAY PWR 30A 1NO-1NC-DPDT 120VAC 4VA 2
Help to reduce the size of enclosures
Provides economical solution for the implementation of many switching functions
Flexible design for space-saving
Workablity for hard-wired logic automated systems to complement the functions of industrial PLCs
Schneider Electric
IN
2.6700
IN
1
0.2000
LB
1.3100
IN
https://www.youtube.com/embed/R9__kuMEA5U
Square D
GENERAL PURPOSE PLUG-IN RELAYS & ACCESSORIES
Amperage Rating
A
30
Power Rating
VA
4
Series
RPF
Temperature Rating
deg C
-40 To 55
Terminal Type
Faston/Flat Pin/Spade
Coil Voltage
V AC
120
Contact Form
1NO-1NC 1 Form A/1 Form B DPDT
Contact Rating
25 A at 28 V DC, 30 A at 250 V AC
Dimensions
1.33 in W x 2.7 in H x 1.54 in D
Enclosure Type
IP40
Frequency Rating
HZ
60
Mounting Type
DIN Rail/Flange/Panel/Plug-In
Number Of Poles
2
