Schneider Electric

RPM11B7 - plug-in relay, Harmony electromechanical relays, 15A, 1CO, lockable test button, 24V AC

Category General Purpose Plug-In Relays & Accessories

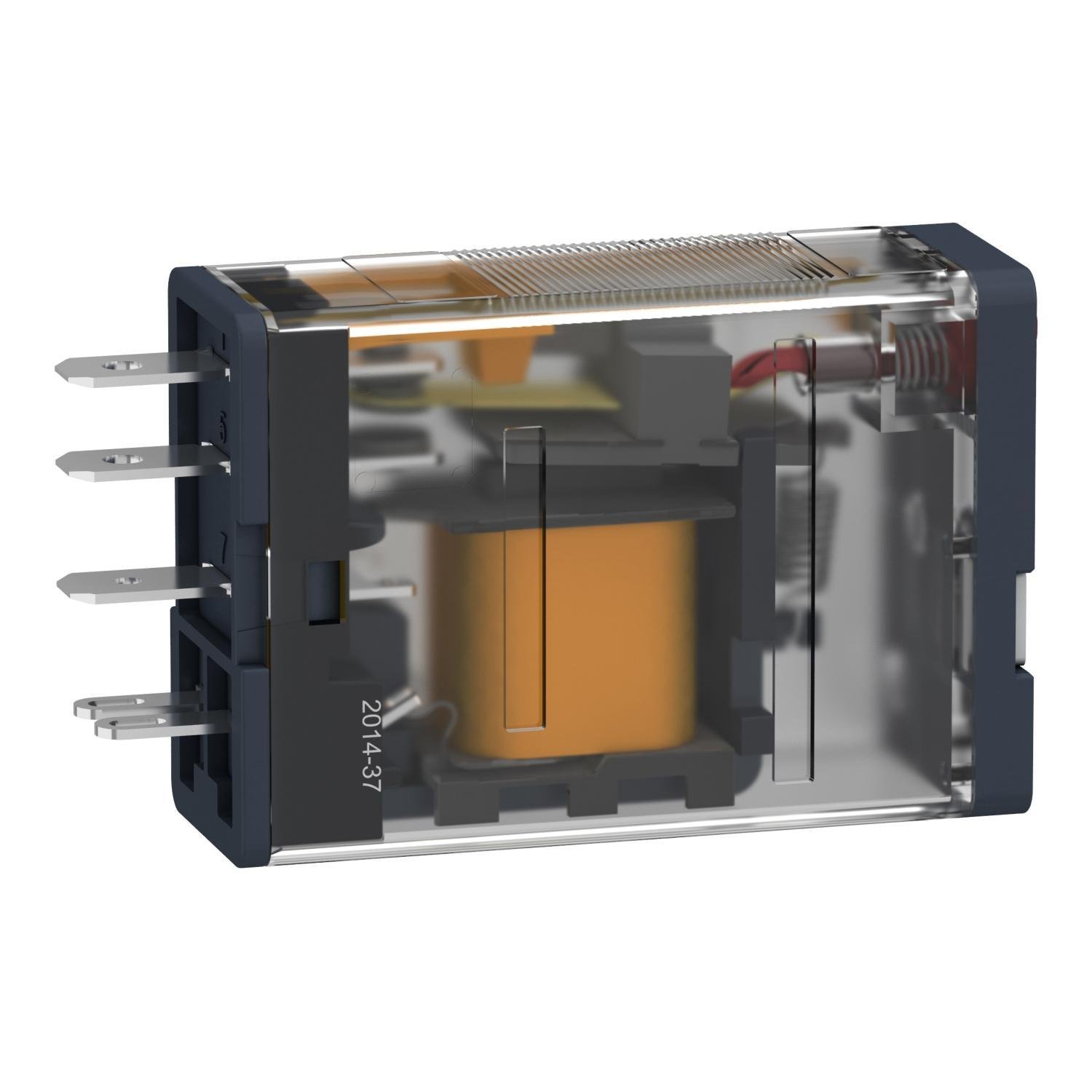

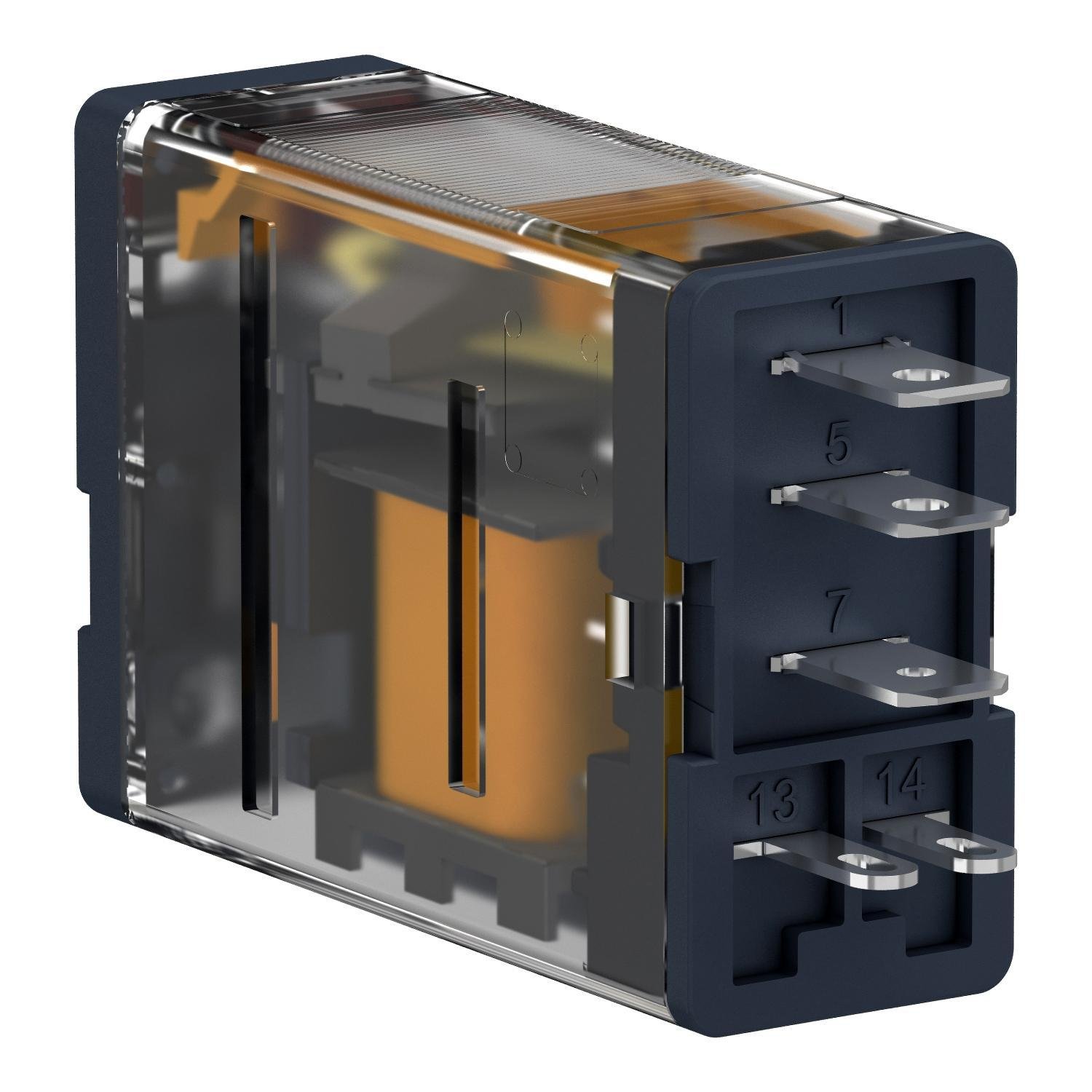

Picture of RPM11B7 - plug-in relay, Harmony electromechanical relays, 15A, 1CO, lockable test button, 24V AC Picture of RPM11B7 - plug-in relay, Harmony electromechanical relays, 15A, 1CO, lockable test button, 24V AC
Picture of RPM11B7 - plug-in relay, Harmony electromechanical relays, 15A, 1CO, lockable test button, 24V AC Picture of RPM11B7 - plug-in relay, Harmony electromechanical relays, 15A, 1CO, lockable test button, 24V AC
Picture of RPM11B7 - plug-in relay, Harmony electromechanical relays, 15A, 1CO, lockable test button, 24V AC Picture of RPM11B7 - plug-in relay, Harmony electromechanical relays, 15A, 1CO, lockable test button, 24V AC
Picture of RPM11B7 - plug-in relay, Harmony electromechanical relays, 15A, 1CO, lockable test button, 24V AC Picture of RPM11B7 - plug-in relay, Harmony electromechanical relays, 15A, 1CO, lockable test button, 24V AC
Schneider Electric

RPM11B7 - plug-in relay, Harmony electromechanical relays, 15A, 1CO, lockable test button, 24V AC

Item Code: 810836
Category General Purpose Plug-In Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref RPM11B7

Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

This Harmony RPM power plug-in relay has a coil control voltage of 24V AC and has 1 changeover contact SPDT (single pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It helps to reduce the size

Specifications

Weight

0.05

Width

0.97

Length

1.95

AD All Features

High performance ensuring machine and system availability

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

CN

AD Invoice Description

RELAY PWR 15A 1NO-1NC 24VAC 3750VA 60HZ

AD Item Features 01

High performance ensuring machine and system availability

AD Item Features 02

Pre-assembled to simplify selection and installation

AD Item Features 03

Simplicity of use with test button and visual indicators

AD Item Features 04

Mechanical durability of 10 million cycles

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

1.9500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.0500

AD Package Weight UOM

LB

AD Package Width

0.9700

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/W6W-90ovcos

Brand

Square D

Category

GENERAL PURPOSE PLUG-IN RELAYS & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

15

Spec 10 Attribute

Series

Spec 10 Attribute Value

RPM

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

-40 To 55

Spec 12 Attribute

Terminal Type

Spec 12 Attribute Value

Faston/Flat Pin/Spade

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

24

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

1NO-1NC 1 Form A/1 Form B

Spec 4 Attribute

Contact Rating

Spec 4 Attribute Value

15 A at 277 V AC/15 A at 28 V DC

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

40 mm W x 14 mm D x 27 mm H

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

IP40

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

HZ

Spec 7 Attribute Value

60

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Plug-In/Socket

Spec 9 Attribute

Power Rating

Spec 9 Attribute UOM

VA

Spec 9 Attribute Value

3750
